Description

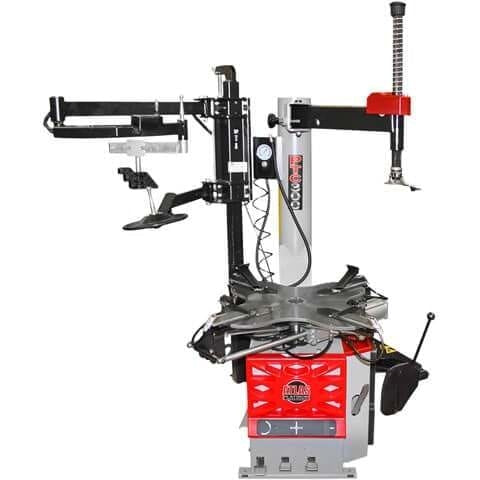

-The Atlas® Platinum PTC300 represents the evolution of the most familiar tire changer configuration found in high volume tire shops around the world. The PTC300 is an Italian engineered Swing-Arm Tire Changer that comes standard with a Left-Hand Bead Pressing and Bead Lifting Assist Arm to make changing the most challenging tires a breeze.
The PTC300 boasts a 26-inch clamping capability, high torque 110V electric turntable, anodized aluminum bead breaker cylinder, integrated bead blast system, and a 2-year warranty. The Atlas® Platinum range of wheel service equipment incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price point.
The Atlas® PTC300 requires some assembly after purchase.
Features
-- Platinum Rim Clamp/Swing Arm Tire Changer

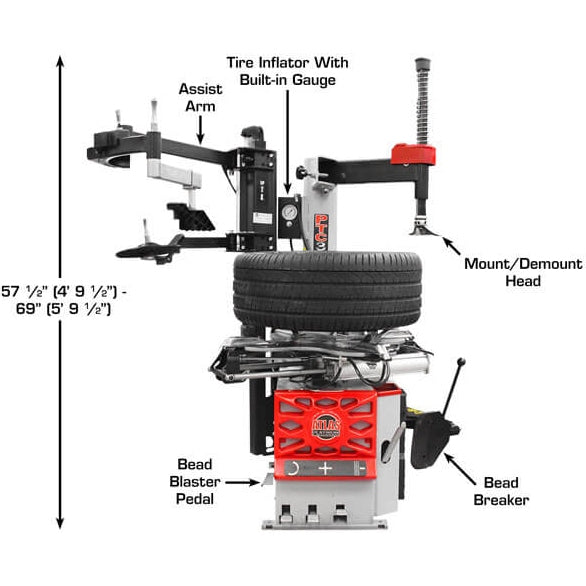

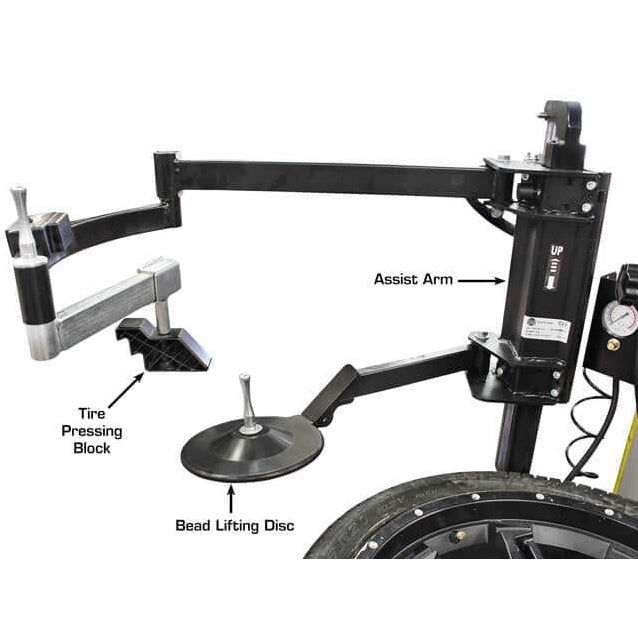

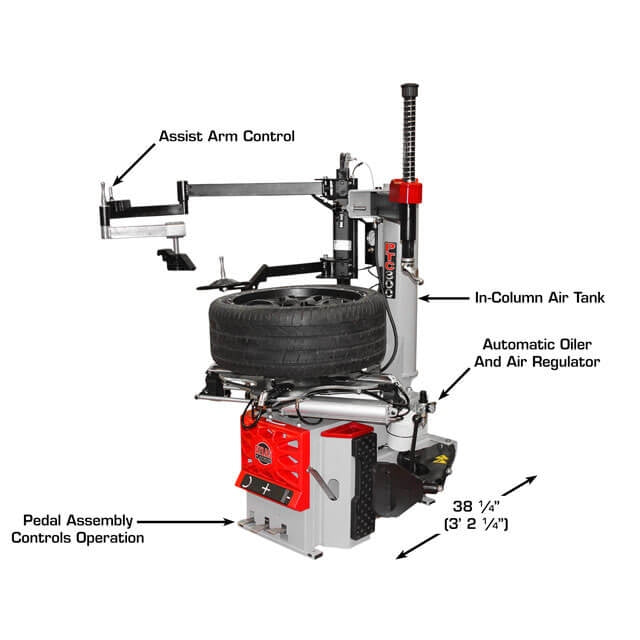

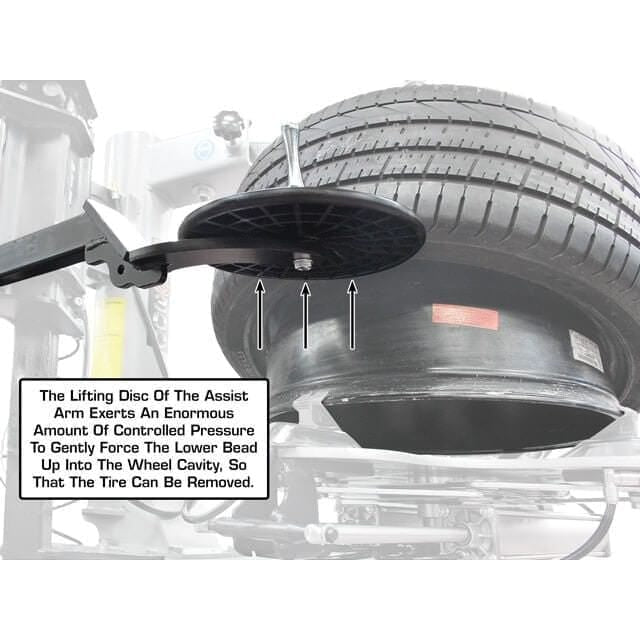

- Left Hand Assist Arm Included
- Extra-Large Star-Shaped Turntable
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable

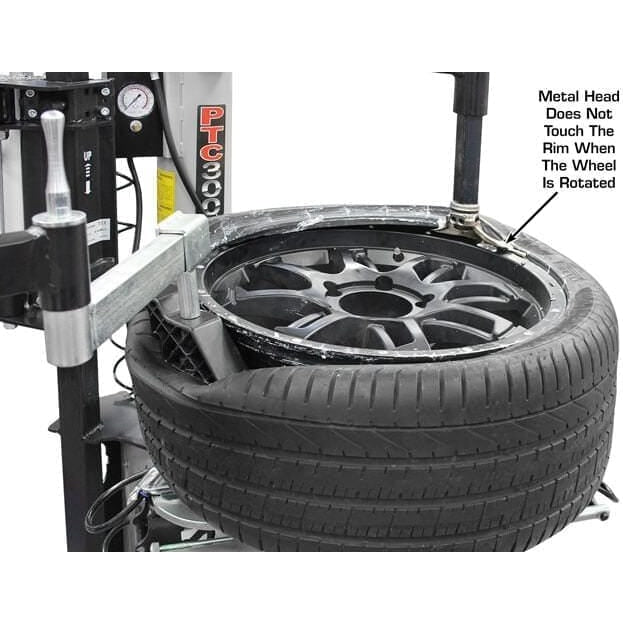

- Metal mount/demount head w/ replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included

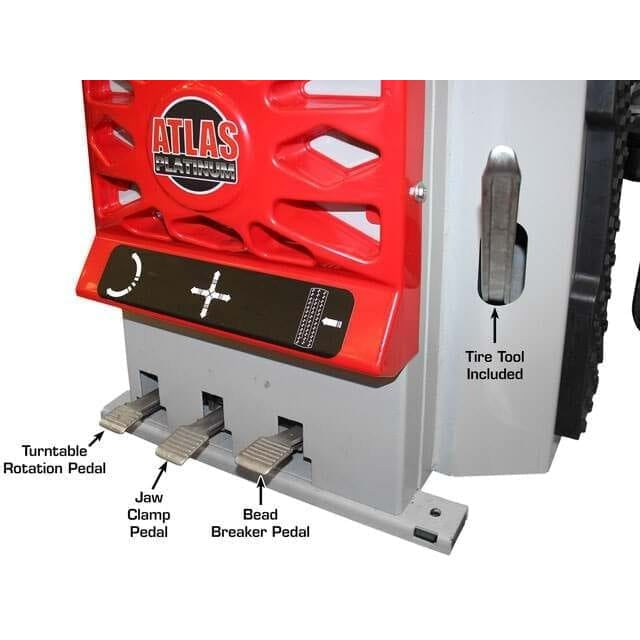

- Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included

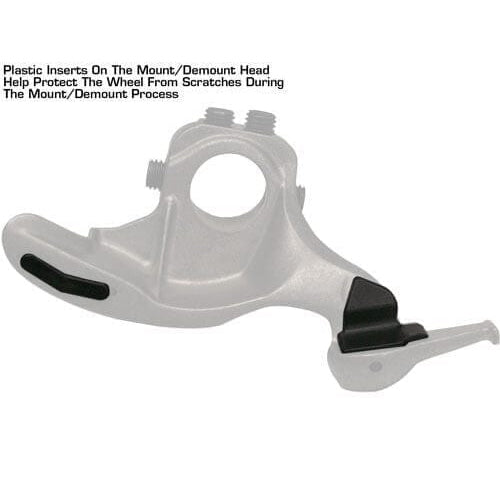

- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”
- Replacement Parts & Wear Items Always in Stock
- 2 Year Parts Only Warranty
Specifications
-Atlas® Platinum PTC300 Specifications | |
Rims | Steel, Aluminum, Alloy |

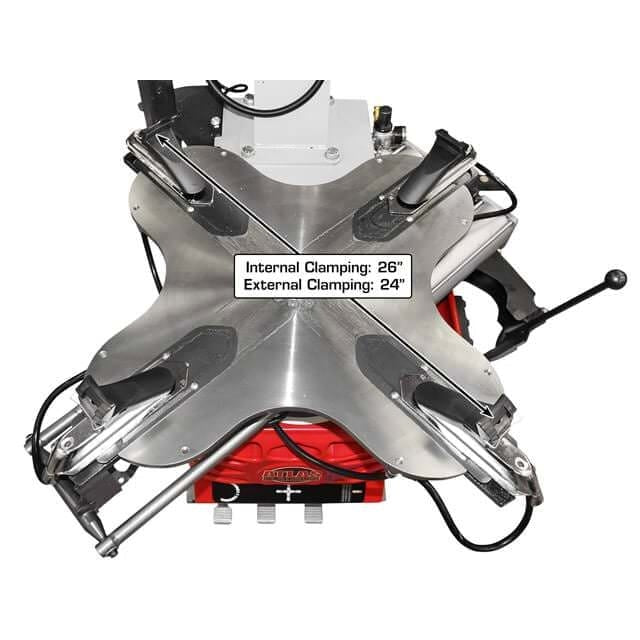

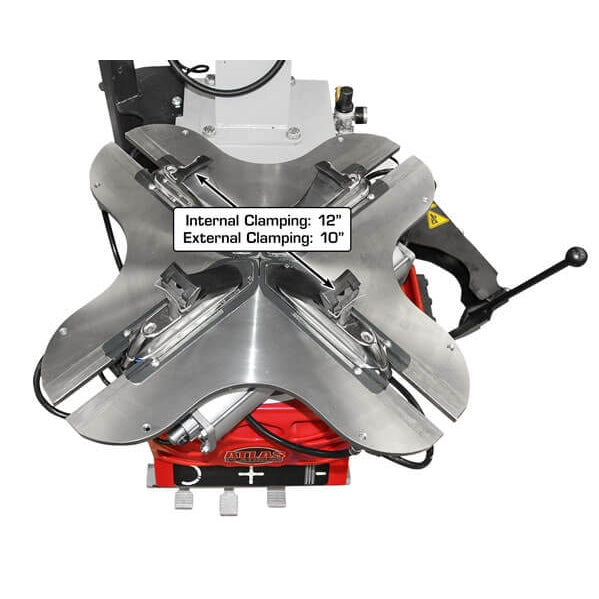

External Locking Rim Dimension |
10" - 24" |
Internal Locking Rim Dimension |
12" - 26" |
Maximum Tire Diameter | 43" |
Maximum Wheel Width (Bead Breaker) | 15" |
Turntable Rotating Speed | 7 RPM |

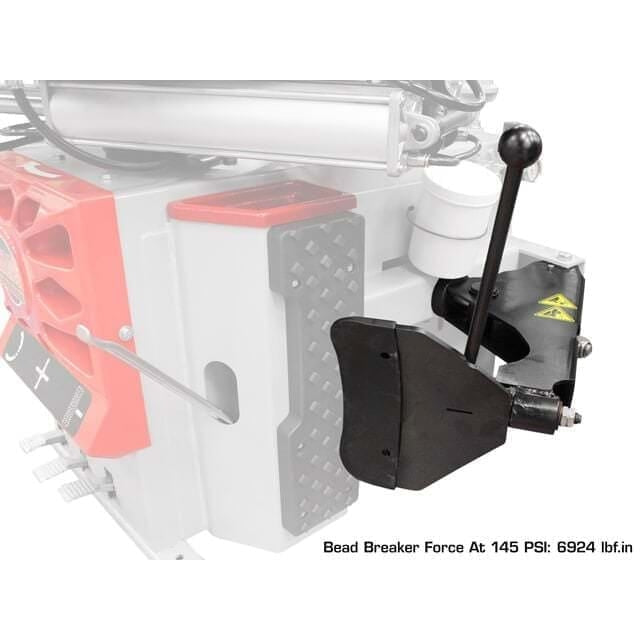

Bead Breaker | 6,924 LB. Force |
Air Requirement | 120-145 PSI |
Operating Voltage | 110volt |

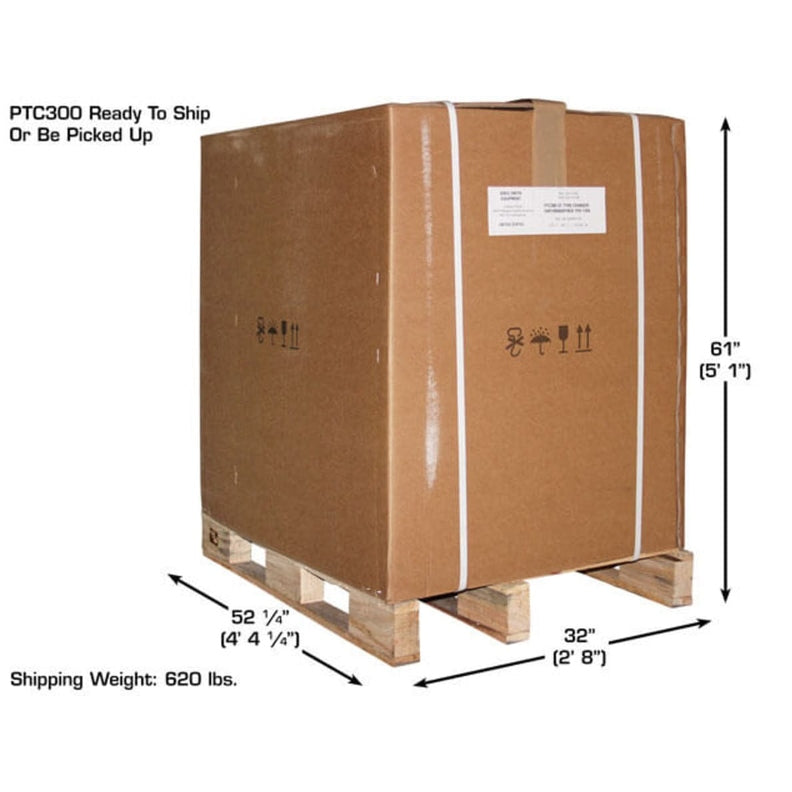

Shipping Weight | 620 lbs. |
Documents
-Atlas® Platinum PTC300 Manual
Atlas® Platinum PTC300 Parts List
