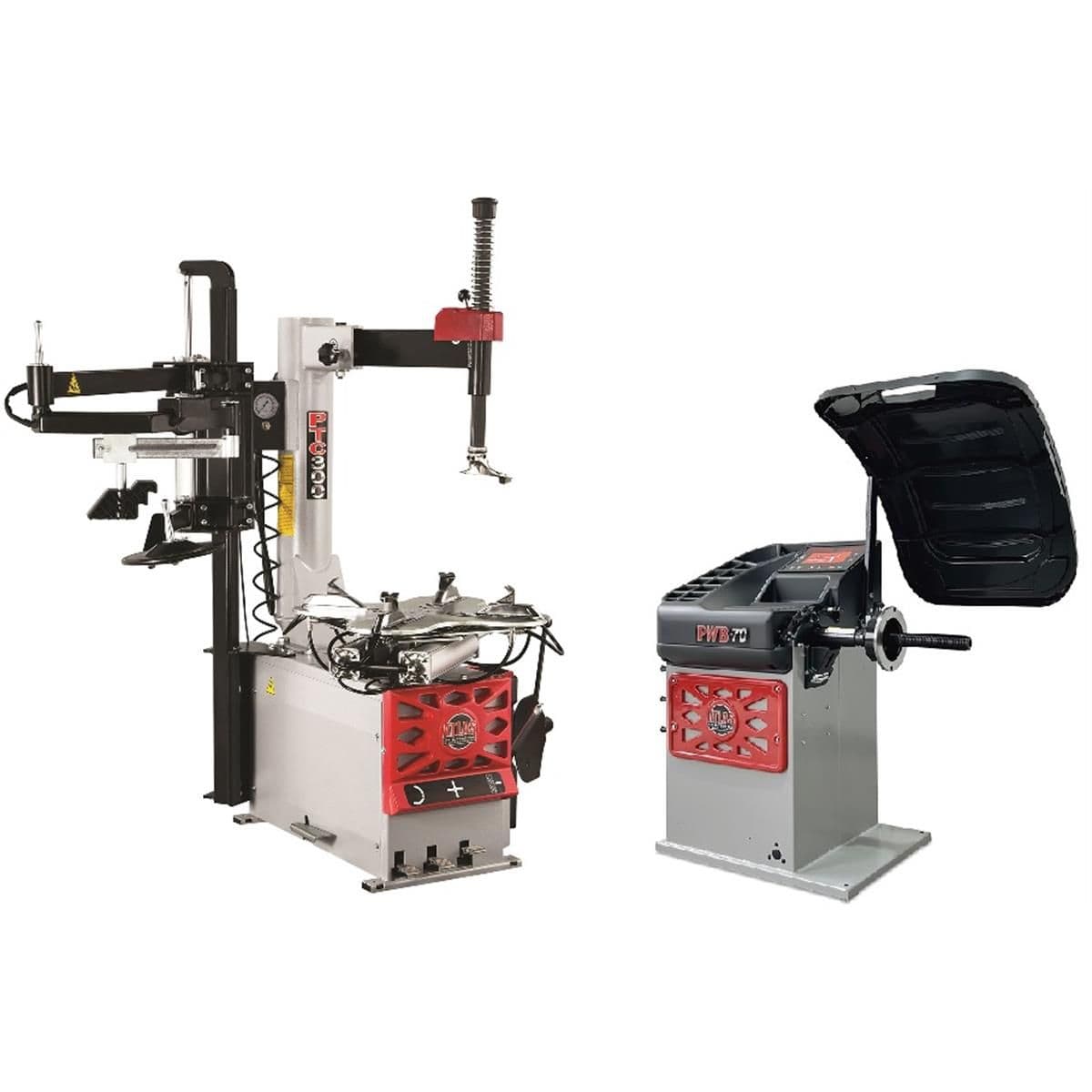

Atlas Platinum PTC300 Swing-Arm Tire Changer + PWB70 Spin Wheel Balancer Combo Package

The Atlas® Platinum PTC300 swing-arm tire changer paired with the PWB70 spin wheel balancer equips a high-volume bay with one combined purchase: the PTC300 mounts and demounts up to 26" internal rim clamping and 43" max tire diameter, and the PWB70 balances rims from 10" to 30" with 1-gram accuracy in roughly seven seconds per cycle. Both machines run on 110V single-phase service and both carry a 2-year parts-only warranty.

The PTC300 is the high-volume evolution of Atlas's swing-arm configuration. It comes standard with a left-hand bead-pressing and bead-lifting assist arm for run-flats and stiff sidewalls, an anodized aluminum bead-breaker cylinder, an extra-large star-shaped turntable, an integrated bead-blast inflator, and a column-mounted inflator gauge. Air-operated jaws and bead breaker require an external air supply at 120–145 PSI. Some assembly is required after delivery.

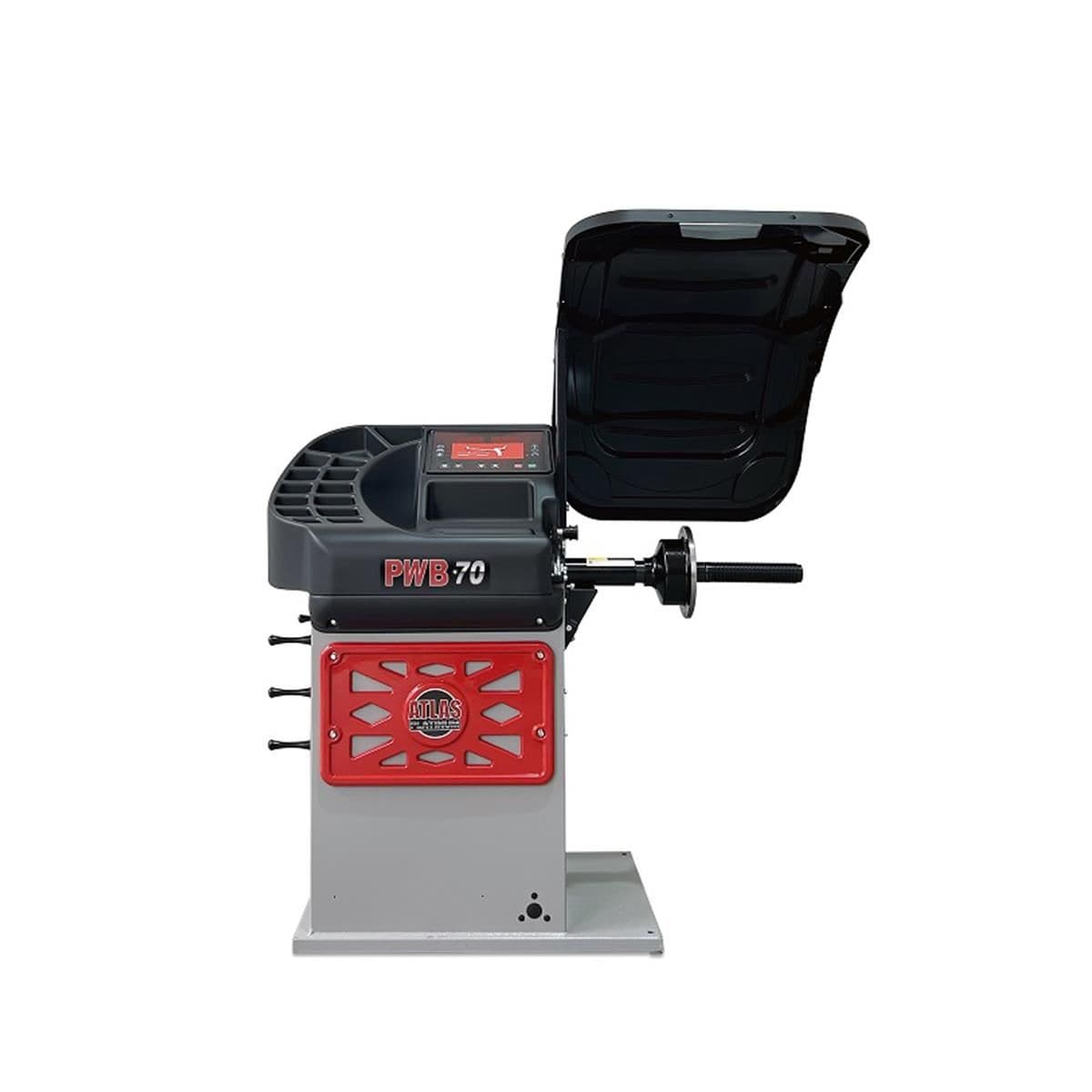

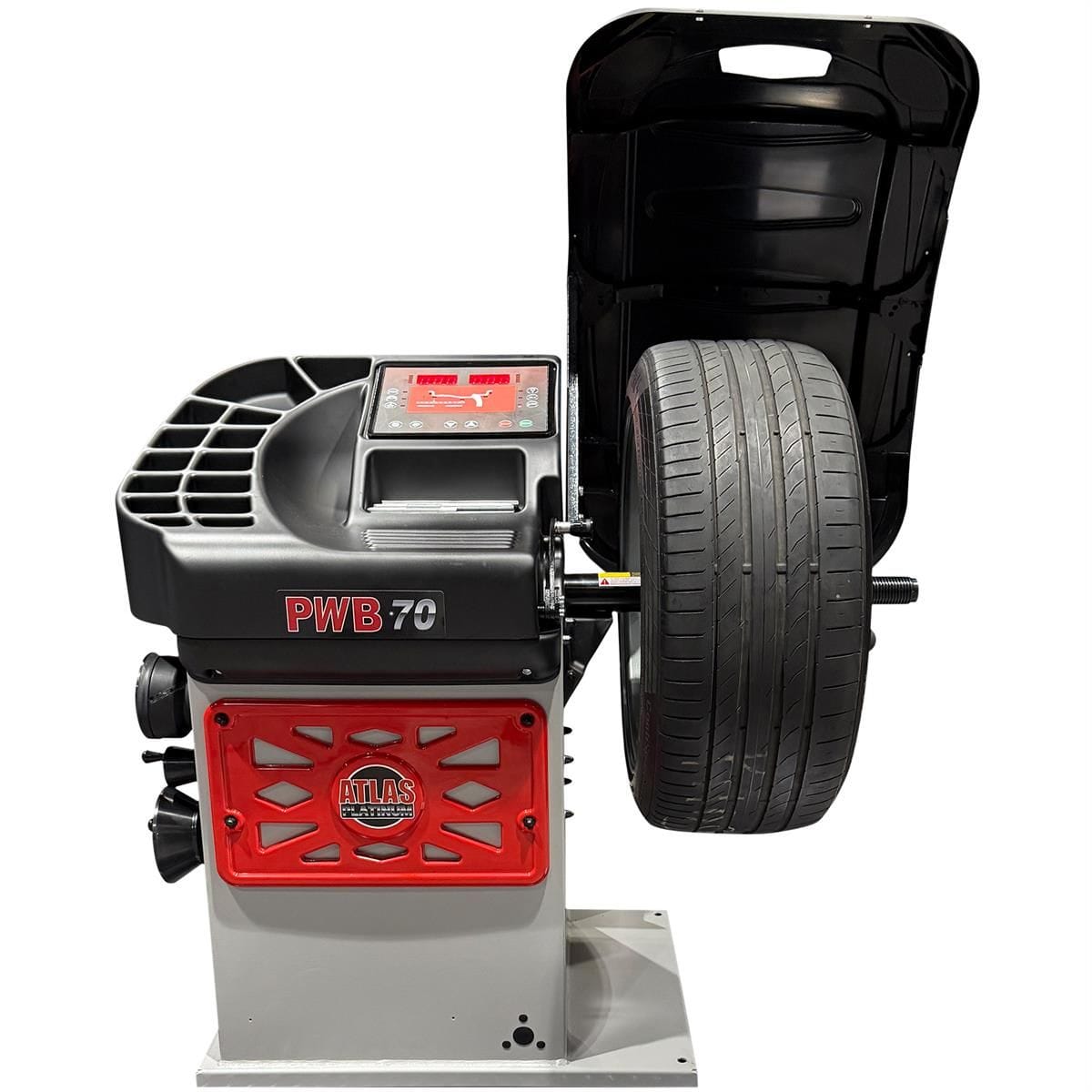

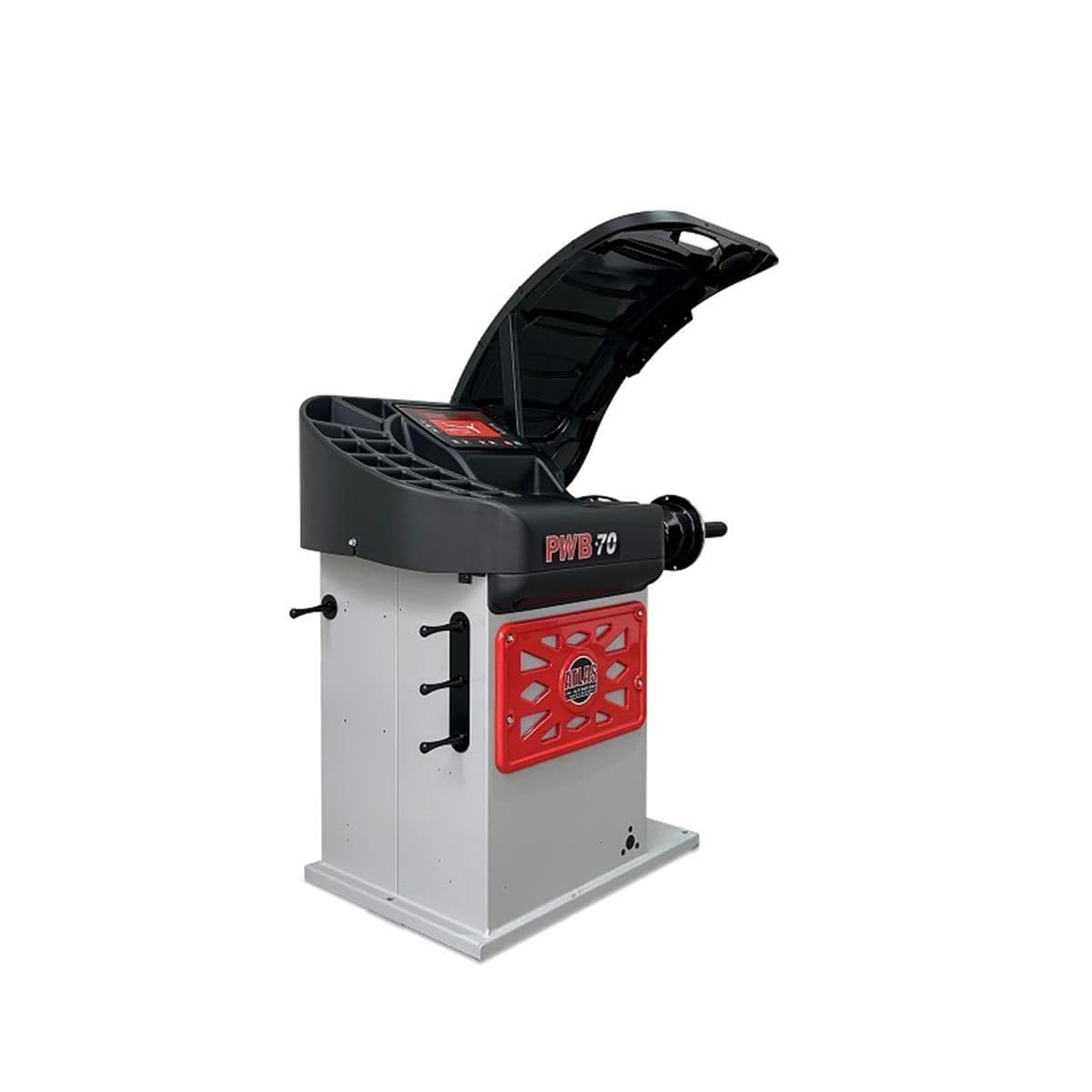

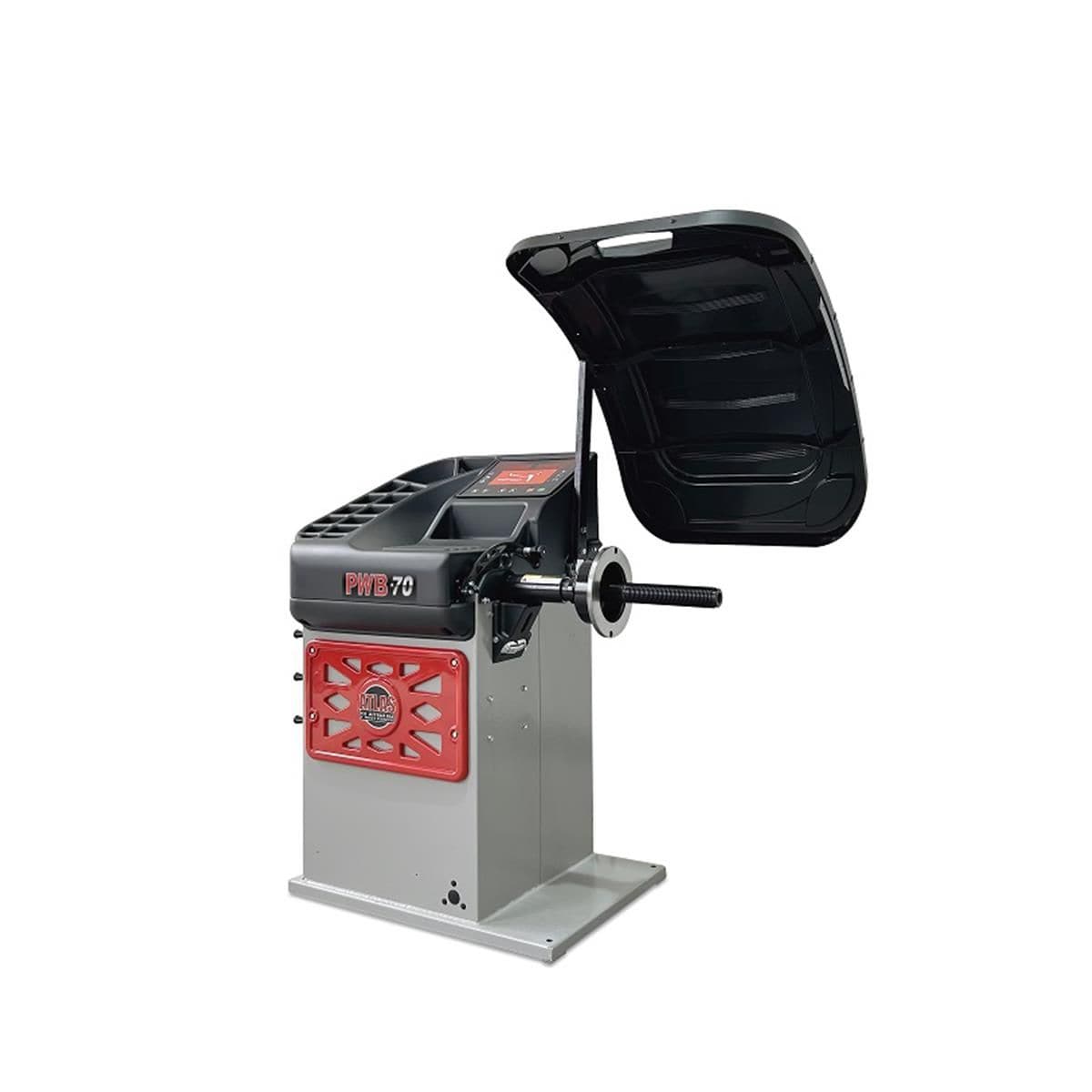

The PWB70 is the larger-tray, larger-hood update to Atlas's PWB50. It adds an LED interior light and a laser line that projects exact weight placement onto the rim, plus computer-controlled spin balancing, automatic 2D data entry, and a hood that auto-starts and auto-stops as it raises and lowers. Static, dynamic, ALU, and ALU-S balancing modes are standard, along with Optimatch (match mounting), FES (fast easy split, for hiding adhesive weights behind spokes), OPF (opposite position function), and an NWN no-wheel-needed system. Self-diagnosing, self-calibrating, and no anchor-down installation required.

Italian-engineered components throughout. The Atlas Platinum range is designed to deliver the best value at its price point in the wheel-service category.

Logistics: ships via freight. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck. PTC300 ships at 620 lbs; PWB70 ships at 280 lbs.

Atlas Platinum PTC300 Tire Changer

• Platinum rim-clamp / swing-arm tire changer design
• Left-hand assist arm with bead-pressing and bead-lifting disk
• Extra-large star-shaped turntable
• Air-operated jaws and bead breaker (external air supply required)
• 110V electric turntable
• Metal mount/demount head with replaceable plastic inserts
• Column-mounted inflator box with gauge
• Built-in beadblaster system
• Integrated filter/regulator/lubricator
• Includes tire tool, lube bucket with brush, jaw covers, and plastic bead-breaker shovel cover
• 2-year parts-only warranty

Atlas Platinum PWB70 Wheel Balancer

• Computer-controlled motorized spin balancer
• Electric brake with smart-approach function
• Large wheel weight tray and oversized hood
• Hood auto-start and auto-stop with raise/lower
• Static, dynamic, ALU, and ALU-S balancing modes
• Optimatch match-mounting, FES split, and OPF opposite-position functions
• Automatic 2D data entry via single data-entry gauge
• NWN (no-wheel-needed) system
• Self-diagnosing and self-calibrating
• Display reads in grams or ounces, standard or metric
• Laser line for weight-placement guidance
• LED light illuminates wheel interior
• USB hub for firmware updates
• No anchor-down installation required
• Includes cones, quick-release nut, pliers, and calipers
• 2-year parts-only warranty

• PTC300 Tire Changer Product Manual

PWB70 wheel balancer manual available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
