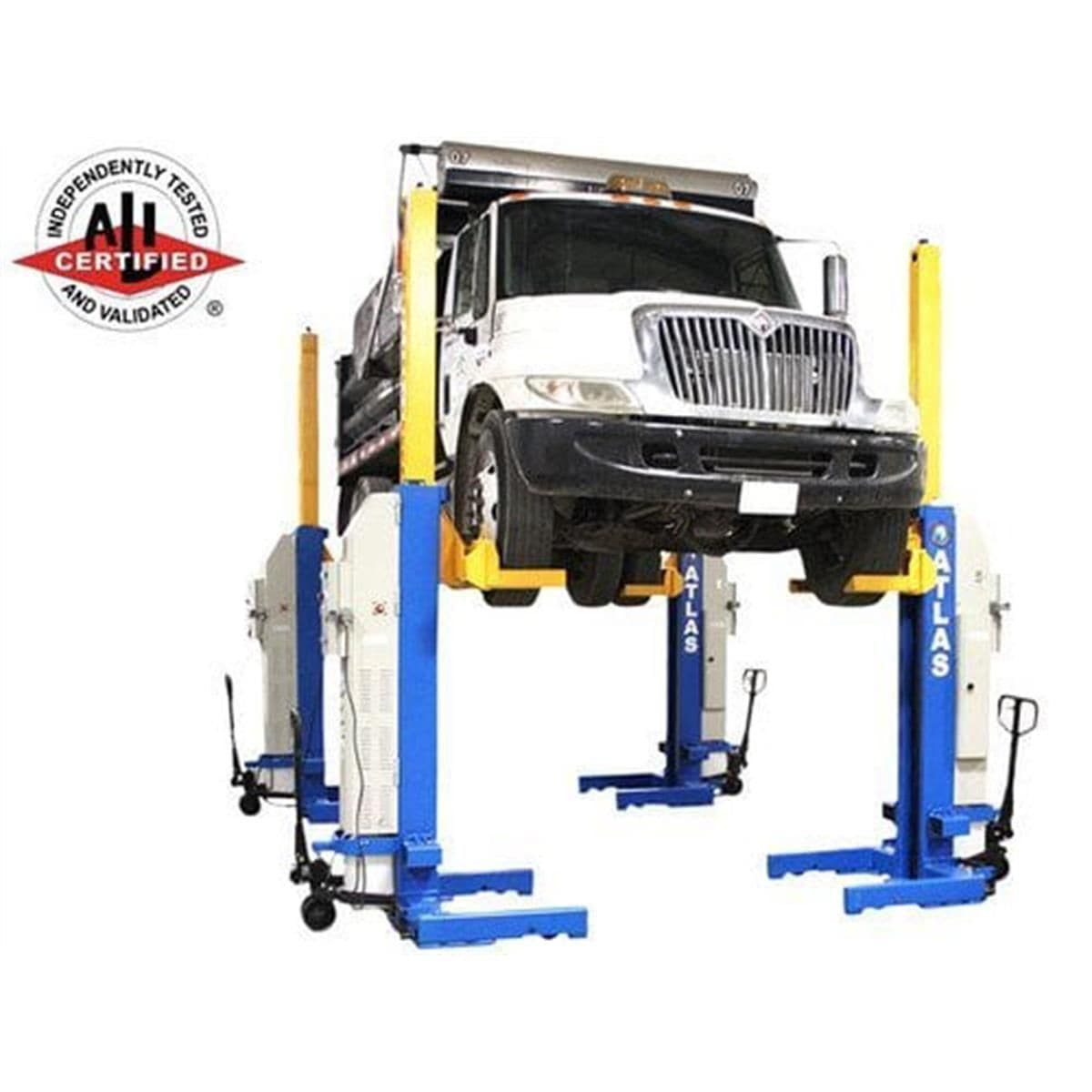

The Atlas Maxima ML-4034BC is an ALI Certified battery-powered mobile column lift system rated at 74,000 lb total capacity across four columns — 18,500 lb per column. Each column rolls on a built-in hydraulic pallet jack, runs on a pair of rechargeable 24V batteries, and synchronizes electronically with the rest of the set, so a heavy truck or bus can be lifted in a bay that doesn’t have a permanent in-ground or two-post lift.

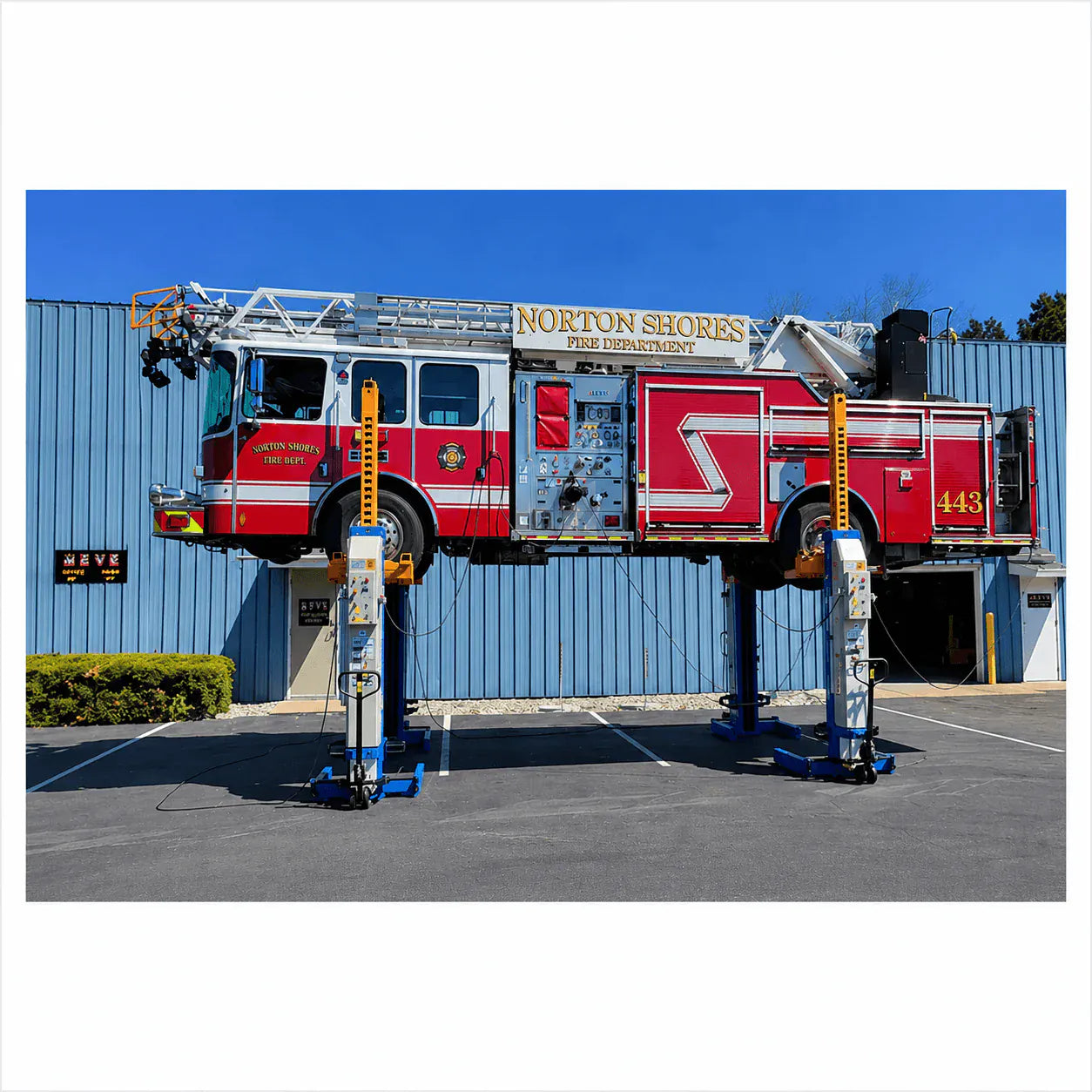

Battery power lasts 10–20 lifts per charge depending on load, recharged from a standard 110V single-phase outlet. The columns can be moved outside the shop and used on any level concrete surface with a minimum thickness of six inches, which makes the system viable for fleet yards, fire stations, and outdoor service pads, not only fixed bays.
Built-in hydraulic pallet jack moves each column on level concrete.

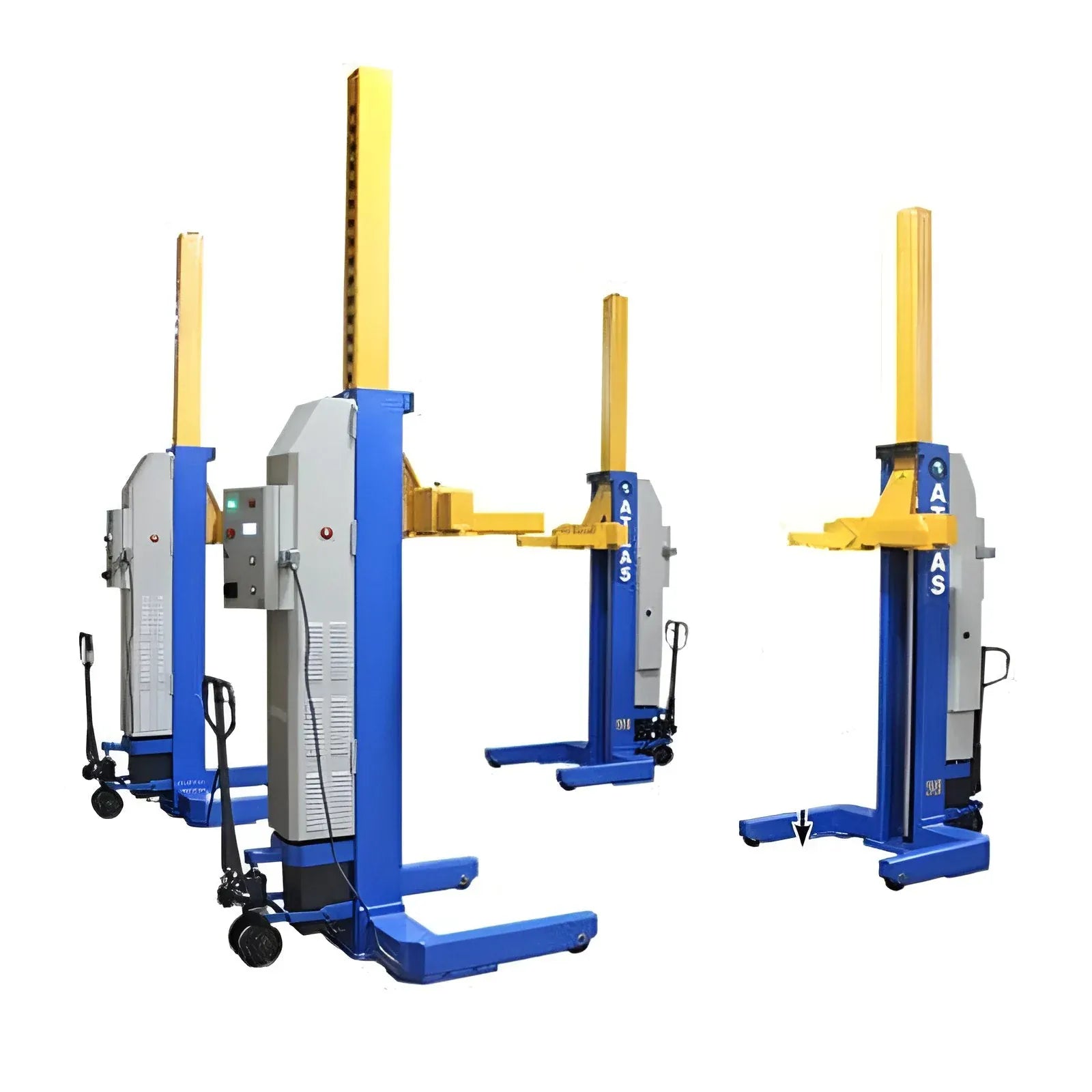

Expandable in pairs
Buy four columns now and add more as the fleet grows. The base set can be expanded to six columns (111,000 lb capacity) or eight columns (148,000 lb capacity) using the same control electronics. Four 32-foot column connecting cables ship with the four-column set.

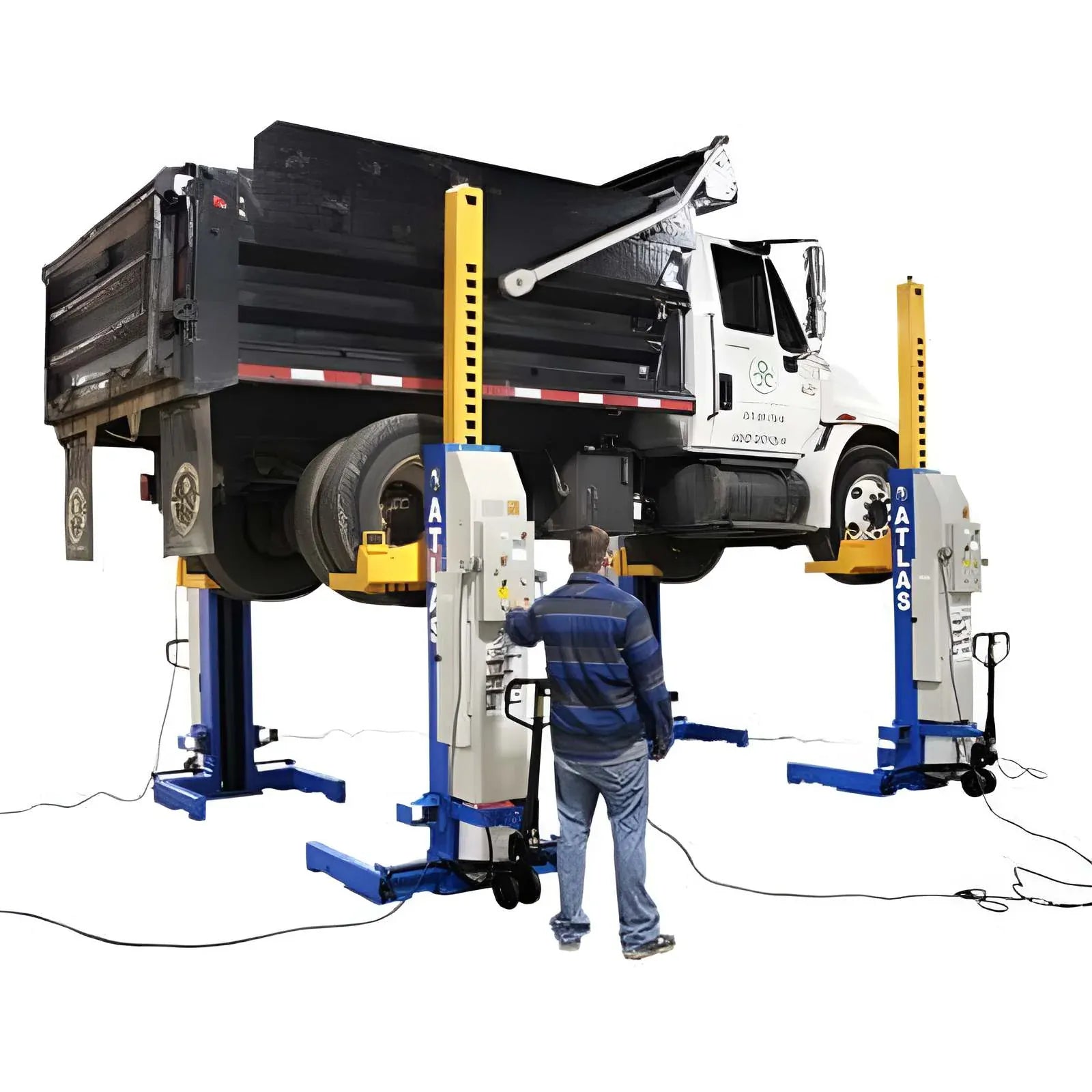

Operator controls
Each column has its own LCD screen showing exact lifting height, an emergency stop, single/pair/all operating modes, and double safety from both hydraulic flow control and mechanical locks. The control panel is the same on every column — any operator can run the system from any position.
Tire-fork compatibility
Adjustable forks accommodate tire diameters from 19 inches at the small end to 44 inches at the large end, covering light-duty trucks through commercial trucks and buses. Optional Maxima tripod support stands are available separately for wheel service and prolonged off-load support.
Certification and logistics
Certified by the Automotive Lift Institute to ANSI/ALI ALCTV-2011 and MET-listed to ANSI/UL 201 and CAN/CSA C22.2 No. 68. Backed by Atlas’s 2-year limited warranty. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53’ truck. This product drop ships from the manufacturer.
ALI Certified to ANSI/ALI ALCTV-2011; MET listed.
Features
+-
ALI Certified to ANSI/ALI ALCTV-2011
MET listed to ANSI/UL 201 and CAN/CSA C22.2 No. 68
18,500 lb lifting capacity per column; 74,000 lb total for the four-column set
Expandable to 6-column (111,000 lb) or 8-column (148,000 lb) configurations
2.2 kW 24V DC motor with two rechargeable batteries per column
110V single-phase recharge cord; 10–20 lifts per battery charge
Built-in hydraulic pallet jack on every column for one-person repositioning
Electronic synchronization across all columns with single, pair, and all-column modes
LCD display per column shows exact lifting height
Emergency stop button on every column
Double safety: hydraulic flow control plus mechanical locks
Adjustable forks fit tire diameters from 19" to 44"
Four 32’ column connecting cables included
2-year limited warranty
Specifications
+-
Atlas Maxima ML-4034BC Specifications
Capacity per column
18,500 lb
Total set capacity (4 columns)
74,000 lb
Expanded capacity (6 columns)
111,000 lb
Expanded capacity (8 columns)
148,000 lb
Motor
2.2 kW 24V DC, two batteries per column
Charger input
110V single-phase
Max lifting height
67" (5' 7")
Overall height
145" (12' 1")
Resting height
88 1/2" (7' 4 1/2")
Width per column
43 1/2" (3' 7 1/2")
Length per column
55 1/2" (4' 7 1/2")
Column carriage width
13 1/4"
Min tire diameter
19"
Max tire diameter
44"
Connecting cables
Four 32' cables included
Shipping weight per column
1,700 lb
Shipping weight (four columns)
6,800 lb
Shipping dimensions per column
49"L x 47"W x 89"H
Certification
ALI Certified (ANSI/ALI ALCTV-2011); MET listed
Warranty
2-year limited
Concrete must be level and a minimum of 6" thick. Drop ships from the manufacturer; delivery location must accommodate a 53' truck.
