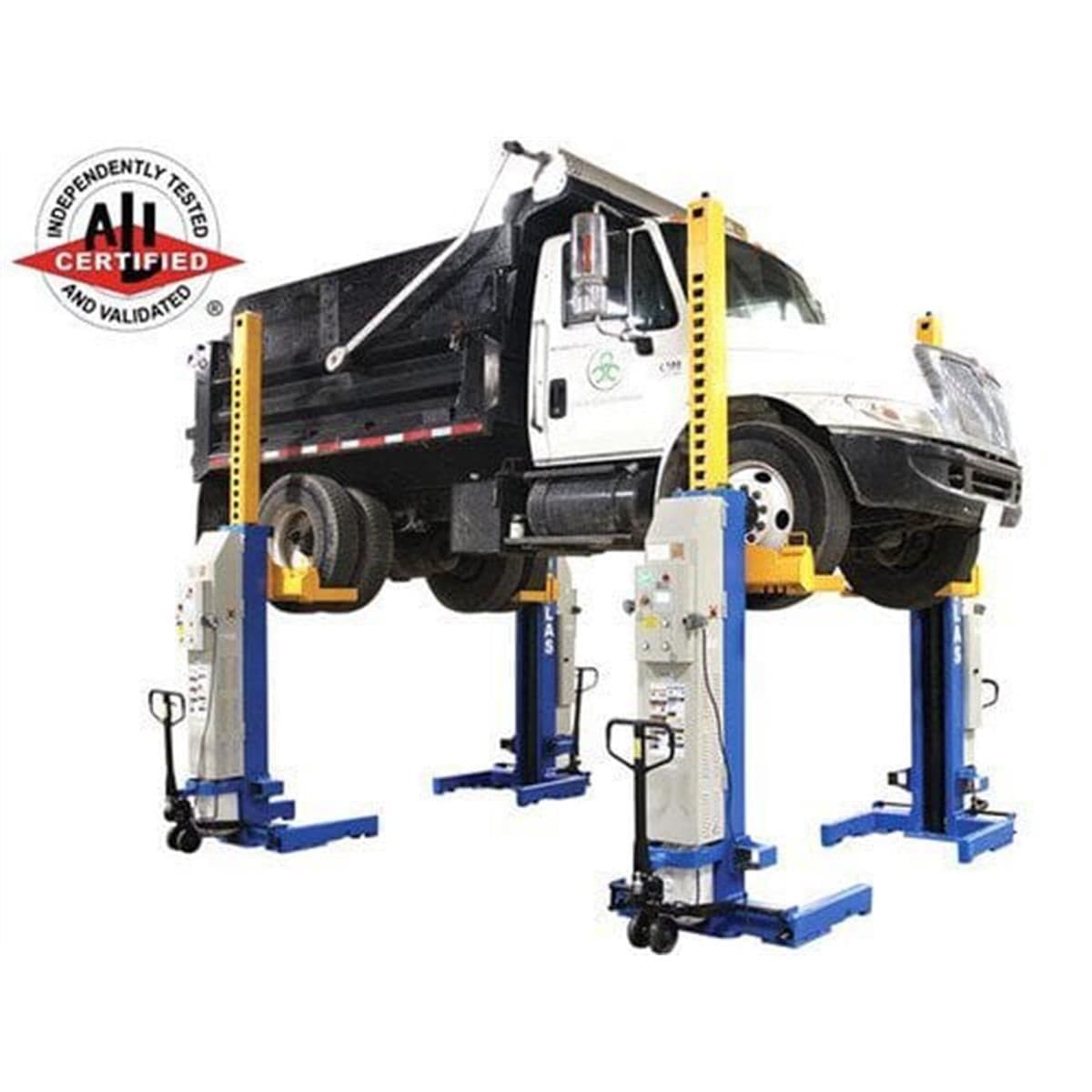

The Atlas Maxima ML-4030BC is a four-column battery-powered mobile column lift system rated 66,000 lb total capacity — 16,500 lb per column — built for shops that need to raise heavier trucks, buses, and commercial vehicles without surrendering bay space to a permanent in-ground or four-post lift. Each column is independently mobile via a built-in hydraulic pallet jack and runs on its own pair of rechargeable batteries, so the four columns roll into position around the vehicle, lift in synchronization, and roll back out of the way when the job is done.
This is the ALI Certified Maxima configuration, validated to ANSI/ALI ALCTV-2011 by the Automotive Lift Institute and MET Listed to ANSI/UL 201 — the same certification commercial fleets and government repair facilities specify on bid sheets. The 4-column kit shipped here is also the base configuration for an expandable platform: add two more columns for a 6-column / 99,000 lb system, or four more for an 8-column / 132,000 lb system, when fleet work calls for tandem-axle support or longer wheelbases.
Each column carries its own LCD display, emergency stop, and Single / Pair / All operating mode selector.
Synchronization is electronic. A selector on each column lets the operator drive that column individually, drive a paired column, or drive all four together. The LCD on each column reads the live lifting height, so the operator can verify level across the set before transferring full load. Lift integrity is double-redundant: hydraulic flow control governs cylinder speed under load, and mechanical locks engage at the lift point so the vehicle is held even if hydraulic pressure is lost. An emergency stop button on every column halts the system from anywhere on the perimeter.
Built-in hydraulic pallet jack — one operator repositions a column on a level concrete floor.

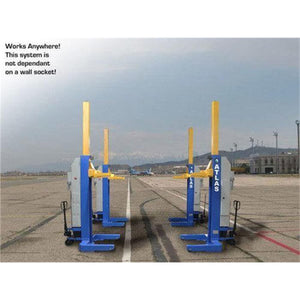

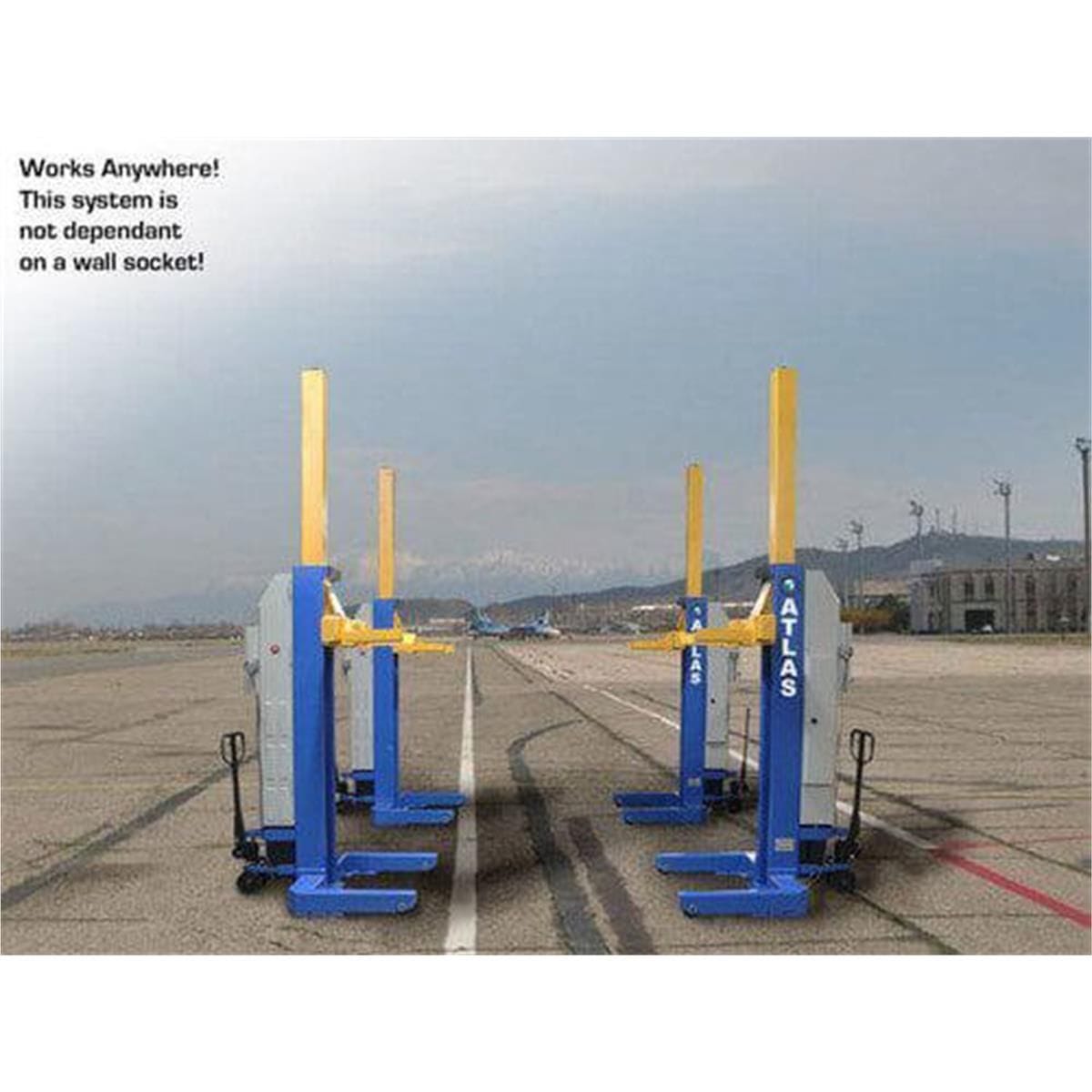

Each column moves on a built-in hydraulic pallet jack, so a single operator can wheel a 1,600-lb column into place on any level concrete surface that meets the 6-inch minimum thickness. Because the system runs on DC battery power, the floor doesn't have to be near a wall outlet — the columns can even operate outside on a level concrete pad. Recharging is via a standard 110V single-phase cord, and a full charge supports 10–20 lifts depending on load.
The forks adjust for tire diameters from 19" to 44", which covers light pickups through Class 8 tractors and most municipal and shuttle equipment. Each column carries a 2.2 kW 24V DC motor and two batteries; four 32-foot column connecting cables are included in the 4-column kit.
Master battery disconnect on each column.
Logistics
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck. Per-column shipping dimensions are 49" L x 47" W x 89" H at 1,600 lb each; the 4-column kit ships at approximately 6,400 lb total.
1 ALI Certified to ANSI/ALI ALCTV-2011 (Automotive Lift Institute, ANSI Accredited Certification Program No. 0584). MET Listed to ANSI/UL 201 and CAN/CSA C22.2 No. 68.
Features
+-
ALI Certified to ANSI/ALI ALCTV-2011 and MET Listed (ANSI/UL 201, CAN/CSA C22.2 No. 68)
66,000 lb total capacity (4 columns x 16,500 lb per column)
Expandable to 6 columns (99,000 lb) or 8 columns (132,000 lb)
Synchronized lifting with simultaneous operation across all columns
LCD screen on each column shows live lifting height
Single / Pair / All operating mode selector on every column
Double safety: hydraulic flow control plus mechanical locks at the load point
Emergency stop button on every column
Built-in hydraulic pallet jack on each column for one-operator repositioning
Adjustable forks for tire diameters from 19" to 44"
2.2 kW 24V DC motor with two rechargeable batteries per column
10–20 lifts per battery charge, depending on load; 110V single-phase recharge
Four 32' column connecting cables included
2-year limited warranty
ALI certification label fixed to the column — independently tested and validated.
Specifications
+-
Atlas Maxima ML-4030BC Specifications
Total system capacity (4 columns)
66,000 lb
Capacity per column
16,500 lb
Motor
2.2 kW 24V DC, two batteries per column
Battery charger input
110V single-phase
Battery life per charge
10–20 lifts (load dependent)
Maximum lifting height
67" (5' 7")
Overall height (extended)
145" (12' 1")
Resting height
88-1/2" (7' 4-1/2")
Column width
13-1/4"
Base width
43-1/2" (3' 7-1/2")
Base length
55-1/2" (4' 7-1/2")
Tire diameter range
19" – 44"
Connecting cables
Four 32' cables included
Warranty
2-year limited
Weight per column
1,600 lb
Shipping weight (4 columns)
6,400 lb
Shipping dimensions per column
49" L x 47" W x 89" H
Certification
ALI Certified (ANSI/ALI ALCTV-2011); MET Listed (ANSI/UL 201, CAN/CSA C22.2 No. 68)
