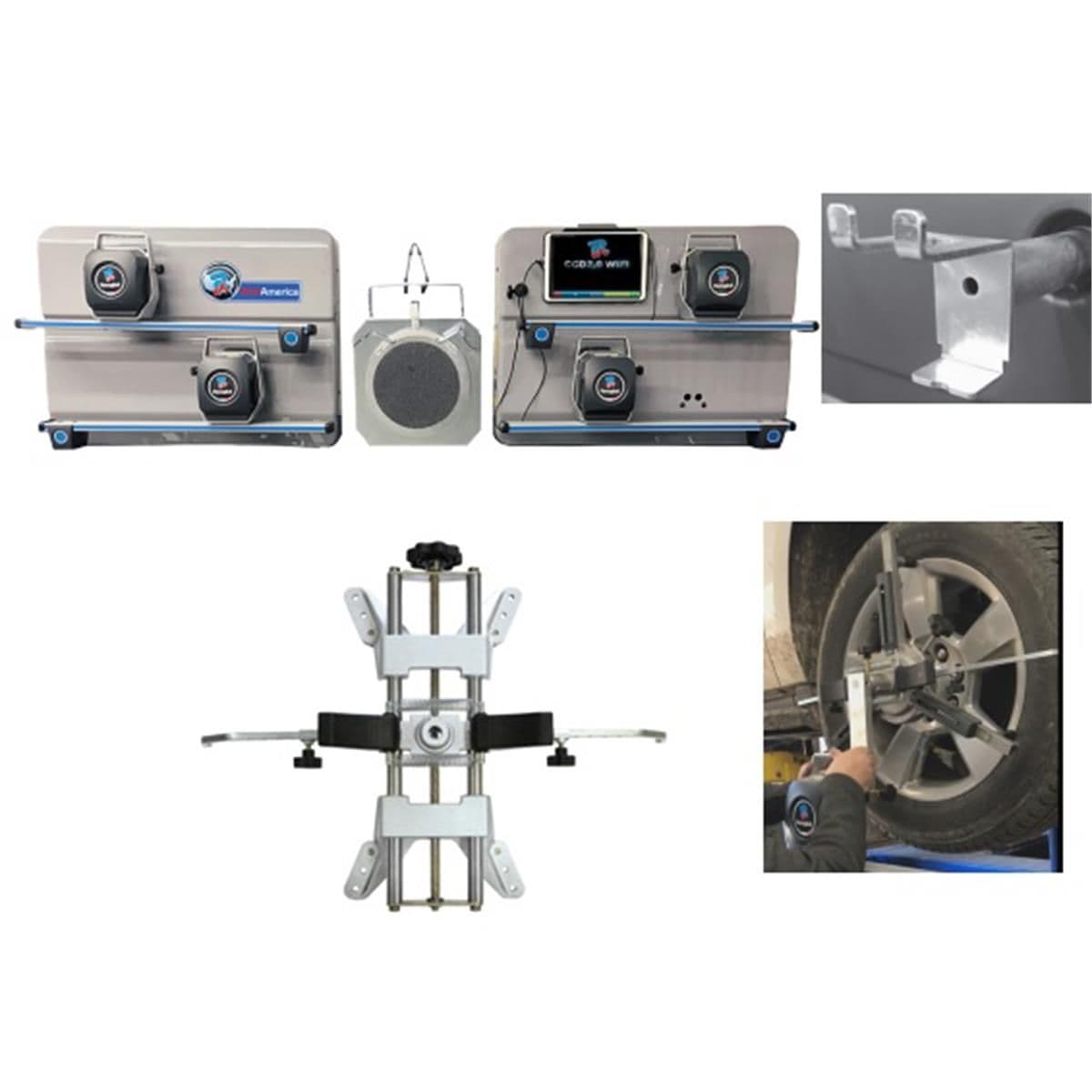

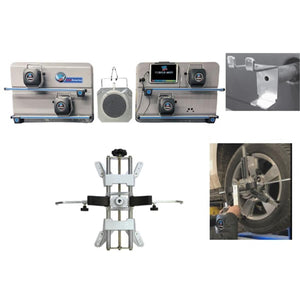

Atlas Edge TD2.0 Deluxe WiFi alignment system overview: sensor cabinets, tablet display, 4-point wheel clamps and in-use wheel mount

Atlas Edge TD2.0 Deluxe WiFi Wheel Alignment System with 8-Camera Optical Sensors, Turntables and 4-Point Wheel Clamps

SKU ATEATEDGE-TD-2.0-DELUXE

In Stock
$17,995.00 - $17,995.00
$17,995.00
$17,995.00 - $17,995.00
$17,995.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat

Description

-

The Atlas Edge TD2.0 Deluxe is a Ravaglioli-built WiFi wheel alignment system built around an 8-camera optical sensor array with Bluetooth data transmission. The Deluxe package adds the upgraded STDA46EU 4-point non-runout wheel clamps, a pair of heavy-duty turntables, two-post lift adapters, a brake pedal depressor, and a steering wheel lock — the full kit for aligning passenger cars and light trucks without buying accessories separately.

Operation runs through the TEQ-LINK app on the included tablet, so the operator can move freely around the vehicle instead of being tied to a fixed console. Wireless WiFi and Bluetooth links between the sensors, clamps, and tablet eliminate the cable-management routine that comes with older alignment rigs.

The system is portable and works with most lift configurations, so a shop running multiple bays or rotating between drive-on and two-post lifts can move one alignment system across the floor instead of dedicating one to a fixed bay. Storage is handled by two instrument boards and four wall pegs for the wheel clamps, keeping the kit organized between jobs.

Specifications come from a vast vehicle database with free software updates for the operating software. Vehicle specification updates are sold separately. The unit ships with remote technical support and a 2-year limited parts warranty.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.

Features

-
  • Ravaglioli TD2.0 WiFi alignment system, made in Europe
  • 8-camera optical sensor array with Bluetooth wireless transmission
  • WiFi operation between sensors, clamps, and tablet
  • TEQ-LINK app and tablet included

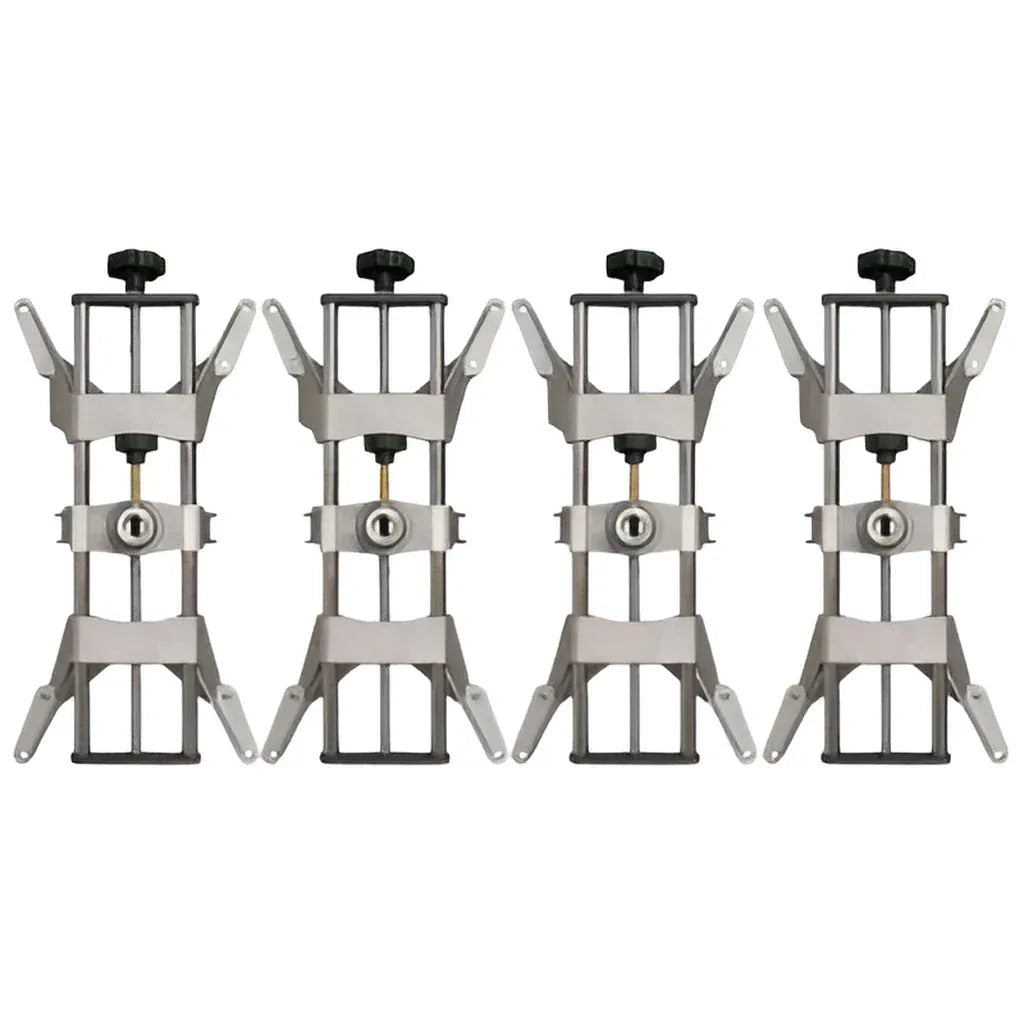

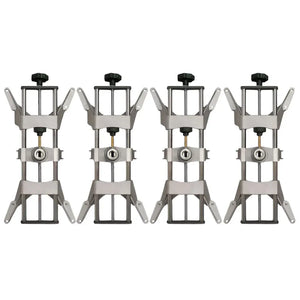

  • Upgraded STDA46EU 4-point non-runout technology wheel clamps (set of 4)
  • Pair of heavy-duty alignment turntables included
  • Two-post lift adapters included

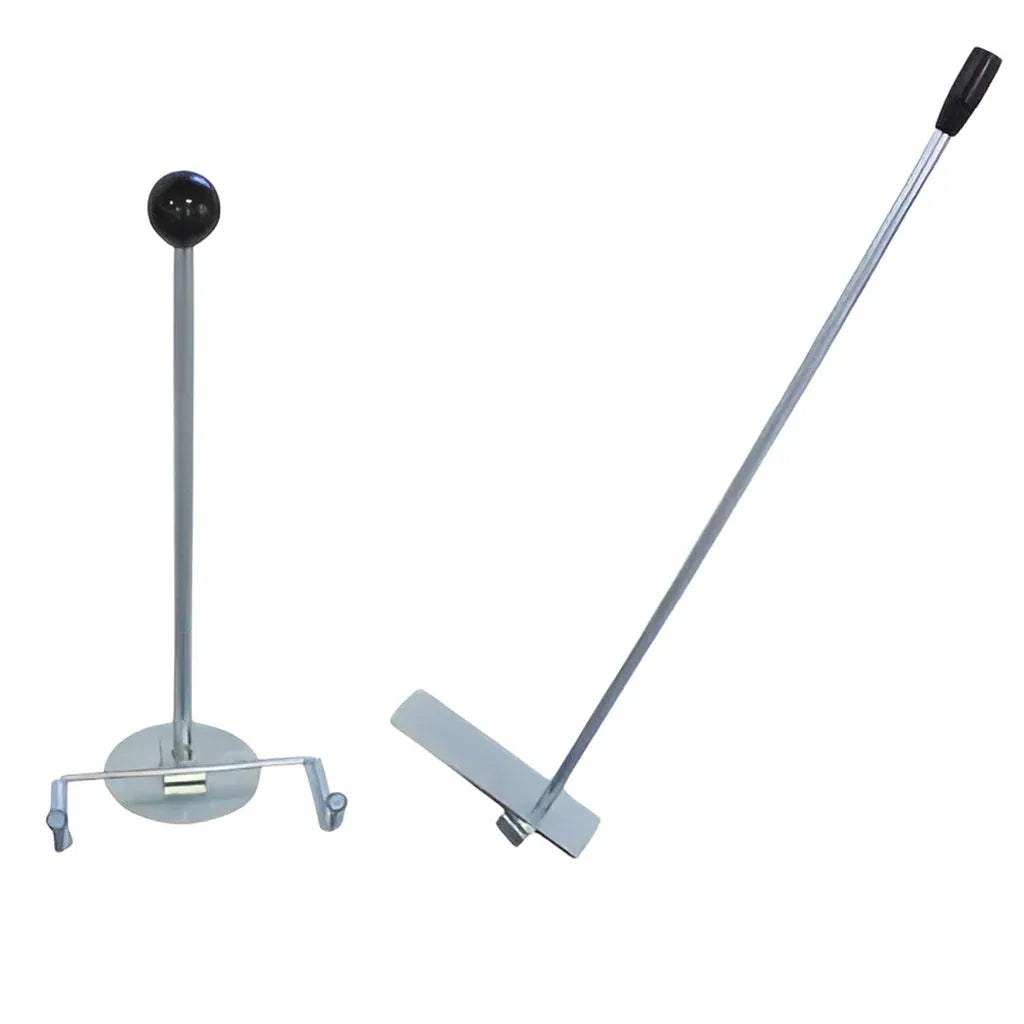

  • Brake pedal depressor and steering wheel lock included
  • Two storage boards for instruments plus four wall pegs for wheel clamps
  • Vast vehicle database with free operating-software updates1
  • Versatile — works with all common lift configurations
  • Portable, lightweight design
  • Remote technical support included

Specifications

-
Atlas Edge TD2.0 Deluxe Specifications
Sensor system 8-camera optical, Bluetooth wireless
Connectivity WiFi operation, Bluetooth data transmission
Control software TEQ-LINK app on included tablet
Vehicle database Vast database with free software updates1
Turntable footprint 14 5/8" x 14 5/8" each (pair included)
Wheel clamps STDA46EU 4-point non-runout, set of 4
Lift adapters Two-post lift adapters included
Accessories 1 brake pedal depressor, 1 steering wheel lock
Storage 2 instrument boards, 4 wall pegs for clamps
Technical support Remote technical support included
Warranty 2-year limited parts2
Origin Made in Europe
1 Free software updates apply to operating software. Vehicle specification updates are sold separately.
2 Limited parts warranty does not cover damage from abuse, neglect, wear items, or consumables, and does not include onsite visits.

What's Included

-
  • Ravaglioli TD2.0 WiFi alignment system with 8-camera optical sensors
  • Tablet with TEQ-LINK app preloaded
  • 4 STDA46EU 4-point non-runout wheel clamps
  • 2 alignment turntables (14 5/8" x 14 5/8" each)
  • 2 two-post lift adapters
  • 1 brake pedal depressor
  • 1 steering wheel lock
  • 2 instrument storage boards
  • 4 wall pegs for wheel clamp storage
Atlas Edge TD2.0 Deluxe alignment turntables shown side by side, each measuring 14 5/8 inches by 14 5/8 inches
Two heavy-duty turntables included, 14 5/8" x 14 5/8" each.

Documents

-

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
