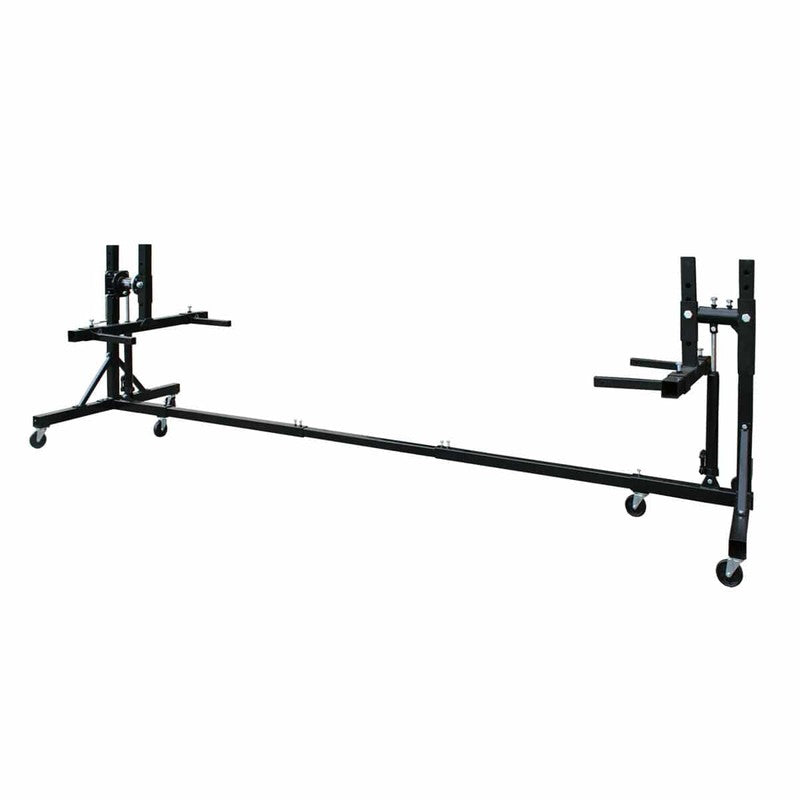

Atlas Auto SPINS (“SIMPLE POSITION IN SECONDS”) Rotisserie W/ Balance Bolt

SKU ATEHT-ROTI-NEW-FPD
Original price $1,649.00 - Original price $1,649.00
Original price
$1,649.00
$1,649.00 - $1,649.00
Current price $1,649.00
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

Atlas Automotive Rotisserie

-

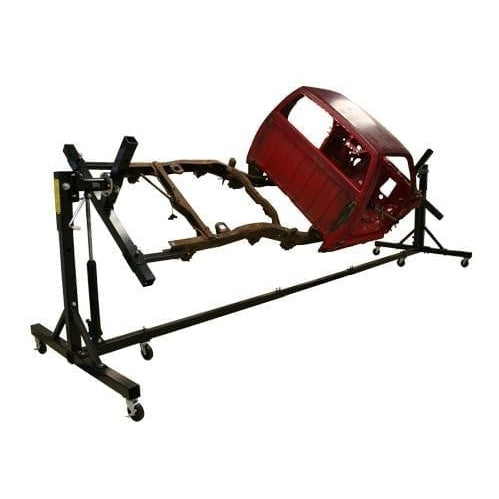

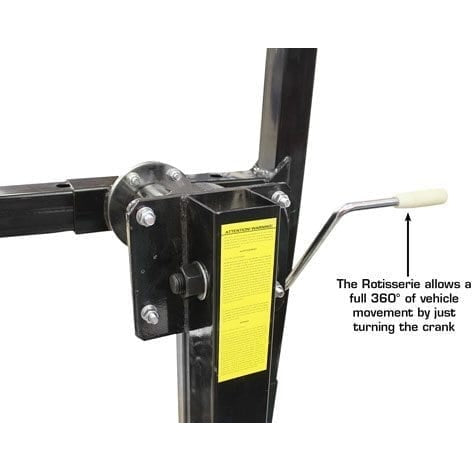

The Atlas® Auto “SPINS” (Simple Position In Seconds) auto body rotisserie is great for anyone wanting to restore a car or truck body or frame. The rotisserie allows a full 360º of vehicle movement by just turning the crank. When the vehicle is properly mounted and positioned, the Auto “SPINS” allows the operator to have easy access to all parts of the body for welding, sandblasting, or any other work that needs to be done.

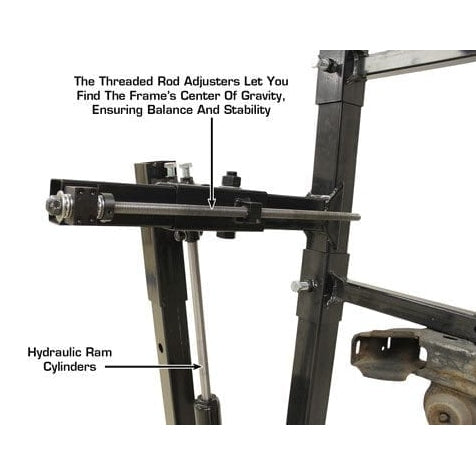

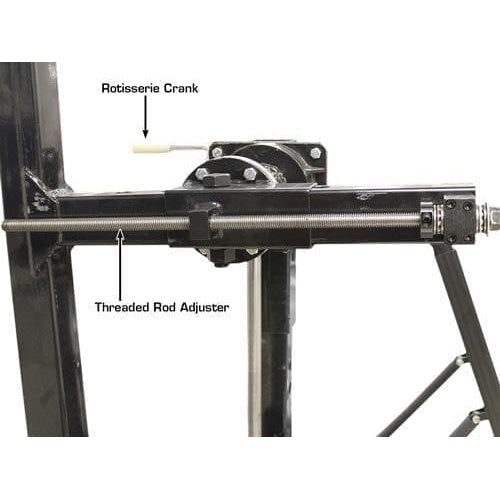

This unit is adjustable not only in width and length, but with two hydraulic rams, is also adjustable in height. The two hydraulic rams make it easy to mount and lift the vehicle so that it can be rotated into the proper position. And the new threaded rod adjusters let you find the frame’s center of gravity, ensuring balance and stability.

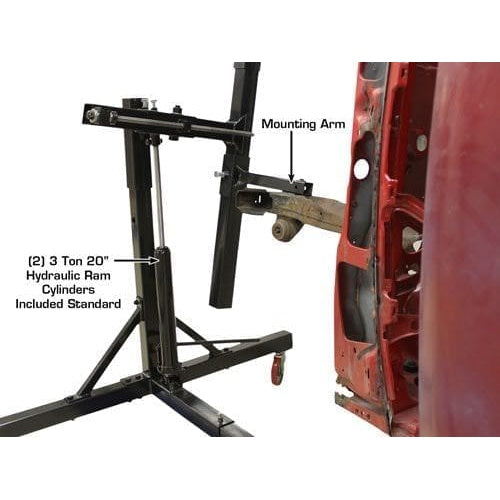

The two hydraulic rams also make it easier to mount an auto body; lifting the body or frame straight from jack stands to the desired working height removing the need for any other equipment. The rotisserie is also easy to roll because of the three (3) swivel caster wheels on each end. This versatile auto rotisserie is a must have for any hobbyist or professional restorer.

Features

-
  • 360 degrees of Movement
  • Threaded rod adjuster makes finding center of gravity easy
  • Powder coat finish
  • Heavy Duty Construction
  • Adjustable Width, Height, and Centering
  • 2 Hydraulic Rams For Greater Height Adjustability

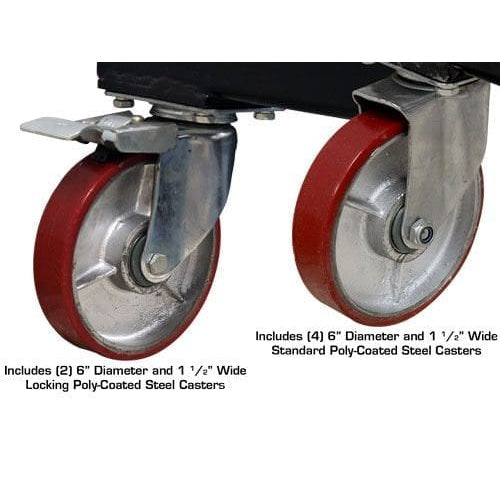

  • 6″ diameter, 1 1/2″ wide Polyurethane Swivel Caster Wheels

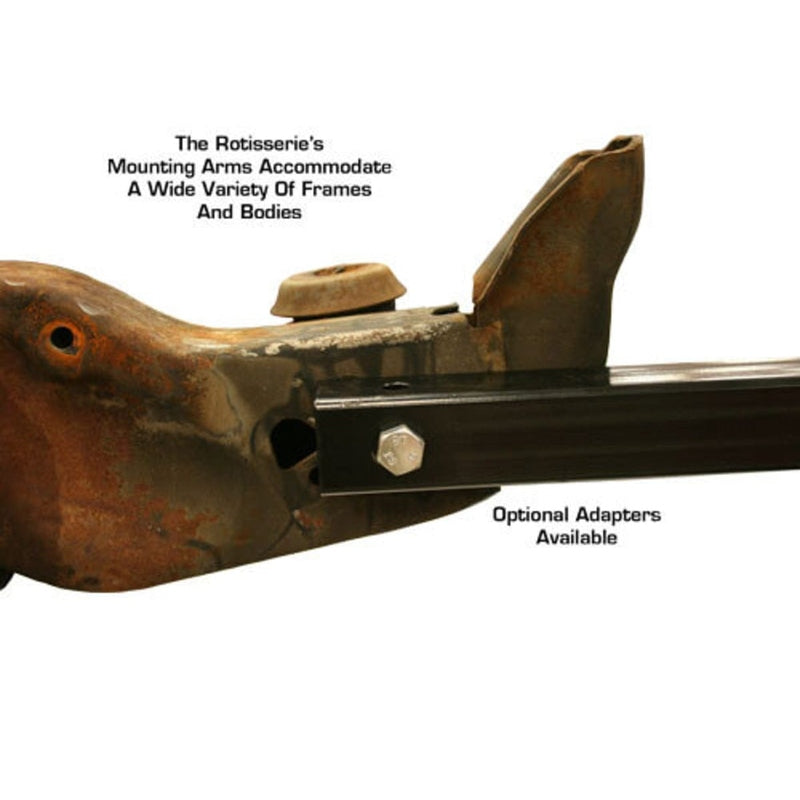

  • Specialty Adapters Also Available
  • 1 yr Warranty – Parts Only

Atlas® Auto “SPINS” Rotisserie Specifications

-
Capacity 3,000 LB.
Width (Mounting Brackets) 14 1/4” – 48 3/4"
Width Capacity (Car or Truck Body) 85”

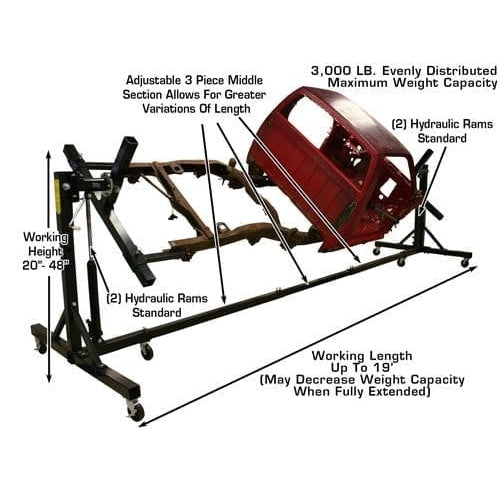

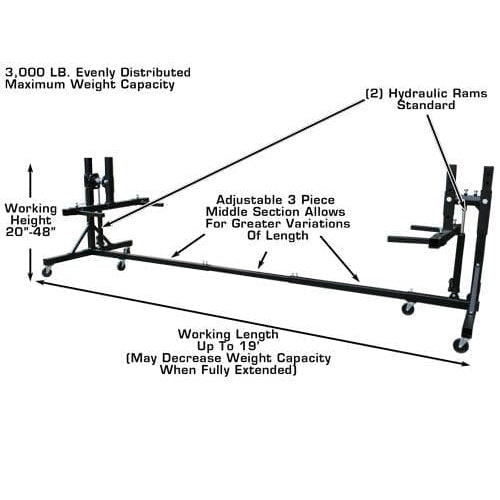

Working Height 20 1/2" – 48 1/2"
Working Length (Weight Capacity Decreased at Full Extension) Up to 19’
Ceiling Height Requirement 8’
Thickness of Steel 1/8” or 9 Gauge
Construction of Main Structure 3” x 3” Square Tubing

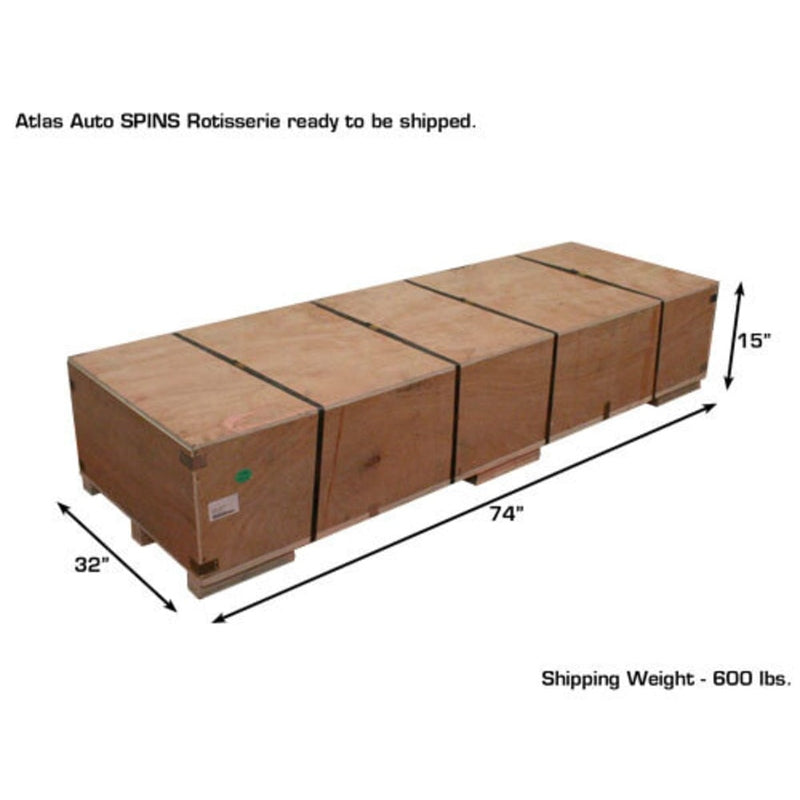

Shipping Weight 600 lbs.
