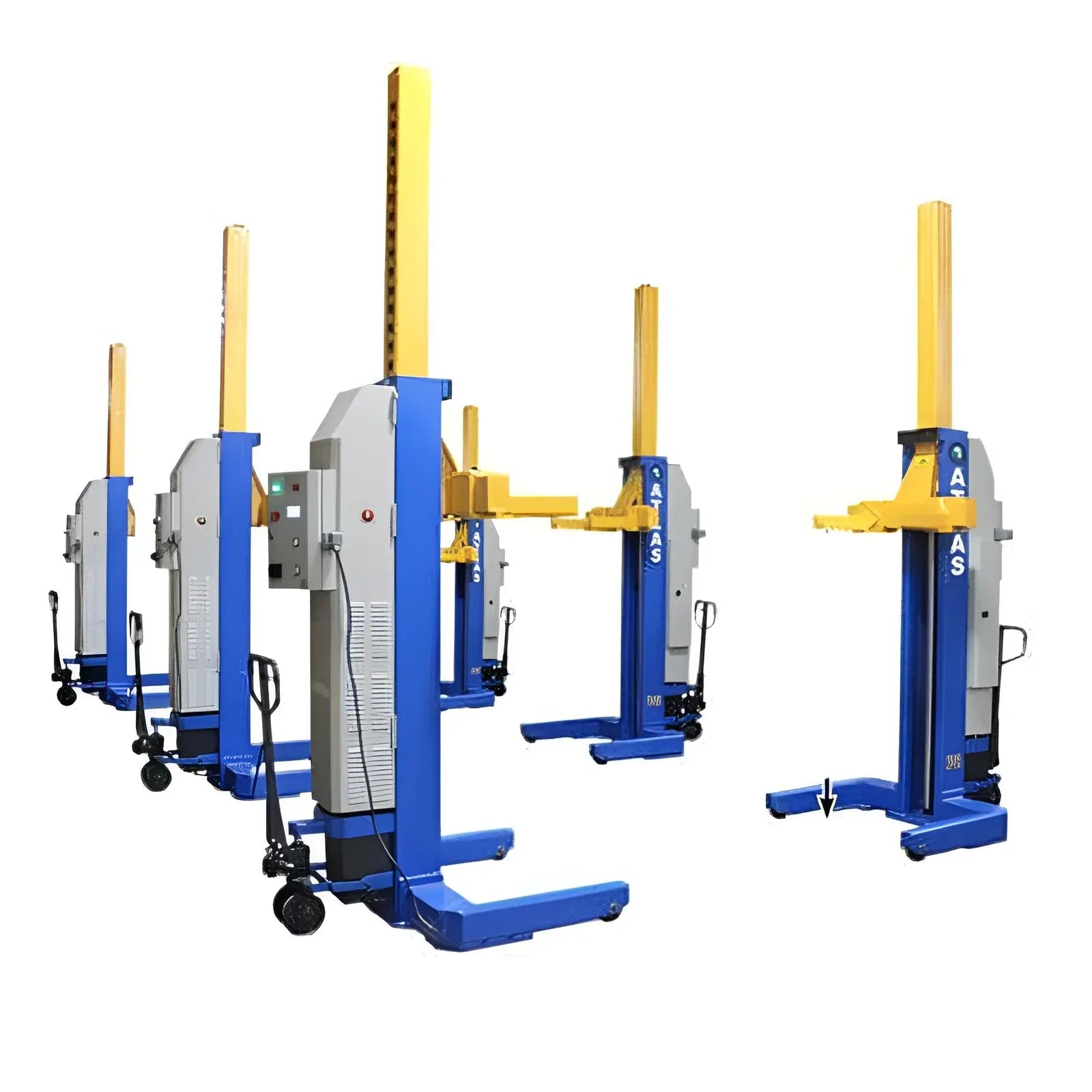

The Atlas Maxima ATEML-6045BC is a six-column battery-powered mobile lift system built for heavy-duty trucks, buses, and large commercial vehicles in shops where in-ground or fixed lifts won’t fit. Each column is rated at 16,500 lbs, giving the six-column system a 99,000 lb total capacity. The system is ALI Certified.
Power on each column comes from a 2.2 kW 24V DC motor with two rechargeable batteries, supporting 10 to 20 lifts per charge depending on load. Recharging uses a standard 110V single-phase outlet, so the columns stay cordless during use and skip the cable-management problems of traditional electric column lifts.

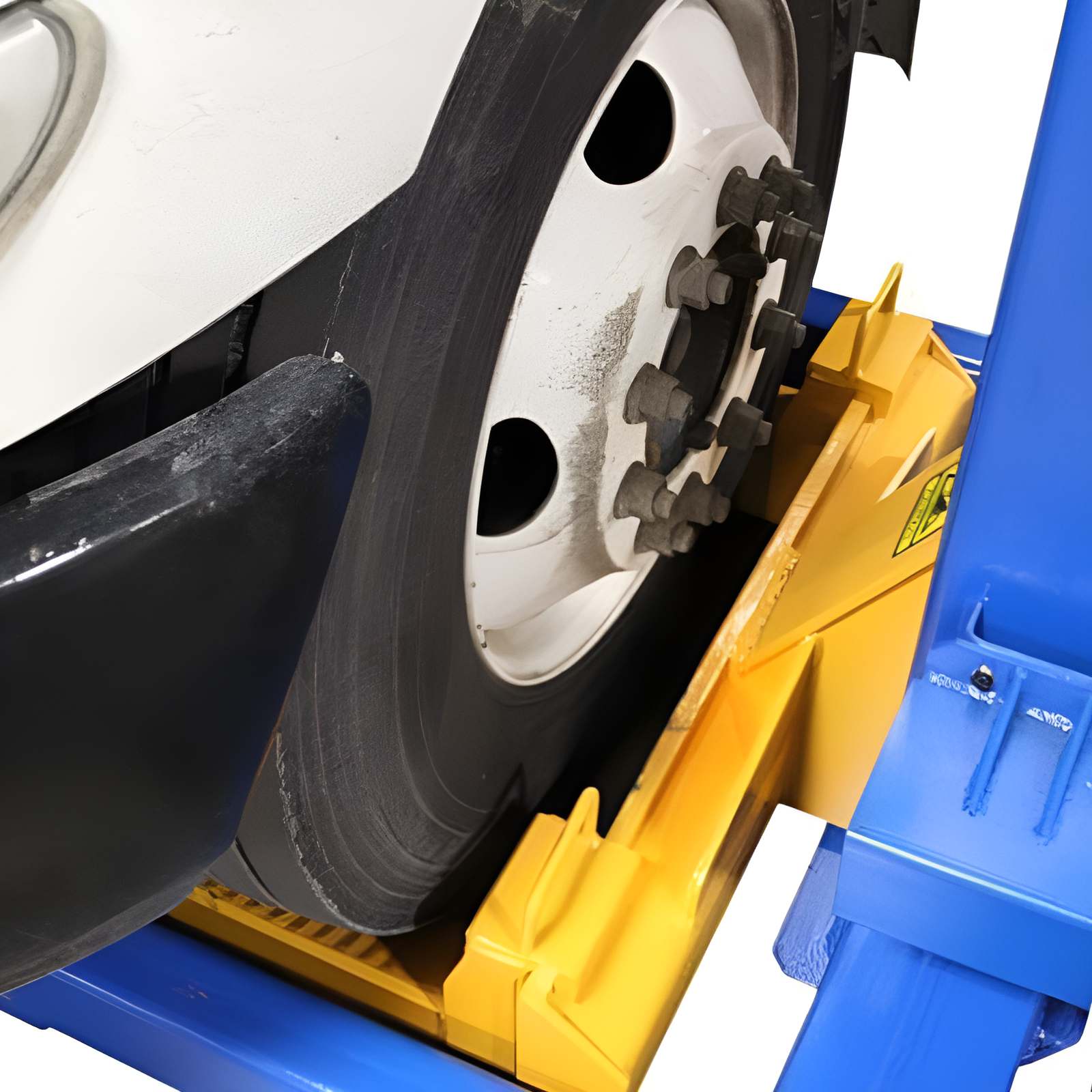

Adjustable forks fit tire diameters from 19" to 44", covering medium-duty pickups through Class 8 trucks and buses. Synchronized electronic controls run all six columns simultaneously, an LCD screen on each column shows exact lifting height, and an emergency stop button is mounted on every column.
Portable column design

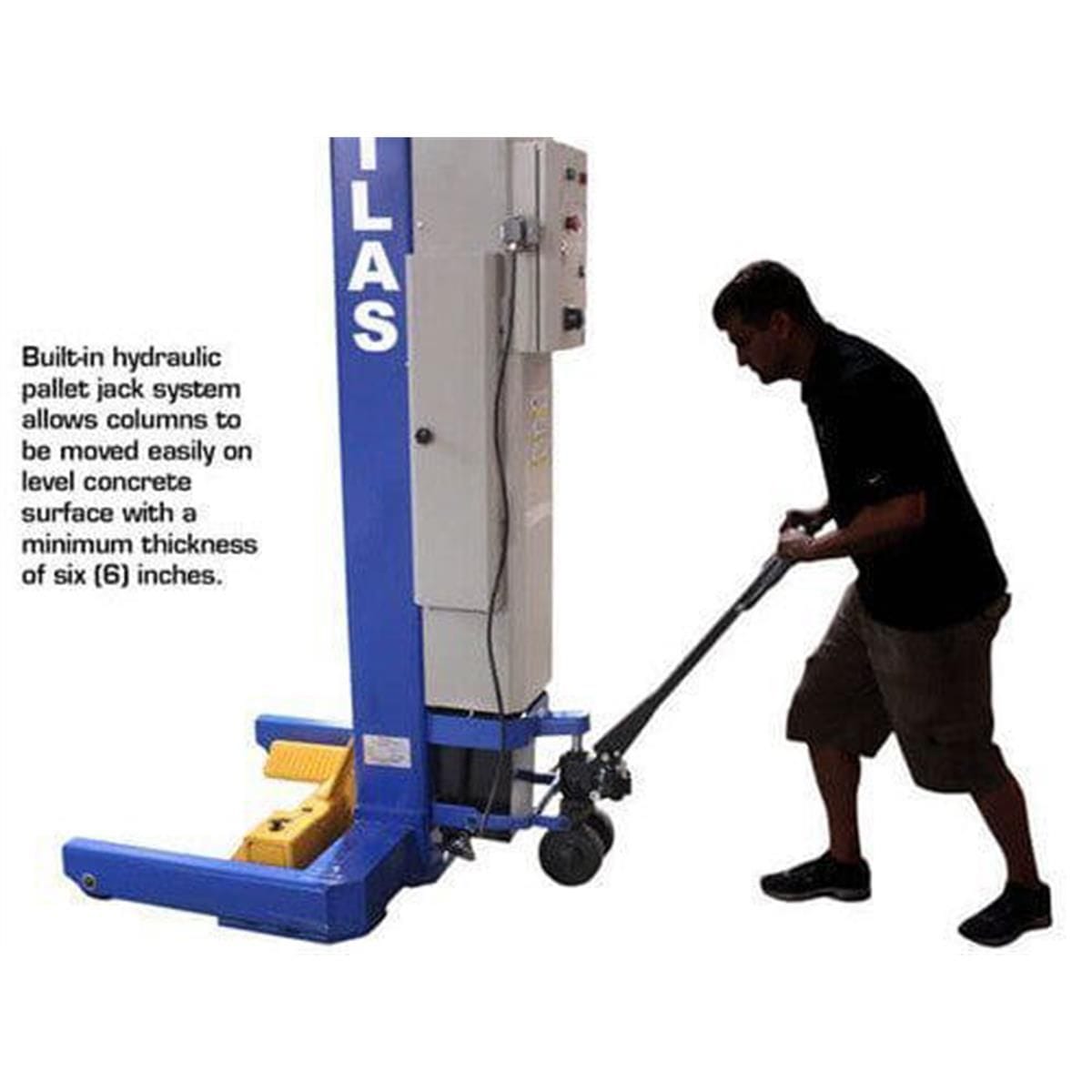

Each column has a built-in hydraulic pallet jack for repositioning by a single technician.
Each column has a built-in hydraulic pallet jack so a single technician can reposition it on level concrete. The minimum concrete requirement is 6 inches thick. The system can be used indoors or outdoors. Optional tripod support stands are available for wheel service applications.
Safety system
Two independent safety systems protect the load: hydraulic flow control on the cylinders and mechanical column locks. Each column has its own emergency stop, and the synchronized controller halts all columns if any one reports a fault.
What’s included (six-column system)
Six (6) ATEML-6045BC columns with adjustable forks
Adjustable forks fit tire diameters from 19" to 44"
Double safety: hydraulic flow control plus mechanical column locks
Emergency stop button on every column
Built-in hydraulic pallet jack on every column for repositioning
Six 32-ft column connecting cables included
Indoor or outdoor use on level concrete at least 6" thick
Dimensions
+-
Fork spread (35") and column width (13 1/4") shown from the front.Base and fork detail with adjustable fork measurements.
Specifications
+-
Atlas Maxima ATEML-6045BC Specifications
Capacity per column
16,500 lbs
Total system capacity (six columns)
99,000 lbs
Number of columns
6
Motor
2.2 kW 24V DC, two batteries per column
Battery charger power
110V single-phase
Lifts per battery charge
10–20 (load dependent)
Maximum lifting height
67" (5' 7")
Overall height
145" (12' 1")
Resting height
88 1/2" (7' 4 1/2")
Width
43 1/2" (3' 7 1/2")
Length
55 1/2" (4' 7 1/2")
Column width
13 1/4"
Maximum tire diameter
44"
Minimum tire diameter
19"
Weight per column
1,600 lbs
Shipping weight (six-column system)
9,600 lbs
Shipping dimensions per column
49" L × 47" W × 89" H
Connecting cables
Six 32-ft cables (included)
Concrete requirement
Level concrete, 6" minimum thickness
Certification
ALI Certified
Warranty
2-year limited
Shipping & Logistics
+-
The ATEML-6045BC ships as six individually crated columns at a total shipping weight of 9,600 lbs, with each column crate measuring 49" L × 47" W × 89" H. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck. Liftgate and limited-access service options can be arranged — contact MGS before ordering.
