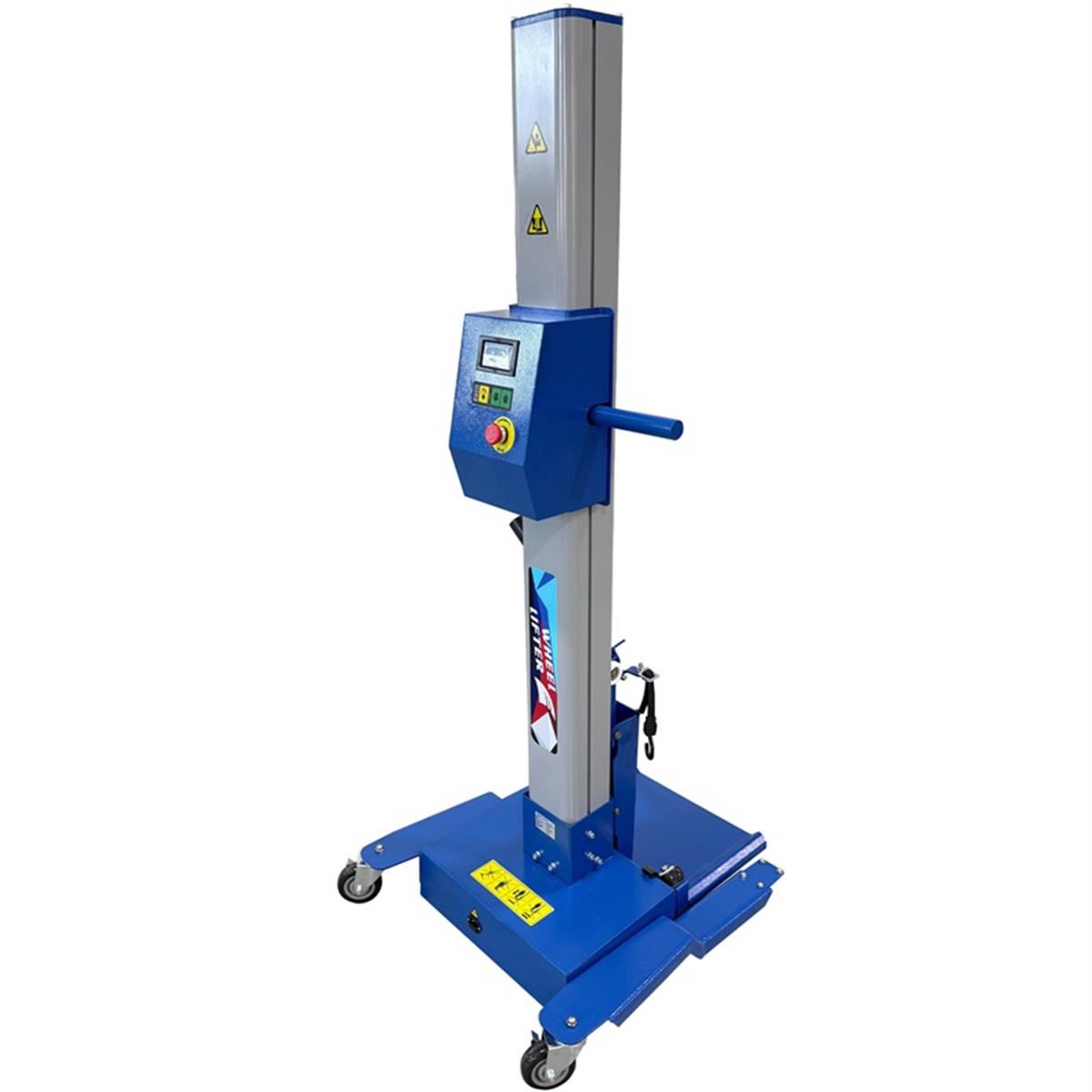

Atlas ATEHTWL200T portable battery wheel lift, full unit on swivel casters

Atlas ATEHTWL200T Heavy Duty Portable Battery Operated Wheel Lift

SKU ATEHTWL200T

In Stock
$2,899.00 - $3,099.00
$2,899.00
$2,899.00 - $3,099.00
$2,899.00
Delivery Option: Warehouse Pickup
Warehouse Pickup Location

*Subject to Availability - Call/Text Email to confirm (1-307-381-1810; sales@mygaragesupplies.com)
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat

Description

-

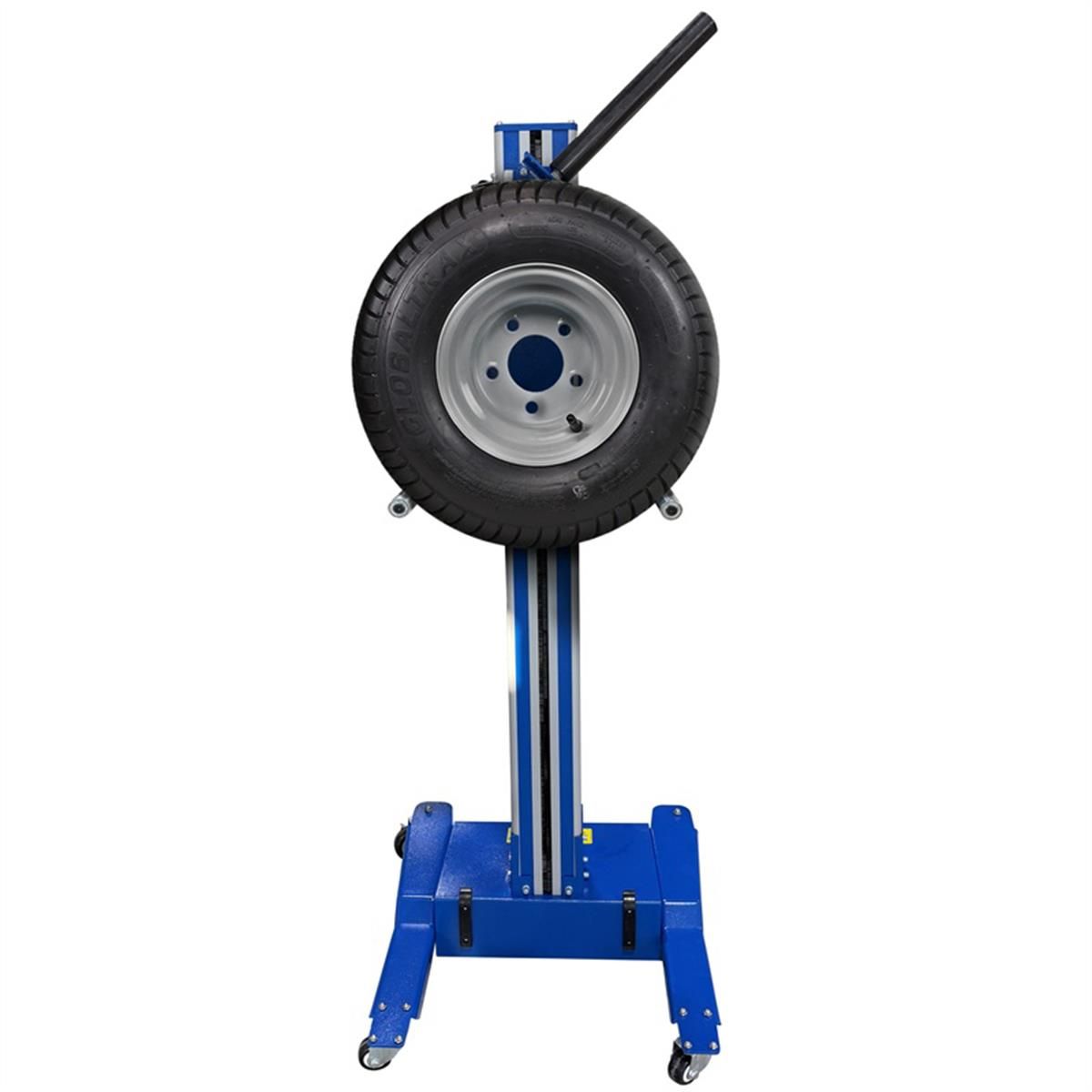

The Atlas ATEHTWL200T is a 220-lb capacity portable battery wheel lift built for shops that move heavy truck and bus wheel assemblies onto a wheel balancer shaft, a tire changer turntable, or a vehicle already raised on a 2-Post or scissor lift. No air line, no forklift, no second technician straining a wheel assembly onto a shaft by hand.

Power comes from a 24V battery pack, recharged with the included 110V cord (an external power supply is required for charging). One-touch controls raise and lower the carriage, and the lift stores up to 4 programmable height settings, so a shop running the same vehicle or wheel size repeatedly doesn't have to reset the height every time. A digital display shows battery level and travel distance — the travel readout is in millimeters only, with no imperial toggle.

Control panel close-up with battery indicator, digital display, and emergency stop button

Four swivel casters make the ATEHTWL200T fully portable between bays — battery powered, with no cord to manage while lifting, so it can go places a cord-bound air-operated wheel lift can't.

Features

-
  • 220-lb lift capacity for truck and bus wheel assemblies
  • 24V battery operated — rechargeable, 110V charging cord included (external power supply required)
  • One-touch control for raising and lowering
  • Battery level indicator on the digital display
  • Up to 4 programmable, saved height settings
  • Digital travel-distance readout (millimeters only)

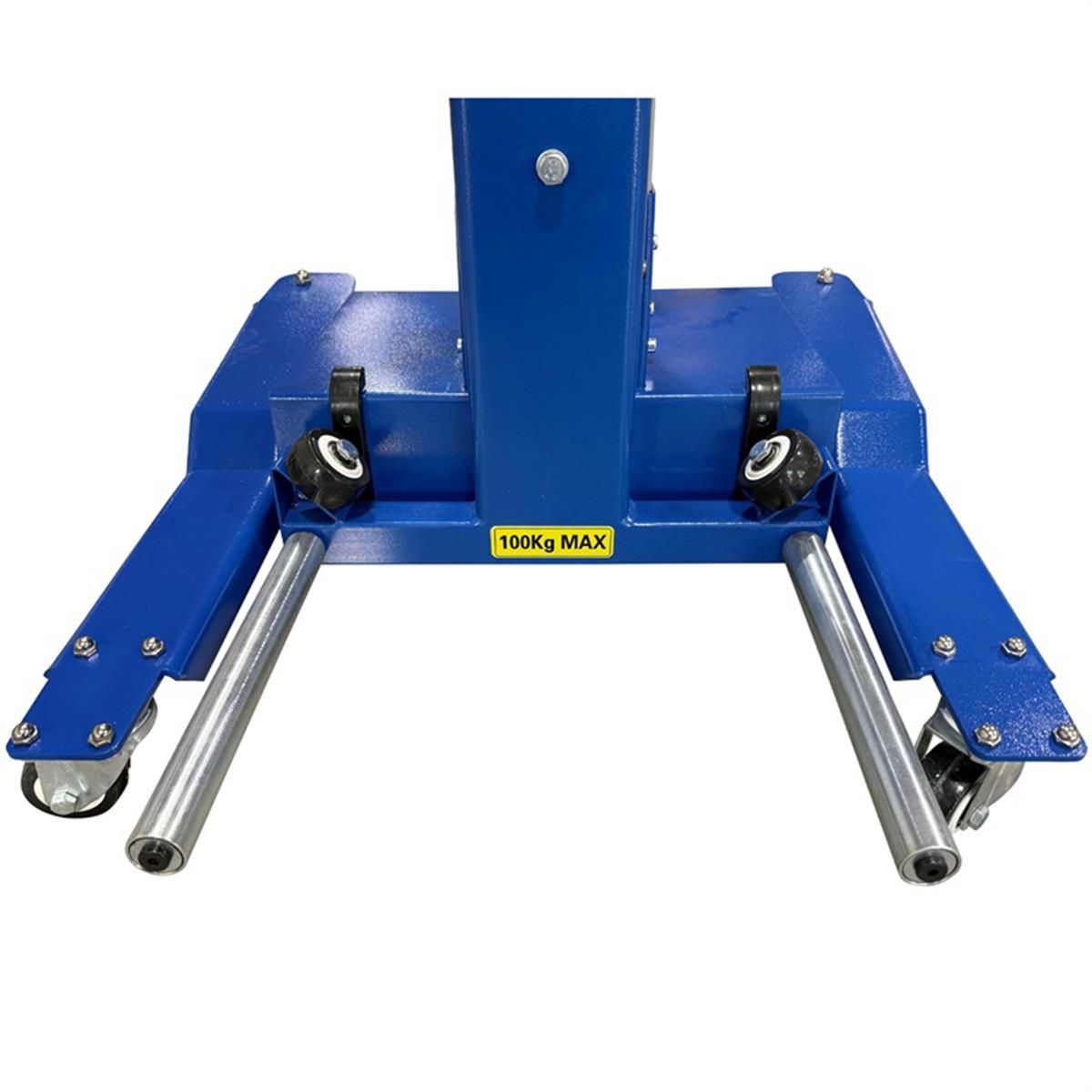

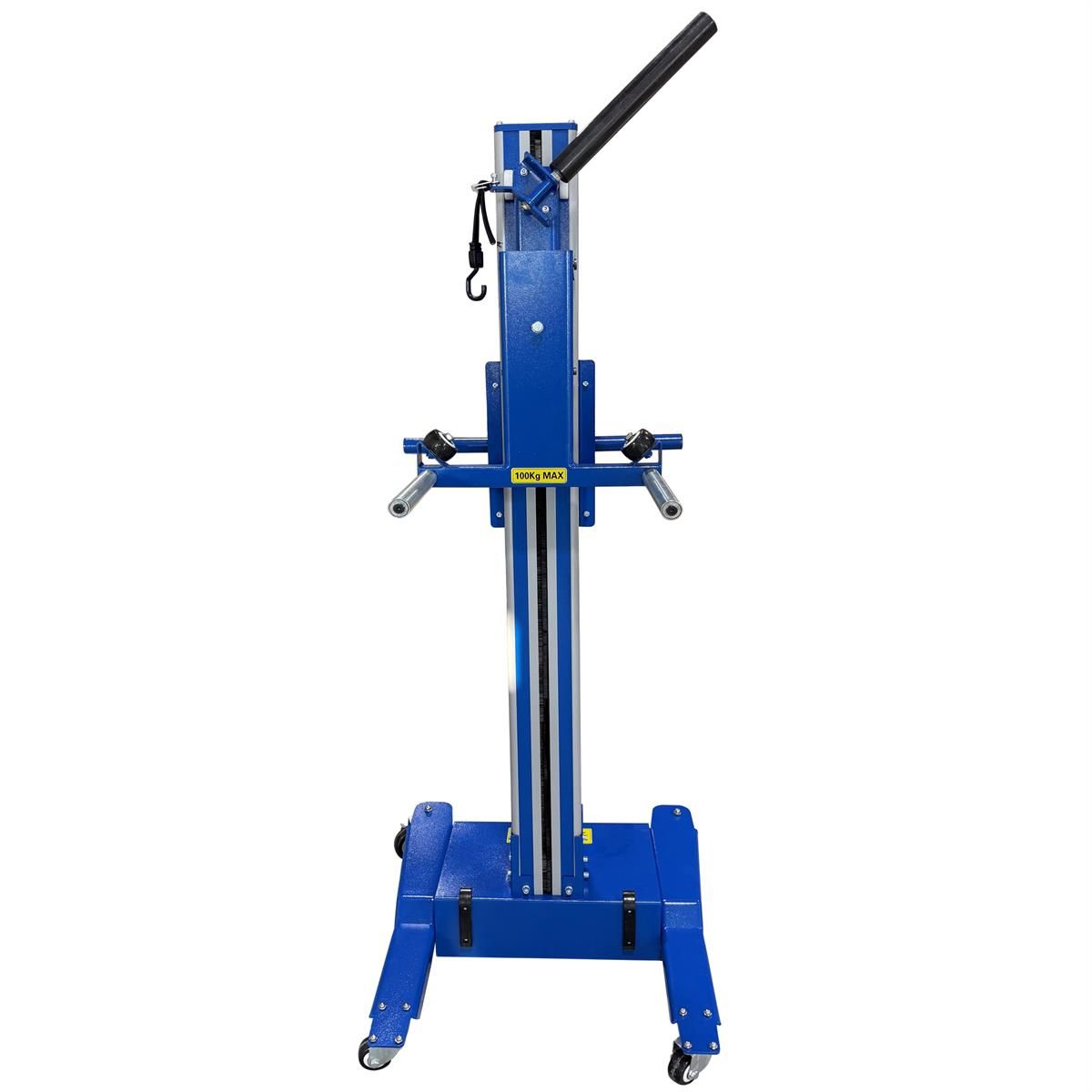

  • Roller arms for repositioning the wheel once lifted
  • Built-in tie-down point to secure the wheel during a lift

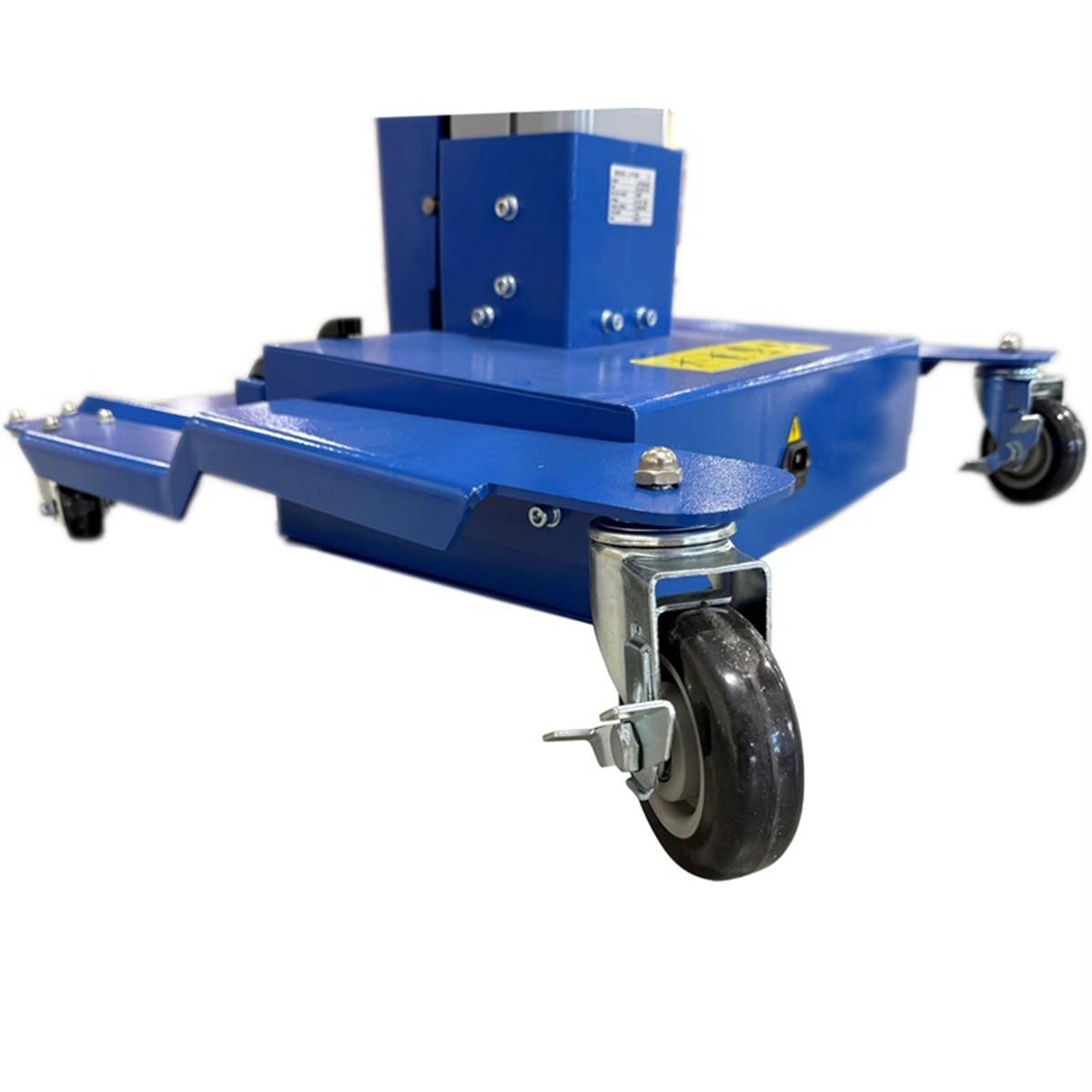

  • Four swivel casters for full portability around the shop

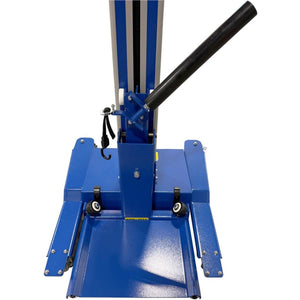

The wide, flared base plate (28" wide x 29" deep) keeps the column stable under a loaded wheel, and all four casters swivel for repositioning.

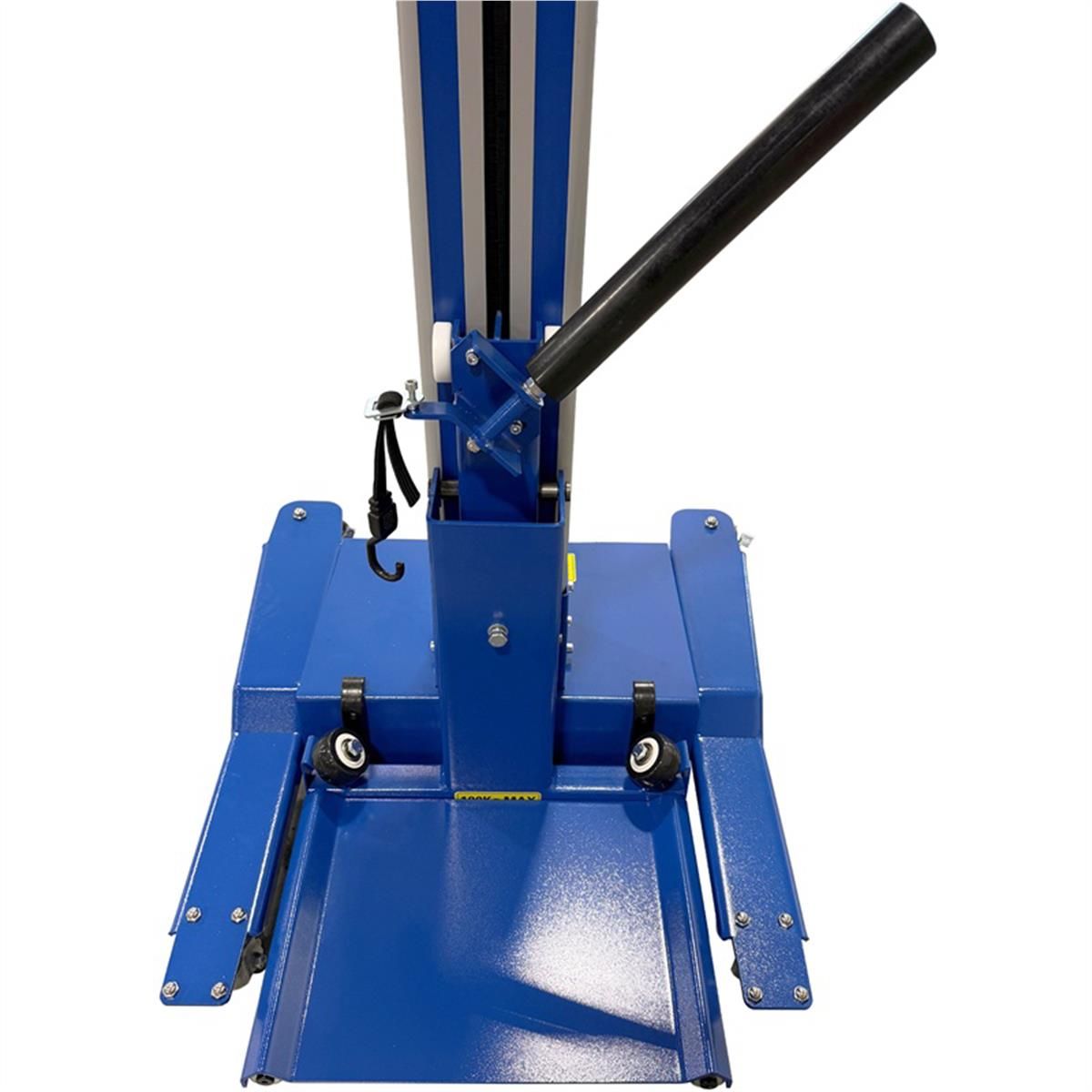

Top-down view of the wheel lift's base plate and swivel casters

What's Included

-
  • 110V charging cord
  • Steel plate for roller arms

Specifications

-
Atlas ATEHTWL200T Specifications
Lift Capacity 220 lbs
Lowered Height 4"
Raised Height 45 1/4"
Base Dimensions 28" W x 29" D
Column Height 70"
Carriage Height (Fully Raised) 75 1/2"
Power Supply 24V Battery / 110V Charge
Cycles Per Charge 300
Shipping Weight 250 lbs
Crate Dimensions 71 1/2" L x 24 1/2" W x 20 1/2" H
External power supply required for charging.

The ATEHTWL200T ships in a wood crate — ready to ship or pick up at an Atlas warehouse.

Wood crate packaging for the ATEHTWL200T with printed dimensions 71.5 x 24.5 x 20.5 inches

Warranty

-

The ATEHTWL200T carries a 90-day parts-only warranty from Atlas.

FAQ

-

How long does the battery last between charges?

Atlas rates the ATEHTWL200T for 300 lift cycles per charge. Recharge with the included 110V cord — an external power supply is required.

Does the display show inches or millimeters?

The digital travel-distance readout is millimeters only — there's no imperial toggle on this model.

What's the maximum wheel and tire weight it lifts?

220 lbs, sized for truck and bus wheel assemblies.

Can I use it to load a wheel balancer or tire changer?

Yes — the roller arms let you position a wheel onto a wheel balancer shaft, a tire changer turntable, or a vehicle already raised on a 2-Post or scissor lift.

Is it easy to move around the shop?

Four swivel casters make it fully portable, and since it's battery powered there's no cord to manage while lifting.

Documents

-

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
