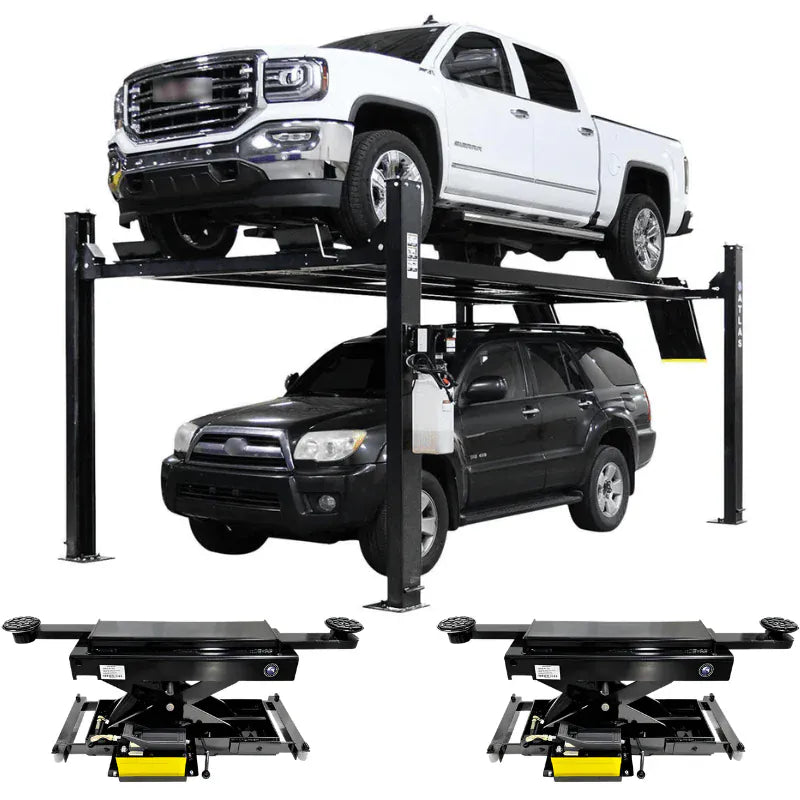

The Atlas Apex 9 4-post lift is a 9,000-lb capacity storage and service lift sized for full-size trucks, SUVs, and crew cabs. Bundled with two RJ45A 4,500-lb air/hydraulic rolling bridge jacks, this combo equips a home garage or commercial bay for both vehicle storage and full-service work — wheels-off, suspension, brakes, and tire rotations on the same lift.

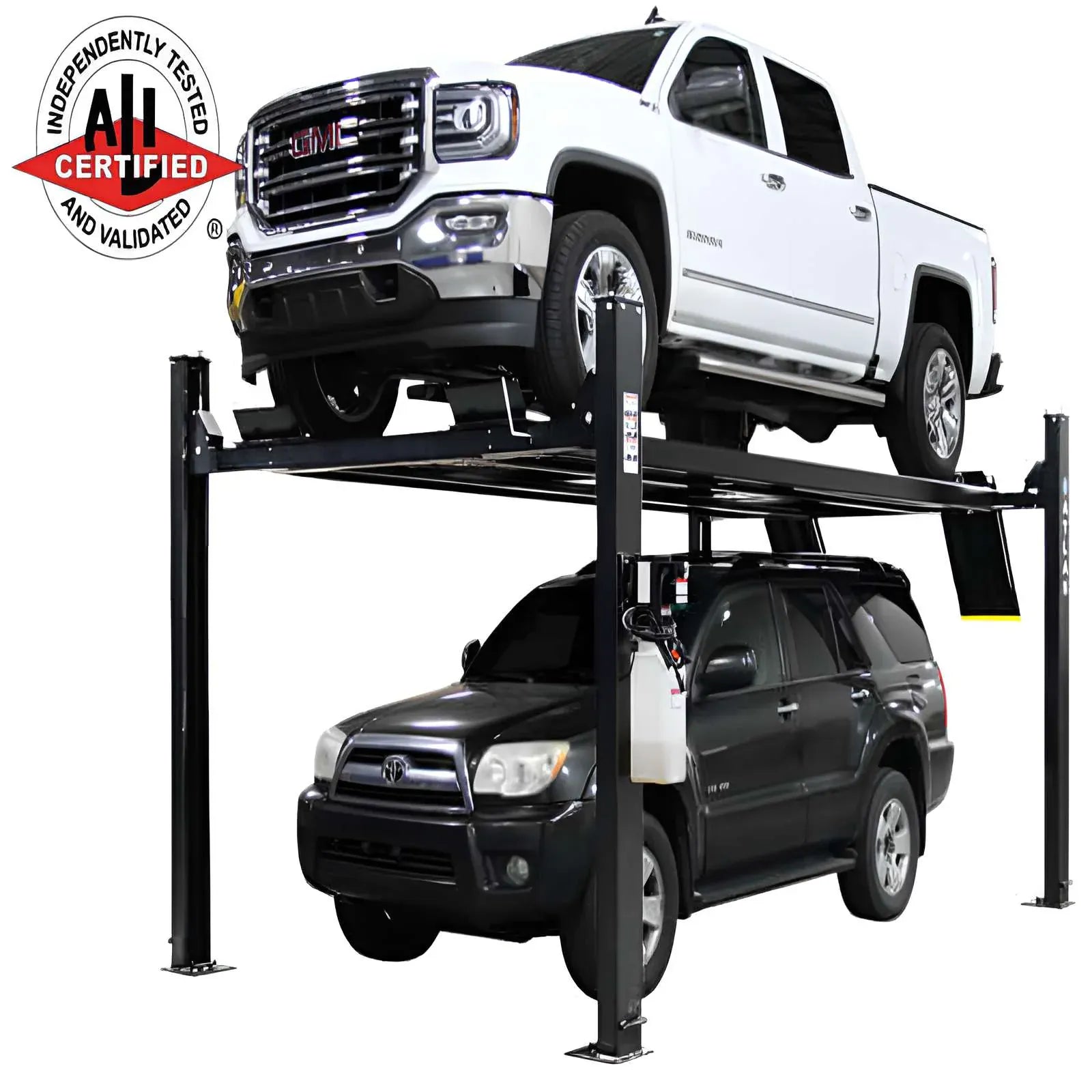

The Apex 9 is ALI Certified, with diamond-plated steel runways, a single-point lock release, and a 16-position lock ladder backed by a double-lock safety system. The lift reaches 86" at the top of the runway with 81 1/4" of clearance underneath, leaving room to park a vehicle below while another is raised overhead.
110-volt motor and hydraulic fluid reservoir.
Power runs from a 110V motor on a 30-amp dedicated circuit, so the lift operates on standard residential service without a panel upgrade. Hydraulic oil is filled separately — 3 to 5 gallons of AW32 or AW46 is required and is not included.
Construction
Underneath the runways, the Apex 9 uses a 7/16" cable system running over 6" steel pulleys, with a 3 1/2"-diameter hydraulic cylinder and an in-line cylinder overflow restrictor valve. The runways are diamond-plated for grip and finished in powder coat.
7/16" cable, 6" steel pulleys, and lock-release mechanism.3 1/2" cylinder with overflow restrictor valve.

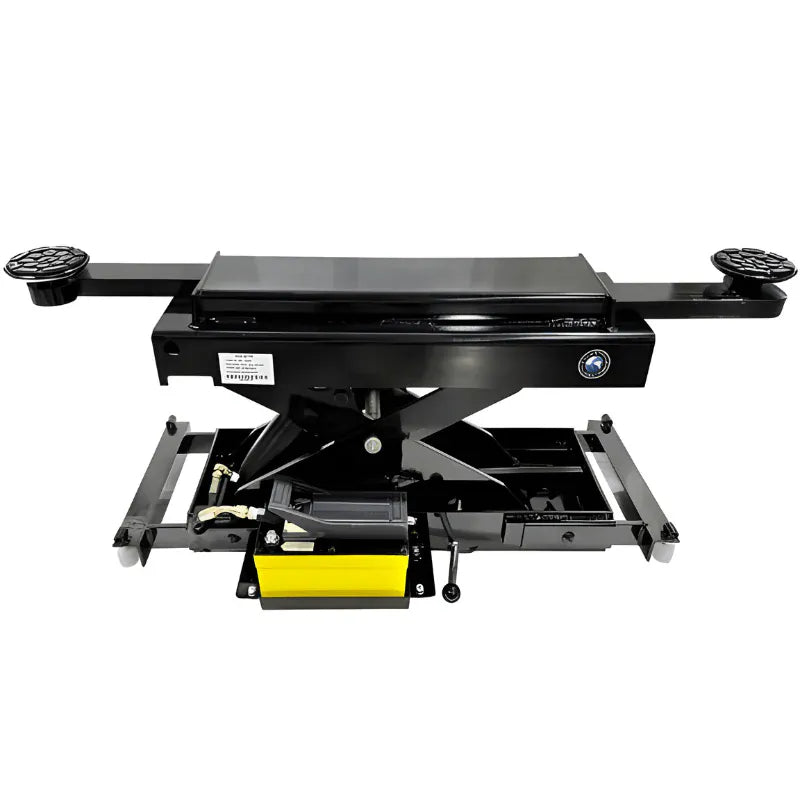

RJ45A Rolling Bridge Jacks
Each RJ45A is a 4,500-lb air/hydraulic rolling bridge jack that rides along the runways of the Apex 9 to lift wheels off the deck for service. Operation is air/hydraulic on 70–115 PSI shop air (external air supply not included), and the scissor mechanism delivers level lift with multiple safety lock positions.

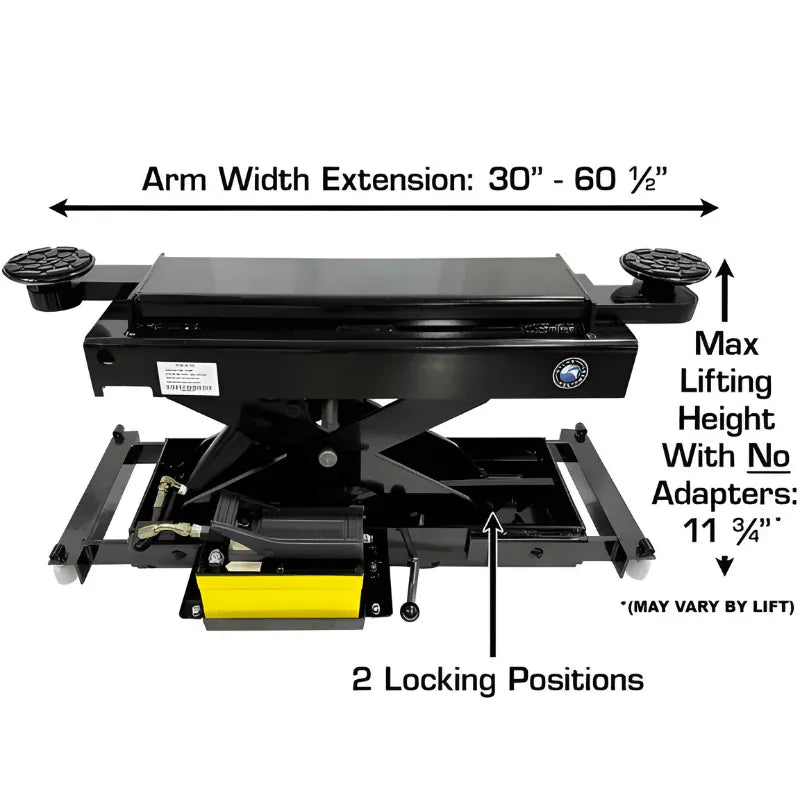

Arm width: 30" to 60 1/2"; fits runway openings 36"–54".
Lift arms extend from 30" to 60 1/2" pad-to-pad and fit runway openings between 36" and 54". With the supplied chrome adapters, the jack reaches 18 1/2" of lifting height; without adapters, 11 3/4". Nylon rollers and a steel wheel underneath keep the jack moving smoothly down the runway. A 4-piece truck adapter set is included with each jack for raising larger vehicles that need additional pad height.
Max lifting height with adapters: 18 1/2".4 3/4" wide rubber lift pad.
Features
+-
Atlas Apex 9 4-Post Lift
9,000-lb lifting capacity
ALI Certified — independently tested and validated
86" max lifting height at top of runway (7' 2")
81 1/4" clearance under runways (6' 9 1/4")
Diamond-plated steel runways
Single-point lock release
Lock ladder with 16 locking positions and double lock safety system

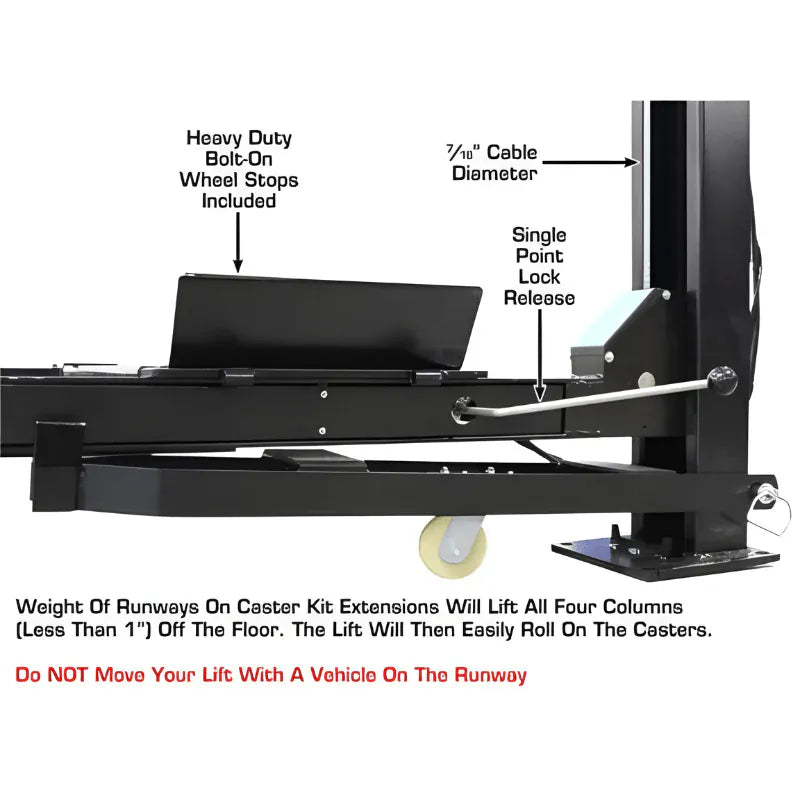

Single-point lock release with bolt-on wheel stops.
Two RJ45A Rolling Bridge Jacks (Included)
4,500-lb capacity per jack
Air/hydraulic operation on 70–115 PSI shop air
Scissor mechanism for level lift
Multiple safety lock positions
Compact low-profile body for runway clearance
Adjustable lift arms (30" to 60 1/2" pad-to-pad)
Fits runway openings 36" to 54"
Nylon rollers and steel wheel for smooth movement
4-piece truck adapter set included with each jack
1-year parts warranty
Nylon rollers and steel wheel.4-piece truck adapter set with onboard holder.
What's Included
Atlas Apex 9 4-post lift
Two RJ45A 4,500-lb rolling bridge jacks
Steel approach ramps
Steel jack tray
Four plastic drip trays
Two rubber wheel chocks
Two 4-piece truck adapter sets (one per rolling jack)
Two 1 1/4" and two 5" chrome adapters per jack, with 1 3/8" lift pads
Each jack ships with the rubber pad, lift pads, 1 1/4" adapters, and 5" adapters shown.Two rubber wheel chocks included.
Specifications
+-
Atlas Apex 9 4-Post Lift Specifications
Capacity
9,000 lbs
Lifting Height (top of runway)
86" (7' 2")
Clearance Under Runways
81 1/4" (6' 9 1/4")
Height of Columns
99" (8' 3")
Overall Width
121 7/8" (10' 1 7/8") — 133 7/8" (11' 1 7/8") with motor
Overall Length with Ramps
227 1/2" (18' 11 1/2")
Runway Length
196 1/2" (16' 4 1/2")
Runway Width
20 1/8"
Runway Thickness
4 3/4"
Width Between Runways
38 7/8" — 34 3/4" with rail
Outside Runway to Outside Runway
79" (6' 7")
Clearance Between Columns
108 1/8" (9' 1/8")
Length Between Columns
184 1/4" (15' 4 1/4")
Drive-Thru Width
98 5/8" (8' 2 5/8")
Motor / Electrical
110V, 30-amp breaker required
Hydraulic Oil
3–5 gallons AW32 or AW46 (not included)
Shipping Weight
2,975 lbs
Pallet Size
204"L x 30 1/2"H x 25"W
Warranty
5-year structural / 2-year hydraulic, parts only
110V, 30-amp dedicated circuit required. Hydraulic oil sold separately.

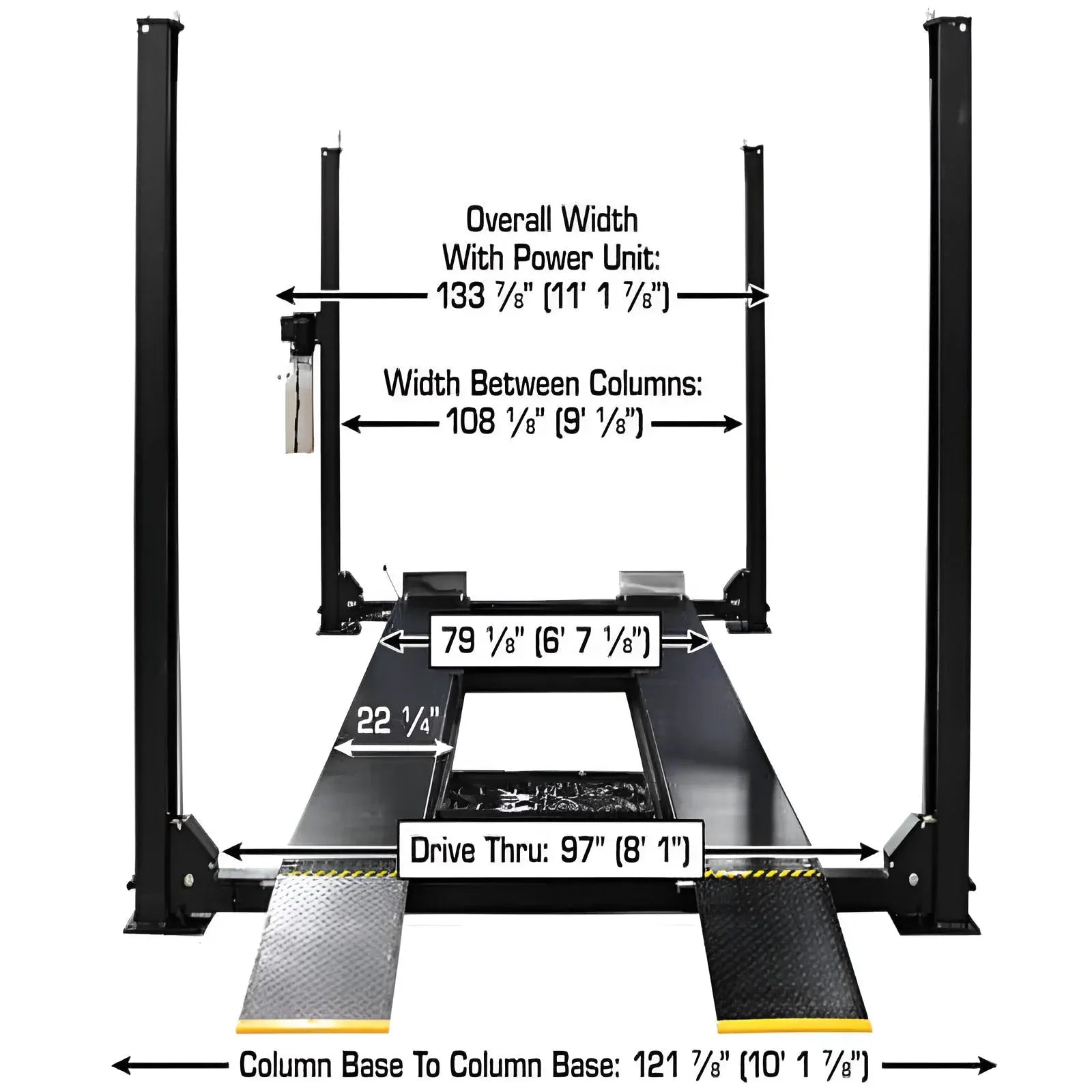

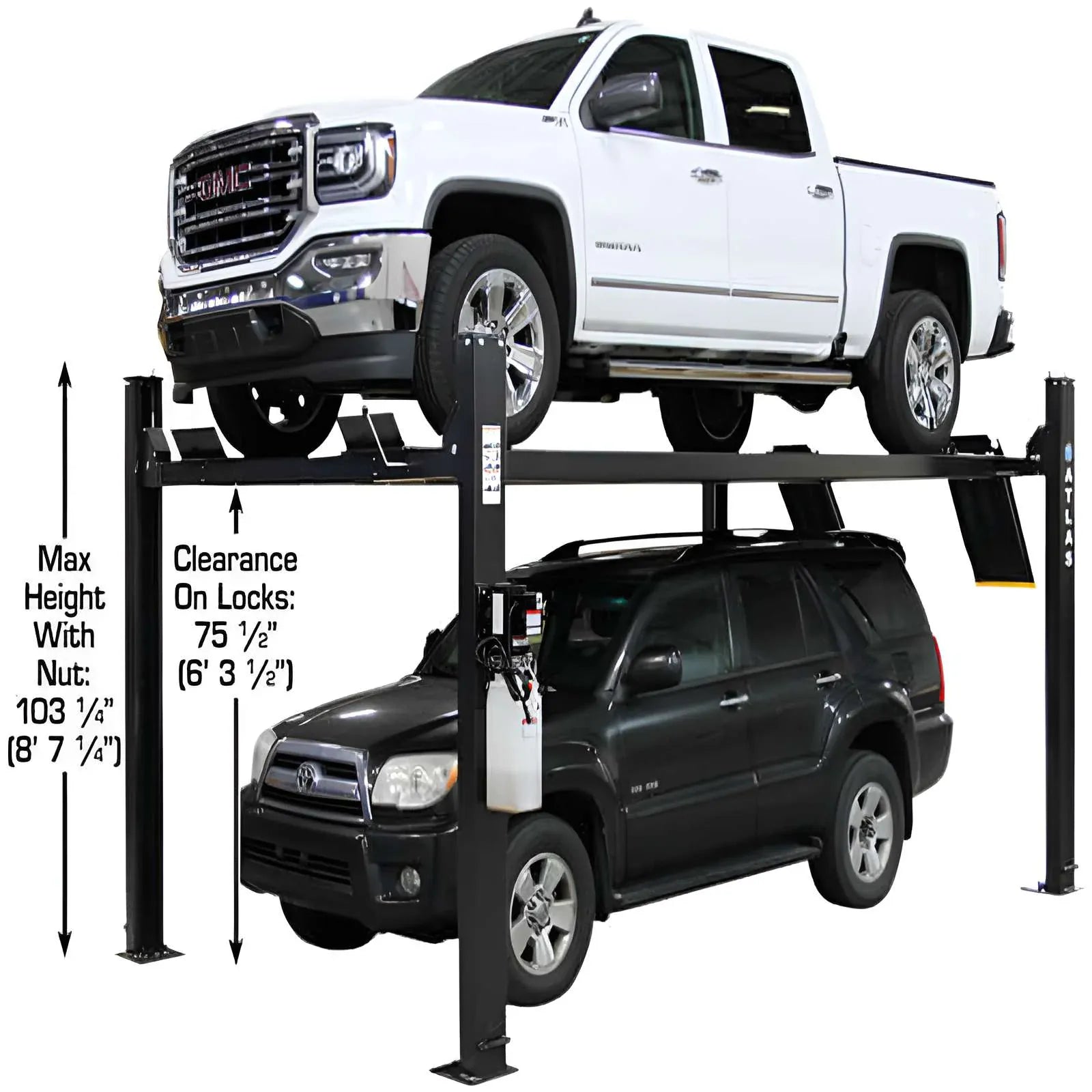

Front-view dimensions.Side-view length dimensions.Runway and drive-thru dimensions.Clearance and lift-height on lock positions.
Atlas RJ45A Rolling Bridge Jack Specifications
Capacity
4,500 lbs
Minimum Width (Roller Arms)
36"
Maximum Width (Roller Arms)
54"
Lift Arm Width (center of pad)
30" – 60 1/2"
Air Requirement
70–115 PSI
Arm Hole / Adapter Peg Size
1 1/2"
Adapter Heights
Two at 1 1/4" and two at 5"
Shipping Weight
380 lbs
Warranty
1-year parts only
External shop air supply required (not included). One 4-piece truck adapter set ships with each jack.
Shipping & Logistics
+-
This combo ships via freight on multiple pallets — the Apex 9 lift in a 17-foot crate at 2,975 lbs, and each RJ45A in a 39 1/2" x 23 1/2" x 12 1/2" crate at 380 lbs. Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Apex 9 lift packaged for freight (204"L x 30 1/2"H x 25"W).Each RJ45A jack ships in a 39 1/2" x 23 1/2" x 12 1/2" crate.
