Atlas ALI Certified APEX 8 4 Post Lift + RJ35 Sliding Jacks Combo

Name: Atlas ALI Certified APEX 8 4 Post Lift + RJ35 Sliding Jacks Combo
Brand: Atlas Automotive Equipment
SKU: ATEATTD-APEX8-COMBO-FPD
Price: 6699.0 USD
Availability: InStock

SKU ATEATTD-APEX8-COMBO-FPD

$6,699.00 - $6,699.00

$6,699.00

$6,699.00 - $6,699.00

$6,699.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

Description

-

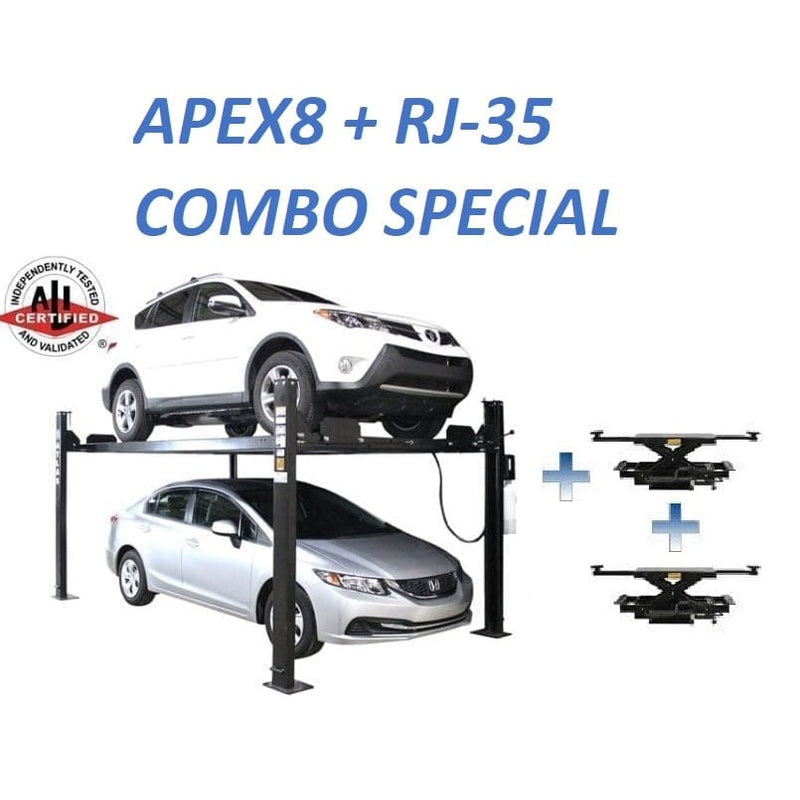

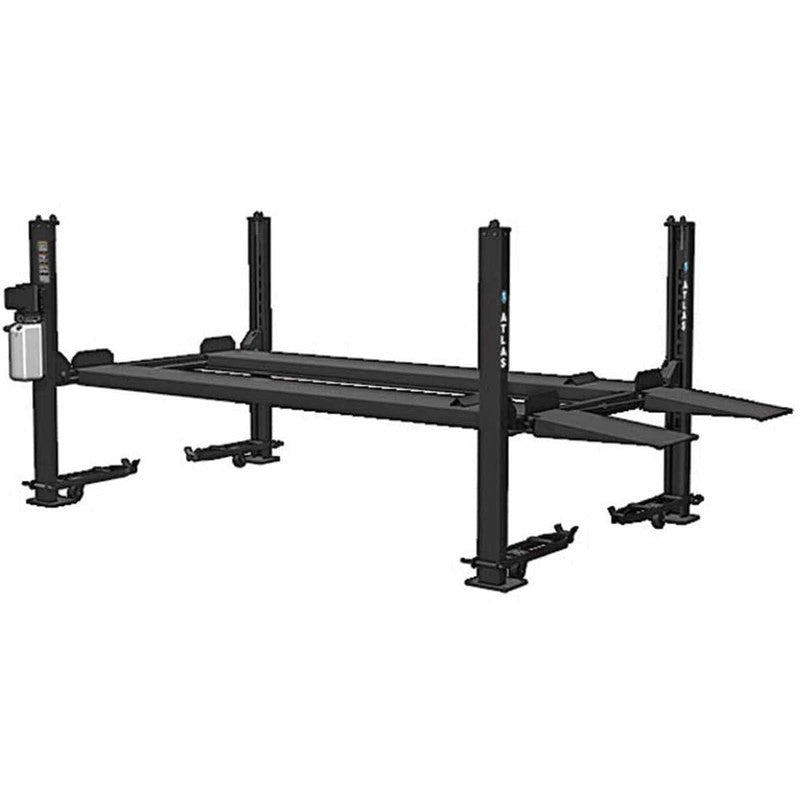

The Atlas® APEX8 is an ALI Certified version of our most popular 4-post hobbyist lift, the Atlas® Garage PRO8000. Perfect for the customer with too many cars and not enough space. The APEX8 allows the user to easily double their space by stacking most passenger cars.

The Atlas® APEX8 is designed and built for use by homeowners or restoration shops. This lift is not recommended for use in commercial repair shops where it would be raised and lowered several times per day.

The Atlas® APEX8 is nearly 200 lbs. heavier than comparable lifts in the market. It includes a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. With those features and with the added peace of mind of the ALI Certification the APEX8 is one of the best values in our four-post hobbyist product line.

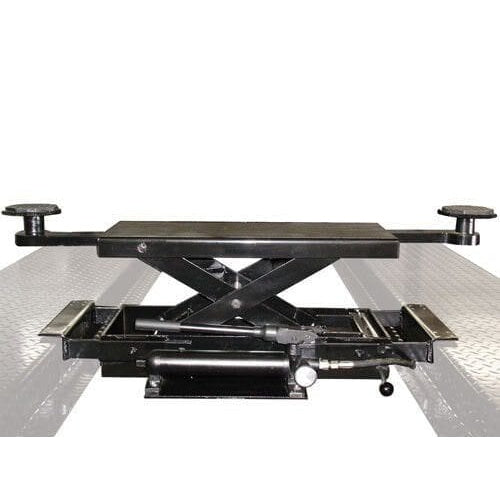

This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes. NOTE: The RJ35 sliding jacks are not ALI Certified, only the APEX8 lift is.

Features

-

APEX8

ALI Certified Lift
8,000 lb. Capacity
Free Standing/Portable Design
Powder Coat Finish

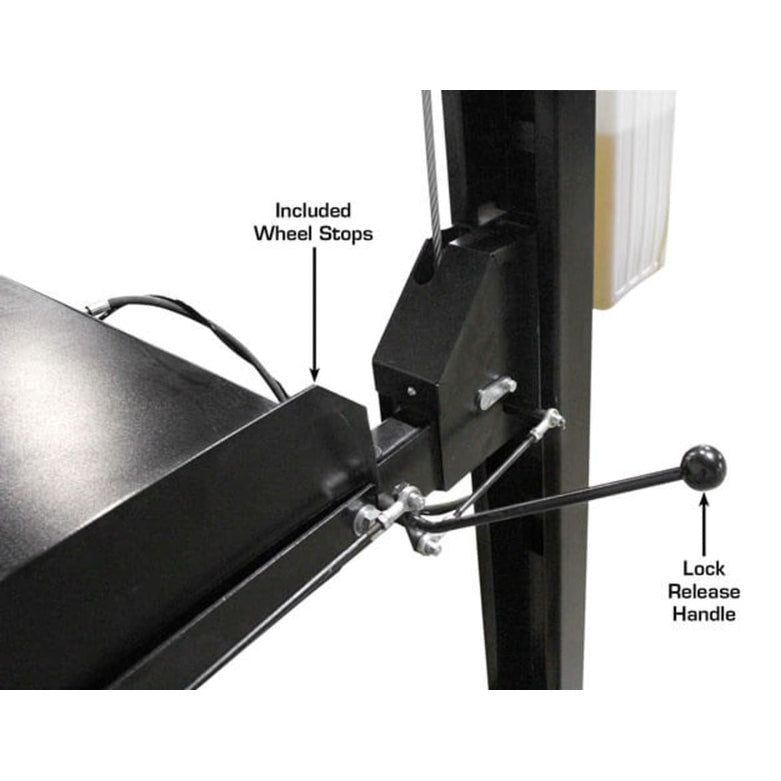

Single Point Lock Release

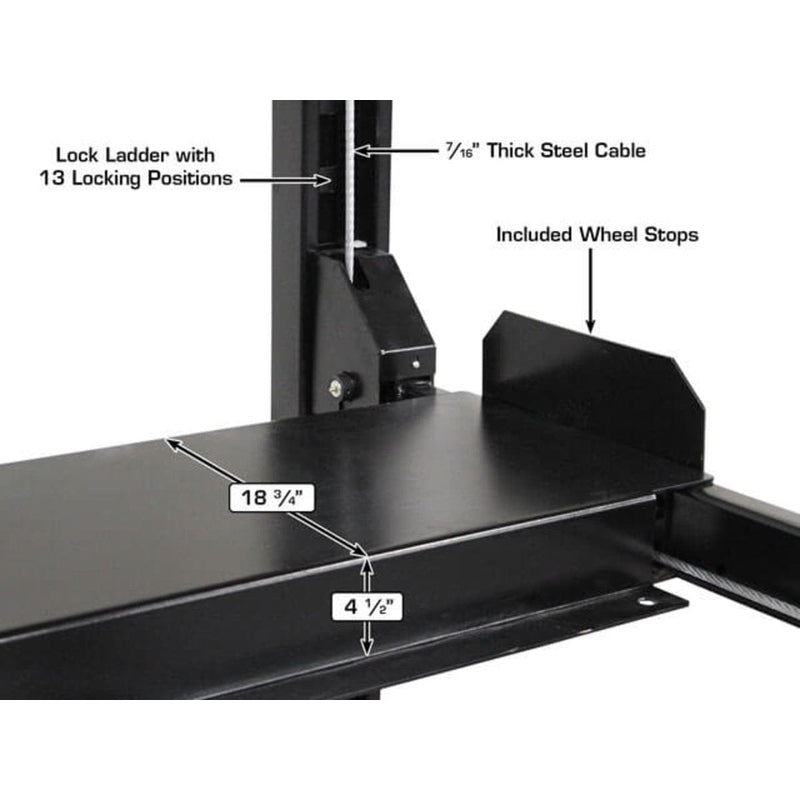

Lock Ladder Design
Double Lock Safety System
Steel Approach Ramps Included
Wheel Stops Included

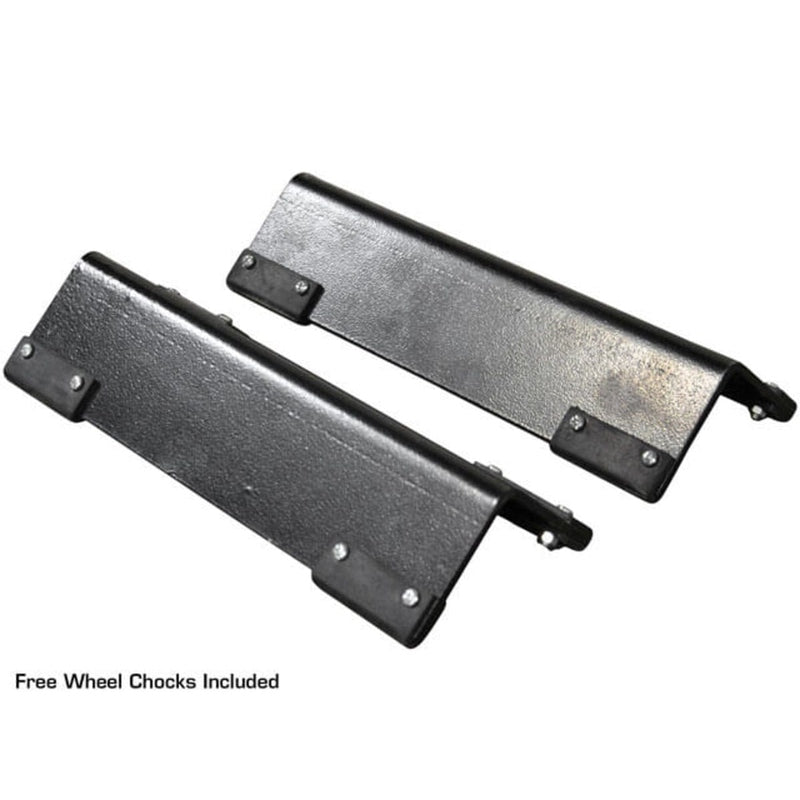

Two Wheel Chocks Included

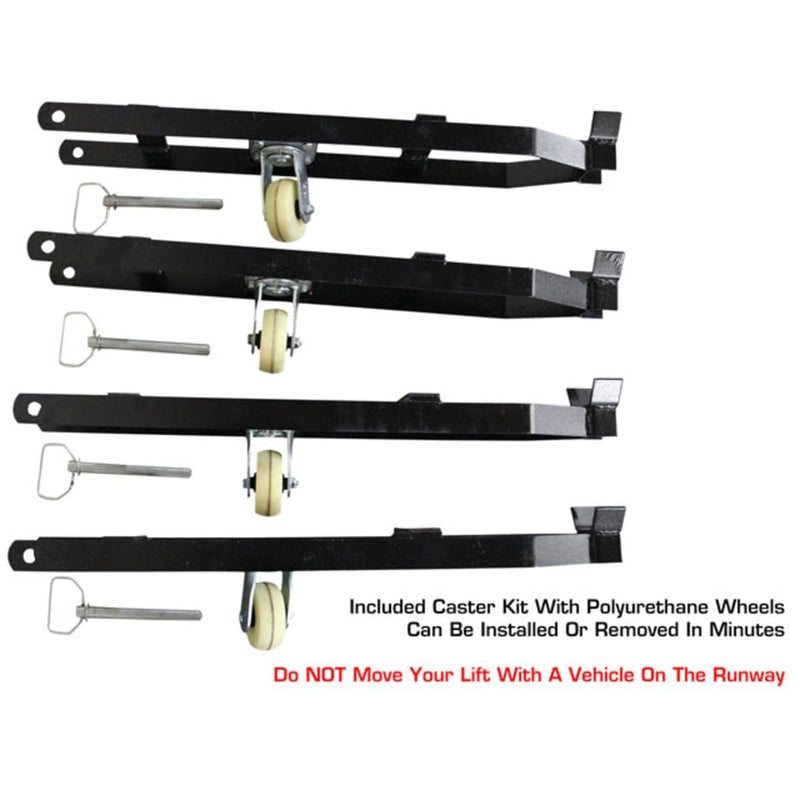

Caster Kit with Polyurethane wheels Included
Anchor Bolts Optional (Sold Separately)
Perfect for Storage or Working on Vehicles

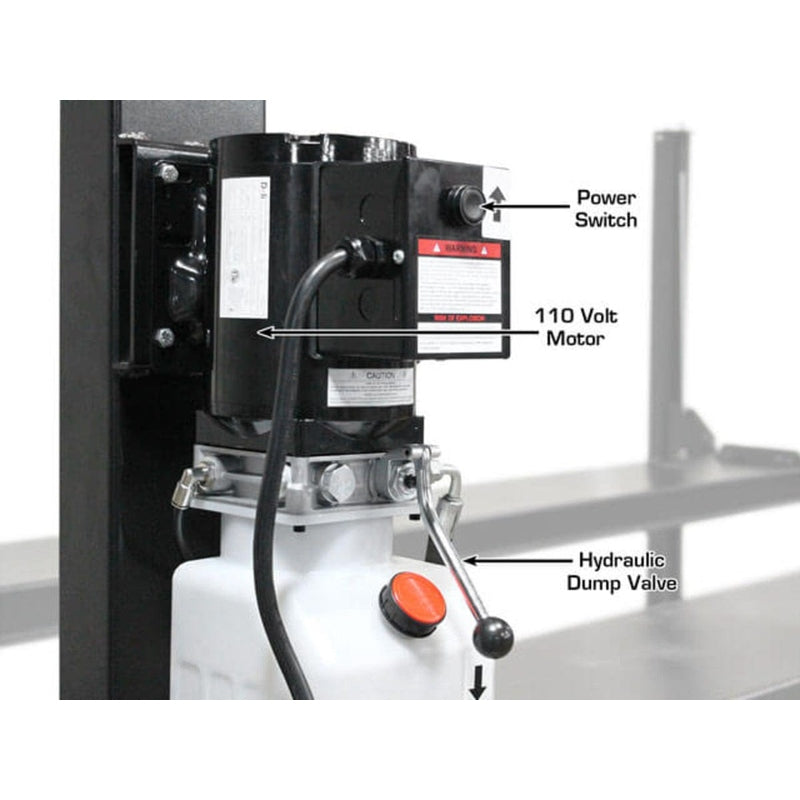

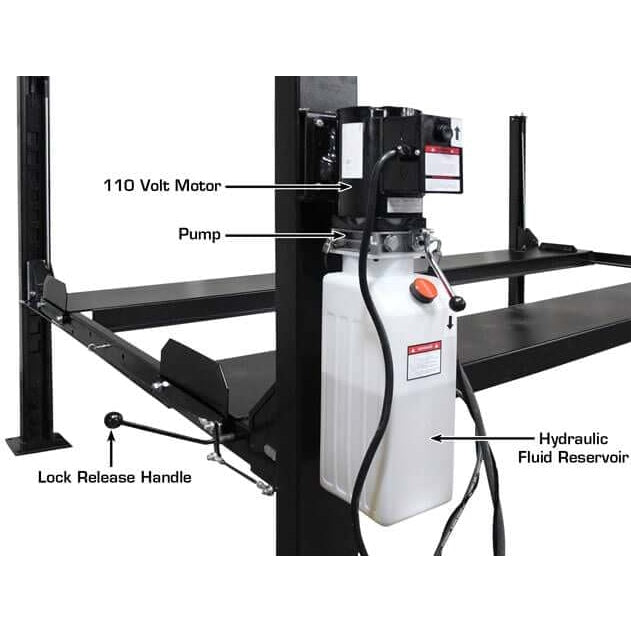

110volt Electric Operation (Requires 30amp Breaker)
Shipping Weight: 2,000 lbs.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

PROJACK35

Sliding Bridge Jack
Capacity: 3,500 lbs.

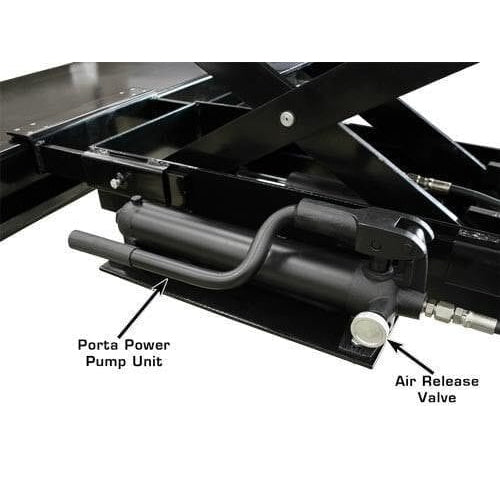

Manual, hand pump operated
Scissor mechanism allows for level lifting
Low Profile, Compact Design
Adjustable Width to fit many 4-post lifts
Adjustable Lift Arms to reach many lifting points
Multiple Safety Lock Positions

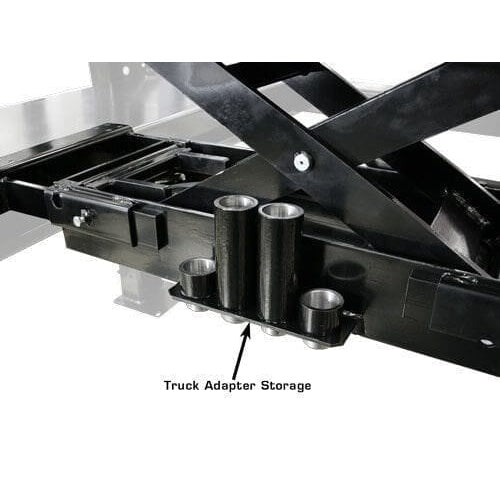

4 Piece Truck Adapter Set Included
1 Year Parts Only Warranty

Specifications

-

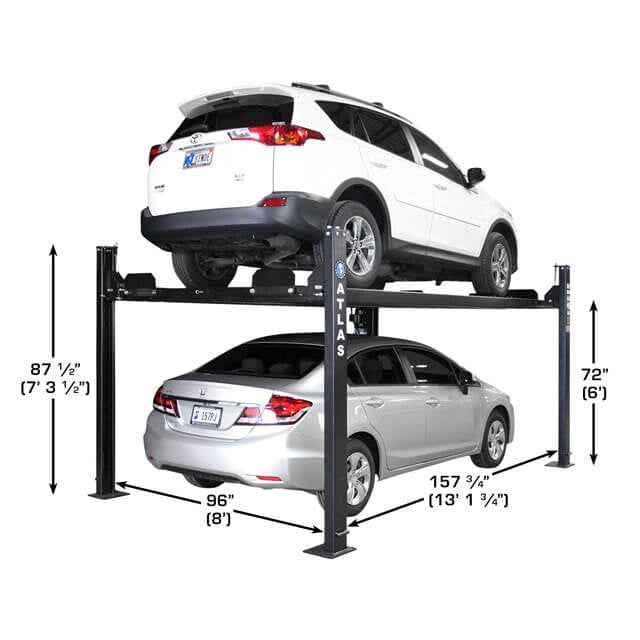

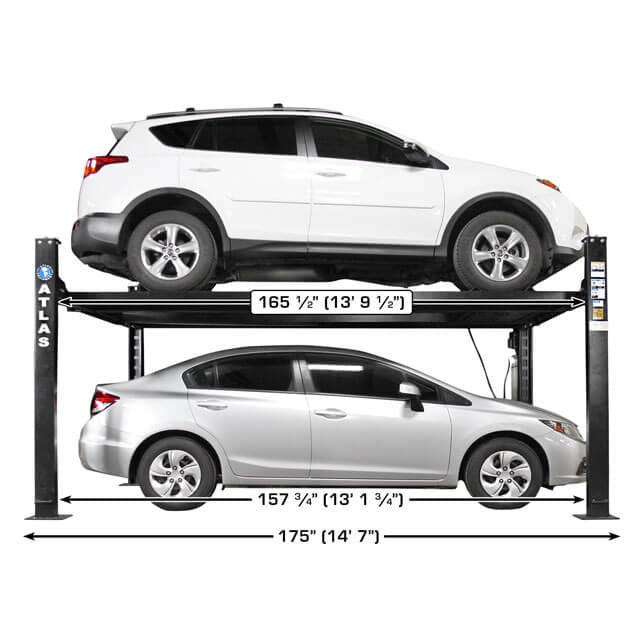

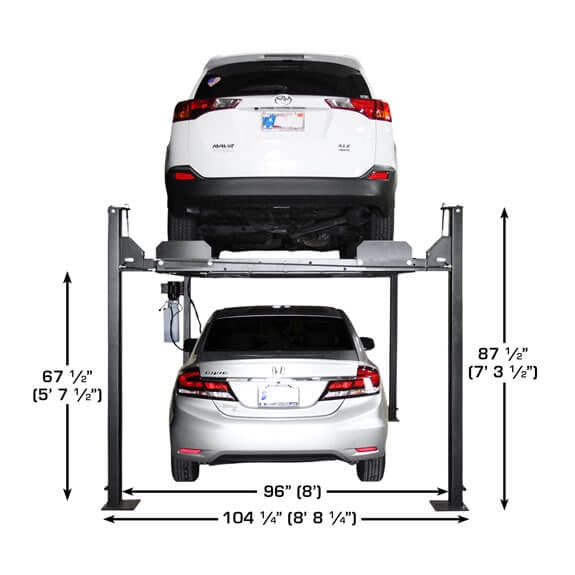

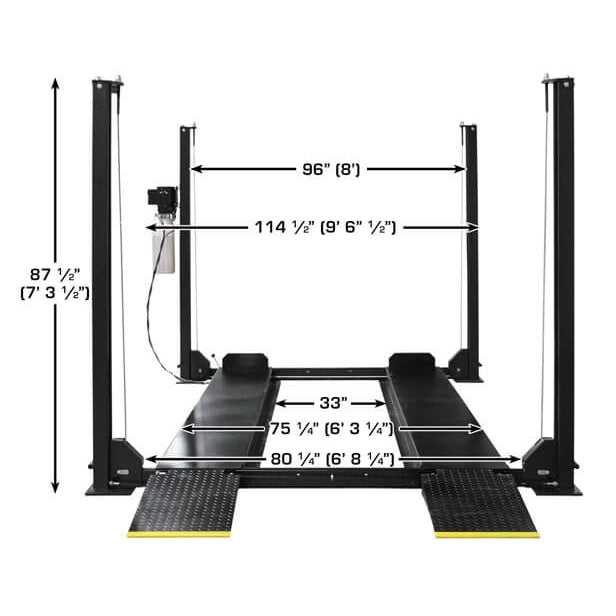

Atlas® Apex 8 Specifications

Capacity	8,000 lb.
Lifting Height To Top of Runway	72" (6')
Clearance Under Runways	67" (5' 7")
Height of Columns (Including Nuts)	86 5/8" (7' 2 5/8")
Overall Width (Without Motor or Casters)	104" (8' 8")
Overall Width (With Motor)	114" (9' 6")

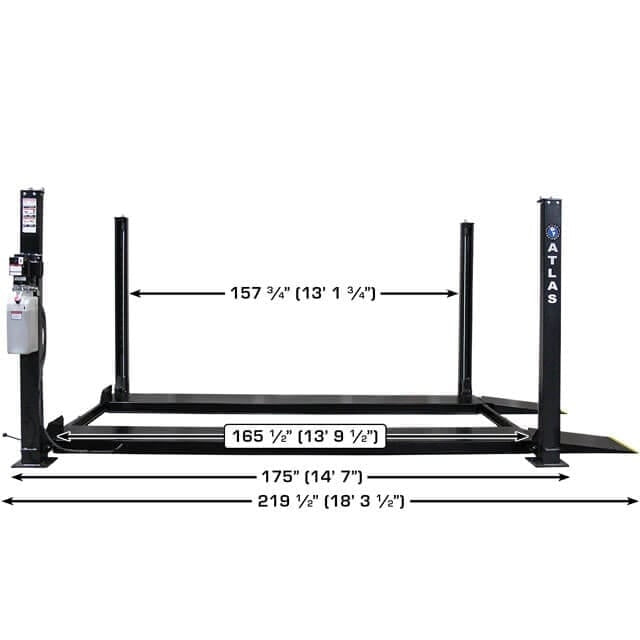

Overall Length without Approach Ramps (Including Lock Release Bar)	186 1/2" (15' 6 1/2")
Overall Length with Approach Ramps	207 5/6" (17' 3 5/6")

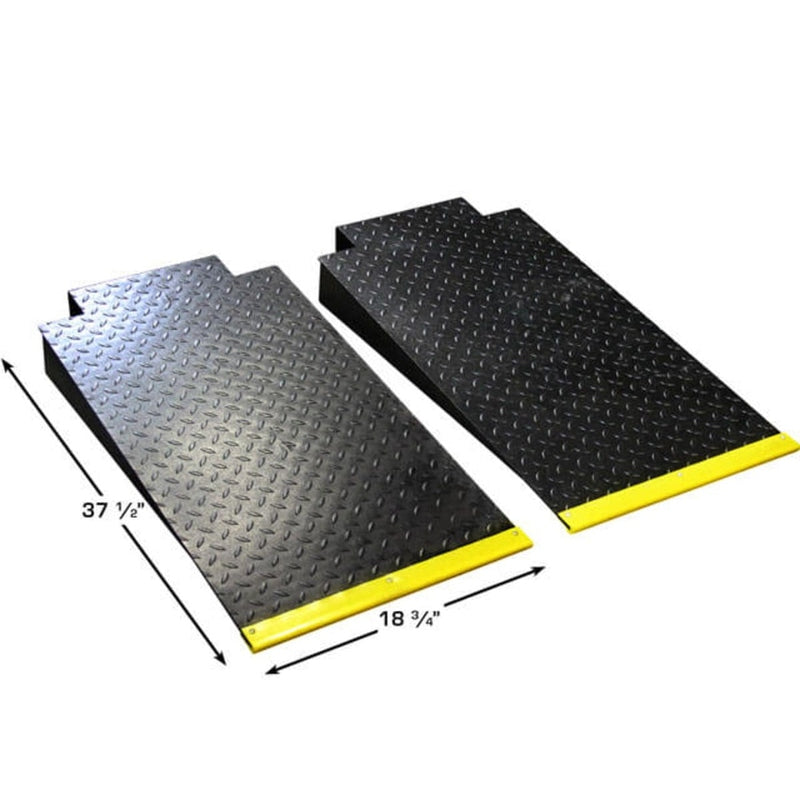

Approach Ramps	37 1/2" (3' 1 1/2")

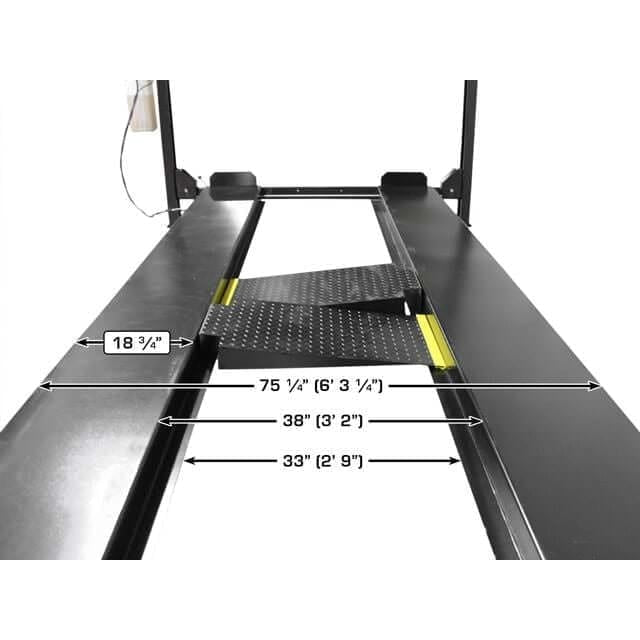

Runway Width	18 2/3"
Runway Rail Width	2 1/2"
Runway Length	169 1/2" (14' 1 1/2")
Runway Thickness	4 1/3"
Width Between Runways	38" (3' 2")
Width Between Runway Rails	33 (2' 9")
Outside Runway to Outside Runway	75 1/4 (6' 3 1/4")
Clearance Between Columns	94" (7' 10")
Length Between Columns	157 1/3" (13' 1 1/3")
Maximum Wheel Base	154 (12' 9")
Drive Thru (Outside of tire to outside of tire)	80 1/4" (6' 8 1/4")
Motor/Electrical Requirement	110 Volt, 30 AMP BREAKER REQUIRED

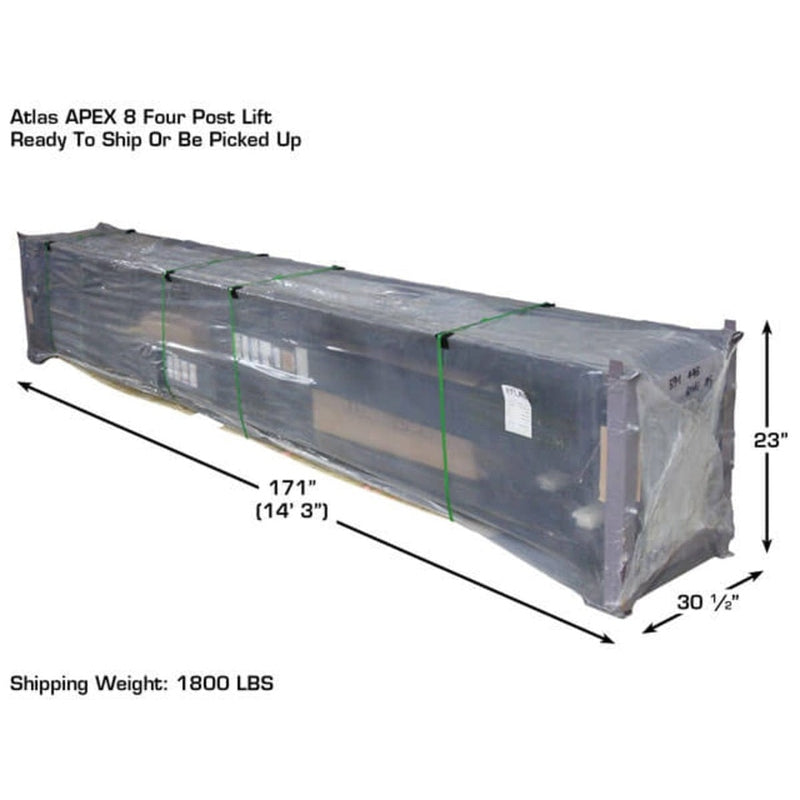

Shipping Weight	2,000 lb.

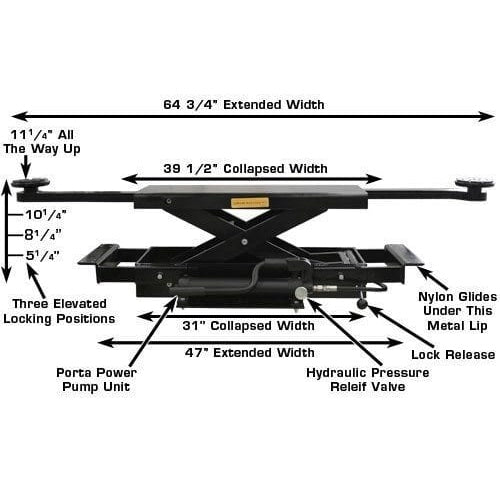

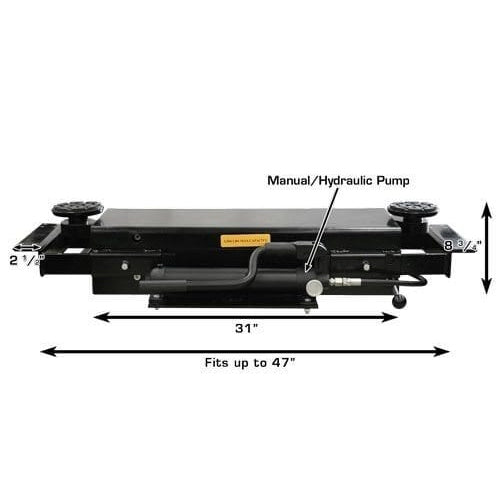

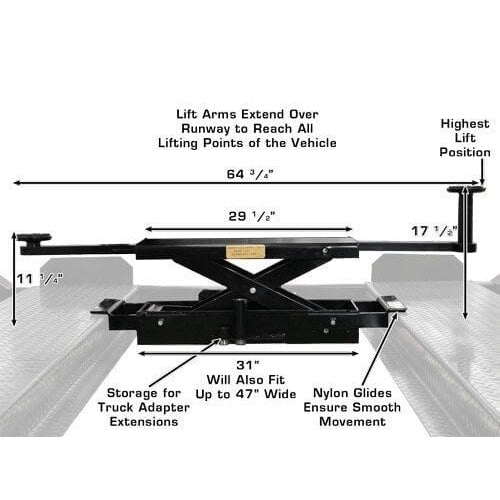

Atlas® RJ35 Specifications

Maximum Capacity	3,500 lbs.
Maximum Width	64 3/4" (5' 4 3/4")
Minimum Width	29 1/2" (2' 5 1/2")
Minimum Height with Lift Pad Above Runway	3 1/2" (MAY VARY BY LIFT)
Lift Pad Height Above Arm	1 3/8"
Max Raised height w/o Adapters	11"
Max Raised height w/ Adapters	17 1/4"

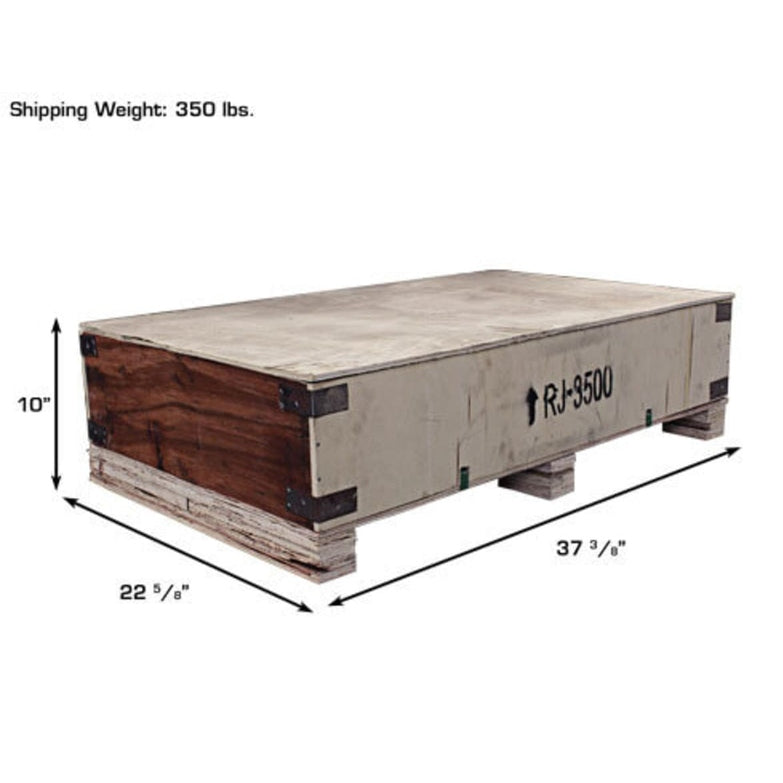

Shipping Weight	350 lb.

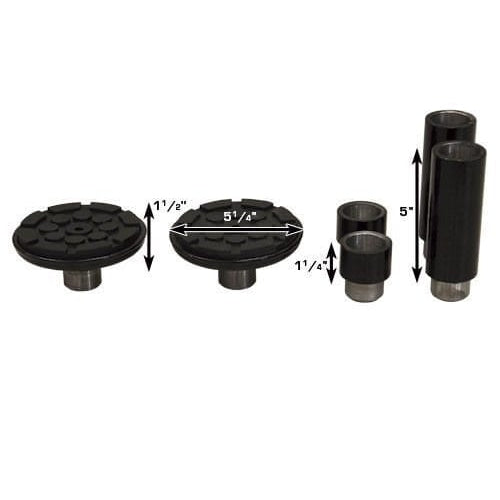

Adapter Heights	2 each 1.5", 5"
Arm Hole/Adapter Peg Size	1.5"

Documents

-

Atlas® Apex 8 Manual
