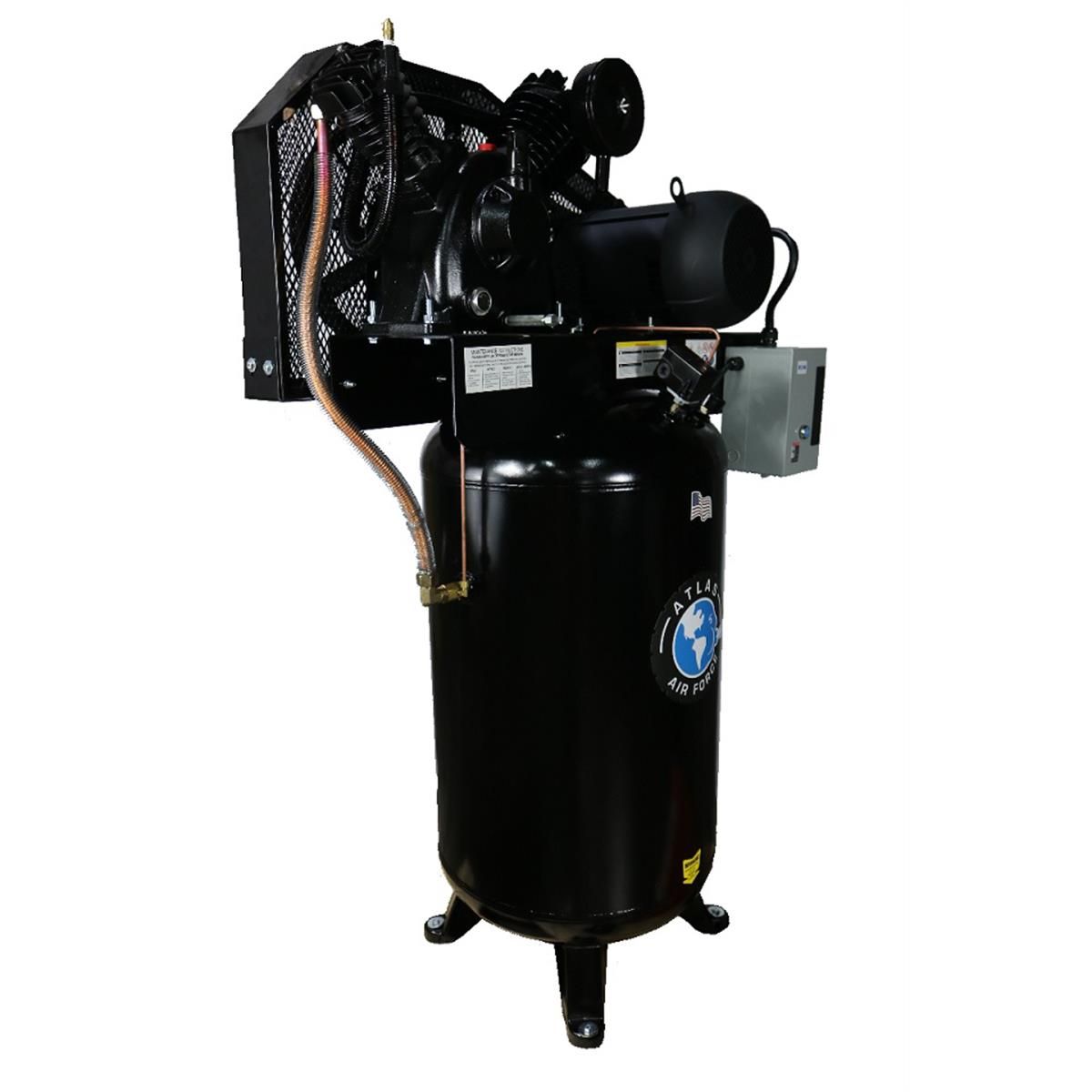

Atlas Air Force AF9 7.5 HP 80-gallon vertical air compressor, front three-quarter view

Atlas Air Force AF9 80-Gallon Air Compressor

SKU ATEMPAF9

In Stock
$3,199.00 - $3,499.00
$3,199.00
$3,199.00 - $3,499.00
$3,199.00
Delivery Option: Warehouse Pickup
Warehouse Pickup Location

*Subject to Availability - Call/Text Email to confirm (1-307-381-1810; sales@mygaragesupplies.com)
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat

Description

-

The Atlas Air Force AF9 is a commercial-grade, two-stage air compressor built for shops that run air tools all day. A 7.5-horsepower motor drives a 3-cylinder, 2-stage pump at a low 1,740 RPM, delivering 23 CFM at 90 PSI and 20 CFM at 175 PSI — enough to keep multiple bays supplied with sanders, impact wrenches, and spray equipment. Compressed air is stored in an 80-gallon USA-made vertical steel tank, so the pump cycles less often and runs cooler under sustained demand.

Every AF9 arrives with the hardware a professional install expects. An Eaton magnetic starter controls the electrical input and adds to the longevity of the motor, a Hubbell industrial-grade pressure switch handles cut-in and cut-out, and a set of vibro-isolation pads is included to cut vibration and noise. A heavy-duty metal belt guard shields the drive, a finned tank inlet tube reduces internal moisture buildup, and a hands-free tank drain extension plus an oil drain extension tube make routine maintenance easier.

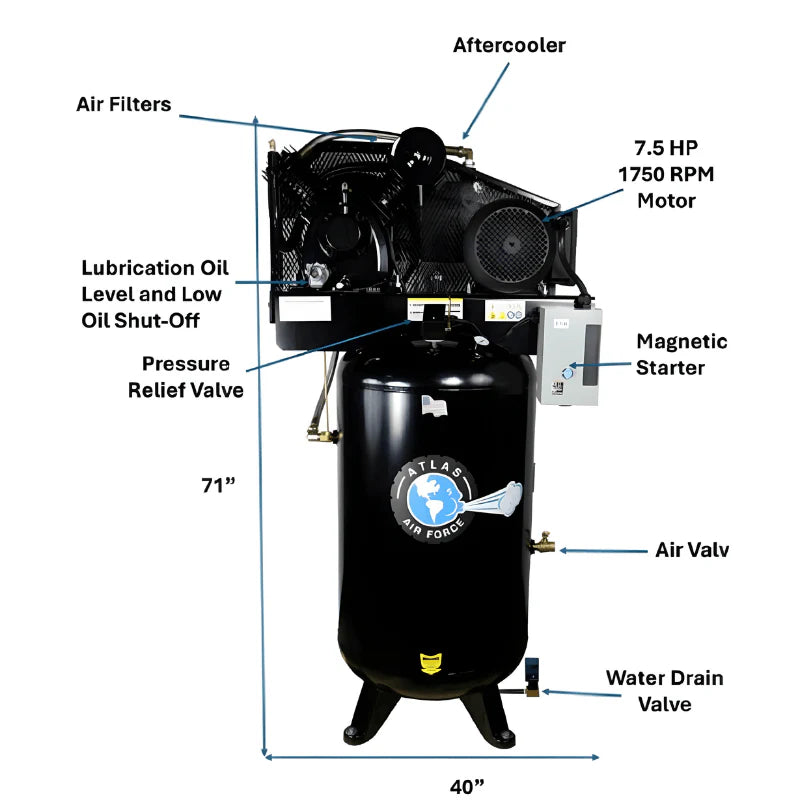

Atlas Air Force AF9 diagram labeling aftercooler, air filters, motor, magnetic starter, and drain valves, 71 in tall and 40 in wide
AF9 component callouts, with 71-inch height and 40-inch width.

The AF9 runs on 220V single-phase power and requires a 40-amp breaker and #8 wire — plan that circuit before delivery. The belt-driven reciprocating design and low operating speed keep noise down and are built to offer years of trouble-free service, to the same standards as the rest of the Atlas professional-grade equipment line.

Features

-
  • 3-cylinder, 2-stage belt-driven pump for efficient air delivery and cooler running under load
  • 7.5 HP motor turning at a low 1,740 RPM for quieter operation
  • Eaton magnetic starter included to protect the motor and extend service life
  • Hubbell industrial-grade pressure switch
  • 80-gallon vertical steel tank, made in the USA
  • Heavy-duty metal belt guard
  • Finned tank inlet tube that reduces internal moisture buildup
  • Hands-free tank drain extension and compressor oil drain extension tube for simpler maintenance
  • Set of vibro-isolation pads included to reduce vibration and noise

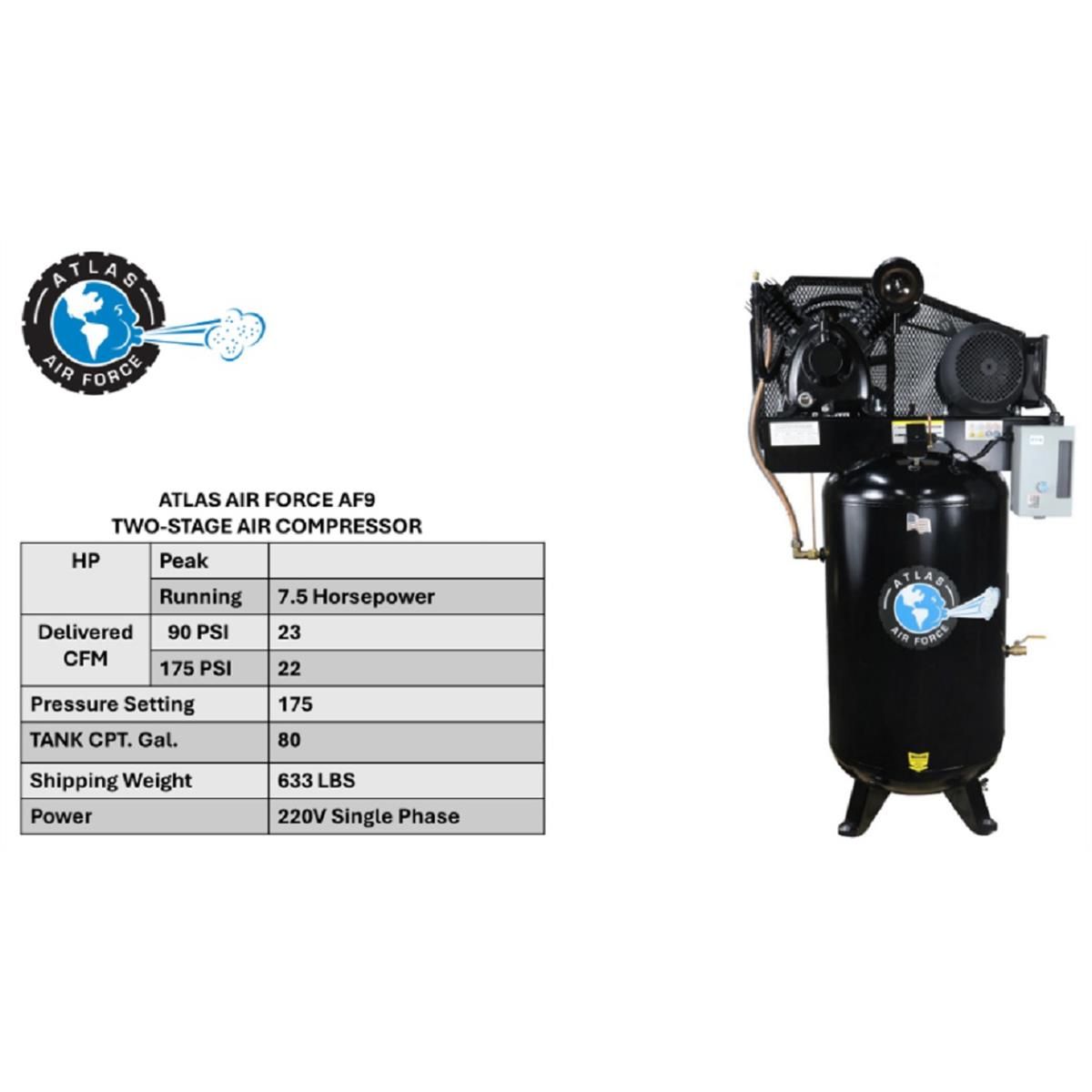

Specifications

-
Atlas Air Force AF9 Specifications
Motor 7.5 HP running, 1,740 RPM
Compressor pump 3-cylinder, 2-stage (belt-driven reciprocating)
Air output pressure 145-175 PSI
Delivered CFM 23 at 90 PSI; 20 at 175 PSI
Tank capacity 80 gallons, vertical steel (made in the USA)
Air outlet size 3/4" NPT
Electrical 220V single-phase, 40-amp breaker, #8 wire required
Overall dimensions 40"L x 24"W x 71"H
Shipping weight 633 lbs
Backed by a 1-year parts-only warranty.

Documents

-

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
