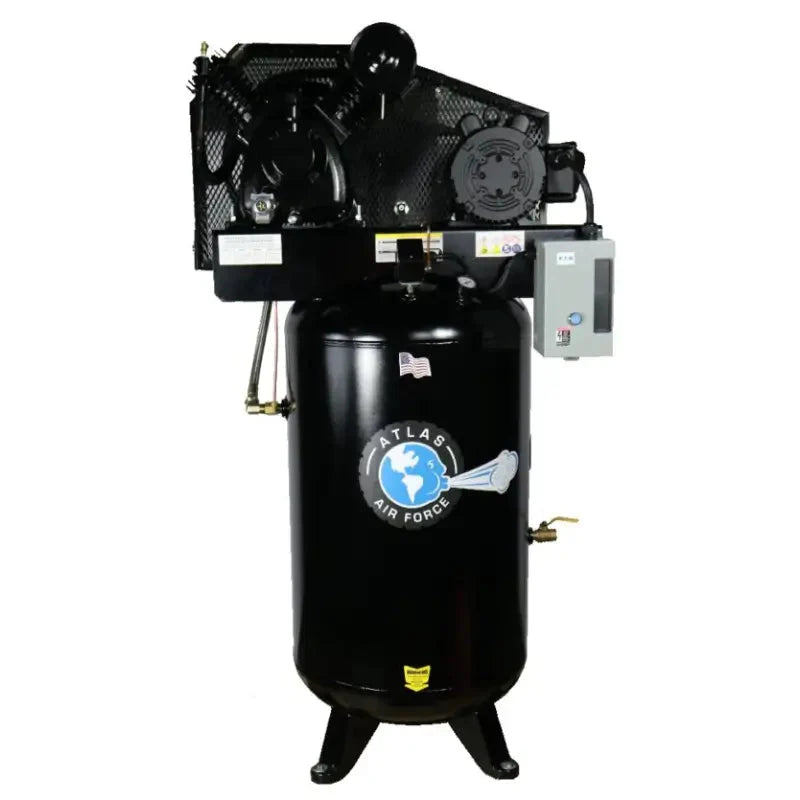

Atlas Air Force AF8 Air Compressor

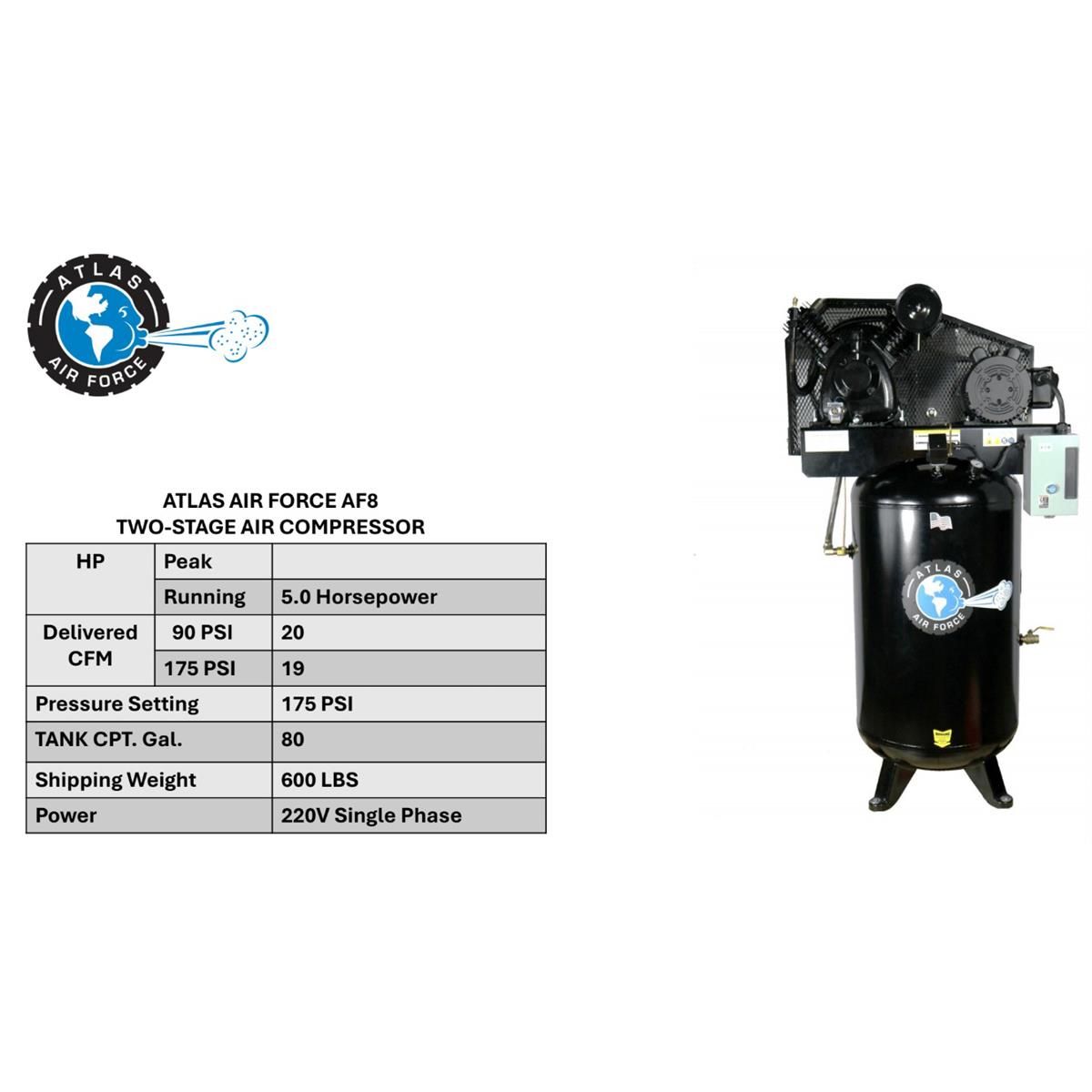

The Atlas Air Force AF8 is a 5-horsepower, 80-gallon two-stage commercial air compressor built for the 3-to-4-person auto shop — and for the one-person shop preparing for growth — that needs shop air to deliver flawlessly every working day. A two-cylinder, two-stage pump paired with a low-RPM 5 HP belt-driven motor (1750 RPM) cycles between 145 and 175 PSI and puts out 20 CFM at 145 PSI and 19 CFM at 175 PSI — enough to keep impact wrenches, sanders, and more than one air tool running at once.

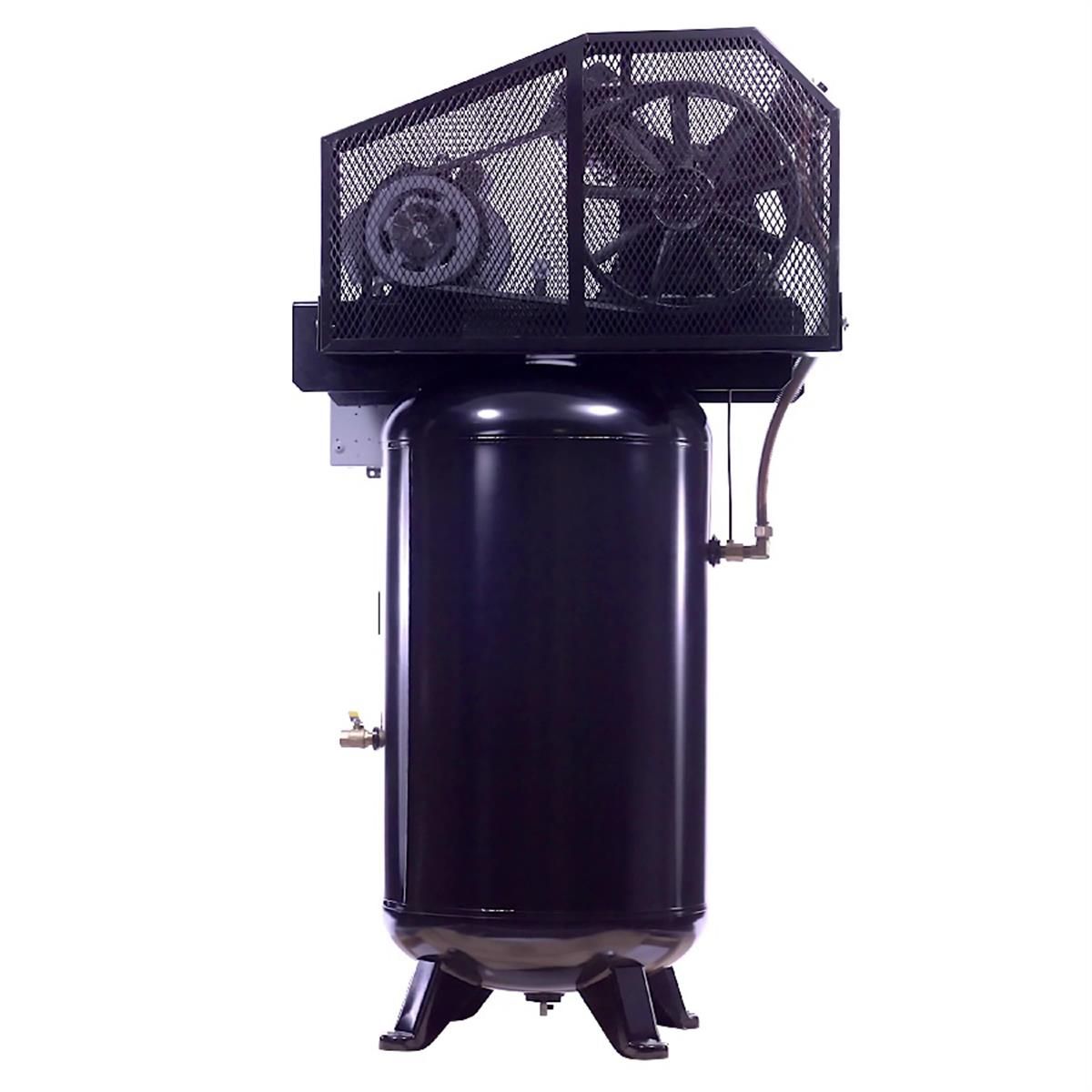

Air is stored in a USA-made 80-gallon vertical steel tank rated to 200 PSI, leaving headroom above the 175 PSI cut-out. The vertical design stands 71 inches tall on a 40-by-24-inch footprint, so it lines up against a wall instead of taking a bay.

The AF8 runs on 220-volt, single-phase power and needs a 30-amp breaker on #10 wire — a circuit most working shops already have or can add without a full service upgrade. A factory Eaton magnetic starter manages the electrical input on every start, which protects the motor and adds to the unit's service life. An industrial-grade Hubbell pressure switch handles the cut-in and cut-out.

Reciprocating compressors have a reputation for noise; the AF8 is built to run quietly enough for indoor shop use. A set of vibro-isolation pads ships with the unit to damp vibration between each tank foot and the floor, and a finned tank inlet tube helps cut water accumulation inside the tank.

• Two-cylinder, two-stage belt-driven pump
• 5 HP heavy-duty, low-RPM (1750 RPM) motor
• 80-gallon USA-made vertical steel tank, rated to 200 PSI
• 145–175 PSI operating range; 20 CFM at 145 PSI, 19 CFM at 175 PSI
• Factory Eaton magnetic starter for controlled electric input and longer service life
• Industrial-grade Hubbell pressure switch
• Heavy-duty metal belt guard
• Finned tank inlet tube to reduce tank water accumulation
• 3/4" NPT air outlet
• Quiet operation suited to indoor shop use

The AF8 ships with the hardware a working shop needs to set it up and keep it maintained:

• Eaton magnetic starter
• Set of vibro-isolation pads¹
• Hands-free tank drain extension
• Compressor oil drain extension tube

¹ Each pad sits between a tank foot and the floor and takes a 3/8" anchor. Floor anchors are not included.

The Atlas Air Force AF8 is backed by a 1-year parts-only warranty.

What electrical service does the AF8 need?

220-volt, single-phase power on a 30-amp breaker with #10 wire. It does not require three-phase service.

How much air does it deliver?

20 CFM at 145 PSI and 19 CFM at 175 PSI, operating between 145 and 175 PSI — enough for impact tools, sanders, and running more than one air tool in a small shop.

How big is it and how much does it weigh?

It measures 40" L × 24" W × 71" H and ships at 600 lbs on a vertical footprint.

Is the tank made in the USA?

Yes. The 80-gallon vertical steel tank is USA-made and rated to 200 PSI.

What warranty comes with it?

A 1-year parts-only warranty.

The AF8 ships via freight on a pallet. To confirm delivery options or place an order by phone, contact MGS at sales@mygaragesupplies.com or 307-381-1810.

Atlas AF8 Parts Breakdown (PDF)
