Atlas ACL Motorcycle Lift w/ Roller Plate

Name: Atlas ACL Motorcycle Lift w/ Roller Plate
Brand: Atlas Automotive Equipment
SKU: ATEHT-ACL-FPD
Price: 1349.0 USD
Availability: InStock

SKU ATEHT-ACL-FPD

$1,349.00 - $1,349.00

$1,349.00

$1,349.00 - $1,349.00

$1,349.00

Call/Text Us: 307-381-1810 Call Us

Live Chat With an Expert Live Chat

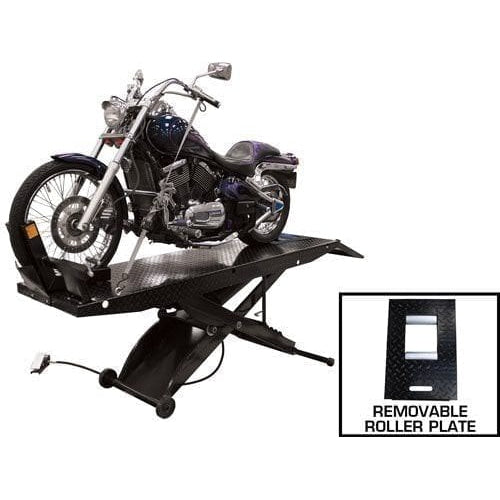

Atlas Air Operated Motorcycle Lift

-

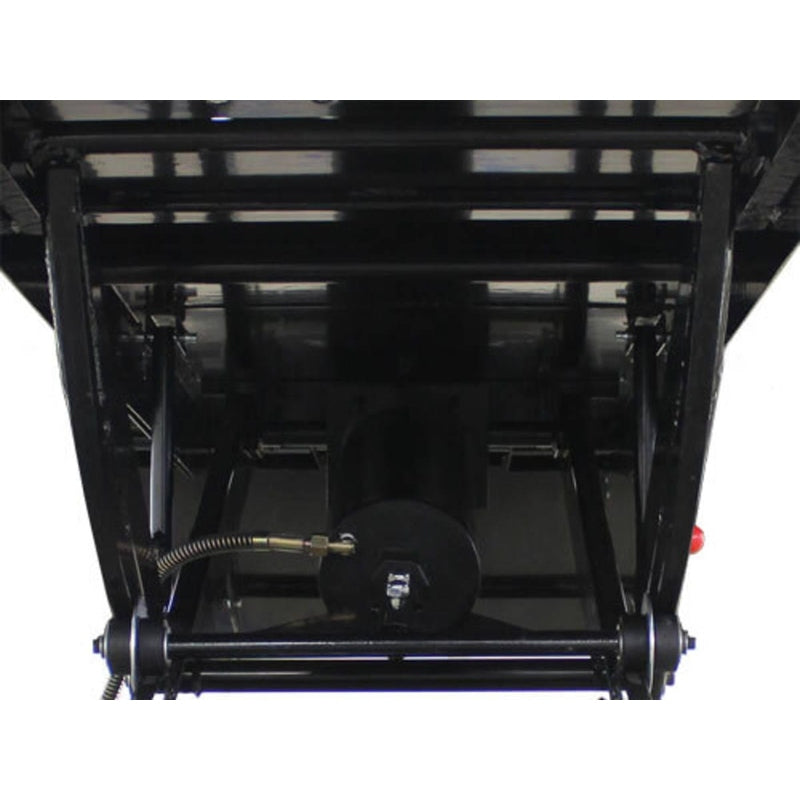

The Atlas ACL is air operated and requires between 90-100 PSI to operate. The ACL is the perfect addition to any service department of professional motorcycle dealers or is a great motorcycle lift for the person who wants to work on his personal bike in their own garage.

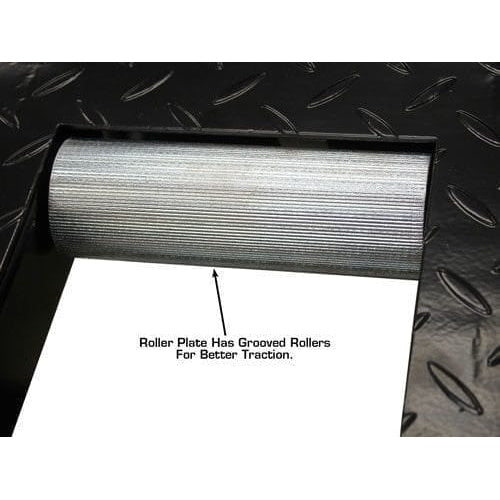

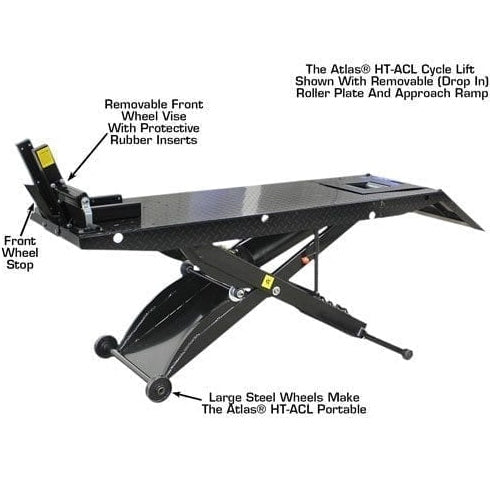

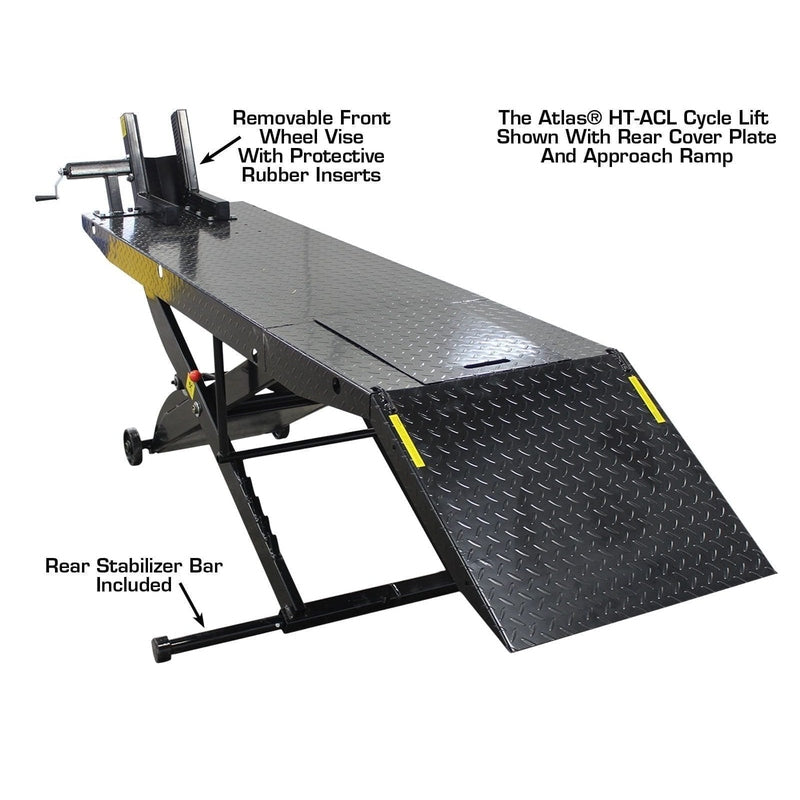

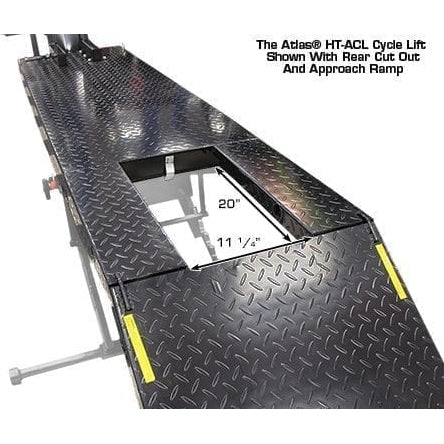

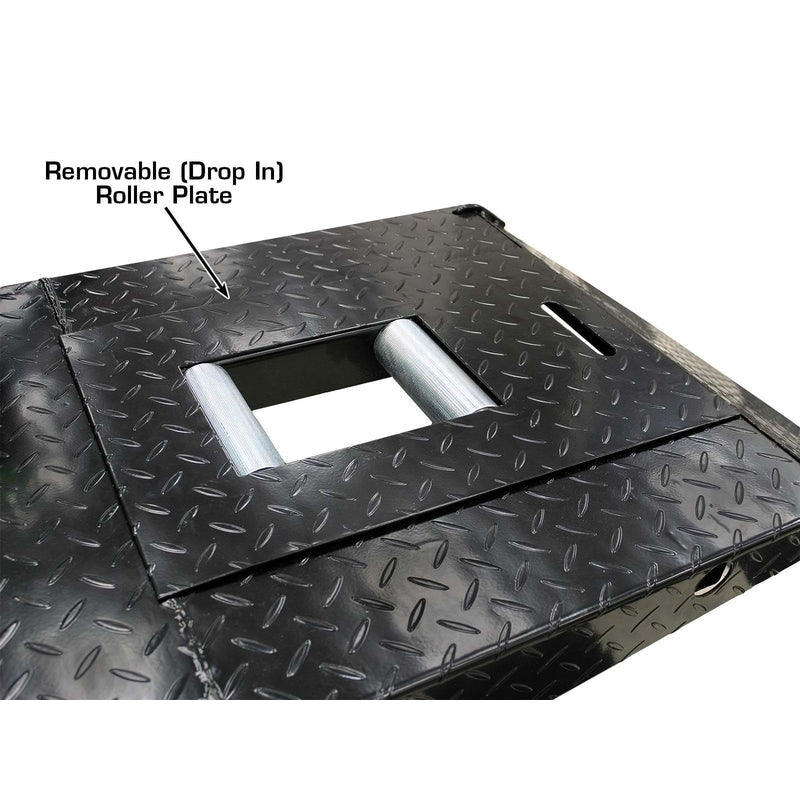

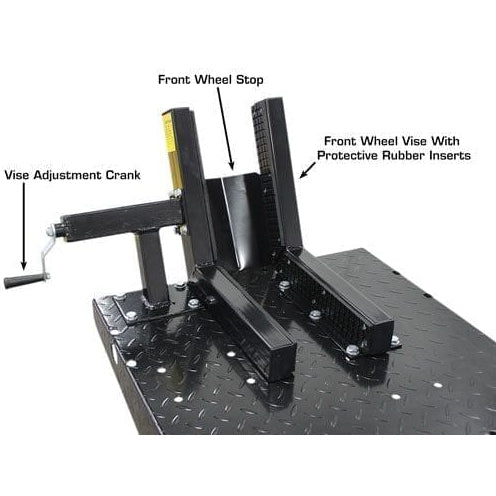

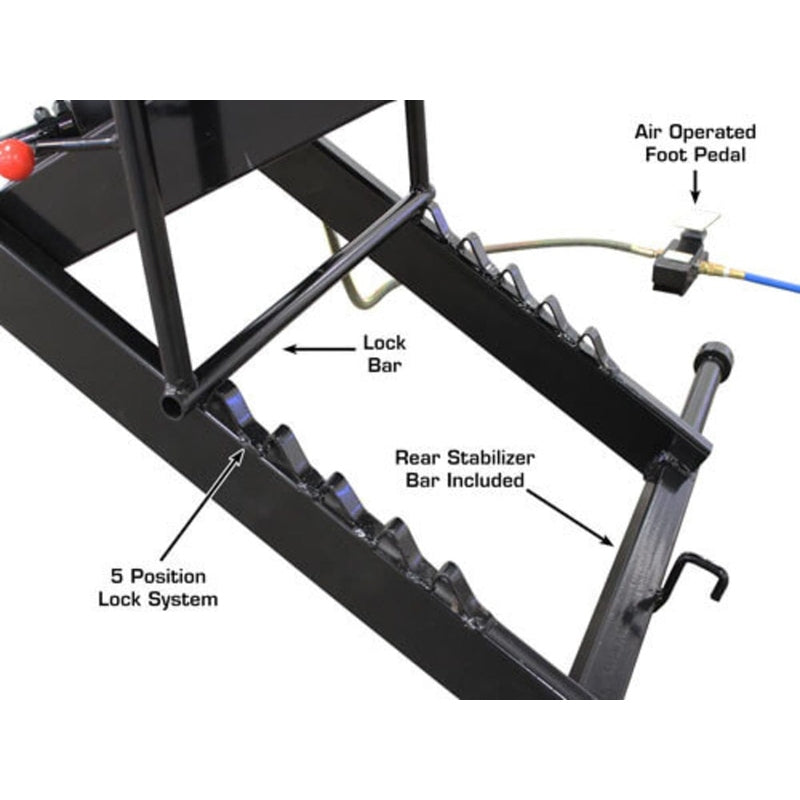

This is a complete motorcycle lift that includes an adjustable front (padded) wheel vise and a heavy duty air operated foot valve for easy raising and lowering. The defining feature of the ACL motorcycle lift is a removeable plate at the rear of the lift. The plate can be removed and left off to allow more access to the rear tire or the plate can be replaced with an included roller plate. The roller plate allows the rear tire to be spun for work and testing. Finally the ACL also includes the stabilizing bar at no extra charge. This bar provides greater stability for the raised platform by increasing the footprint of the lift.

For those customers looking for more width to pick up ATVs, UTVs, Golf Carts, and other wider vehicles the Atlas ACL motorcycle lift can be equipped with the Atlas ACL Side Extension Kit to increase the width up to 4 feet.

Features

-

Capacity: 1000 lbs.
Air Operated (External Air Supply Required)
33" Full Lift Height
85 1/2" Table Length
Diamond Plate Surface
Front Wheel Vise Included
Removeable Roller Plate

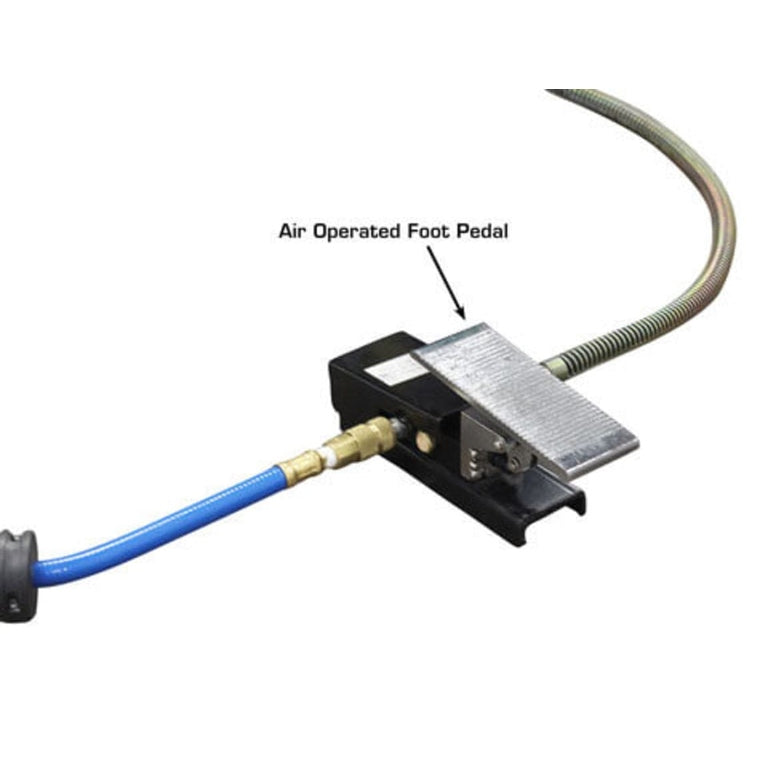

Foot Pedal Control Included

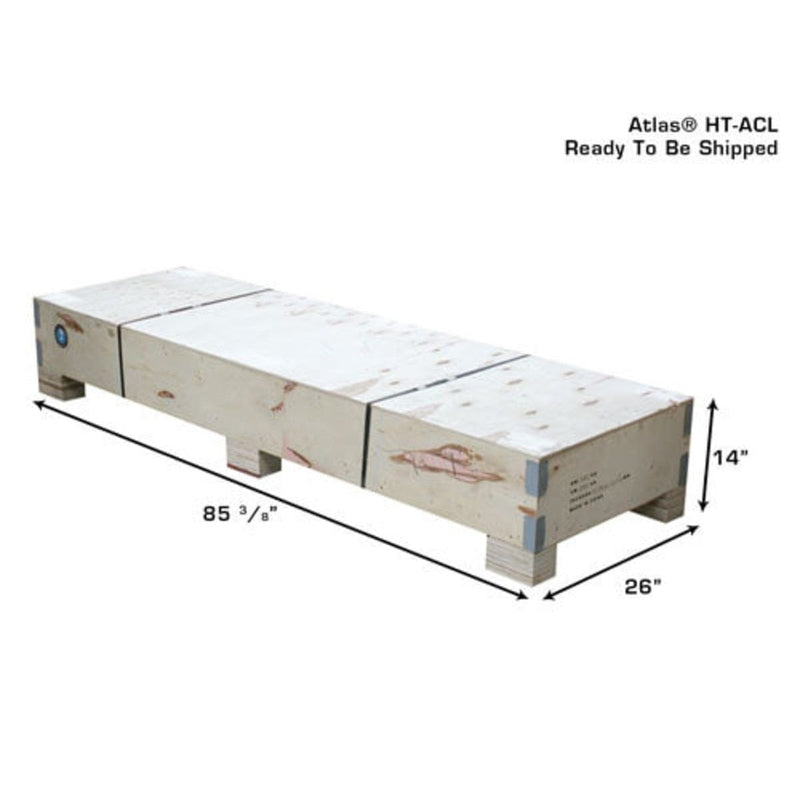

Shipping Weight: 500 lbs.
1 yr Warranty Parts Only

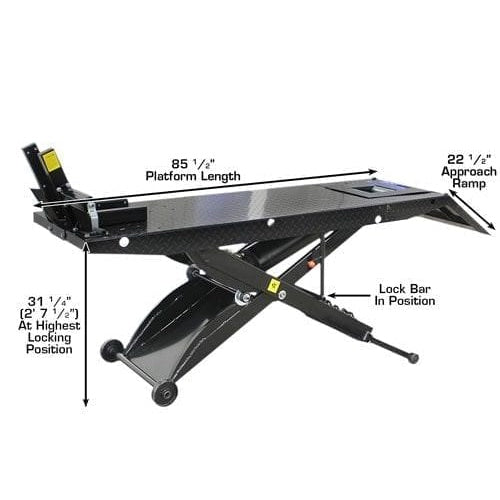

Atlas ACL Motorcycle Lift Specifications

-

Weight Capacity	1,000 lb.
Length W/ Ramp	105 1/2" (8' 9 1/2")
Table Length W/O Ramp	85 1/2" (7' 1 1/2")
Width	24"
Lift Height	33" (2' 9")
Lowered Height	7 1/4"
Removable Approach Ramp	20"
Air Requirements	90 - 100 psi
Shipping Weight	500 lb.

Documents

-

Atlas ACL Motorcycle Lift Manual
