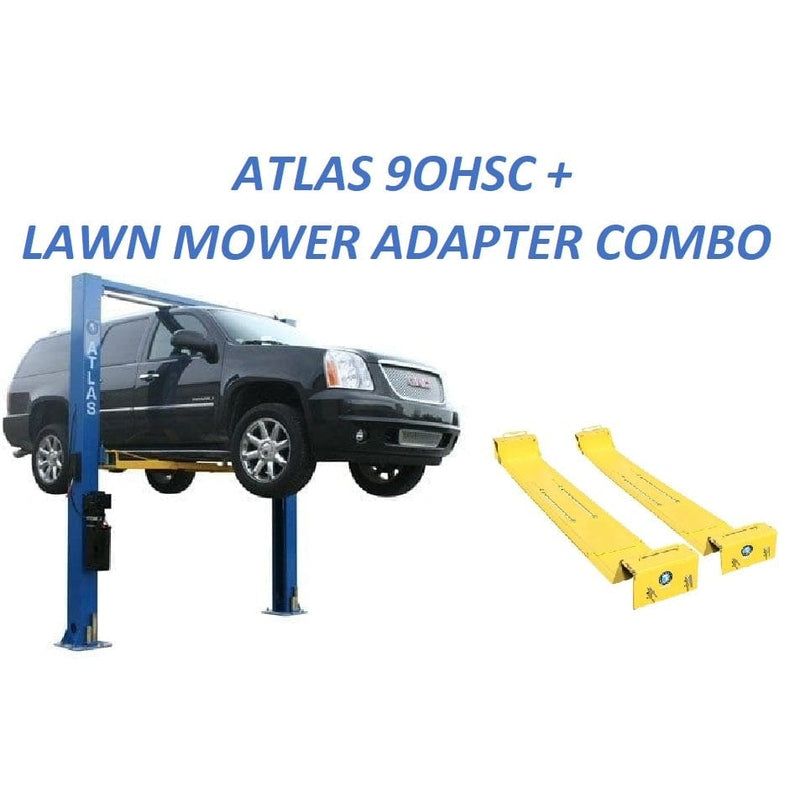

Atlas 9OHSC 2-Post Lift + Lawn Mower Adapter Combo

SKU ATEATTD-9OHSC-COMBO-FPD
Original price $4,699.00 - Original price $4,699.00
Original price
$4,699.00
$4,699.00 - $4,699.00
Current price $4,699.00

Description

-

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or “Mr. Homeowners” who demand the highest quality at the absolute best price. The 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer.

The Atlas® 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars® to a Suburban®. The 9OHSC incorporates a single piece 11’ 10” formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle.

The Atlas® 9OHSC has single piece columns and extra-long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.

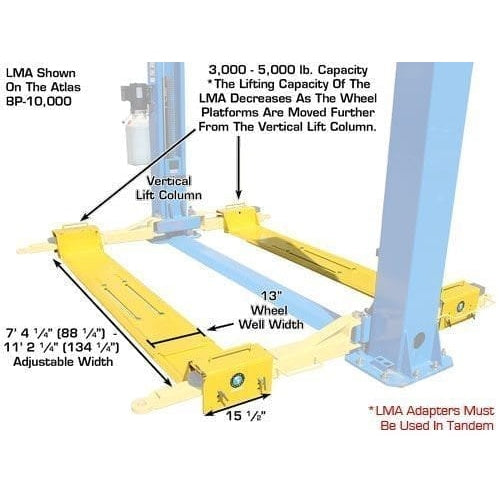

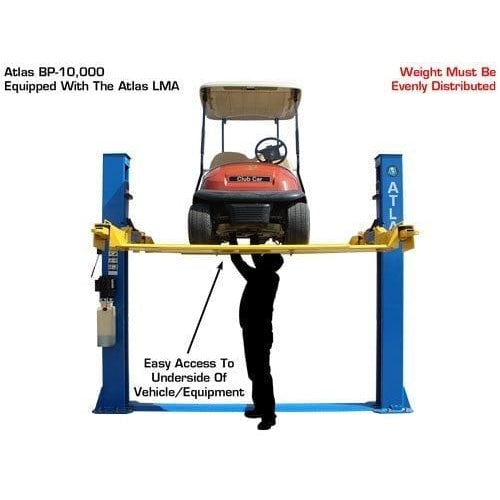

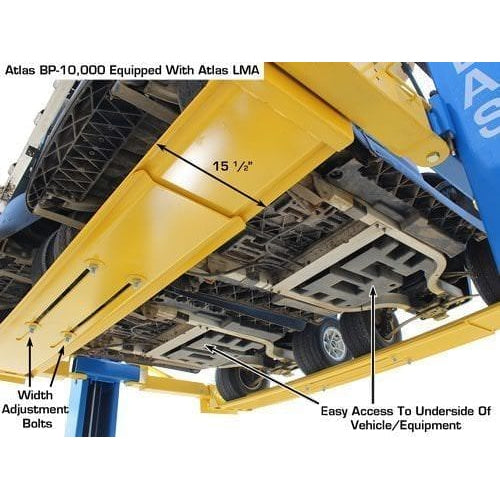

This combo includes the Atlas® Lawn Mower Adapter or LMA.  The LMA allows the 2-Post lift to better raise ATV’s, UTV’s, and lawn mowers.  The LMA is adjustable along the length of the lifts arms to handle different wheelbase vehicles.  The weight capacity of the LMA is dependent on the positioning of the adapter (higher when the plates are closer to the columns) and the balance of the weight of the vehicle being lifted.

Features

-

9OHSC

  • 9,000 lb. Capacity
  • Overhead, Open-Floor Lift
  • Single-Piece Column Design
  • Overall Height: 142″ (11′ 10″)

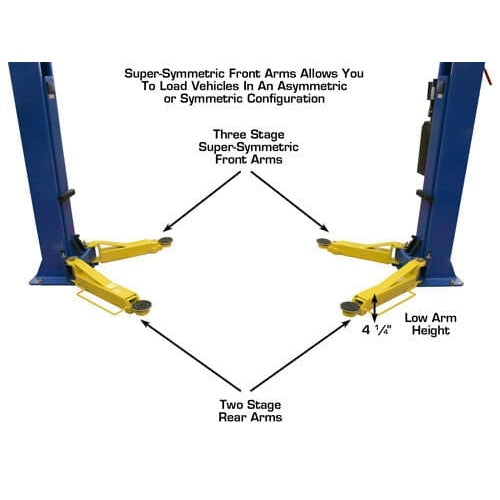

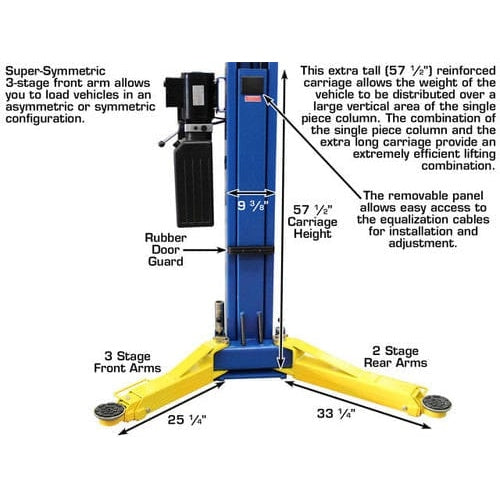

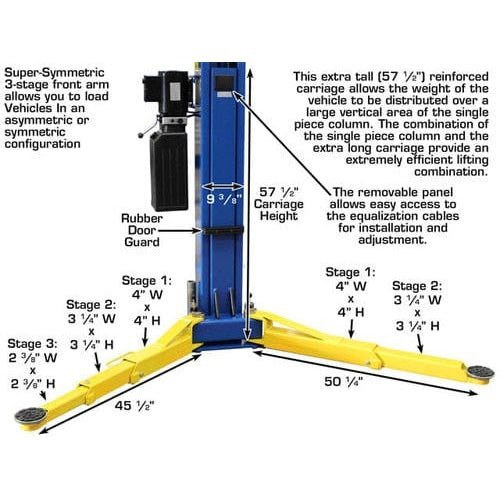

  • 3-Stage Front Arms/2-Stage Rear Arms

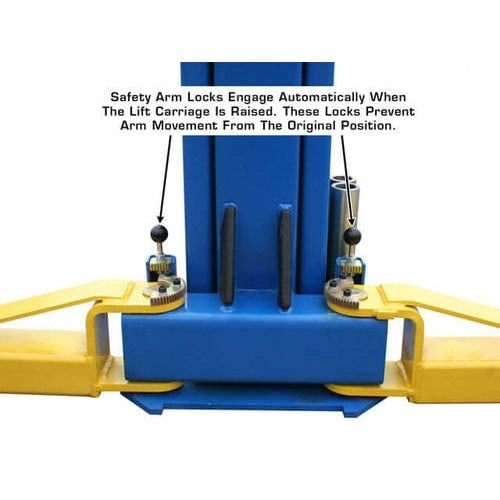

  • Automatic Arm Restraints

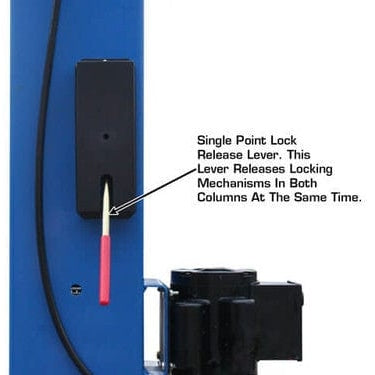

  • Single-Point Lock Release
  • Rubber Guards on Carriages

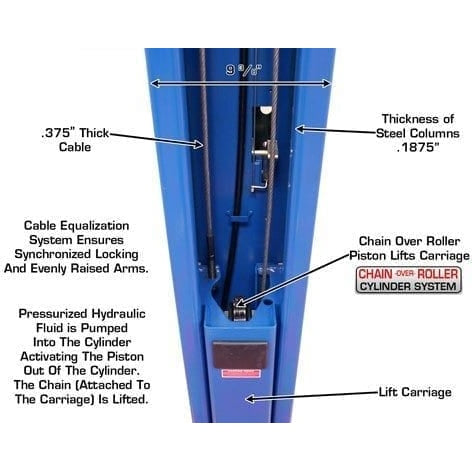

  • Dual Hydraulic Chain-Drive Cylinders

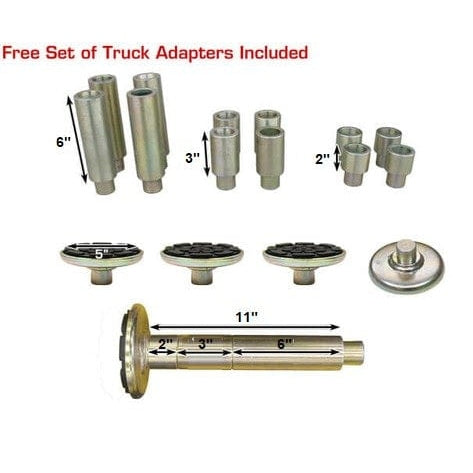

  • Free 12 Piece Truck Adapter Set

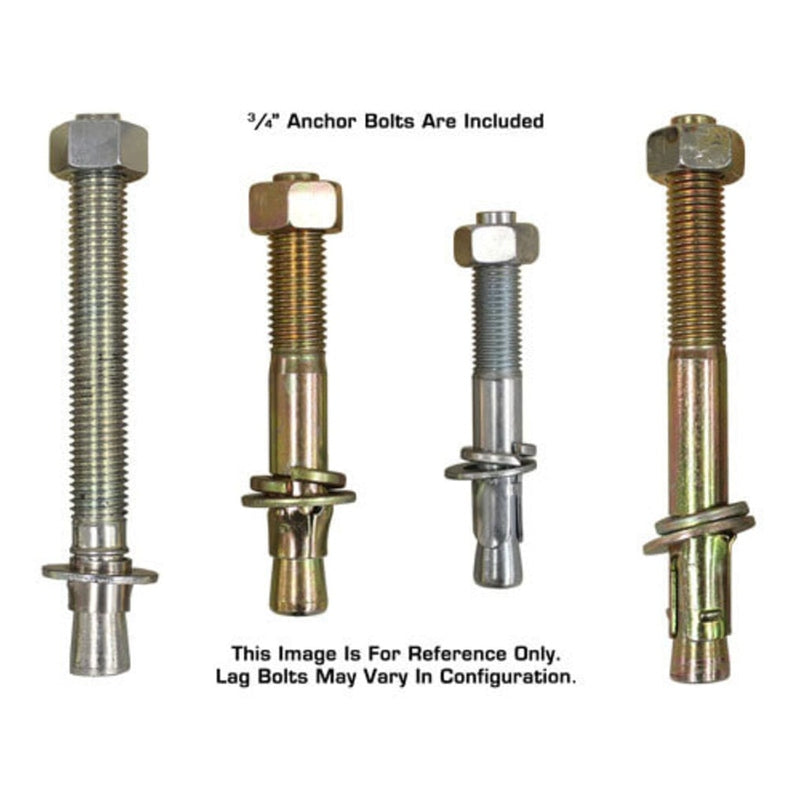

  • Mounting Hardware Included

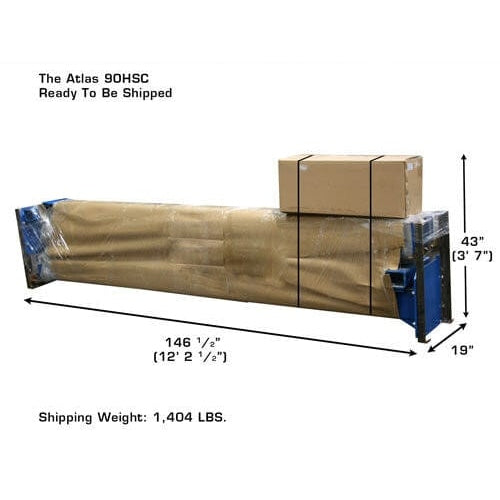

  • Shipping Weight: 1,430 lbs.
  • 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

LMA

  • “Lawnmower” Adapter for 2-Post Lifts
  • Includes 4 plates and all hardware
  • Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)
  • Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)
  • Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)

Specifications

-

Atlas® ATTD-9OHSC-SS Specifications

Capacity 9,000 LB.

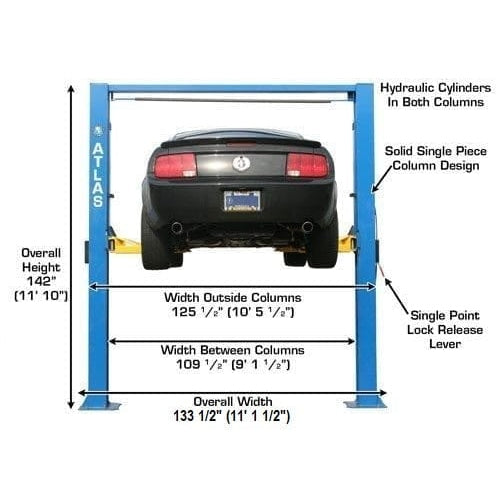

Overall Height 142" (11’ 10")

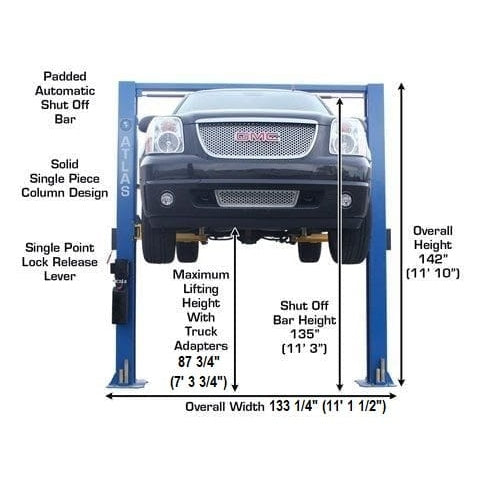

Overall Floor Width 133 1/2" (11’ 1 1/2")
Outside Column to Outside Column 125 1/2" (10’ 5 1/2")

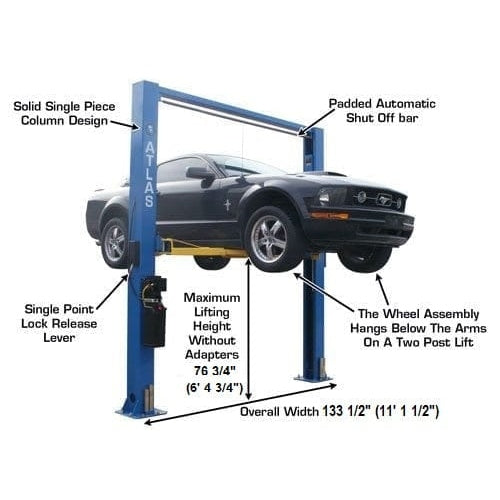

Maximum Lift Height (Without Adapters) 76 3/4"

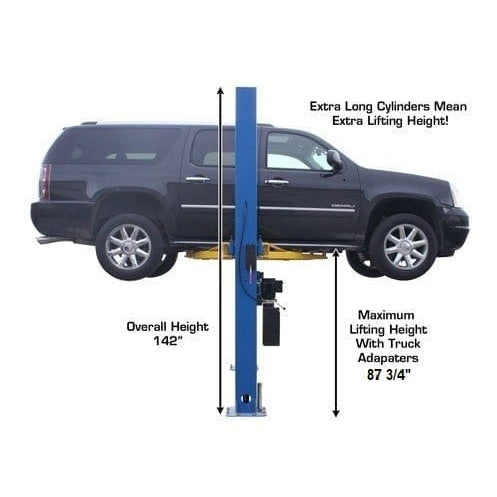

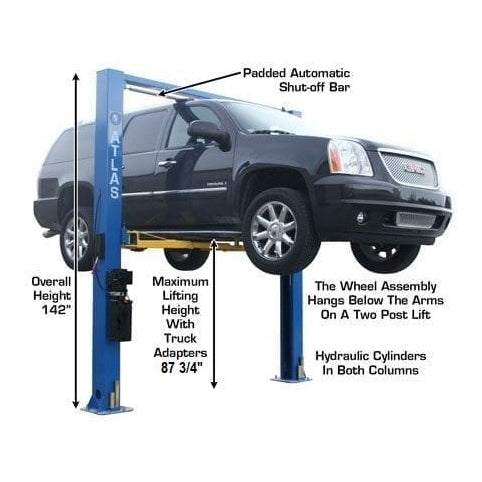

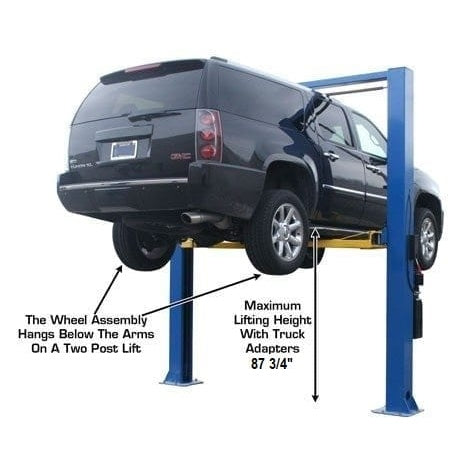

Maximum Lift Height (With Adapters) 87 3/4"
Minimum Arm Height 4"

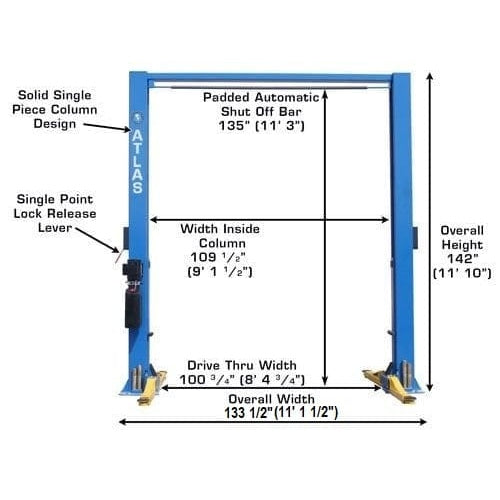

Inside Column 109 1/2” (9’ 1 1/2”)
Drive Thru 100 1/2” (8’ 4 1/2”)

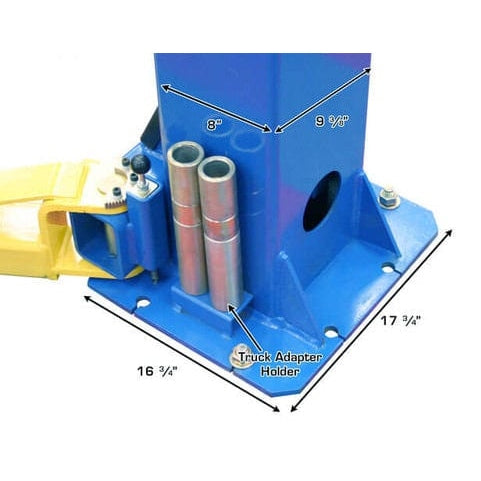

Column Size 8" x 9 3/8"
Column Thickness of Steel 5mm
Base Of Lift 16 3/4" x 17 3/4"
Motor/Electrical Requirement 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,430 LBS.

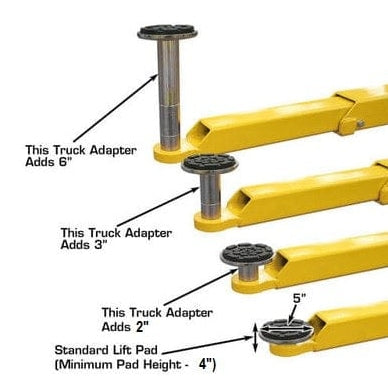

Adapter Heights 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size 1.5”

Requires a minimum of 4" of concrete with a 3000 psi. rating

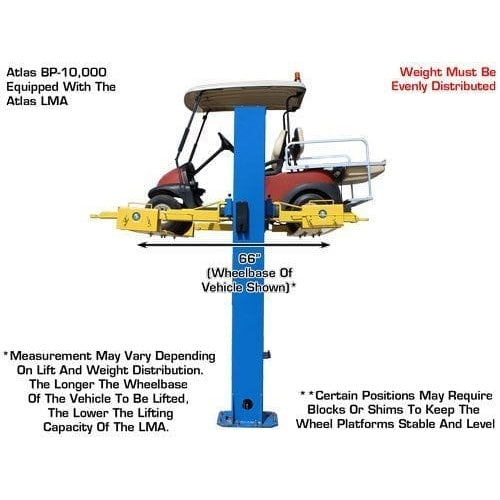

Atlas® Lawn Mower Adapter (LMA) Specifications

Capacity Up To 5,000 lbs. *

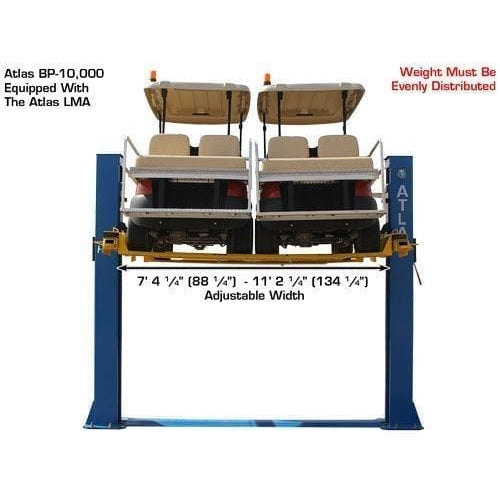

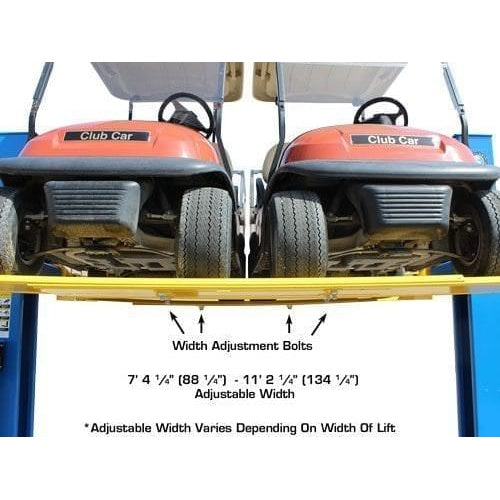

Adjusts In Width 8' 11"
Wheel Base 32" to 90" **

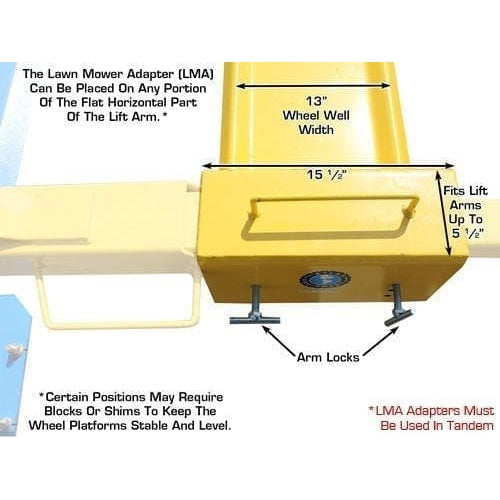

Wheel Well Width 12"
Thickness Of Steel 1/4" (2 Gauge)

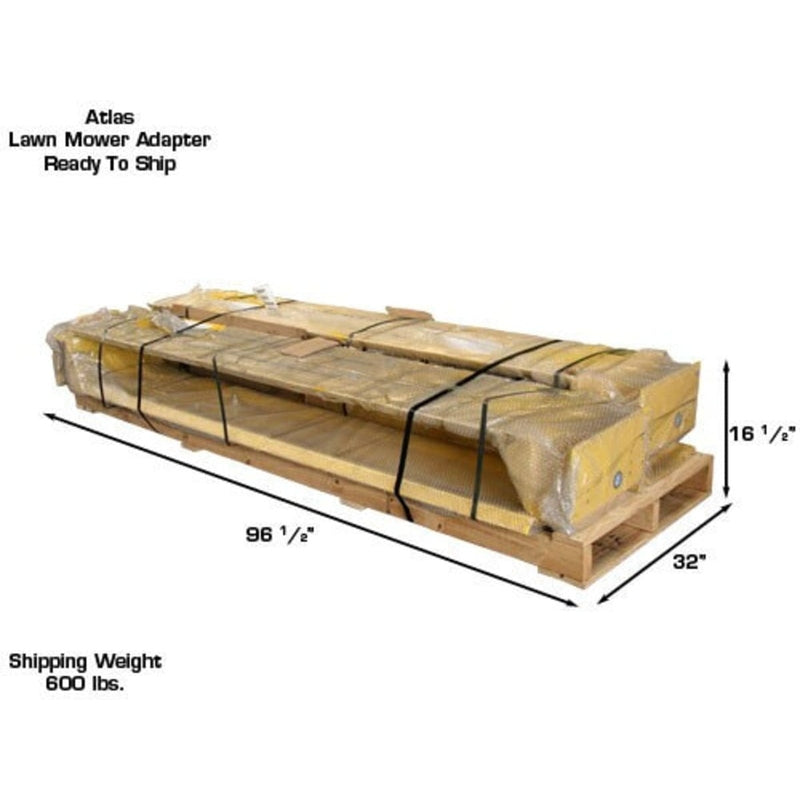

Shipping Weight 600 lbs.

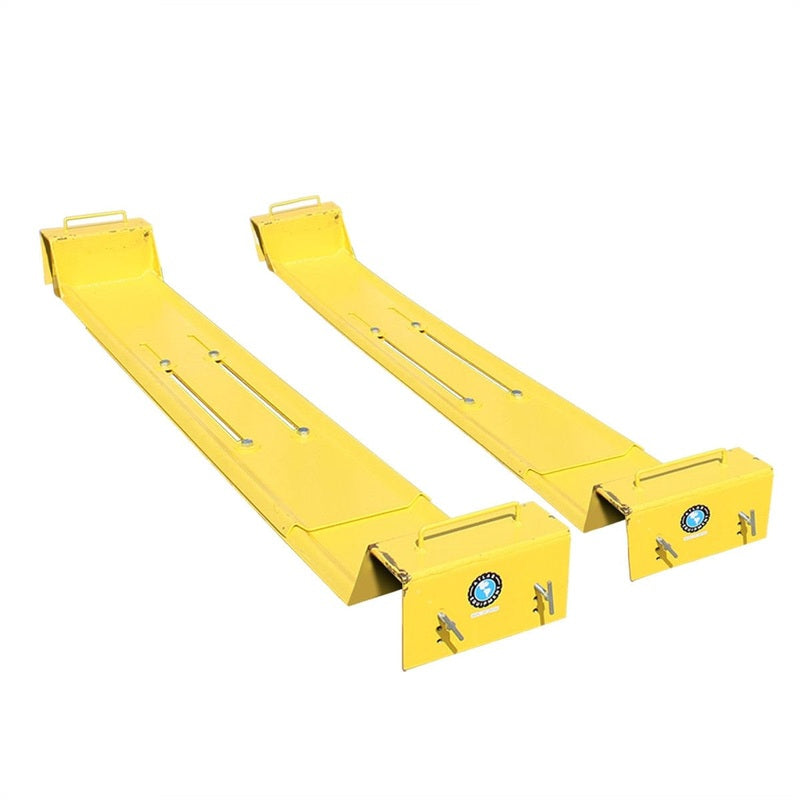

LMA Consists Of Two Wheel Platforms. Lift not included.
* May vary depending on lift and weight distribution. Longer wheel bases on vehicle to be lifted will lower the overall lifting capacity of LMA.
** May require blocks and/or shims at different positions on lift arms to keep wheel platforms stable and level.
