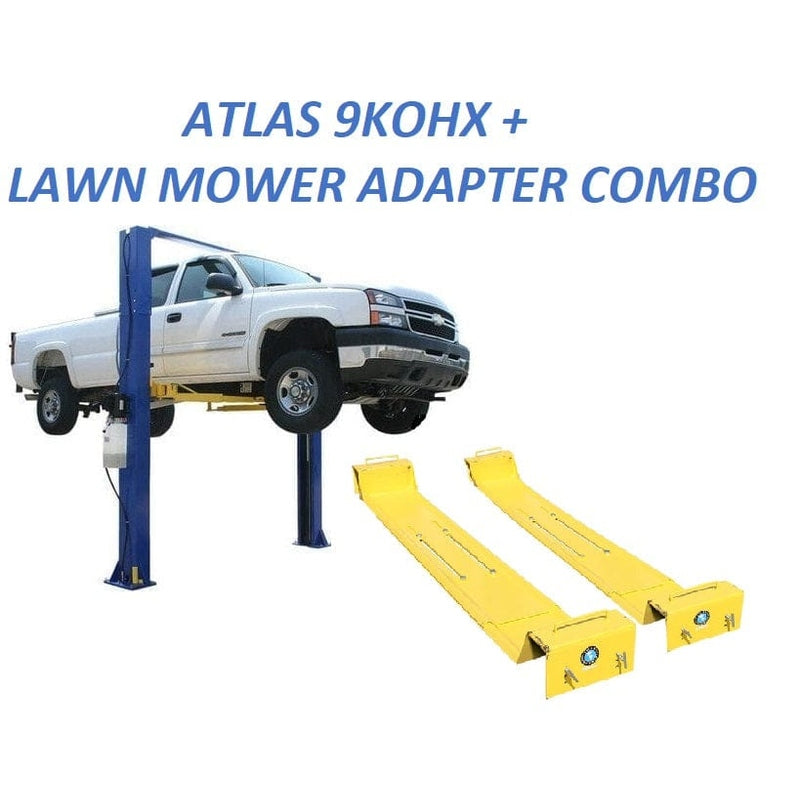

Atlas 9KOHX 9,000 lb Overhead 2-Post Lift w/ LMA Combo

SKU ATEXH-9KOHX-COMBO-FPD
Original price $4,249.00 - Original price $4,249.00
Original price
$4,249.00
$4,249.00 - $4,249.00
Current price $4,249.00

Description

-

The light duty Atlas® 9KOHX lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUV’s and light duty trucks.  The 9KOHX can be adjusted to two different height settings, either 11′ 6″ or 11′ 10″, allowing it to fit in almost any standard garage.

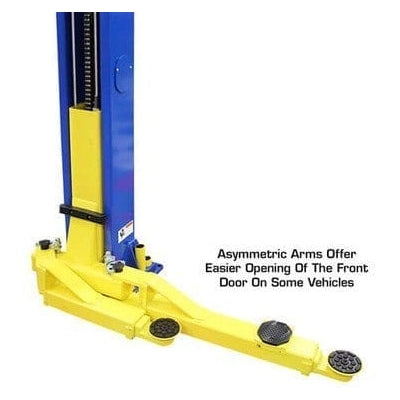

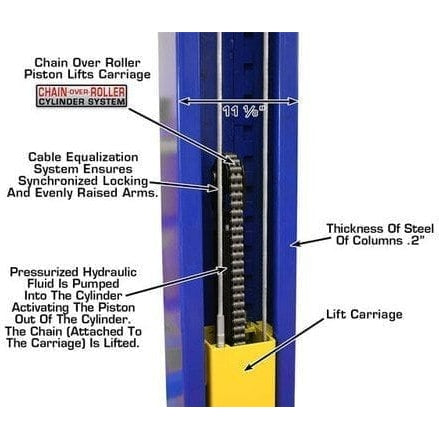

The Atlas® 9KOH has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® 9KOHX two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

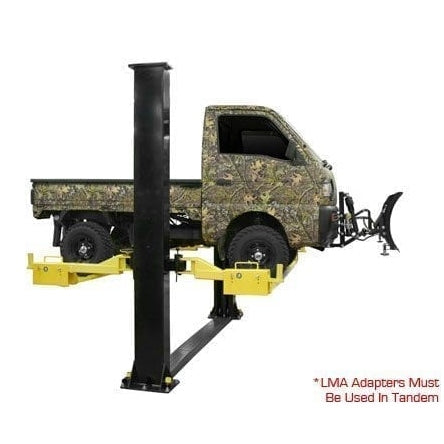

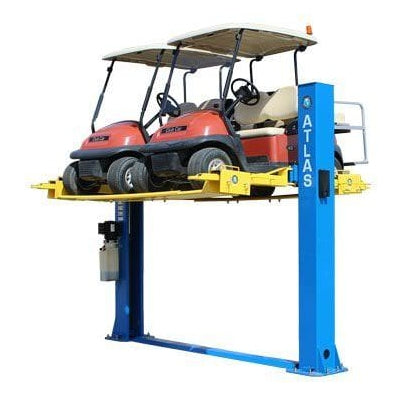

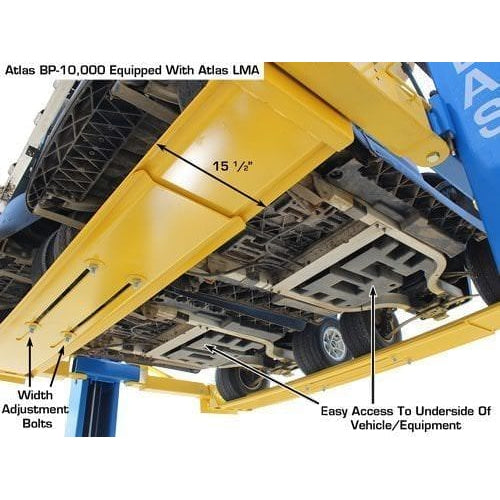

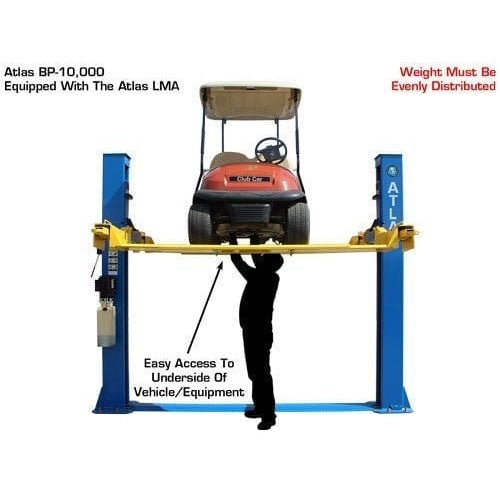

This combo includes the Atlas® Lawn Mower Adapter or LMA.  The LMA allows the 2-Post lift to better raise ATV’s, UTV’s, and lawn mowers.  The LMA is adjustable along the length of the lifts arms to handle different wheelbase vehicles.  The weight capacity of the LMA is dependent on the positioning of the adapter (higher when the plates are closer to the columns) and the balance of the weight of the vehicle being lifted.

Features

-

9KOHX

  • 9,000 lb. Capacity
  • Overhead, Open-Floor design
  • Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″)

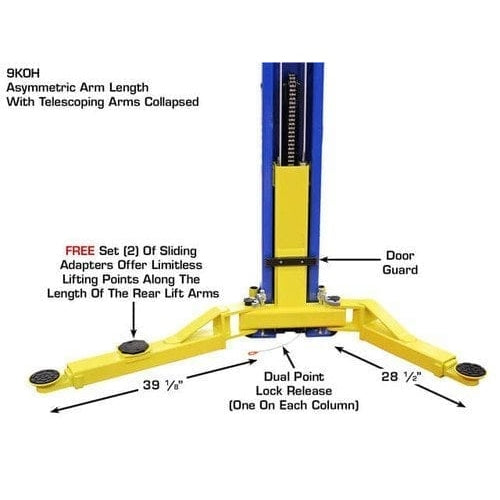

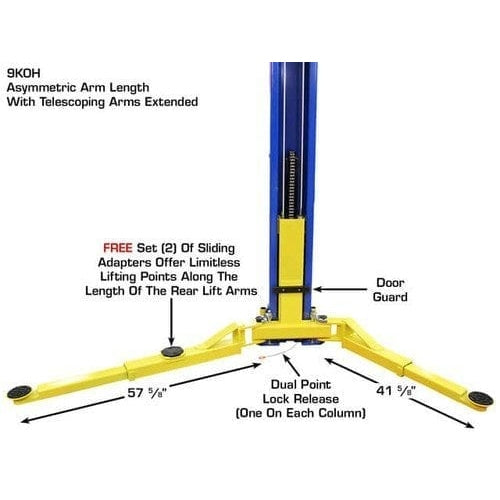

  • Asymmetric/Symmetric Arms
  • Automatic Arm Restraints

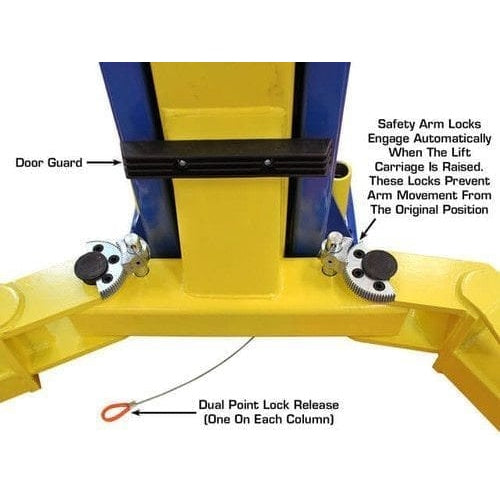

  • Dual-Point Lock Release

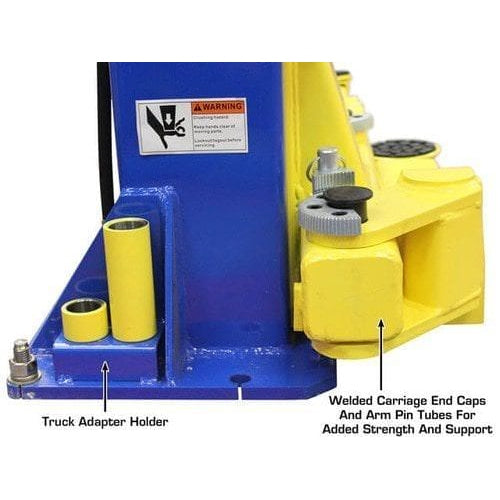

  • Rubber Guards on Carriages

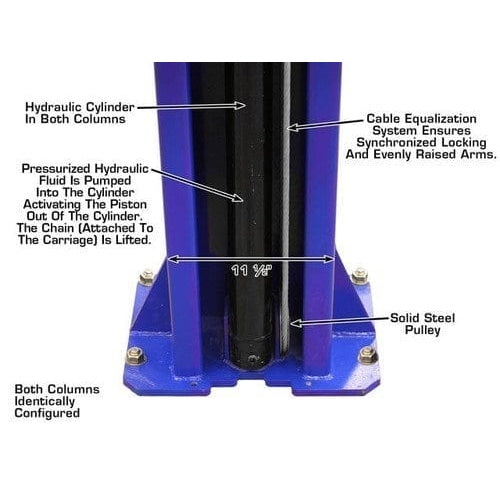

  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System

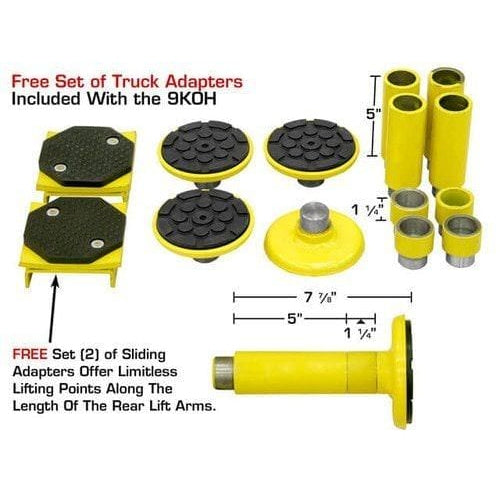

  • Free 8 Piece Truck Adapter Set
  • Free set of Sliding Arm Adapters

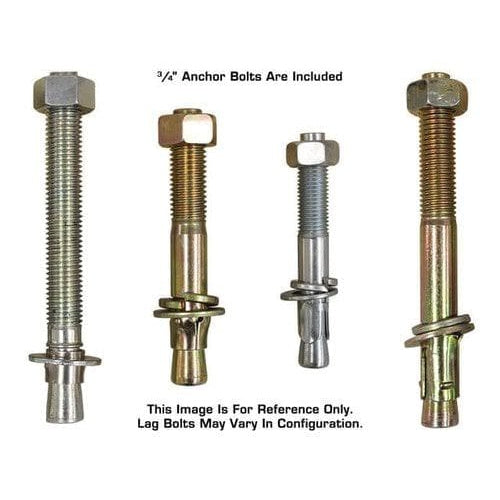

  • Mounting Hardware Included

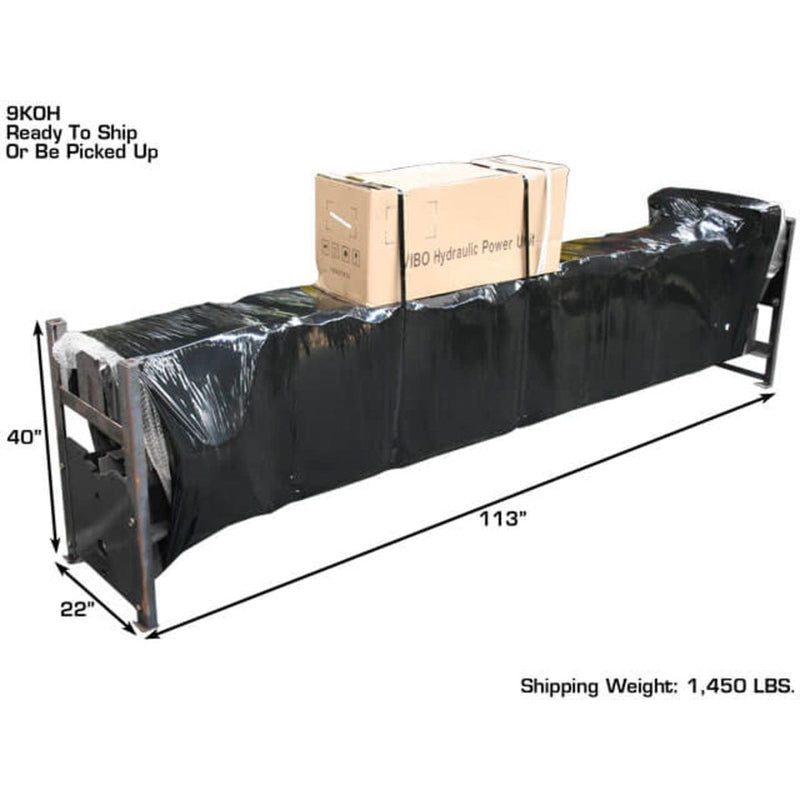

  • Shipping Weight: 1,450 lbs.
  • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

LMA

  • “Lawnmower” Adapter for 2-Post Lifts
  • Includes 4 plates and all hardware
  • Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)
  • Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)

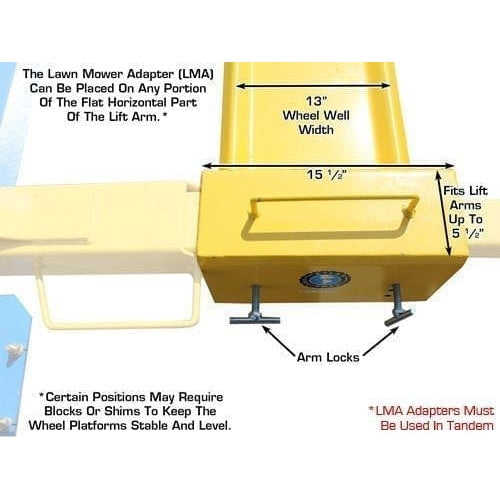

  • Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)

Specifications

-

Atlas® 9KOHX Specifications

Capacity 9,000 LB.

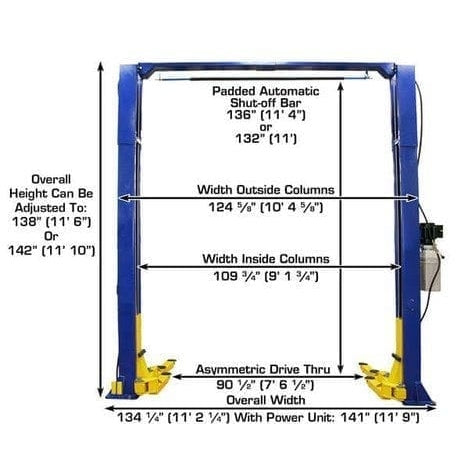

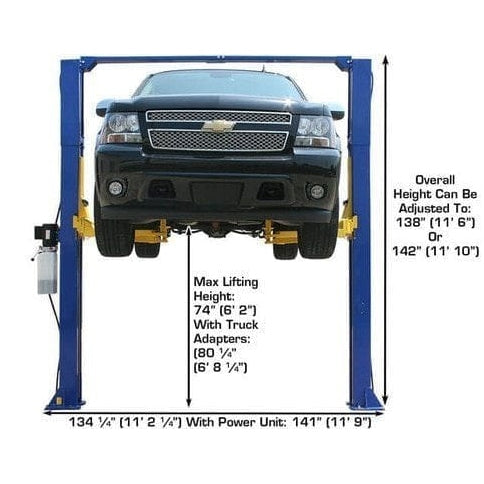

Overall Height 138" (11’ 6") or 142” (11’ 10”)
Overall Floor Width 134 1/2" (11’ 2 1/2")
Outside Column to Outside Column 124 7/8" (10’ 4 7/8")

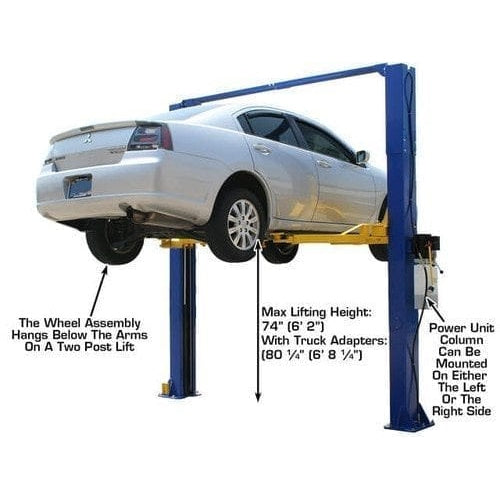

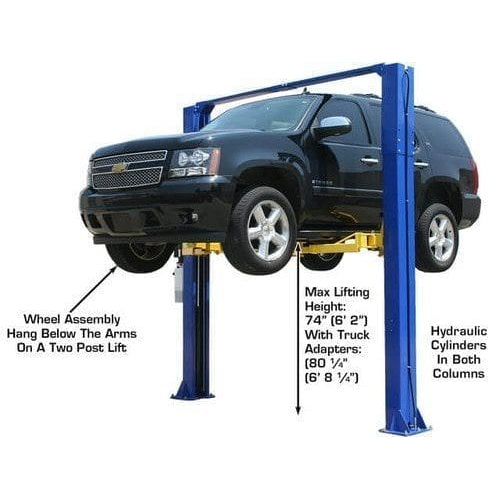

Maximum Lift Height (Without Adapters) 74 1/2"
Maximum Lift Height (With Adapters) 81"
Minimum Arm Height 4"
Inside Column 110” (9’ 2”)

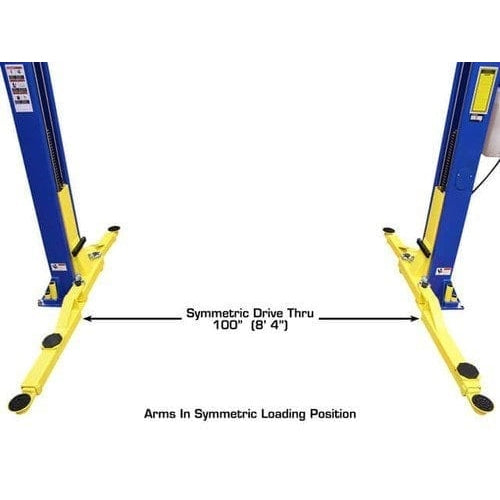

Drive Thru 100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric

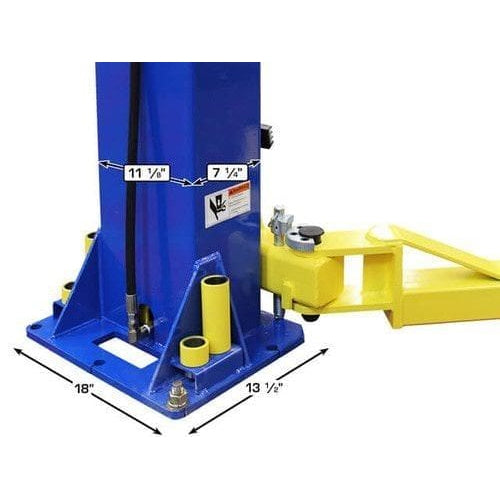

Column Size 7 1/4" x 11"
Column Thickness of Steel 5mm
Base Of Lift 14 1/4" x 18"

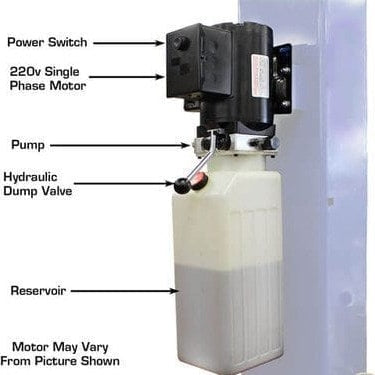

Motor/Electrical Requirement 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,450 LBS.

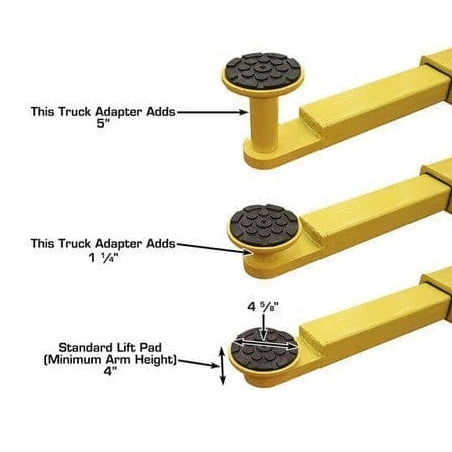

Adapter Heights 4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size 1.5”

Requires a minimum of 4" of concrete with a 3000 psi. rating

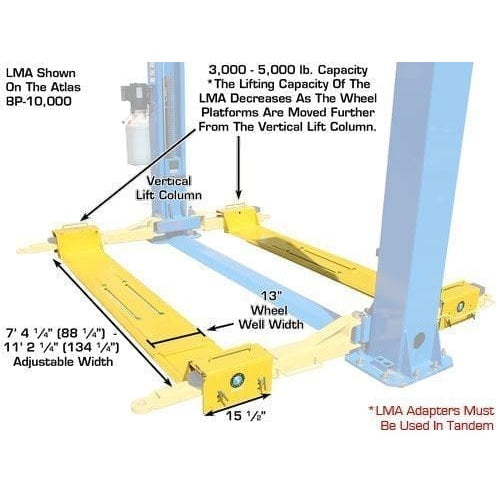

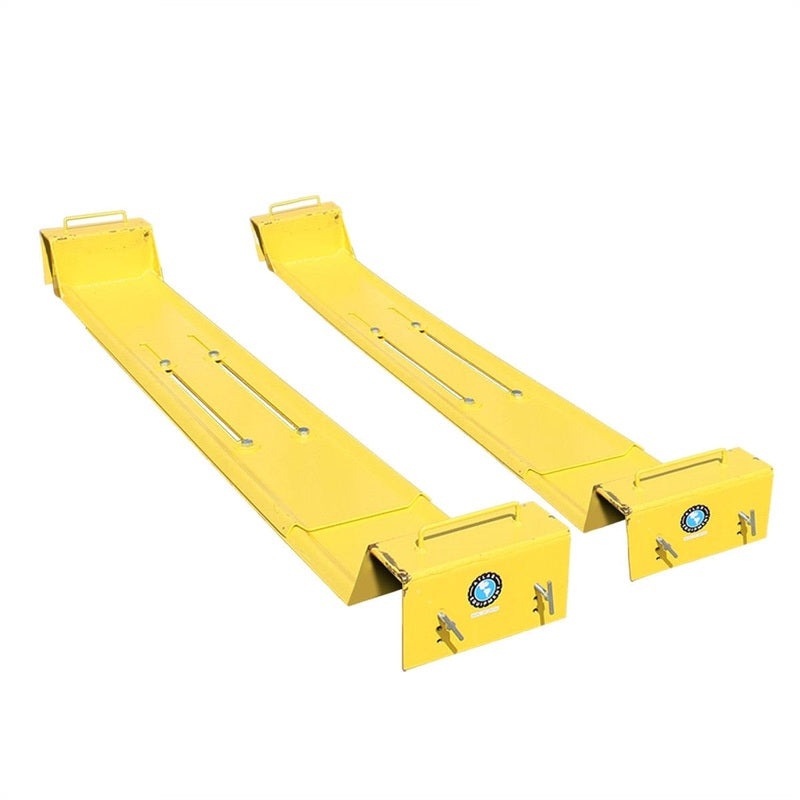

Atlas® Lawn Mower Adapter (LMA) Specifications

Capacity Up To 5,000 lbs. *

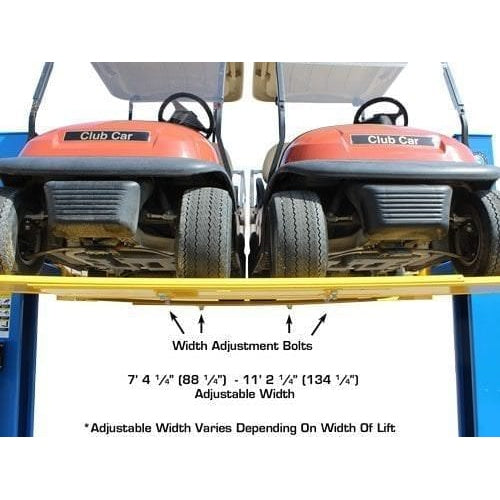

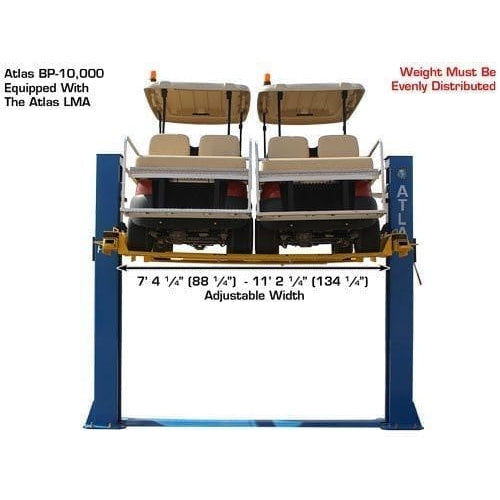

Adjusts In Width 8' 11"

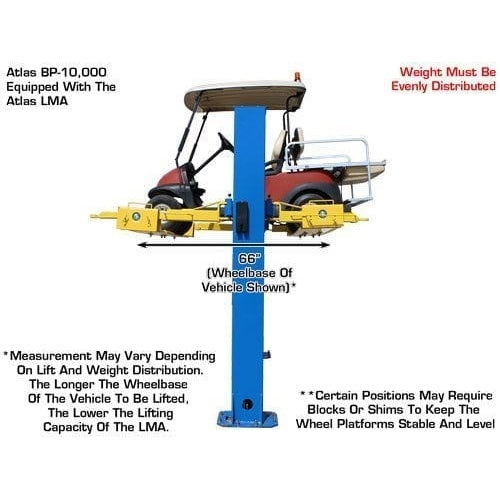

Wheel Base 32" to 90" **
Wheel Well Width 12"
Thickness Of Steel 1/4" (2 Gauge)

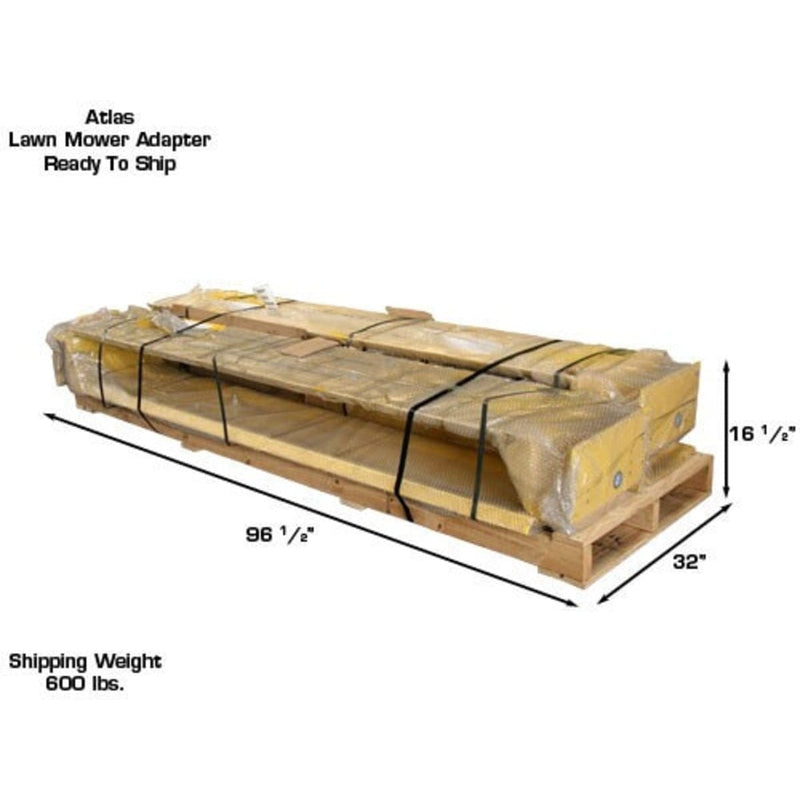

Shipping Weight 600 lbs.


LMA Consists Of Two Wheel Platforms. Lift not included.
* May vary depending on lift and weight distribution. Longer wheel bases on vehicle to be lifted will lower the overall lifting capacity of LMA.
** May require blocks and/or shims at different positions on lift arms to keep wheel platforms stable and level.
