Description
-The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 ½” (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX “chain over roller” lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV’s and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

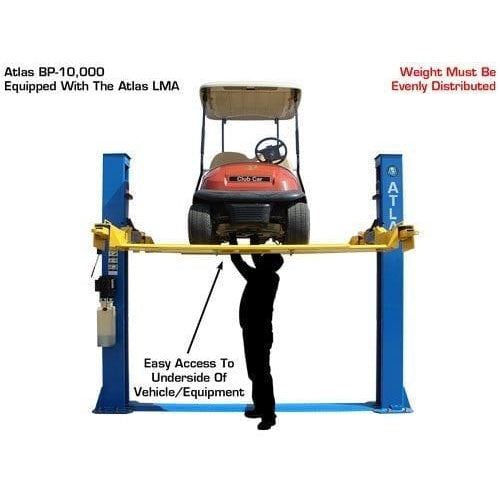

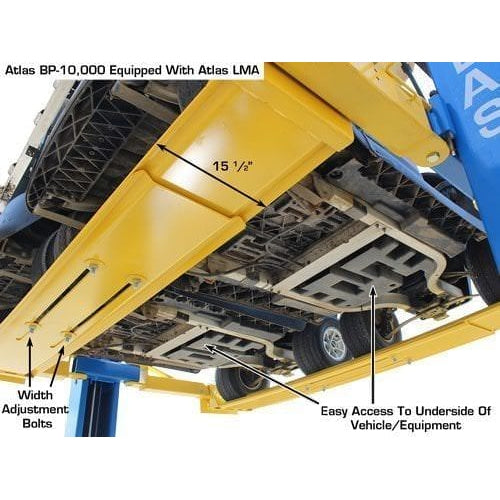

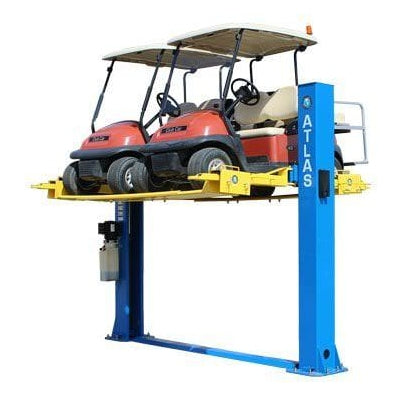

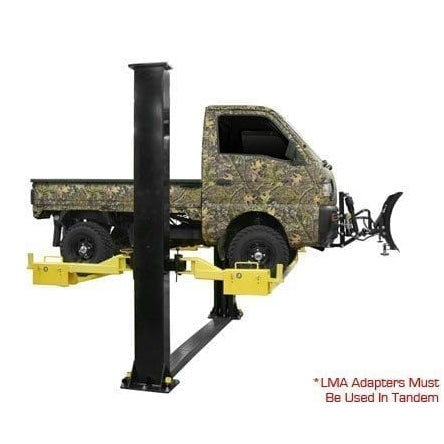

This combo includes the Atlas® Lawn Mower Adapter or LMA. The LMA allows the 2-Post lift to better raise ATV’s, UTV’s, and lawn mowers. The LMA is adjustable along the length of the lifts arms to handle different wheelbase vehicles. The weight capacity of the LMA is dependent on the positioning of the adapter (higher when the plates are closer to the columns) and the balance of the weight of the vehicle being lifted.
Features
-9KBPX
- 9,000 lb. Capacity

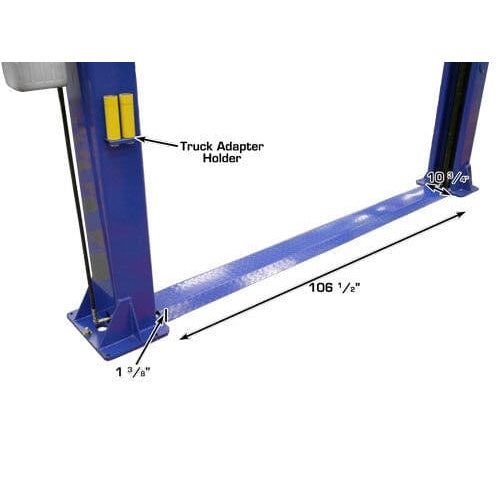

- Baseplate, Open-Top Style Lift
- Designed For Low Ceiling Clearance – 9′ 3 ½” Columns

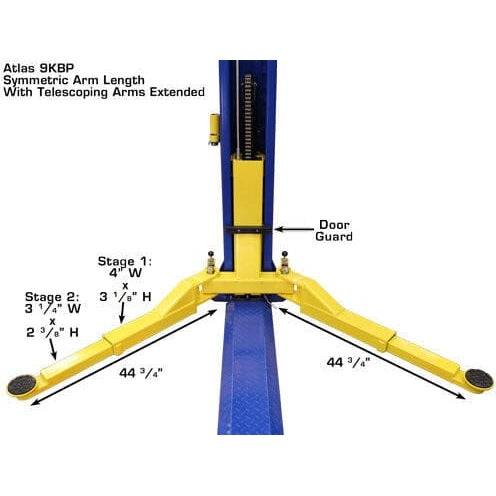

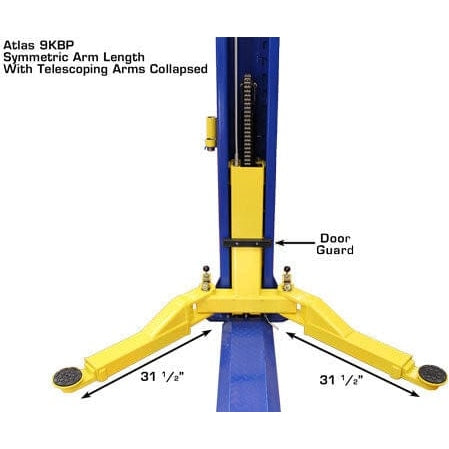

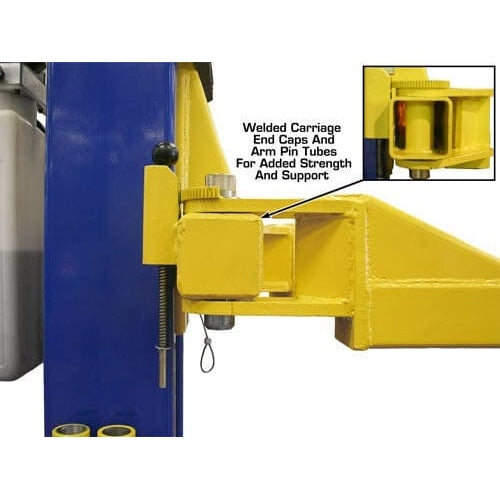

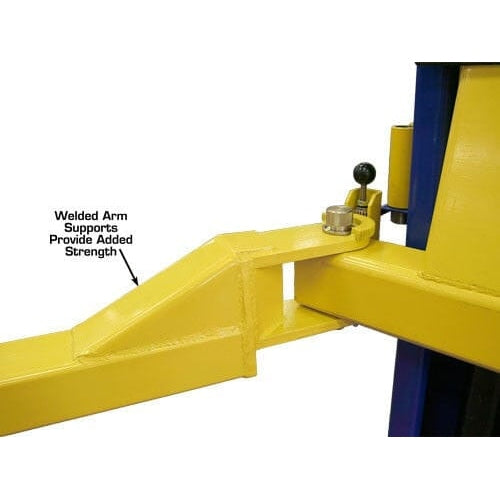

- Symmetric Arms

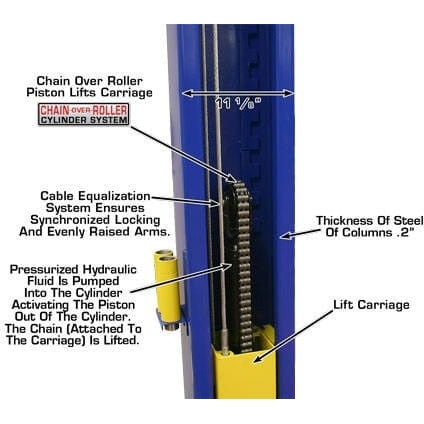

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS)

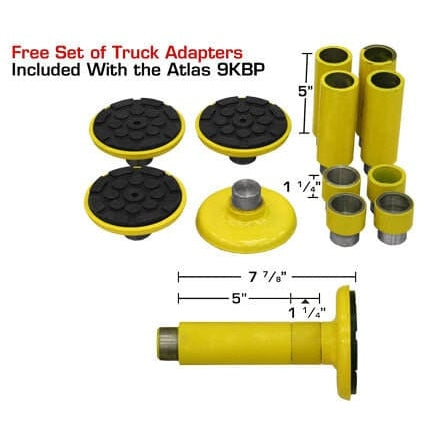

- Free 8 Piece Truck Adapter Set

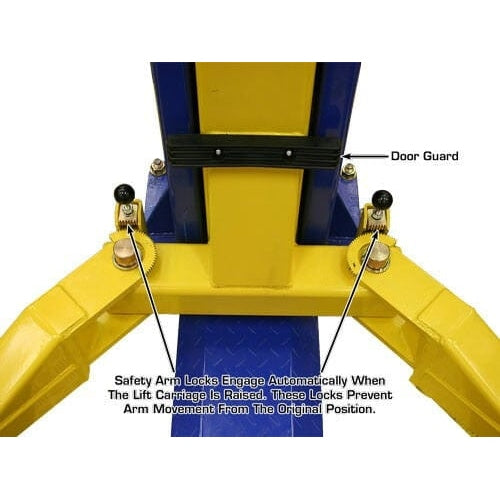

- Automatic Arm Restraints

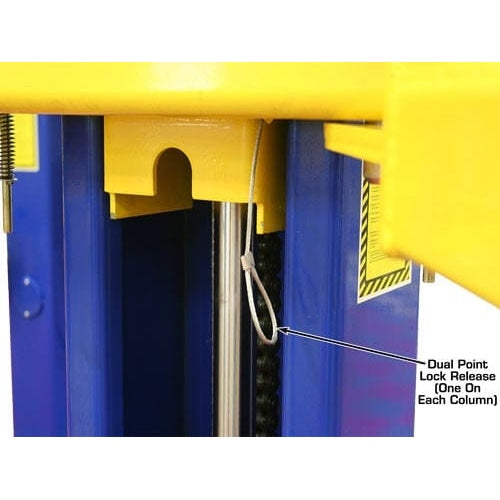

- Dual Point Lock Release

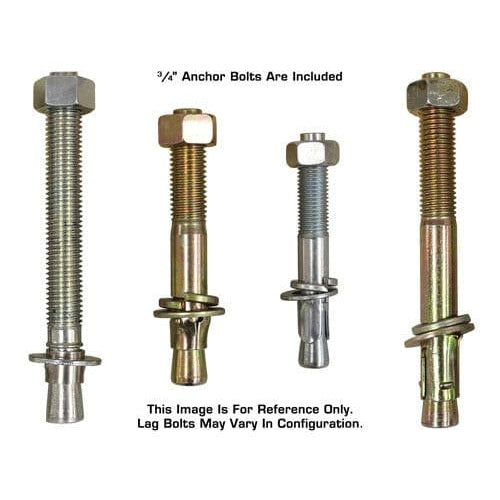

- Mounting Hardware Included

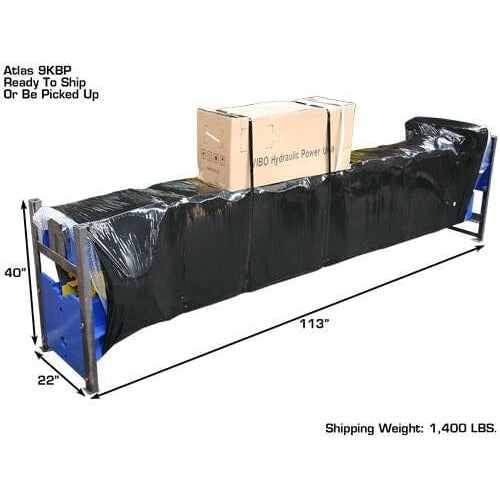

- Shipping Weight: 1,400 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
LMA

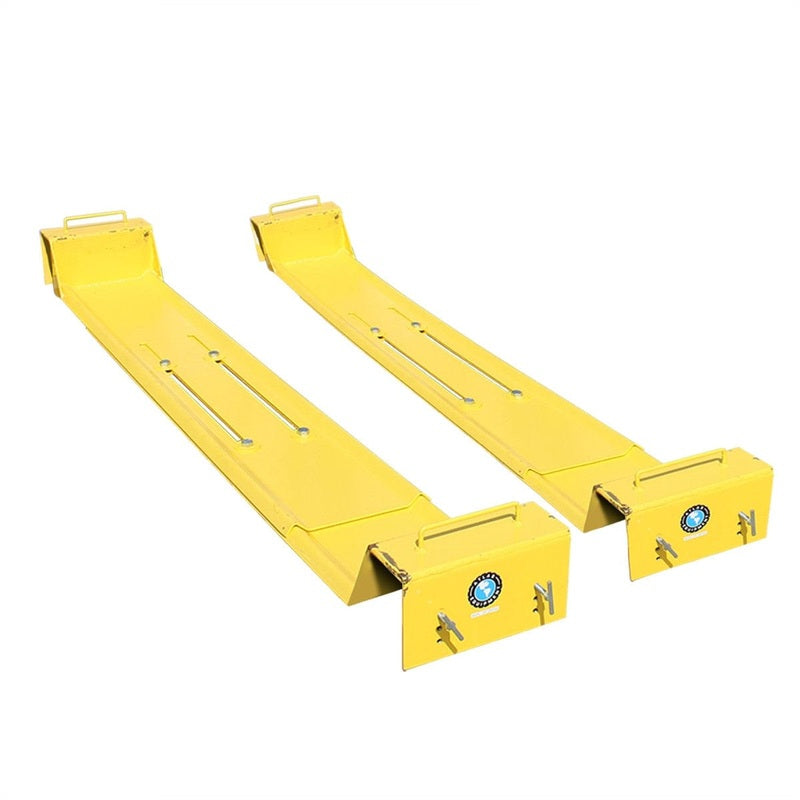

- “Lawnmower” Adapter for 2-Post Lifts
- Includes 4 plates and all hardware
- Adjustable to fit a variety of sizes and brands (MAY NOT WORK WITH ALL LIFTS)
- Up to 5,000 lb. capacity (WILL VARY BY LIFT AND WHEEL BASE)
- Can be positioned along the length of the lift arms (LEVELING BLOCKS MAY BE REQUIRED)
Specifications
-Atlas® XH-9KBPX Specifications
Capacity | 9,000 LB. | |

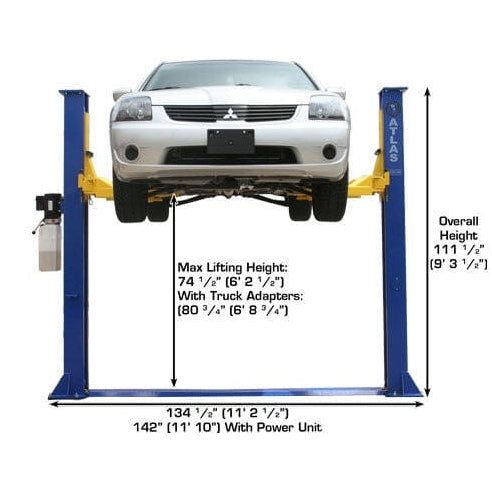

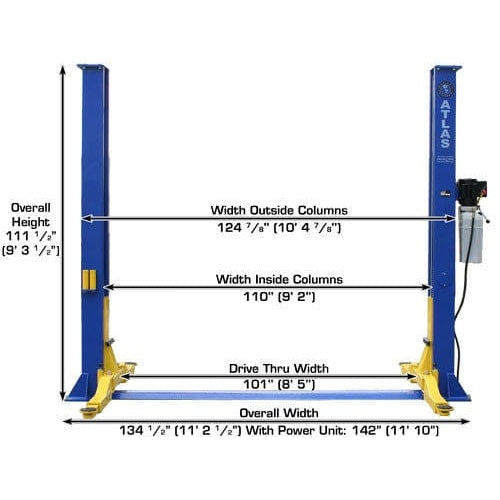

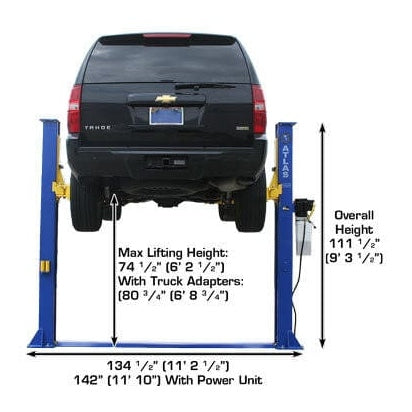

Overall Height | 111 1/2" (9’ 3 1/2") | |
Overall Floor Width | 134 1/2" (11’ 2 1/2") | |
Outside Column to Outside Column | 124 7/8" (10’ 4 7/8") | |

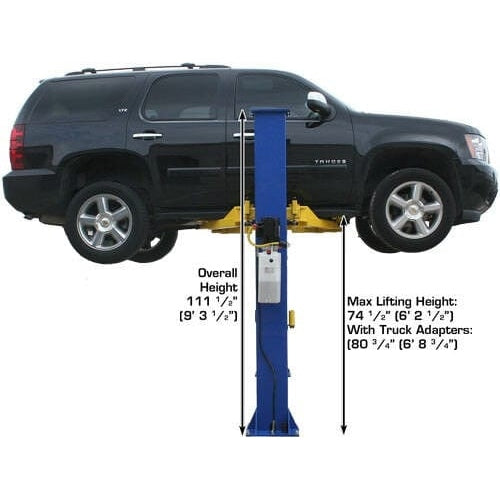

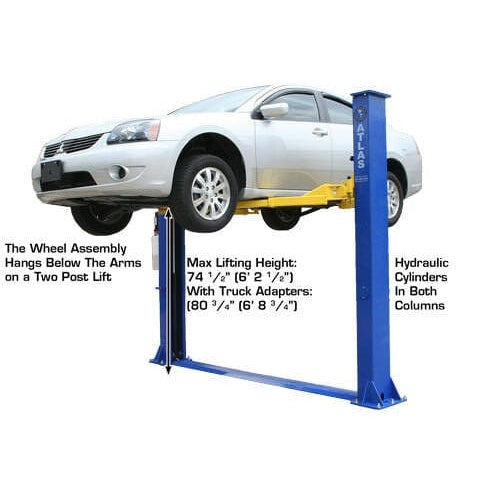

Maximum Lift Height (Without Adapters) | 74 1/2" | |
Maximum Lift Height (With Adapters) | 81" | |
Minimum Arm Height | 4" | |
Inside Column | 110” (9’ 2”) | |
Drive Thru | 101” (8’ 5”) | |

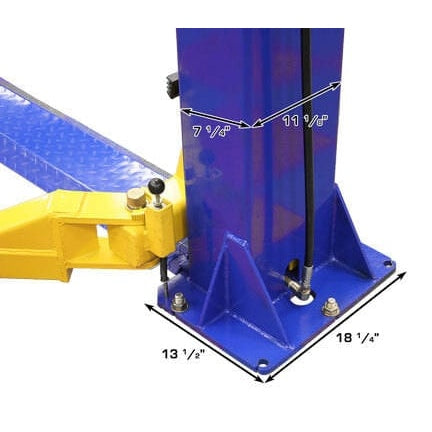

Column Size | 7 1/4" x 11" | |
Column Thickness of Steel | 5mm | |
Base Of Lift | 14 1/4" x 18 1/4" | |

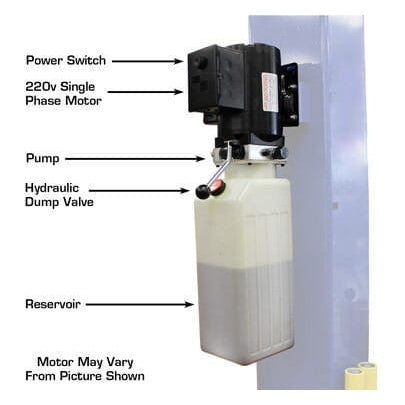

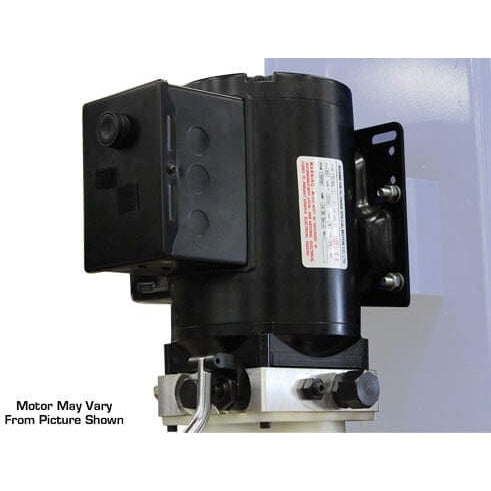

Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
Shipping Weight | 1,400 LBS. | |

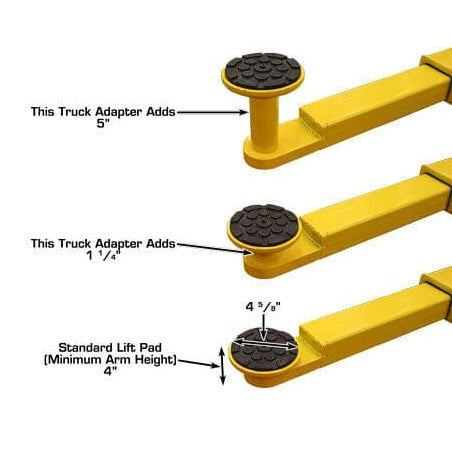

Adapter Heights | 4 Each 1.5”, 5” | |
Arm Hole/Adapter Peg Size | 1.5” |
Requires a minimum of 4" of concrete with a 3000 psi. rating

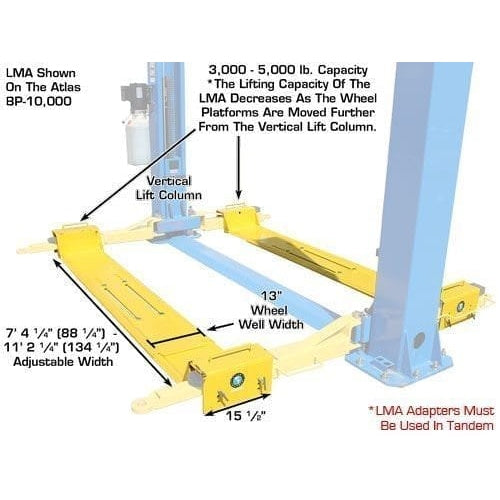

Atlas® Lawn Mower Adapter (LMA) Specifications
Capacity | Up To 5,000 lbs. * |

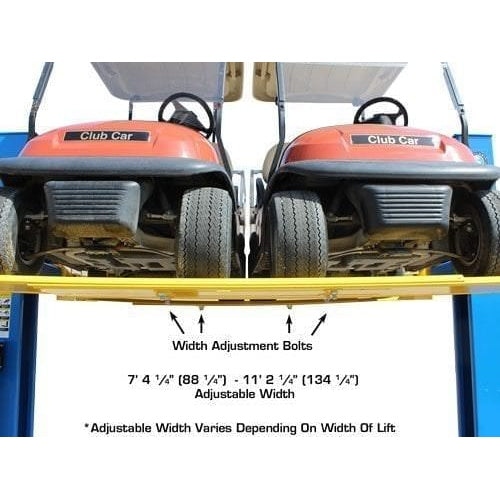

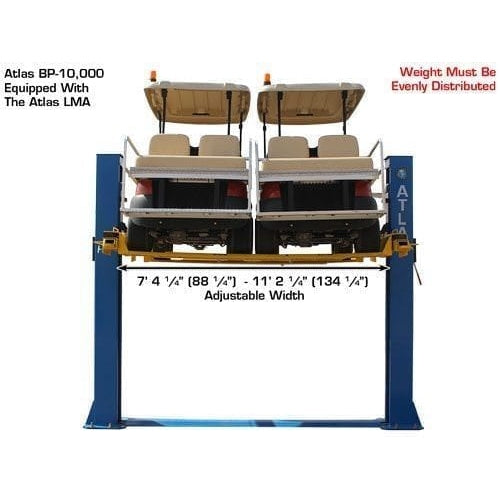

Adjusts In Width | 8' 11" |

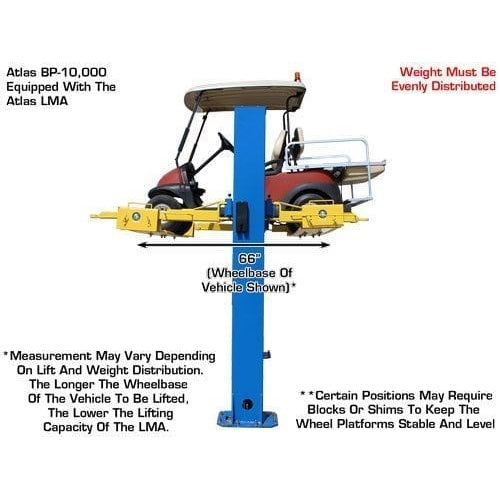

Wheel Base | 32" to 90" ** |
Wheel Well Width | 12" |
Thickness Of Steel | 1/4" (2 Gauge) |
Shipping Weight | 600 lbs. |
LMA Consists Of Two Wheel Platforms. Lift not included. | |
* May vary depending on lift and weight distribution. Longer wheel bases on vehicle to be lifted will lower the overall lifting capacity of LMA. | |
** May require blocks and/or shims at different positions on lift arms to keep wheel platforms stable and level. |
