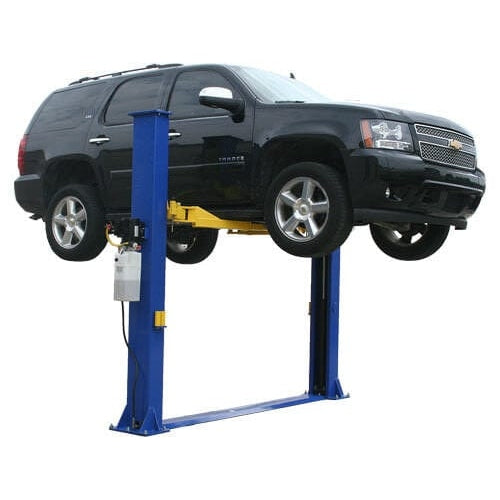

Atlas Baseplate 9,000lb. Capacity 2-Post Lift
-The Atlas 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 (9 feet 3 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas 9KBPX chain over roller lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for Mr. Homeowner or small commercial shop looking to service cars, SUVs and light duty trucks (not recommended to lift Diesel Dually or other large trucks).
Features
-- 9,000 lb. Capacity
- Baseplate, Open-Top Style Lift
- Designed For Low Ceiling Clearance 9' 3 Columns

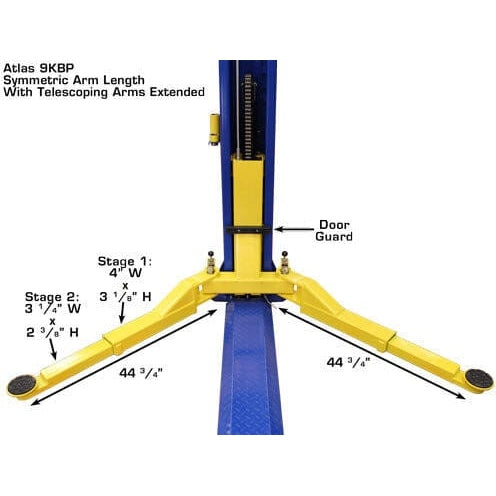

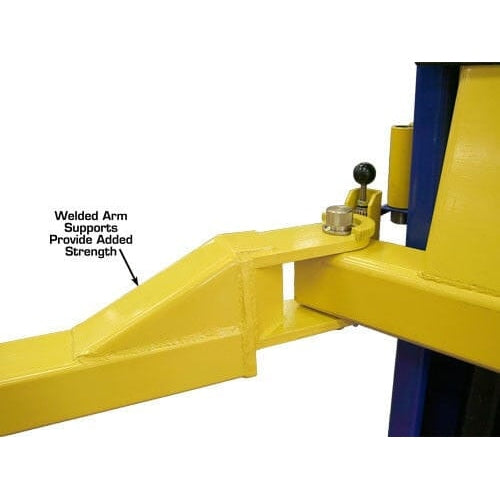

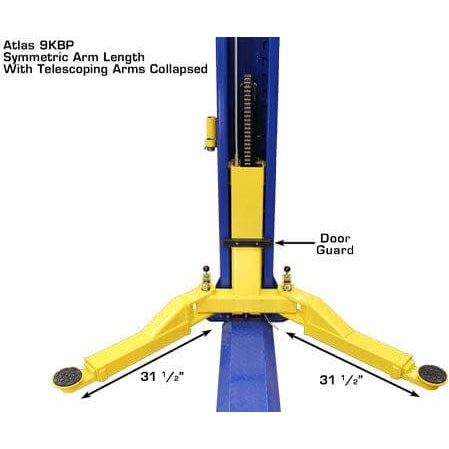

- Symmetric Arms

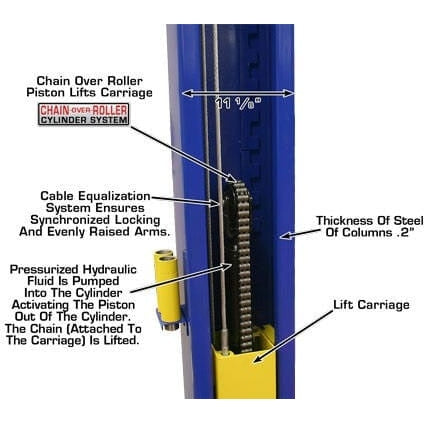

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS)

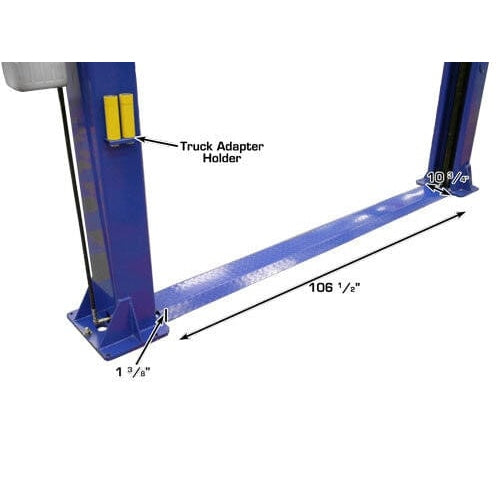

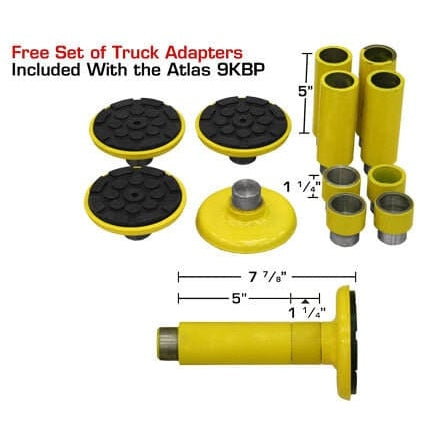

- Free 8 Piece Truck Adapter Set

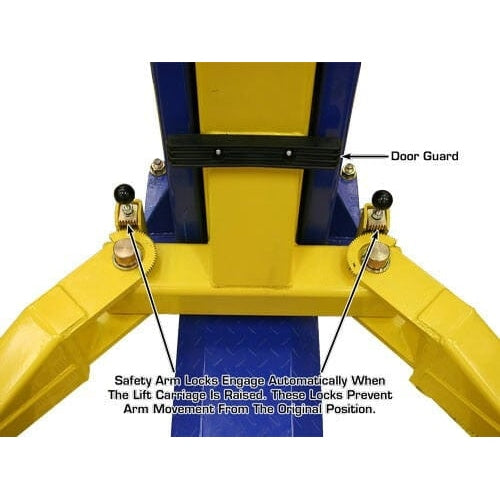

- Automatic Arm Restraints

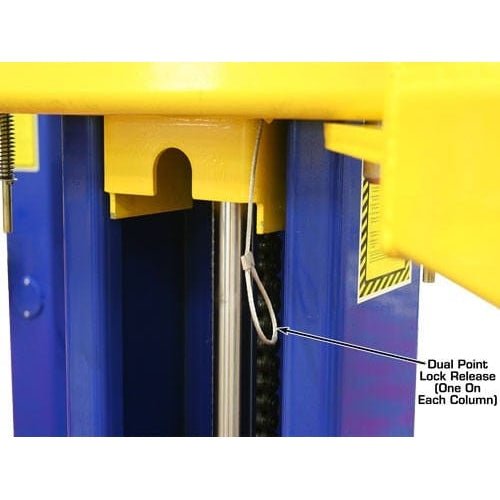

- Dual Point Lock Release

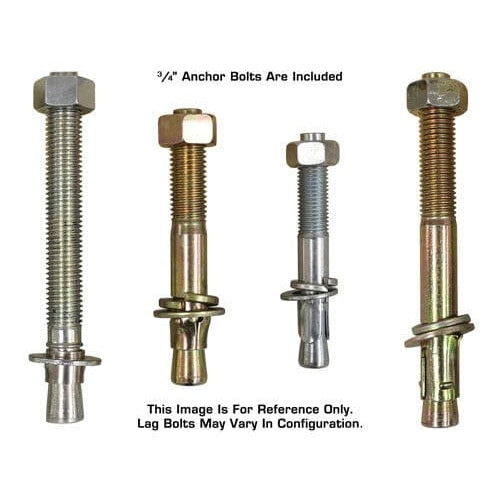

- Mounting Hardware Included

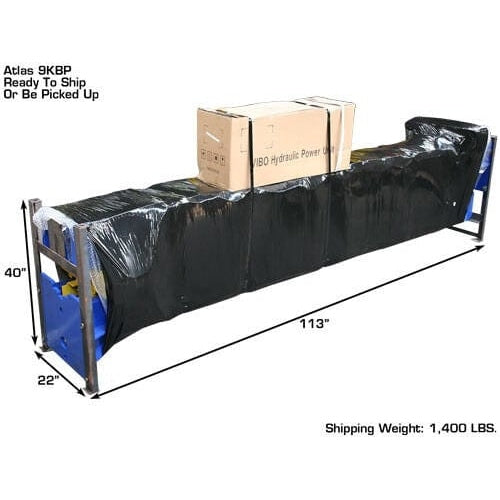

- Shipping Weight: 1,400 lbs.
- 2 yr Structural 1 yr Hydraulic Warranty Parts Only
Atlas XH-9KBPX Specifications
-
Capacity | 9,000 LB. | |

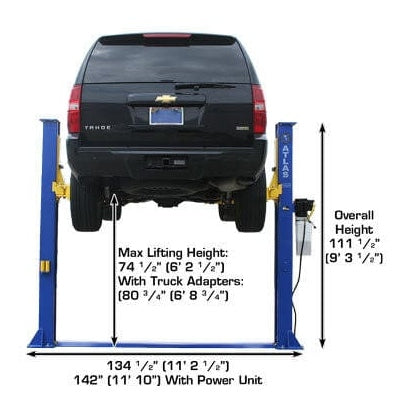

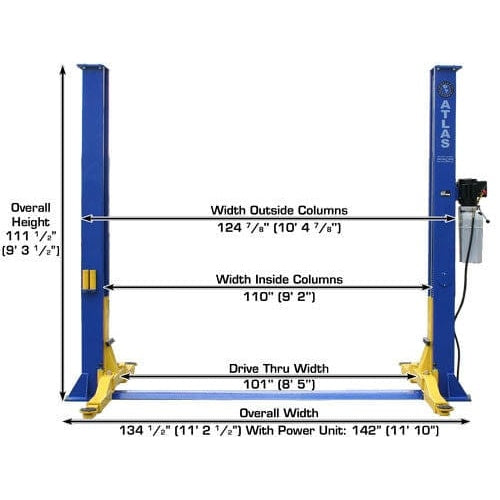

Overall Height | 111 1/2" (9 3 1/2") | |
Overall Floor Width | 134 1/2" (11 2 1/2") | |
Outside Column to Outside Column | 124 7/8" (10 4 7/8") | |

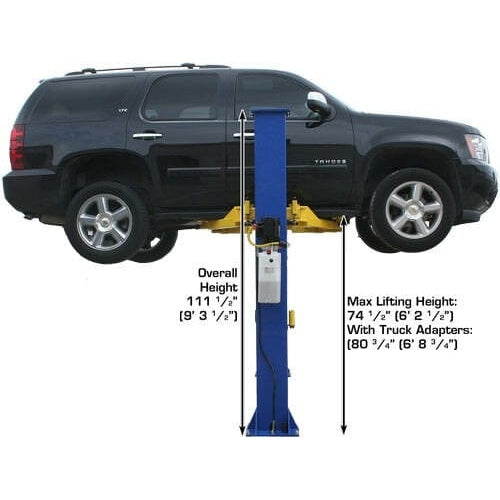

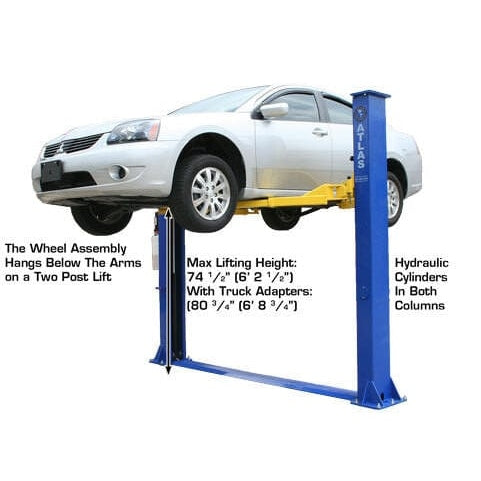

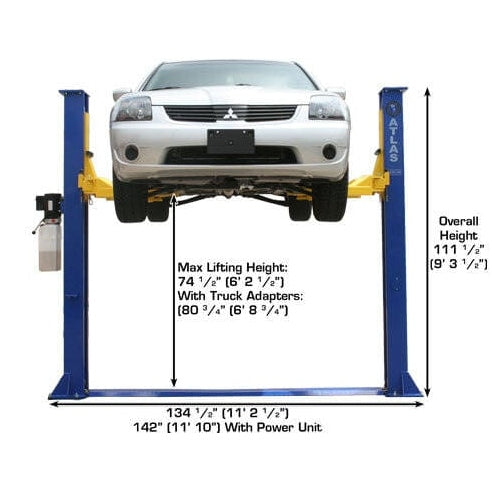

Maximum Lift Height (Without Adapters) | 74 1/2" | |
Maximum Lift Height (With Adapters) | 81" | |
Minimum Arm Height | 4" | |
Inside Column | 110 (9 2) | |
Drive Thru | 101 (8 5) | |

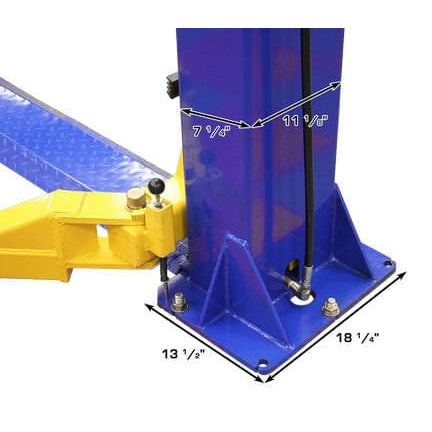

Column Size | 7 1/4" x 11" | |
Column Thickness of Steel | 5mm | |
Base Of Lift | 14 1/4" x 18 1/4" | |

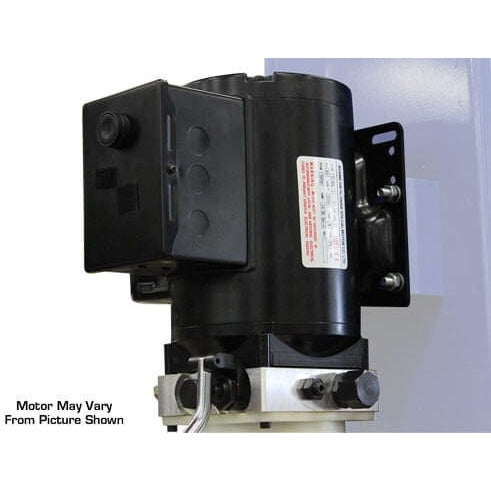

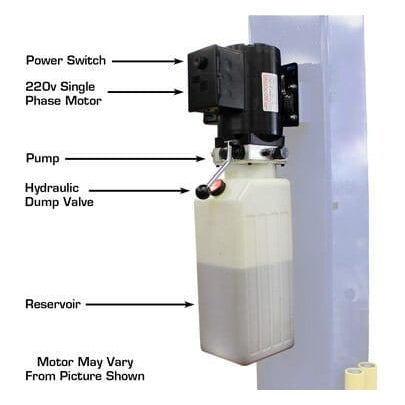

Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
Shipping Weight | 1,400 LBS. | |

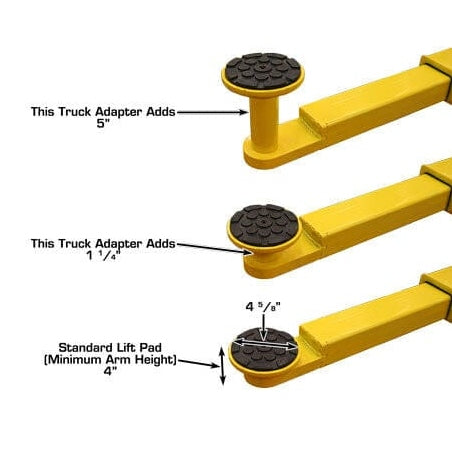

Adapter Heights | 4 Each 1.5, 5 | |
Arm Hole/Adapter Peg Size | 1.5 | |
Requires a minimum of 4" of concrete with a 3000 psi. rating |
