Atlas 414A Alignment Lift + RJ8 Rolling Jacks Combo

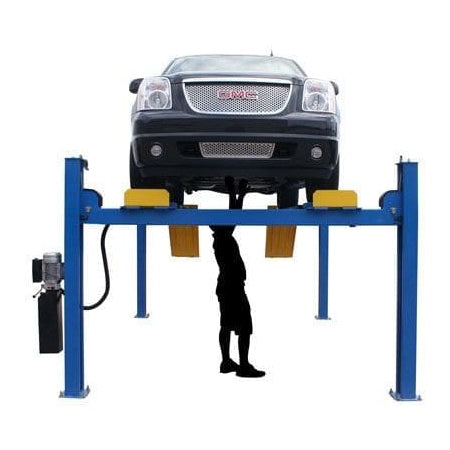

The Atlas® 414A 14,000 pound capacity four post alignment lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas® lifts offer many exclusive features not found on many other competitor’s lifts.

The Atlas® 414A incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The 414A is tested to ensure that this lift system will perform flawlessly at its rated capacity.

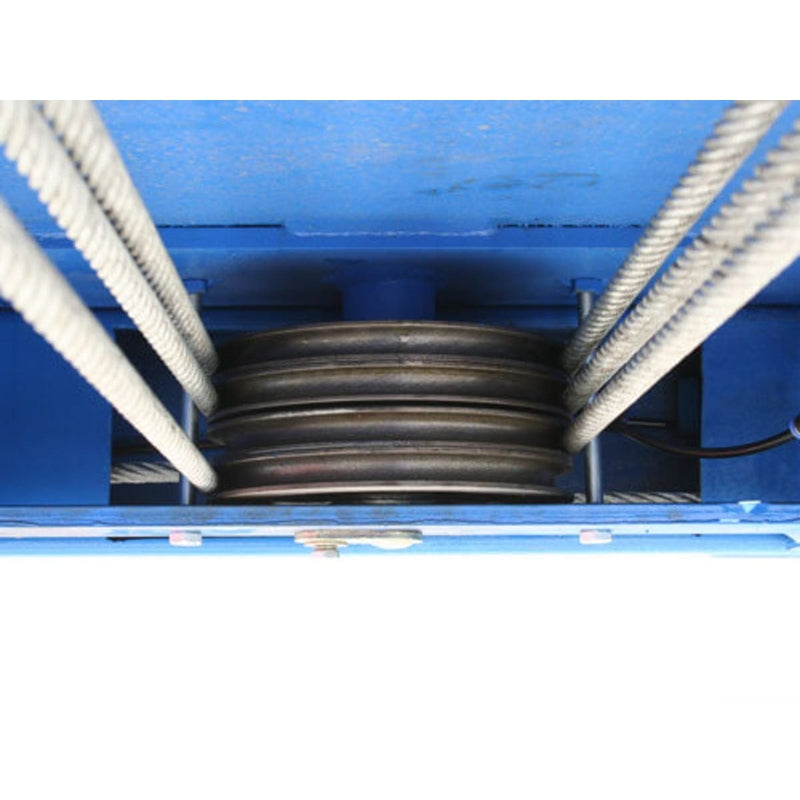

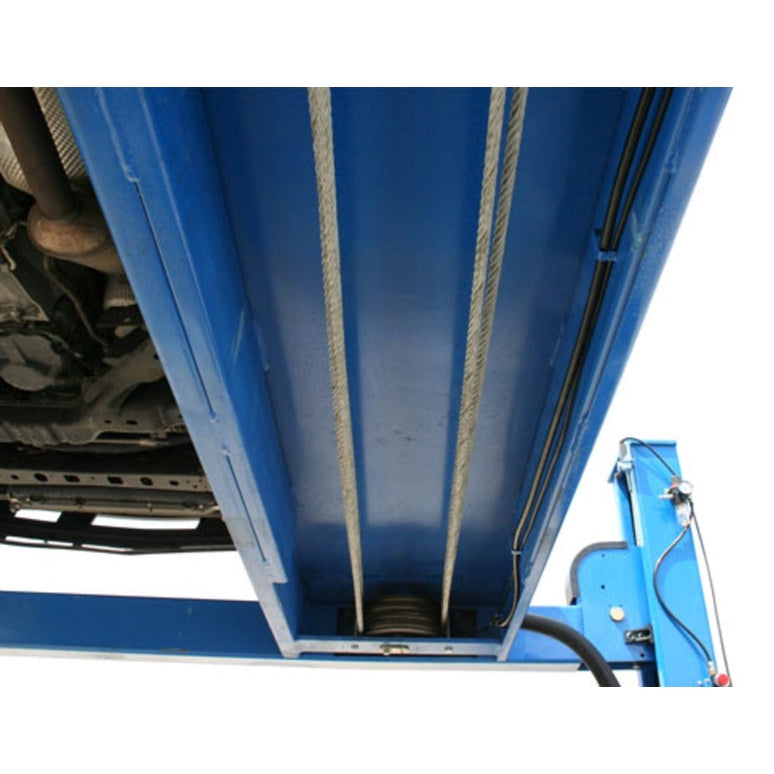

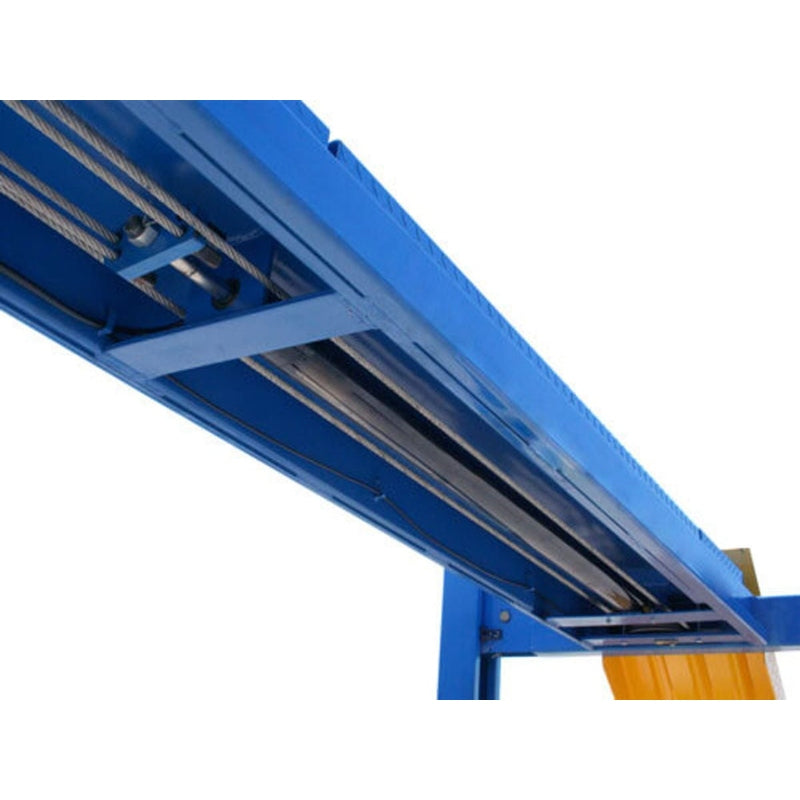

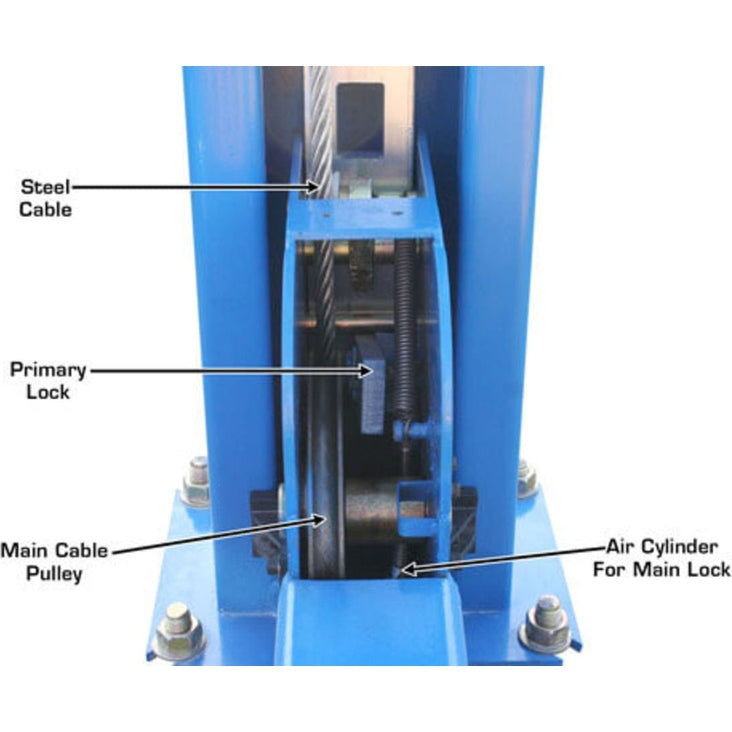

The Atlas® 414A uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

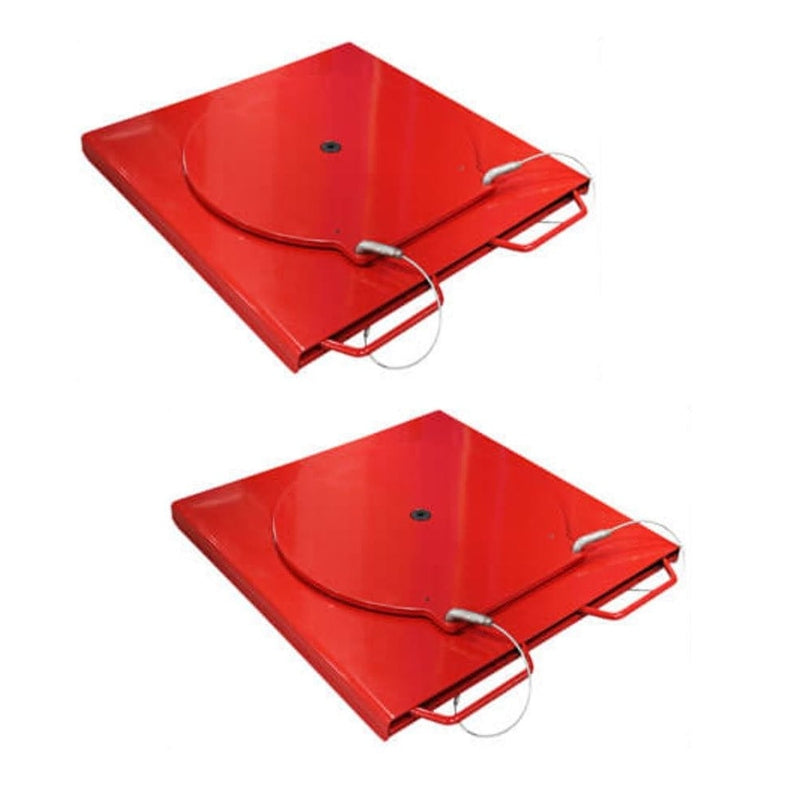

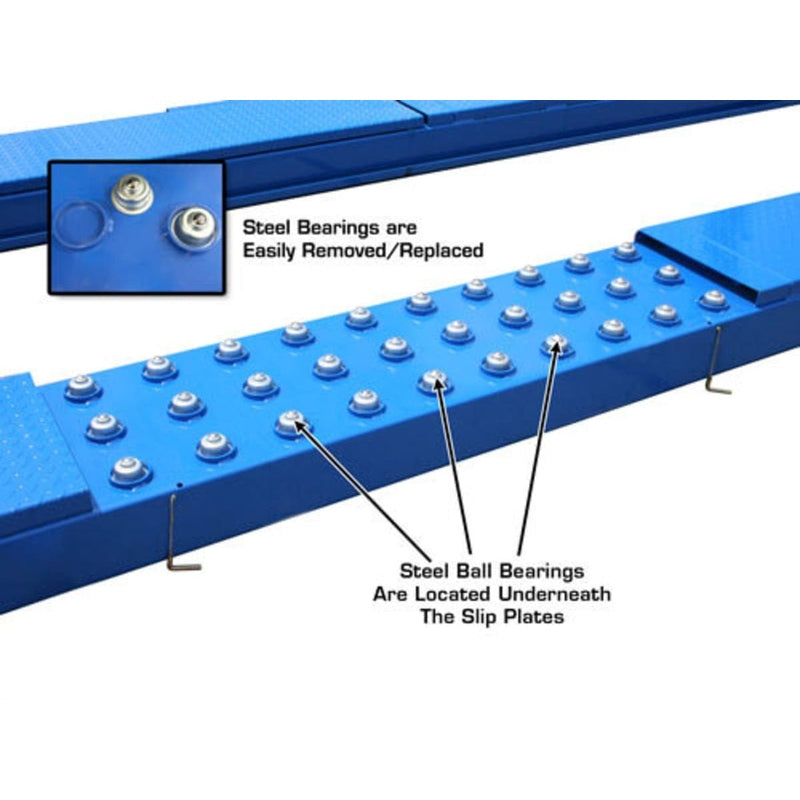

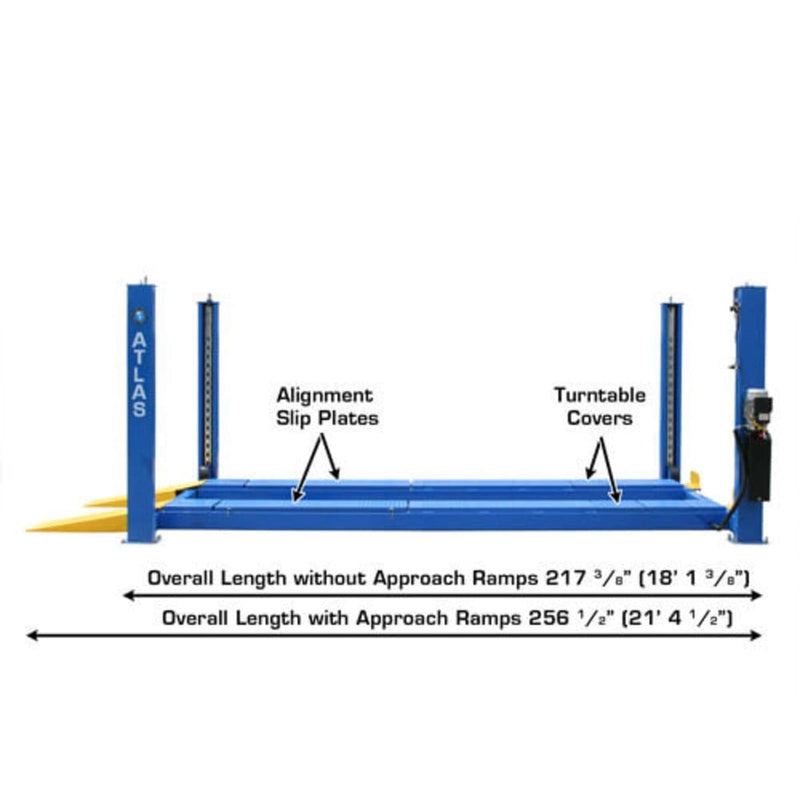

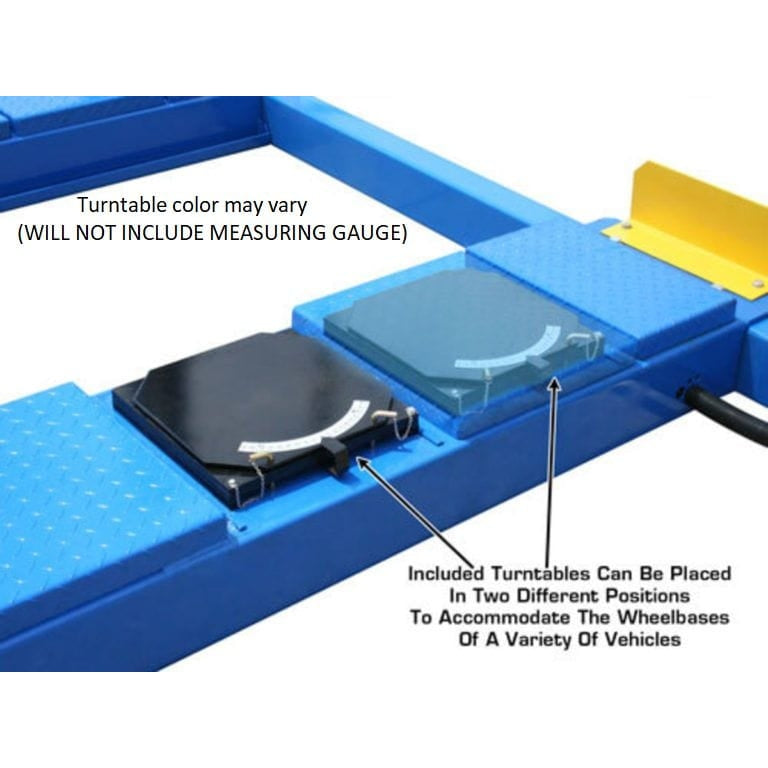

Besides having all the heavy duty features of the Atlas® 414, the 414A features slip plates and alignment turntables. The slip plates are built in and are assured to be level with the turntables. The turntables can be set in different positions on the runway to accommodate a wide variety of wheelbases. The 414A also features metal cover plates to replace the turntables when not in use and so the lift can be used for more than just alignments.

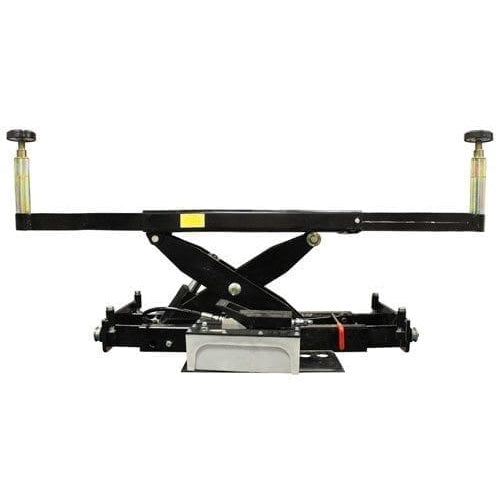

This combo package also includes two of the popular Atlas® RJ8 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

414A

• 14,000 lb. Capacity

• Heavy Duty, Commercial Grade

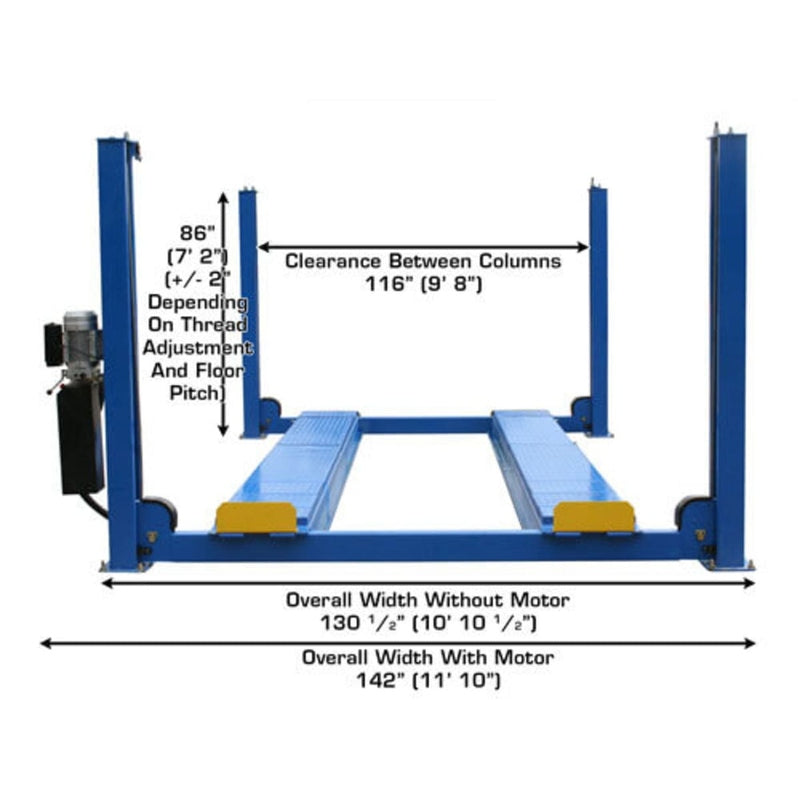

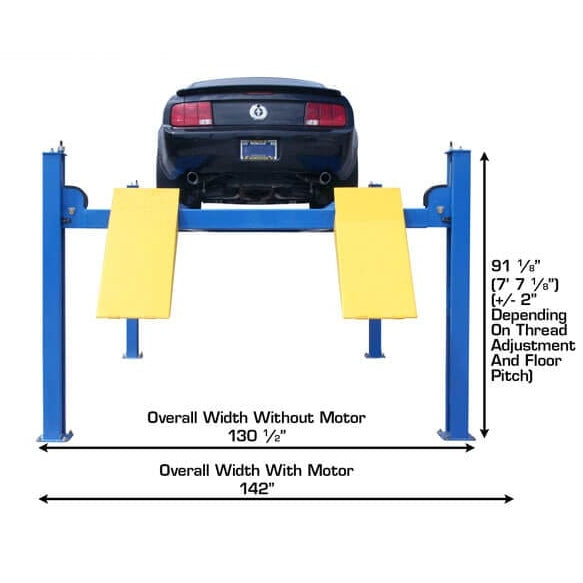

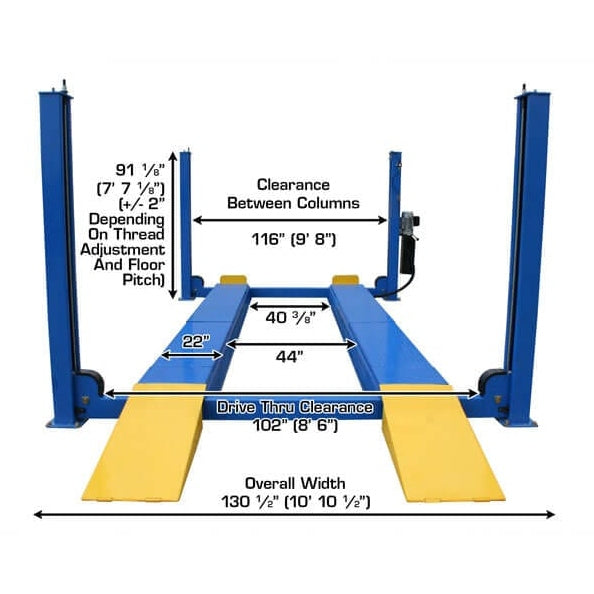

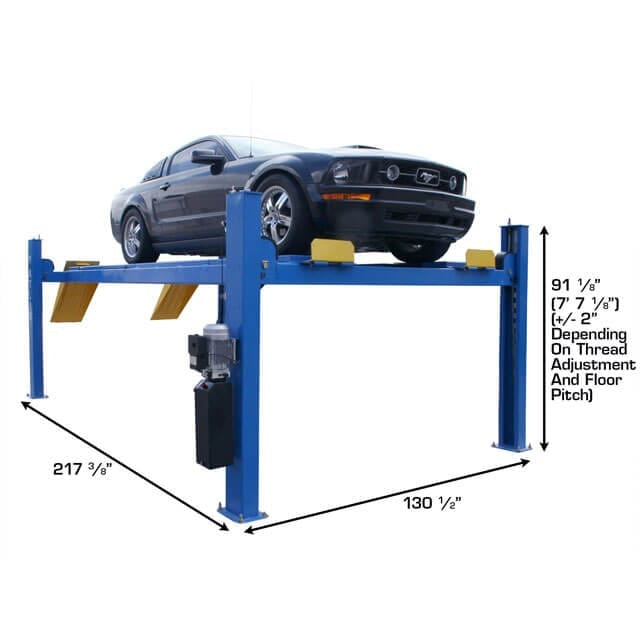

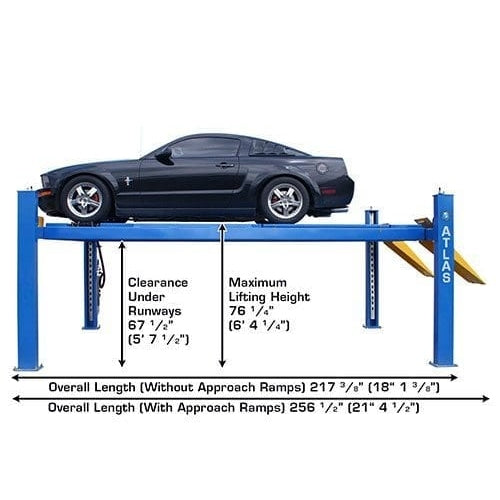

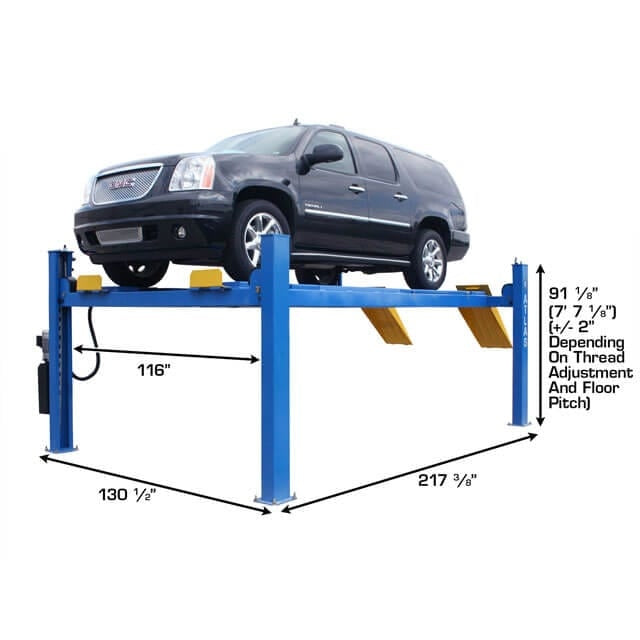

• Extra Tall, Extra Wide & Extra Long

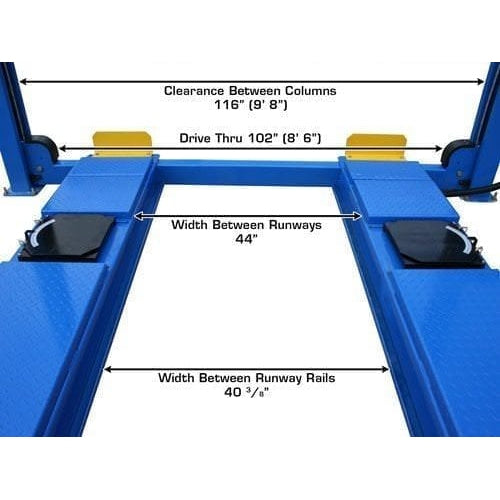

• Built-In Slip Plates & Alignment Turntables Included

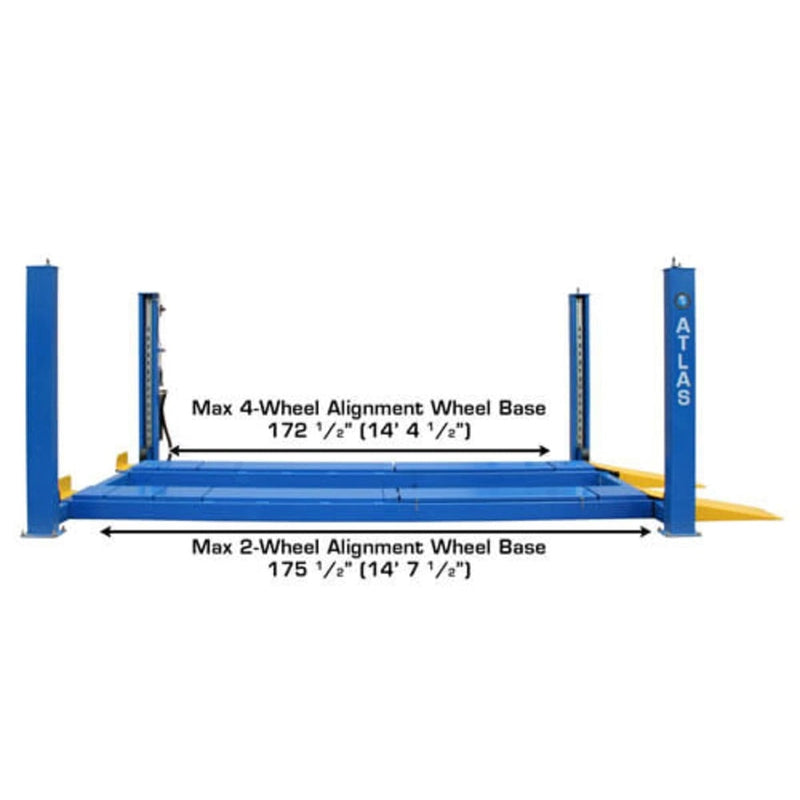

• Multiple Positions for Turntable Placement

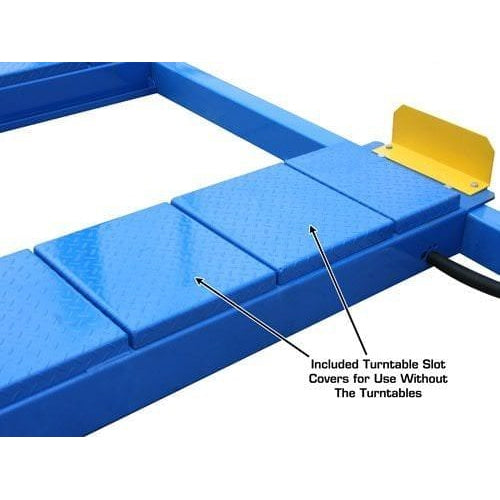

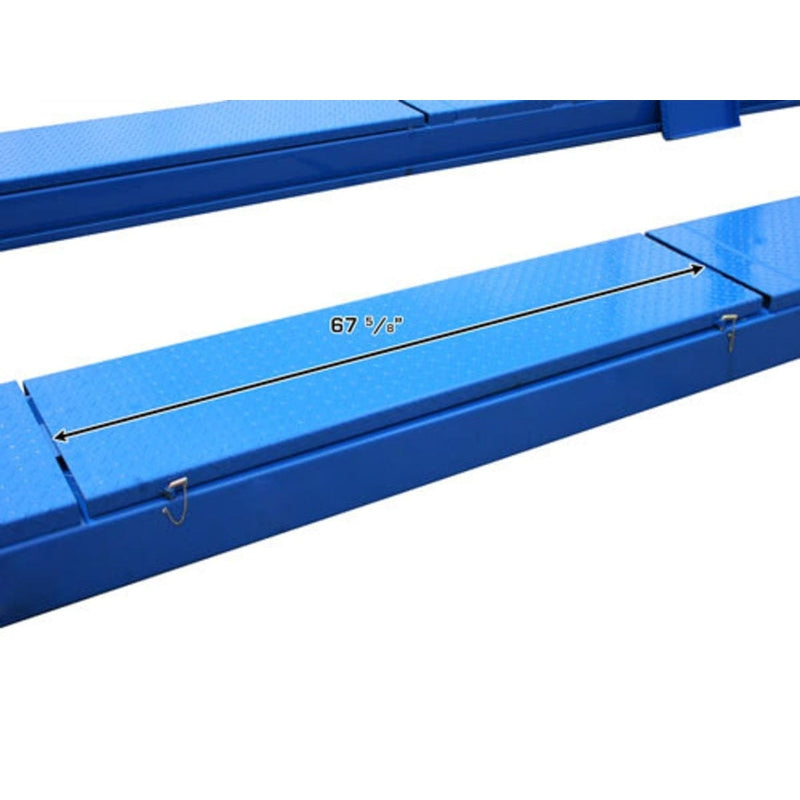

• Runway Covers Included (when Turntables are Removed)

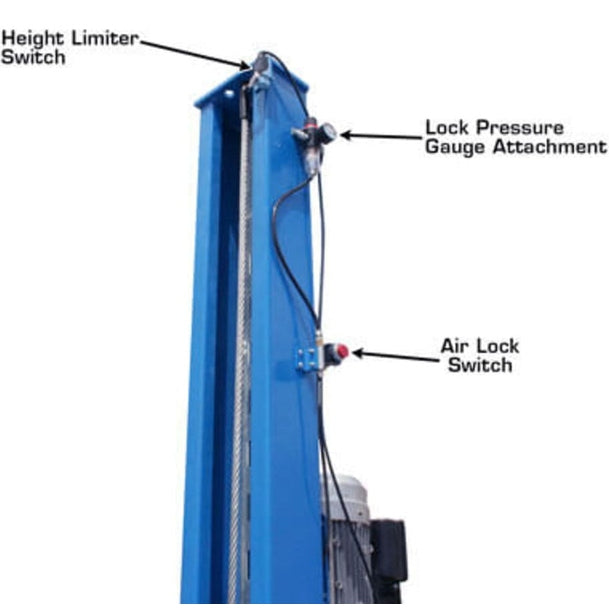

• Air Operated Single Point Lock Release (External Air Supply Required)

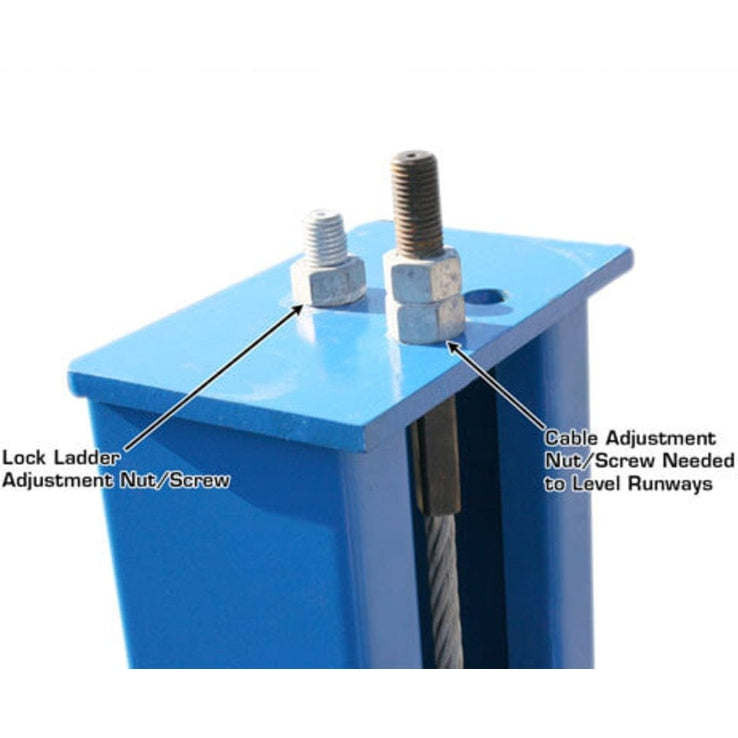

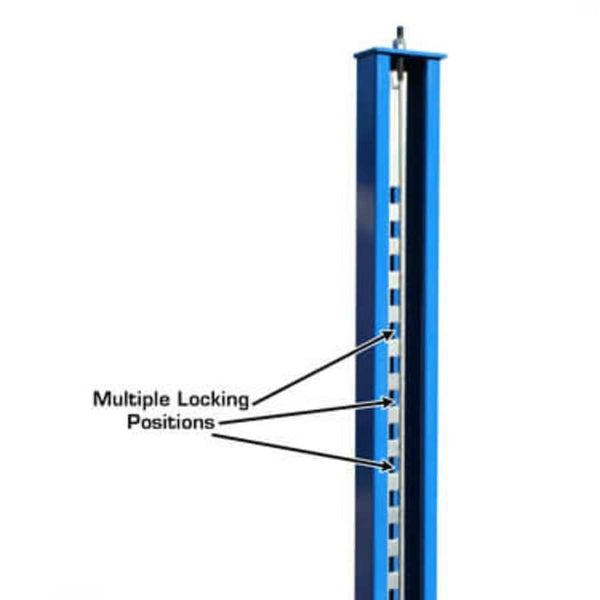

• Lock Ladder Design

• Double Lock Safety System

• Powder Coat Finish

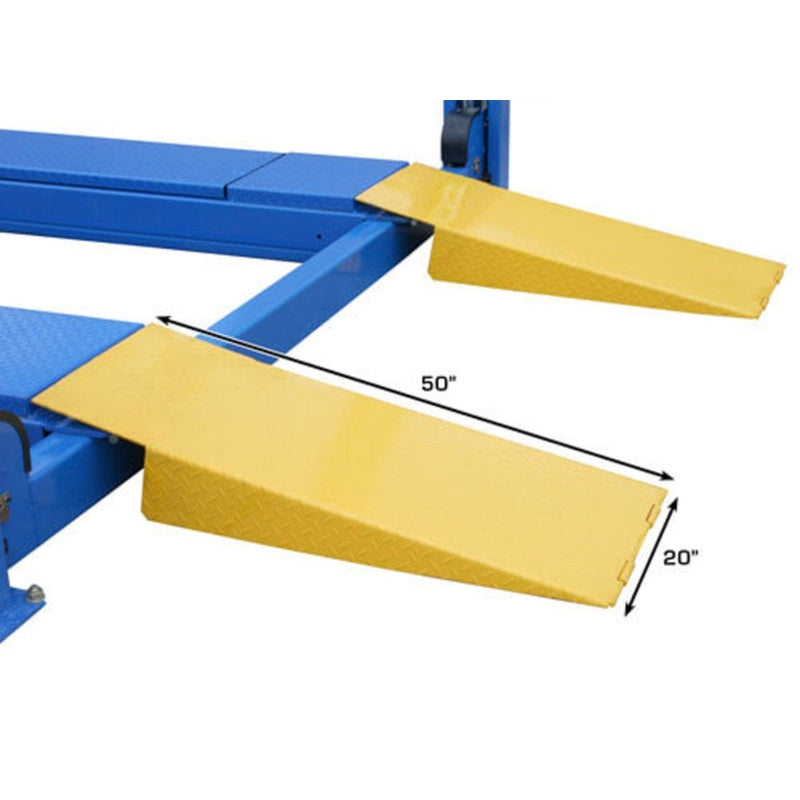

• Steel Approach Ramps Included

• Additional Drive off Ramps Available (Sold Separately)

• Runway Extensions Available (Sold Separately)

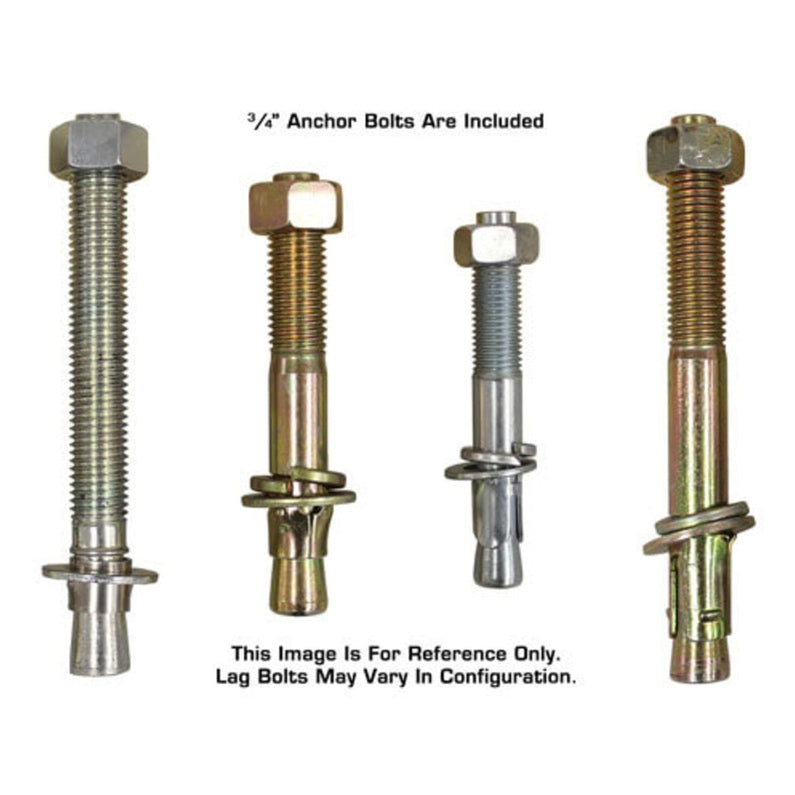

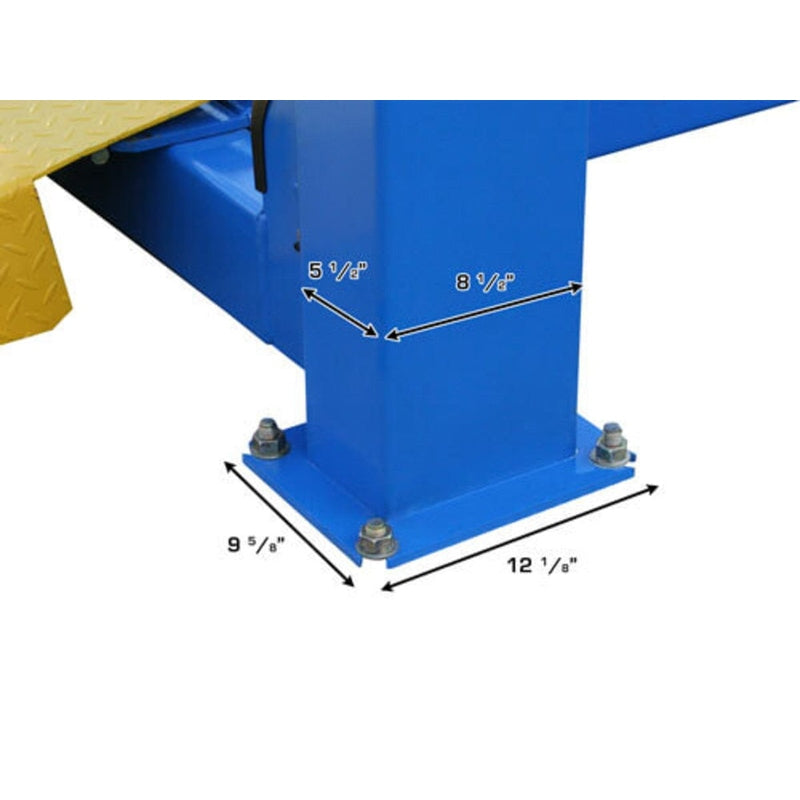

• Mounting Hardware Included

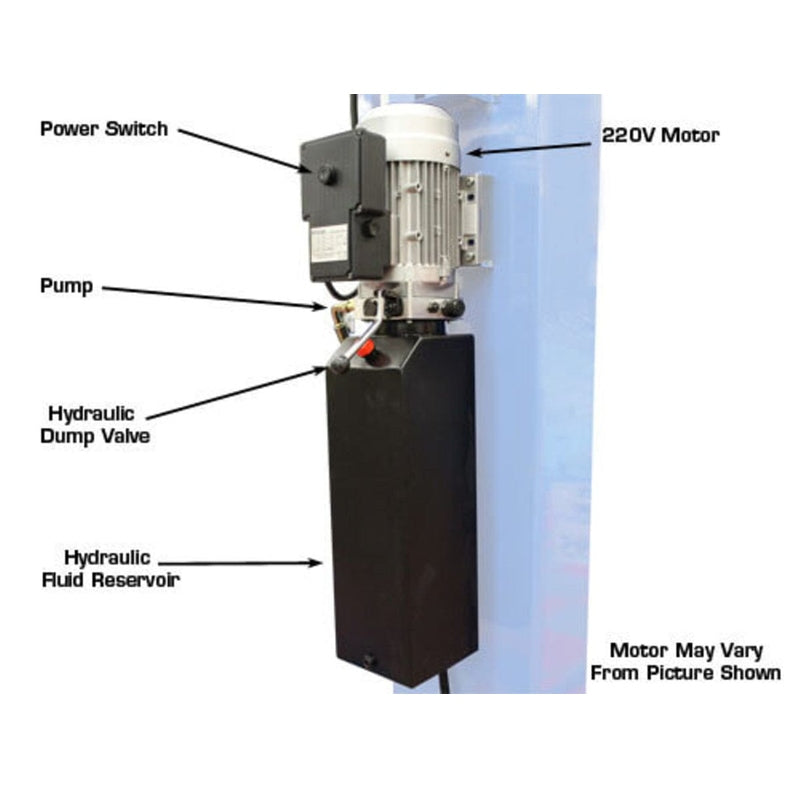

• 220volt/1phase Electric Operation (Requires a 30amp Breaker)

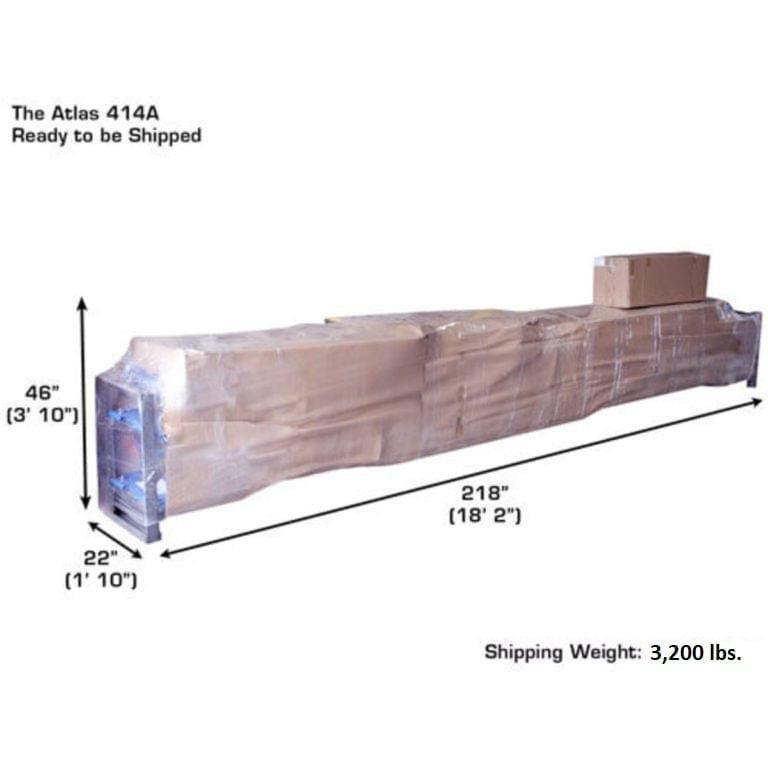

• Shipping Weight: 3,200 lbs.

• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

RJ8

• 8,000 lb. Capacity

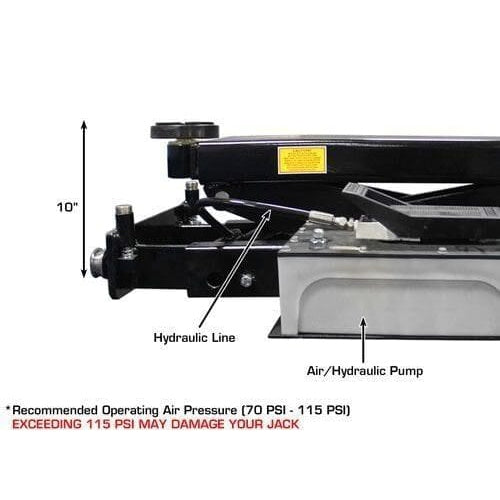

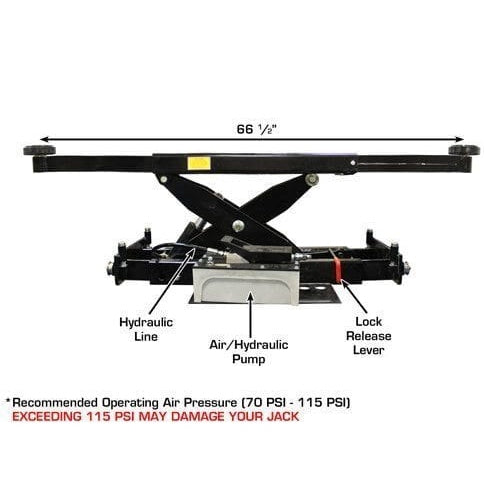

• Air/Hydraulic Operated (external air supply required)

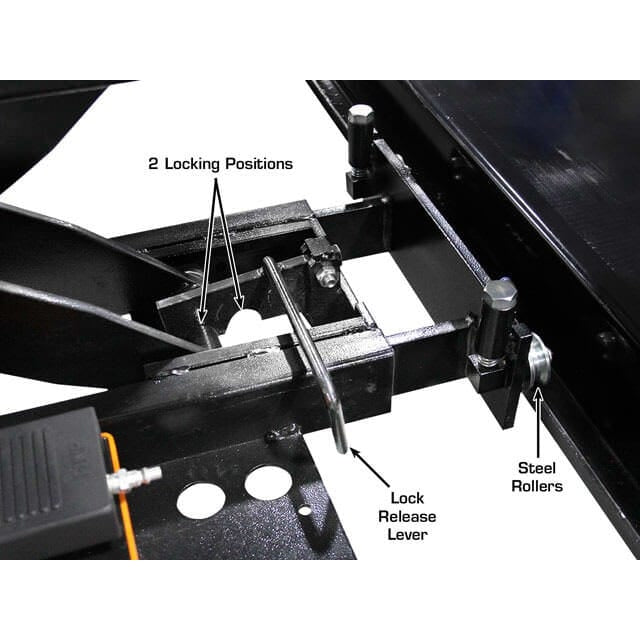

• Multiple Safety Lock Positions

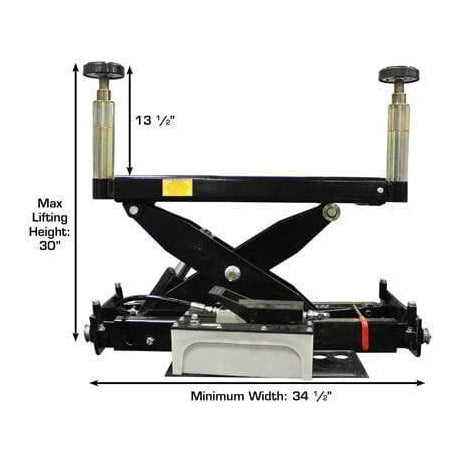

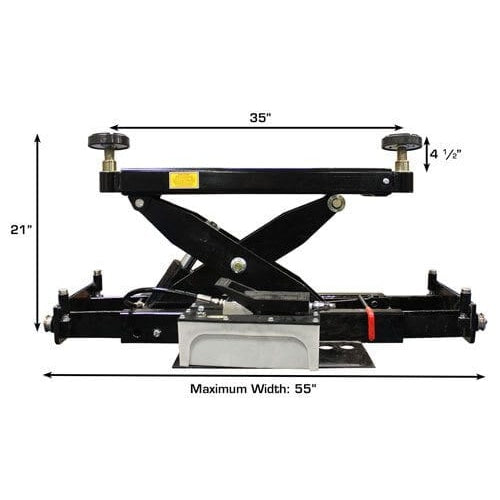

• Compact Size with Low Profile

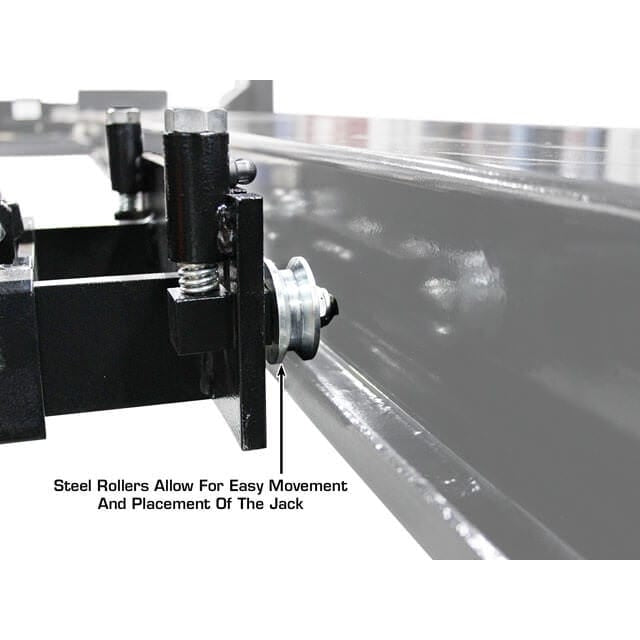

• Smooth Rolling Action

• Scissor mechanism allows for level lifting

• Powder Coated Finish

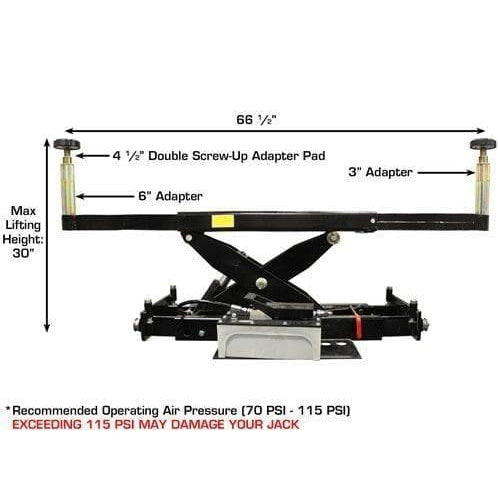

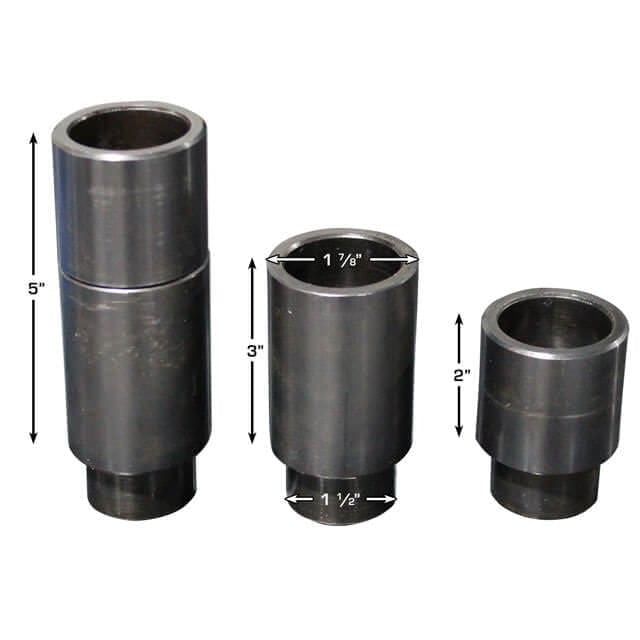

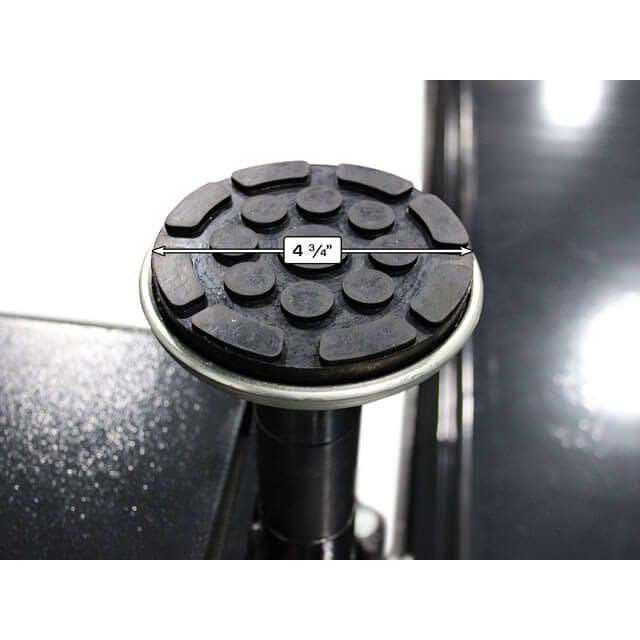

• 4 Piece Truck Adapter Set Included

• 1 Year Parts Only Warranty

Atlas® ATTD-414A Specifications

Requires a minimum of 6" of concrete with a 3000 psi. rating

Atlas® RJ8000 Specifications

Atlas® ATTD-414A Manual

Atlas® 414A Cylinder Bleeding Procedure (Do this immediately after installation)
