Description
-The Atlas® 414 14,000 pound capacity heavy duty four post lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas® lifts offer many exclusive features not found on many other competitor’s lifts.
The Atlas® 414 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas® 414 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas® 414 has been manufactured to the same exacting specifications for many years.

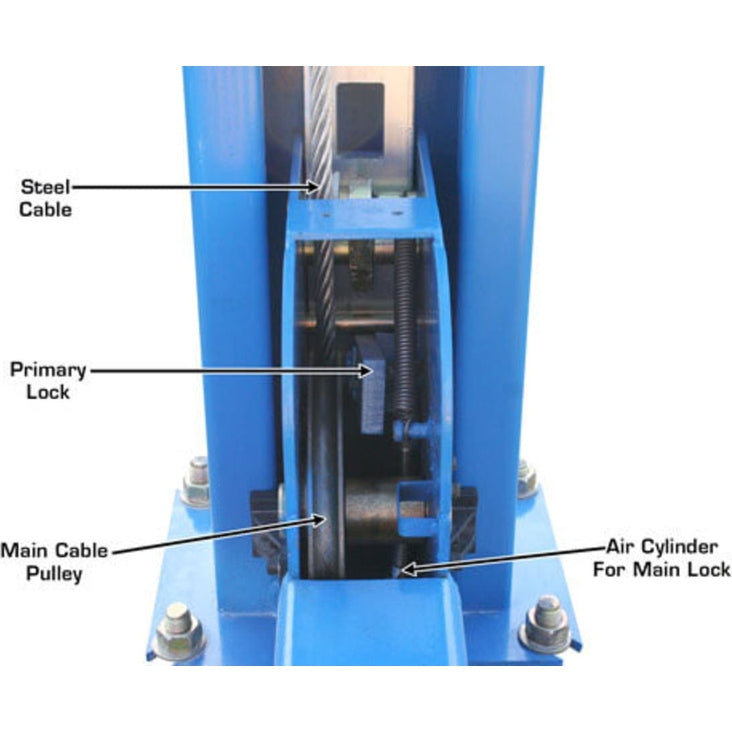

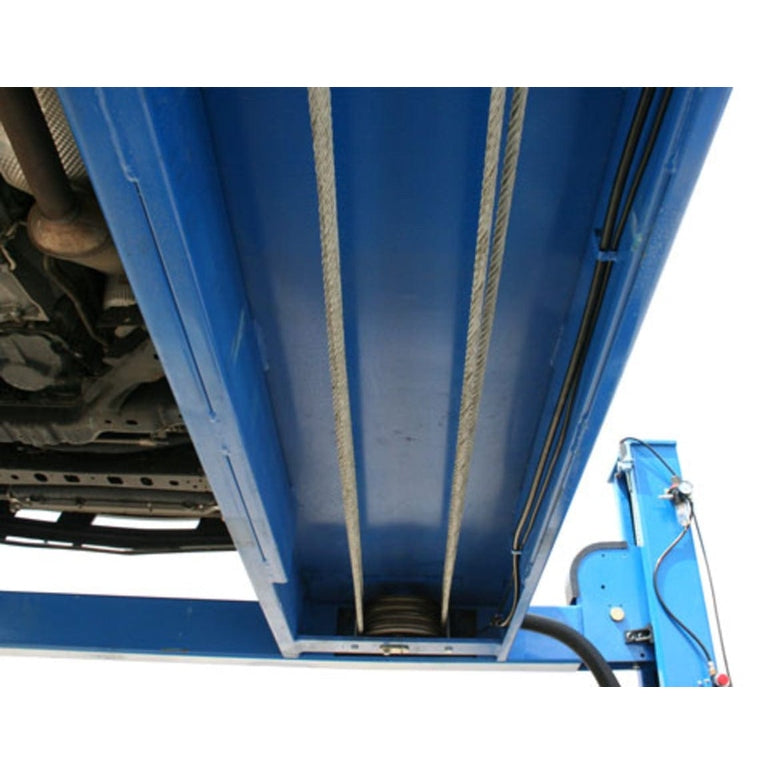

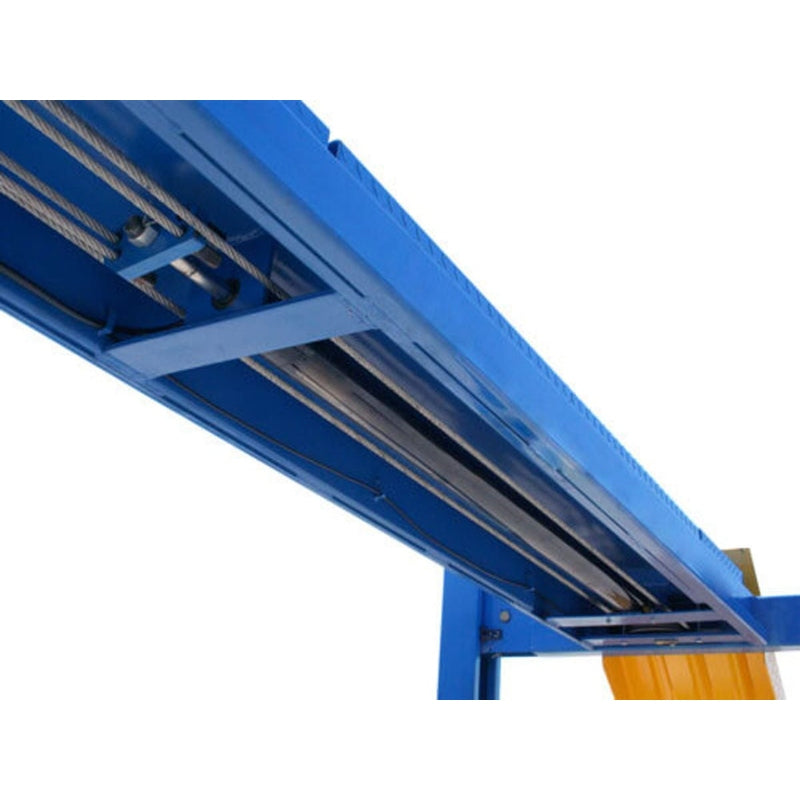

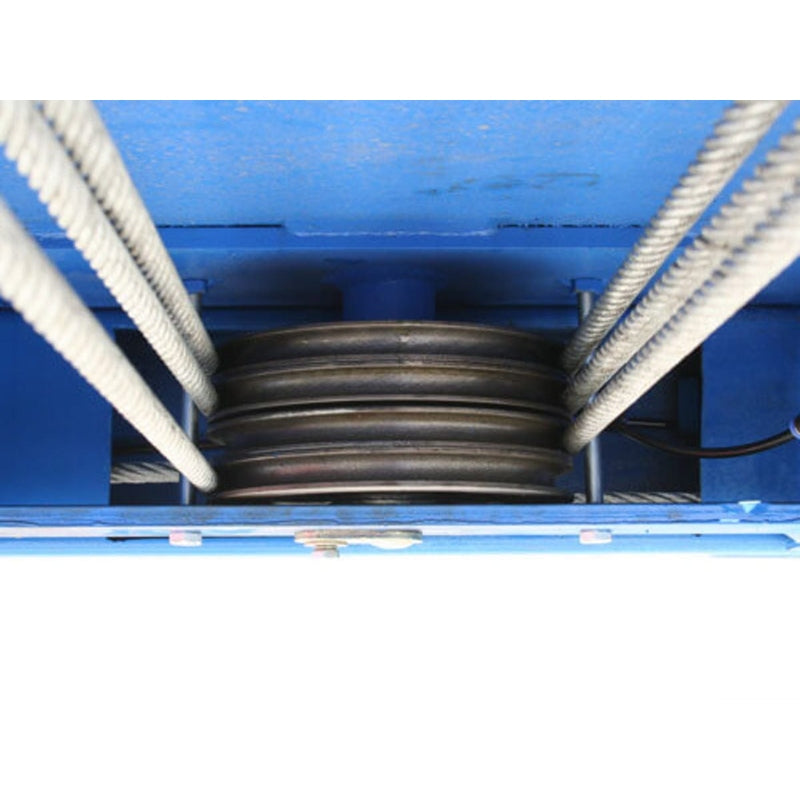

The Atlas® 414 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

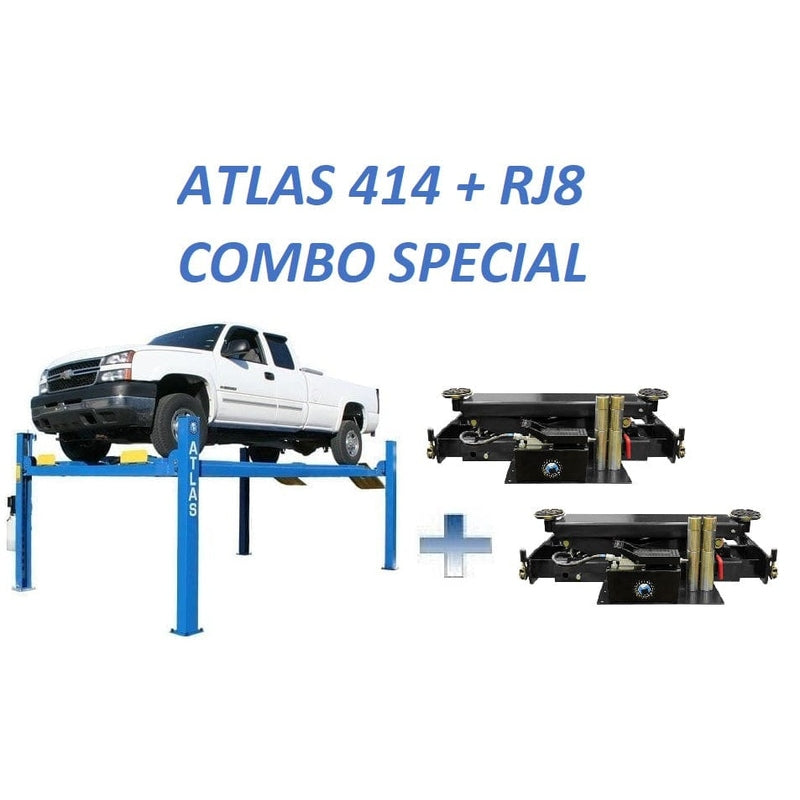

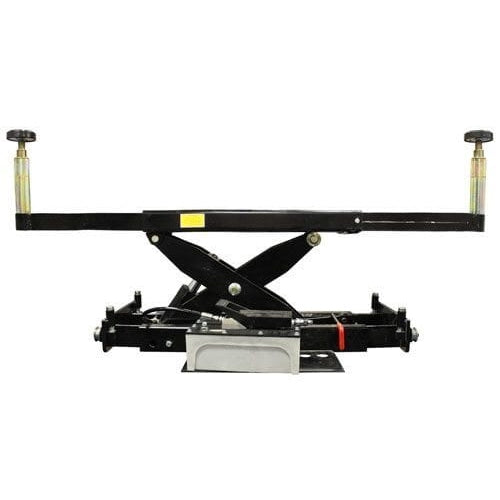

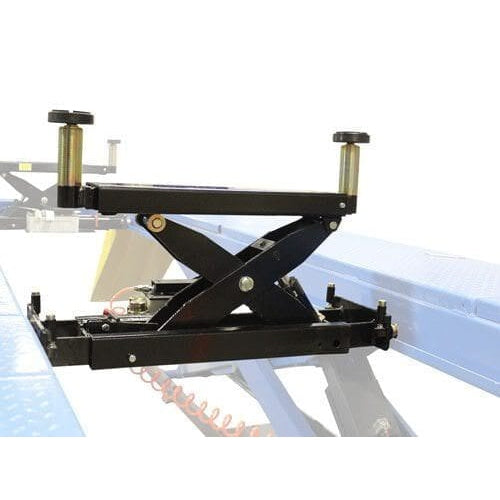

This combo package also includes two of the popular Atlas® RJ8 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
-414
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Diamond Plated Runways

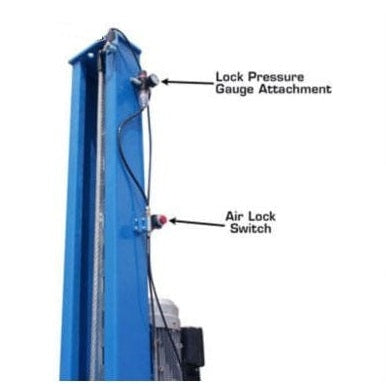

- Air Operated Single Point Lock Release (External Air Supply Required)

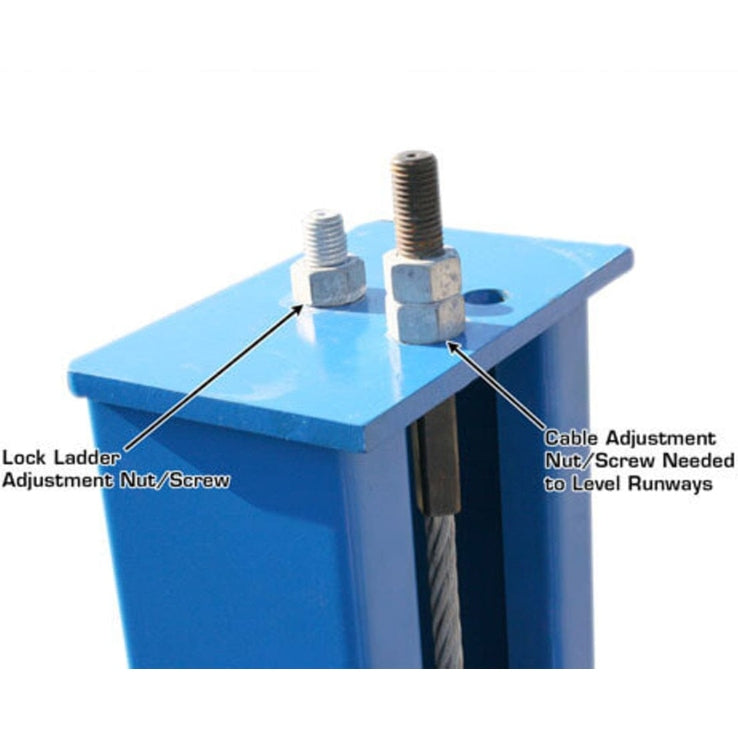

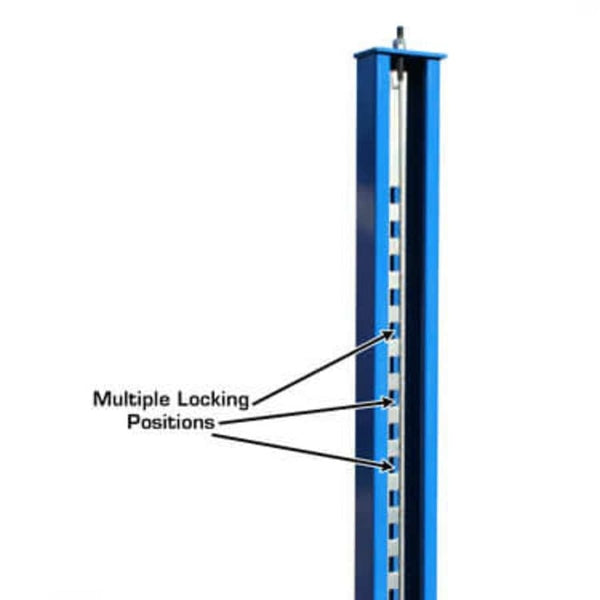

- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish

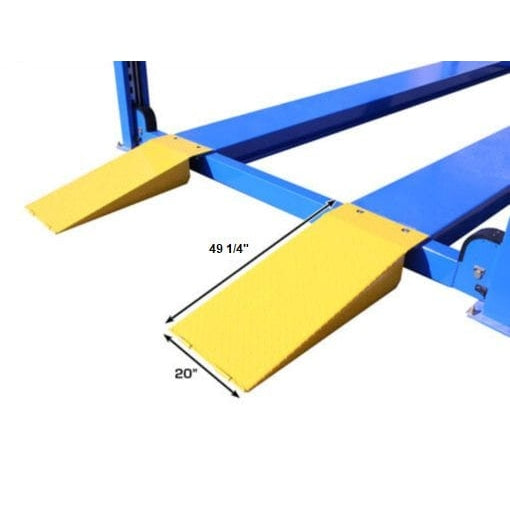

- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)

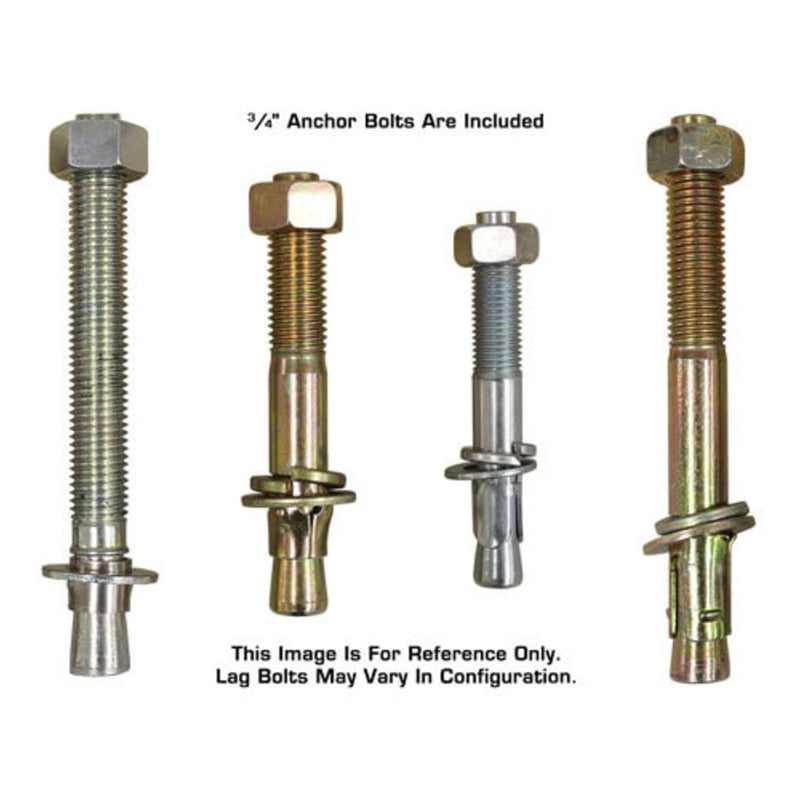

- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)

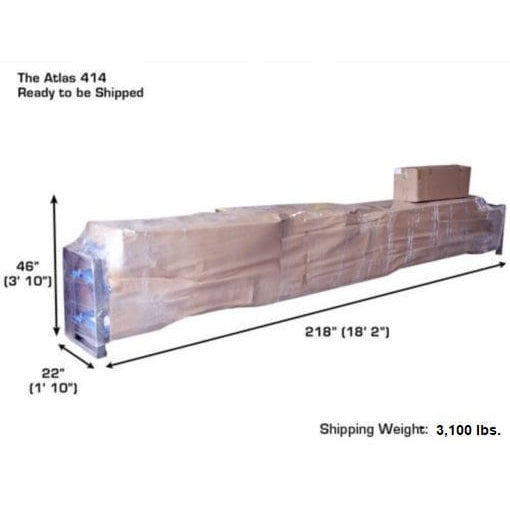

- Shipping Weight: 3,100 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
RJ8
- 8,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)

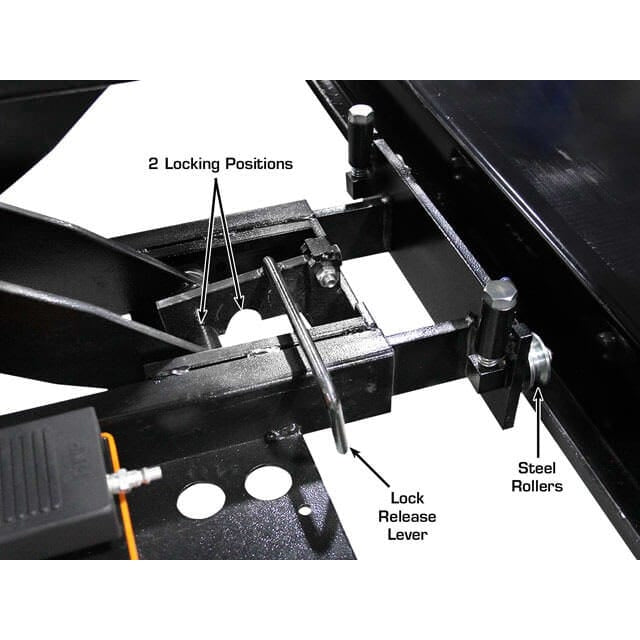

- Multiple Safety Lock Positions
- Compact Size with Low Profile

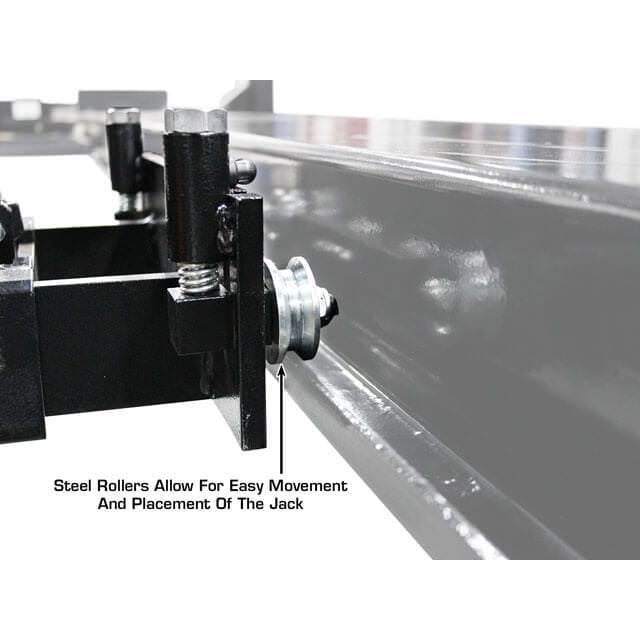

- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Specifications

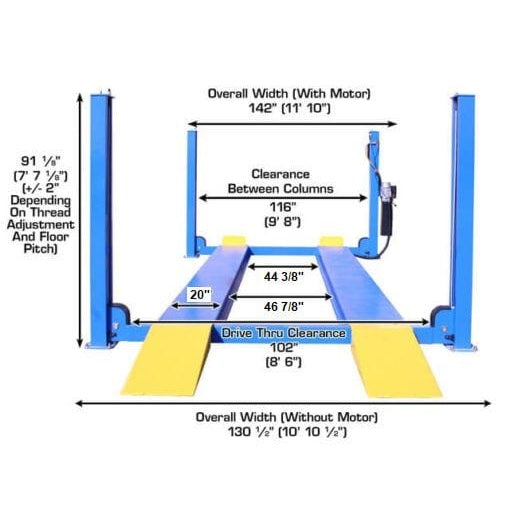

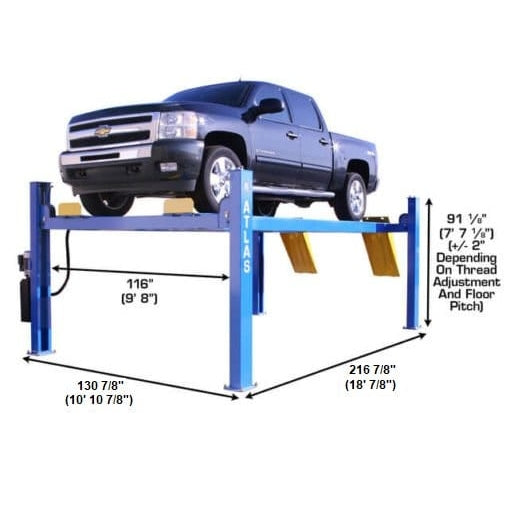

-Atlas® ATTD-414 Specifications

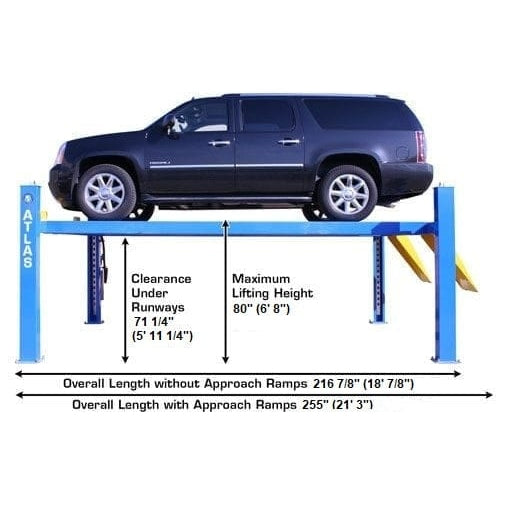

Capacity | 14,000 lb. |
Lifting Height | 80" (6' 8") |

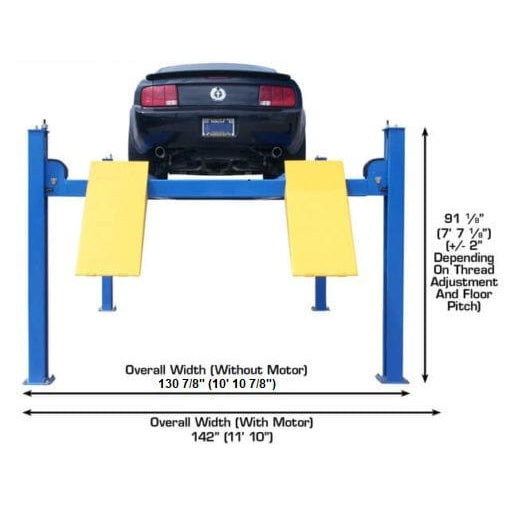

Overall Width Of Columns (Without Motor) | 130 7/8" (10' 10 7/8") |
Overall Width Of Columns (With Motor) | 138 7/8" (11' 6 7/8") |

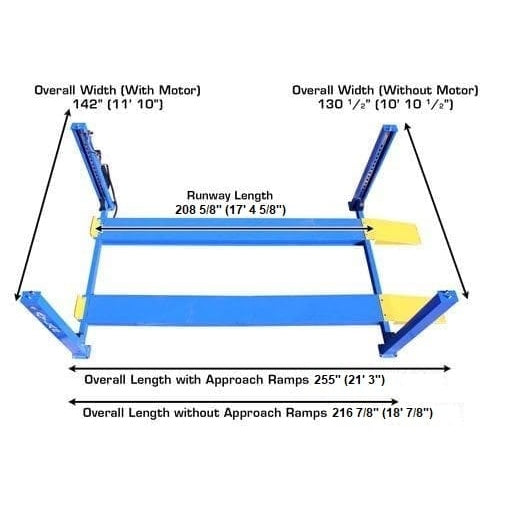

Overall Length With Approach Ramp | 255" (21' 3") |
Length Between Columns | 197 1/4" (16' 5 1/4") |
Runway Length | 208 5/8" (17' 4 5/8") |
Runway Width | 20" |
Thickness Of Runway | 8 3/4" |

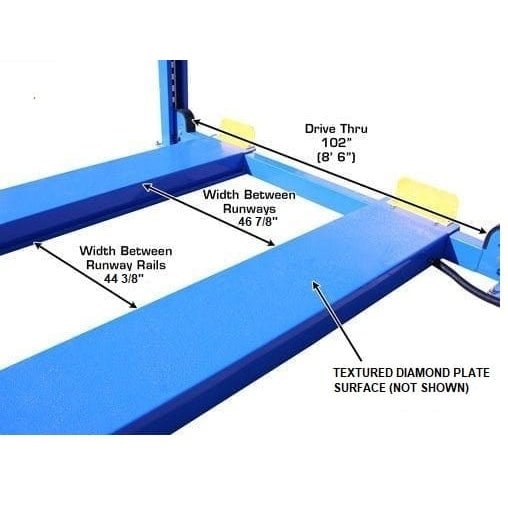

Width Between Runways | 46 7/8" (w/ Rail 44 3/8") |
Outside Runway To Outside Runway | 86 7/8" (7' 2 7/8") |
Clearance Under Runways | 71 1/4" (5' 11 1/4") |
Clearance Between Columns | 116" (9' 8") |
Height Of Columns | 91 1/8" (7' 7 1/8") |
Maximum Wheel Base | 197" (16' 5") |
Drive Thru | 102 1/8" (8' 6 1/8") |
Air Requirement | 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
Shipping Weight | 3,100 LBS. |

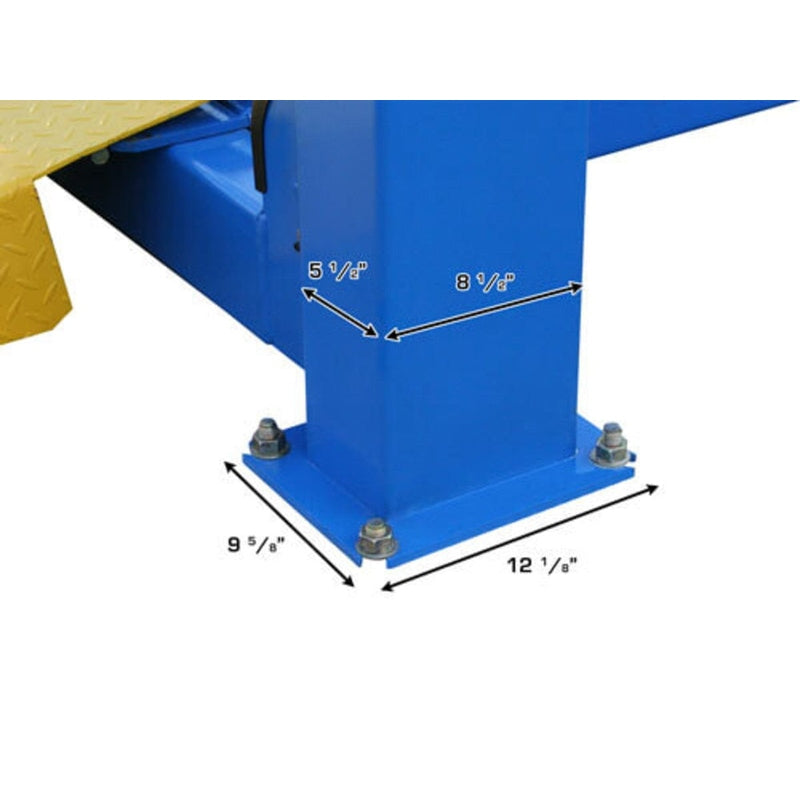

Requires a minimum of 6" of concrete with a 3000 psi. rating

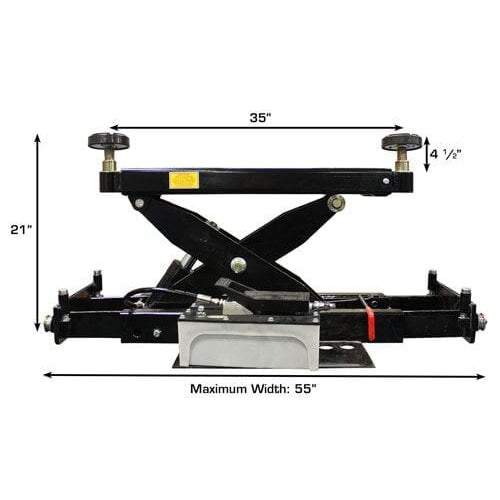

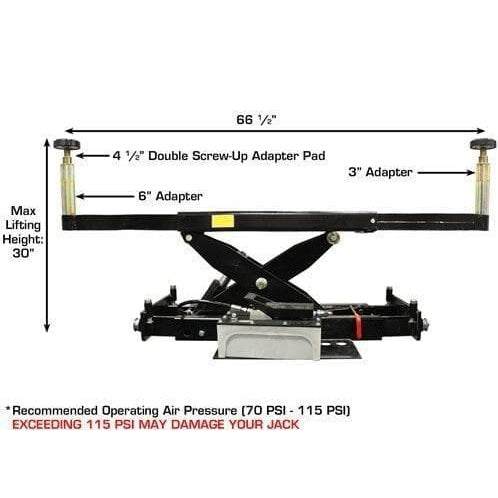

Atlas® RJ8000 Specifications
Maximum Capacity | 8,000 lb. |
Maximum Width | 66 1/2" (5' 6 1/2") |

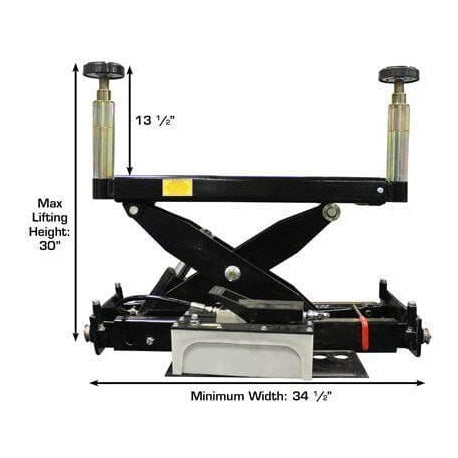

Minimum Width | 40" (3' 4") |
Distance Between Runway Capability | 34 1/2"-55" |
Maximum Lifting Height (With Adapters) | 30" |

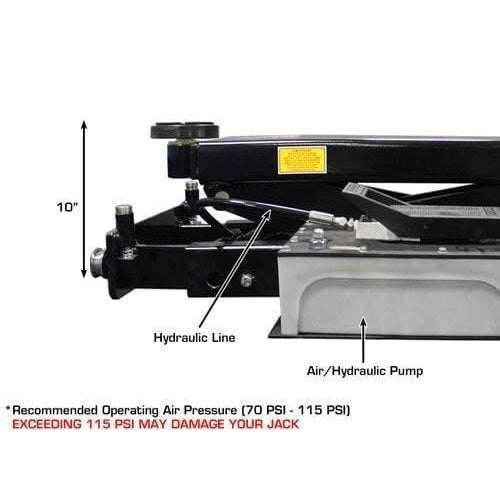

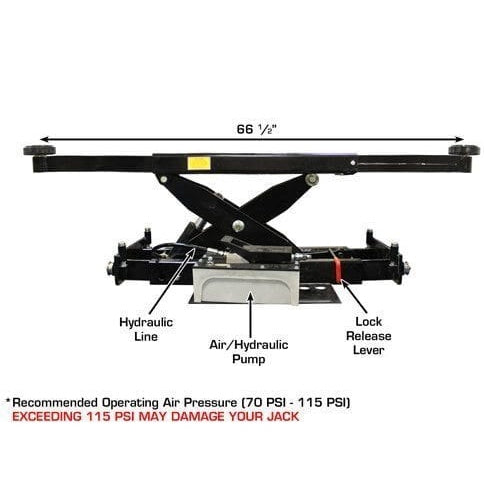

Air Requirement | 70-115 PSI |
Shipping Weight | 390 lbs. |

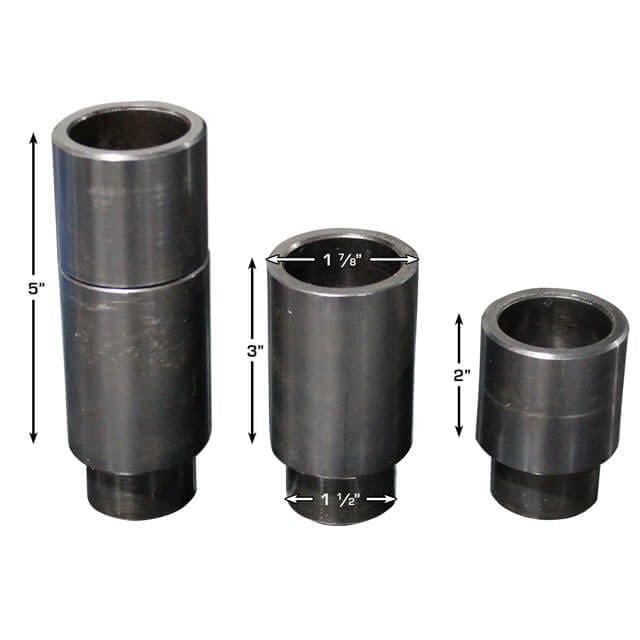

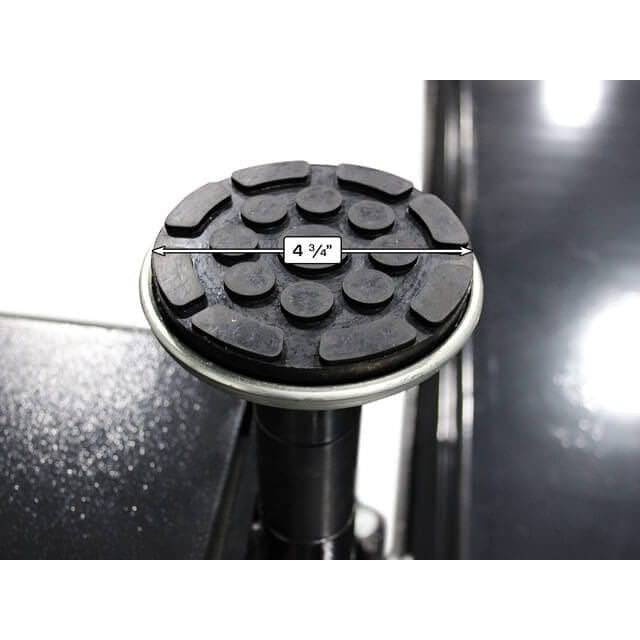

Adapter Heights | 2 Each 2", 3" |
Arm Hole/Adapter Peg Size | 1.5" |
