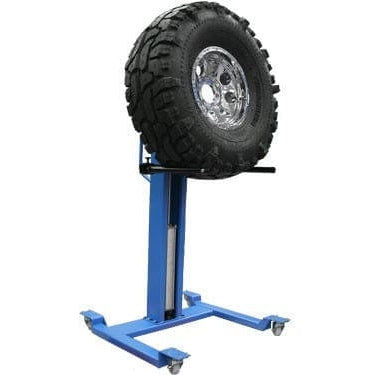

Atlas Portable Pneumatic Wheel Lift
-The Atlas Pneumatic Portable Wheel Lift (AEZWL) is the perfect solution to prevent back injuries when lifting large wheel assemblies onto the shaft of a wheel balancer or onto a tire changer turntable.

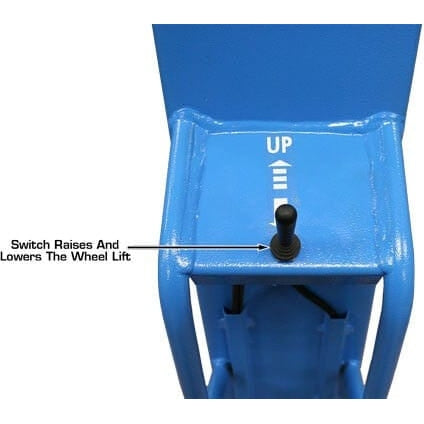

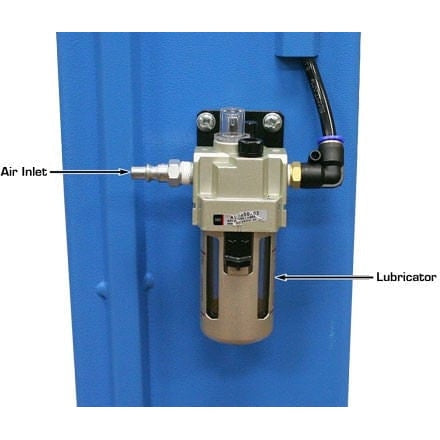

Todays wheels and tires are getting bigger and heavier. Many wheels are expensive and can be easily scratched or damaged. The Atlas air operated wheel lift will lift up to a 180 pound wheel easily and allow the operator to maneuver the wheel into the correct position without fear of wheel damage or back strain. The AEZWLs smooth air operation requires only 116-145 PSI air pressure and the 4 swivel casters make it easy to move and position where needed.
Features

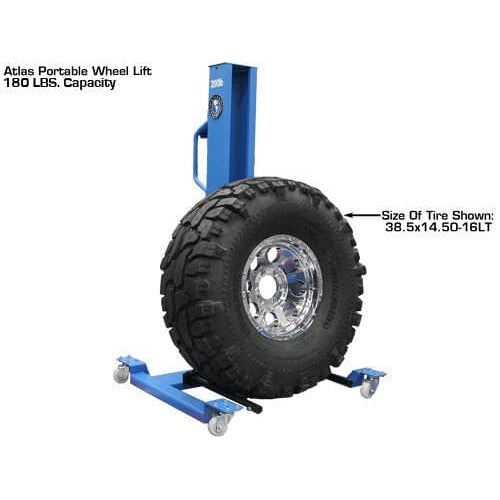

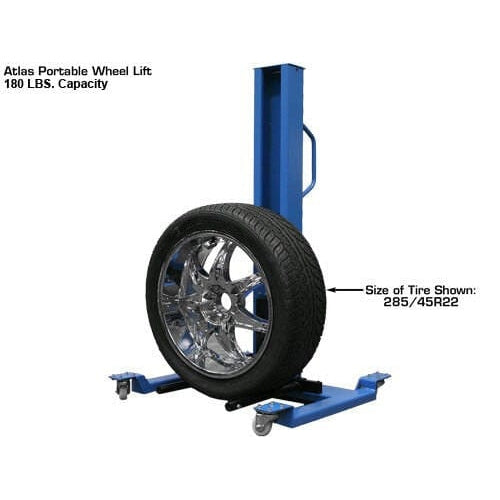

-- 180 lb. Capacity
- Center Column Design
- Arms are adjustable in width & in length to handle a huge range of wheel diameters & widths
- 3" Poly Casters

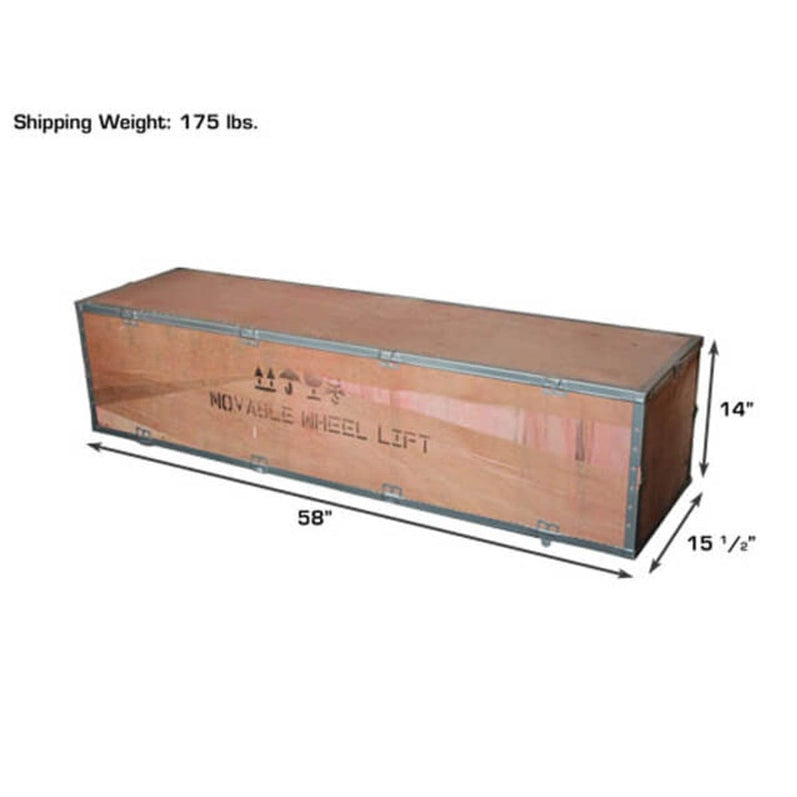

- Shipping Dimensions: 58" x 14" x 15 1/2"
- Shipping Weight: 175 LBS.
- 90 Day Parts Only Warranty
Specifications
-Atlas Pneumatic Portable Wheel Lift Specifications | |
Capacity |
180 LBS. |

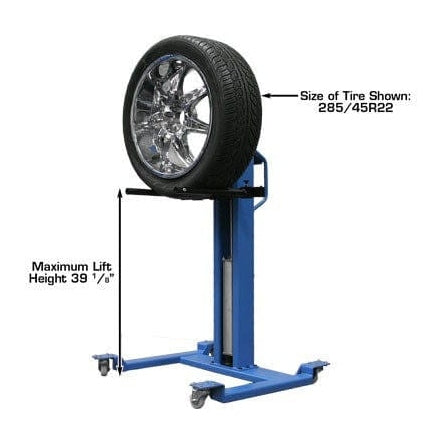

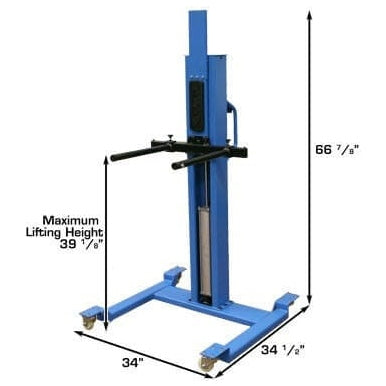

Max. Lifting Height |
39 1/8" |
Min. Lifting Height |
4" |

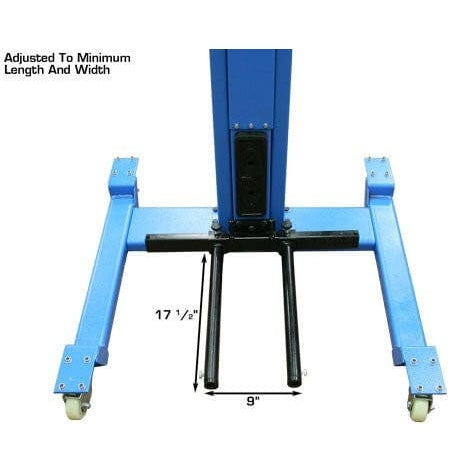

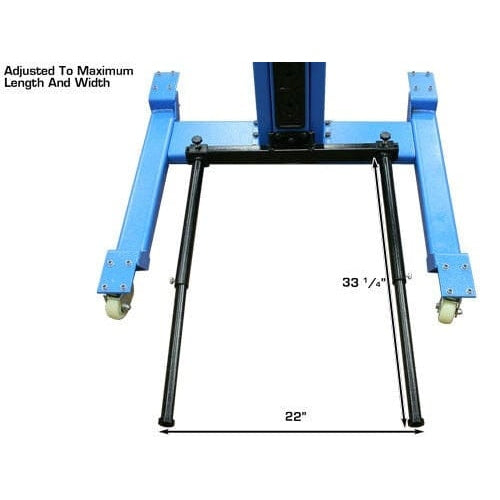

Arm Length |
17 1/2" - 33 1/4" |
Distance Between Arms | 9" - 22" |

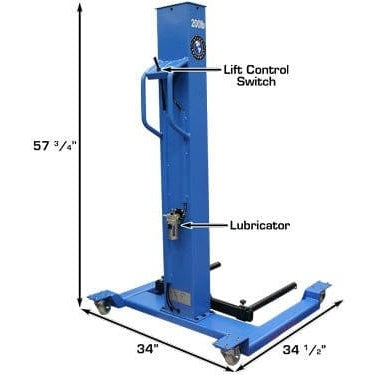

Overall Height | 66 7/8" |
Required Air Pressure | 120 psi |
Shipping Weight | 175 LBS. |
Manual
-Atlas Portable Wheel Lift Manual
