Atlas 12,000 lb. Capacity Scissor Lift
+-
Our Atlas Asian partner developed this heavy duty scissor alignment lift in a joint venture with one of the most prestigious Italian lift manufacturers. The combination of the Italian engineering and design coupled with the low cost of the Asian labor has resulted in an alignment lift that is equal to or better than similar big name lift brands costing two and three times as much money.

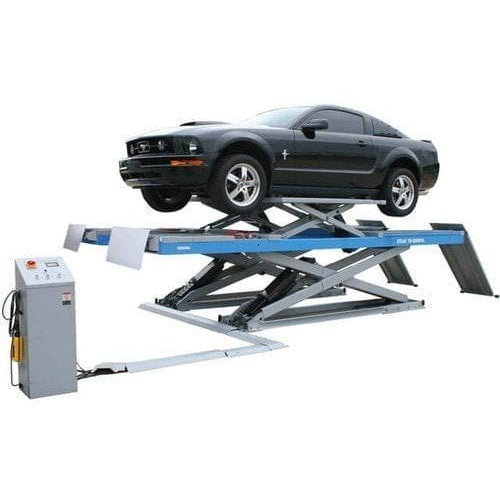

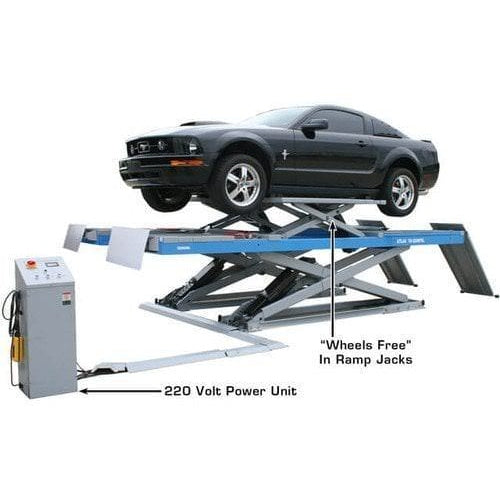

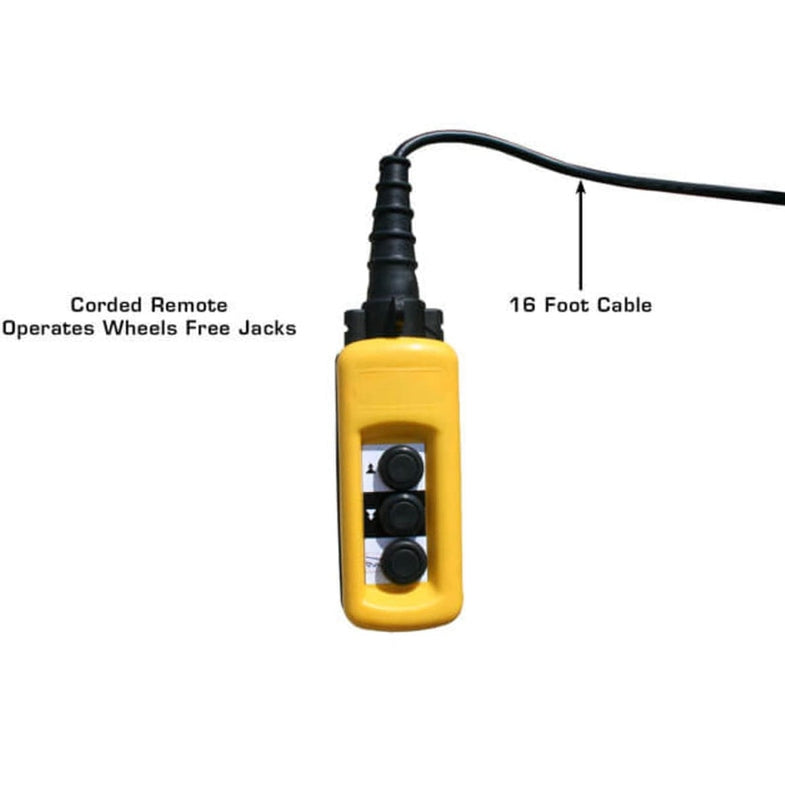

The Atlas 12AWFSL 12,000 lb. scissor alignment lift has all the same features as the Atlas 12ASL lift but with the addition of built in runway lifts known as the Wheels Free lifting system. When a vehicle is loaded on the 12AWFSL lift the Wheels Free jacks will raise a vehicle by the frame, lifting it so the wheels come off the runways for easier access and to facilitate alignments. The Wheels Free jacks are conveniently controlled at the lifts control console.
The Atlas 12AWFSL has a lifting height of over seven feet so that it may be floor mounted or recessed in the floor for flush mounting. The full frame under the scissor lift provides for maximum stability.

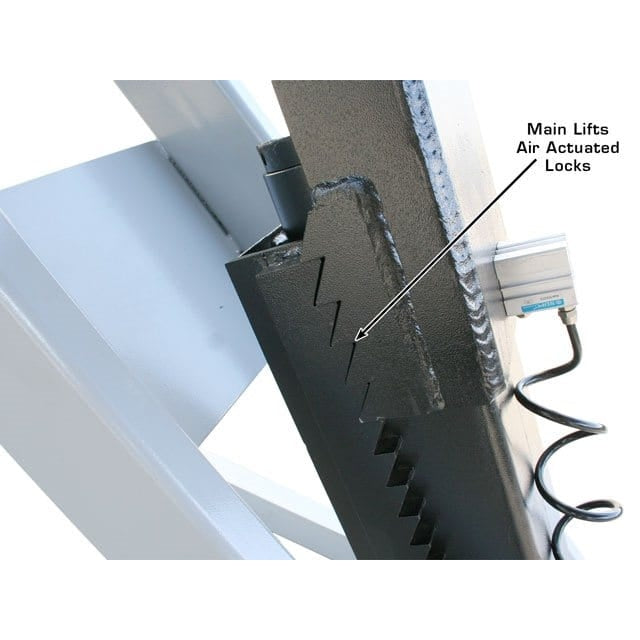

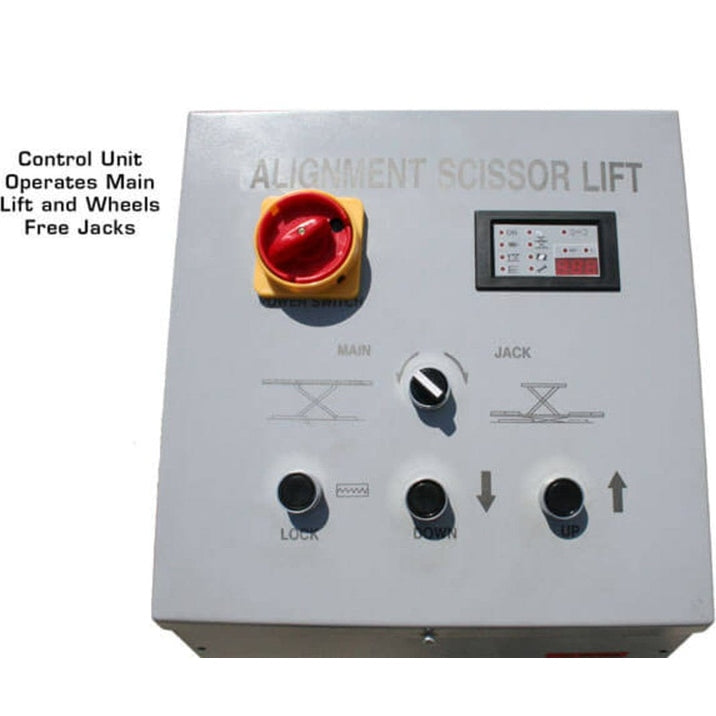

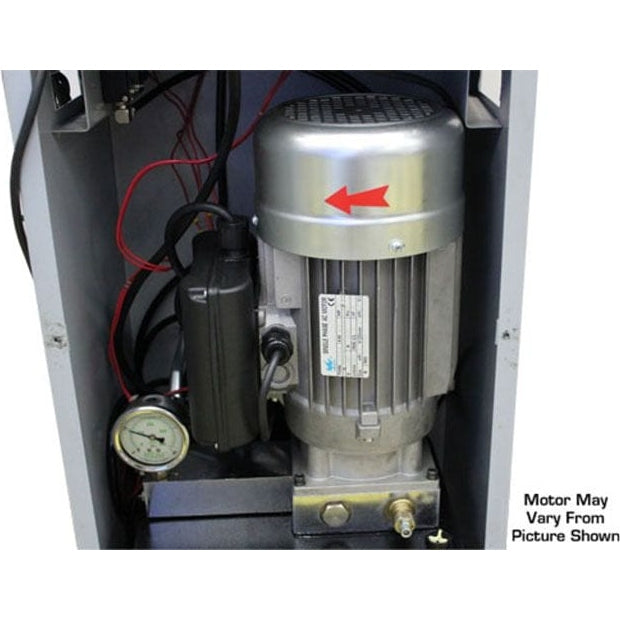

The separate control panel may be conveniently positioned to allow easy access for the operator. The 220 volt (single phase) electric/hydraulic power unit is housed inside the metal control panel box. The push button controls activate the raising and lowering of the lift. The sophisticated air actuated lock system is automatically engaged and disengaged as the lift is being raised or lowered. The lift has a safety lowering limit switch. Once the lift platforms are lowered to within 10 inches of the ground, the lift automatically stops its descent. The Down button needs to be released and depressed again to allow the lift to go down completely.

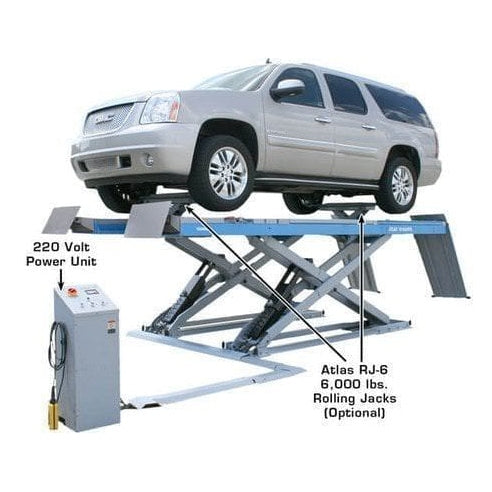

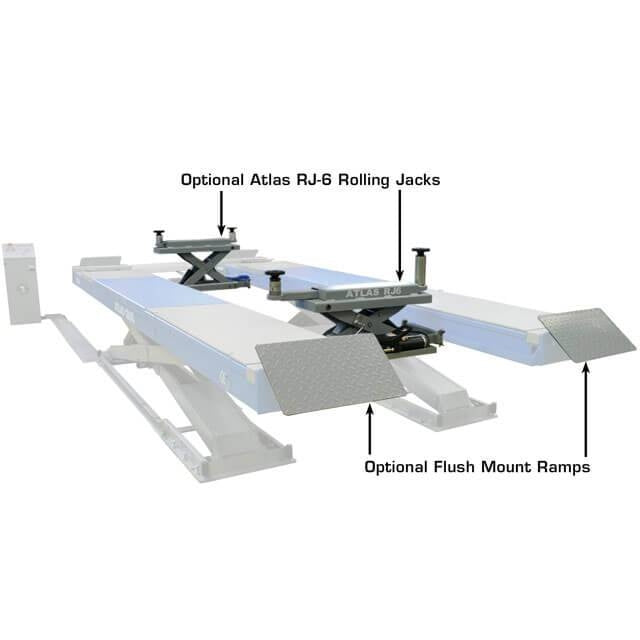

The Atlas 12AWFSL has welded rails on the inside of the runways allowing the customer the option of using a rolling jack (such as the Atlas RJ-6).
Quality workmanship, ease of operation, straight forward installation instructions, a durable powder coat finish and the lowest prices in the industry makes the Atlas 12AWFSL 12,000 lb. alignment scissor lift the perfect choice for the demanding and discriminating ship owner. This Alignment System allows the customer to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one ton dually.
Features
+-
12,000 LB. Capacity
Commercial Grade
Scissor Alignment Lift
Built in Wheels Free Lifting System

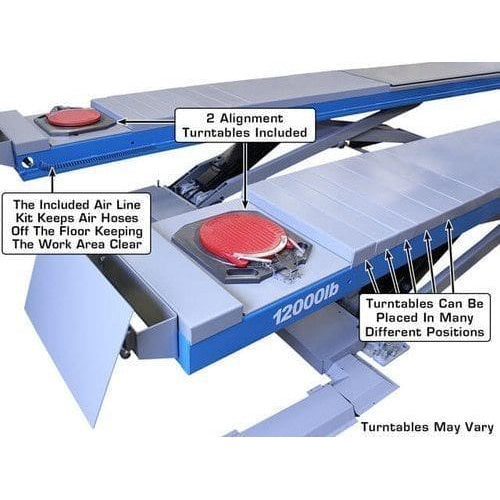

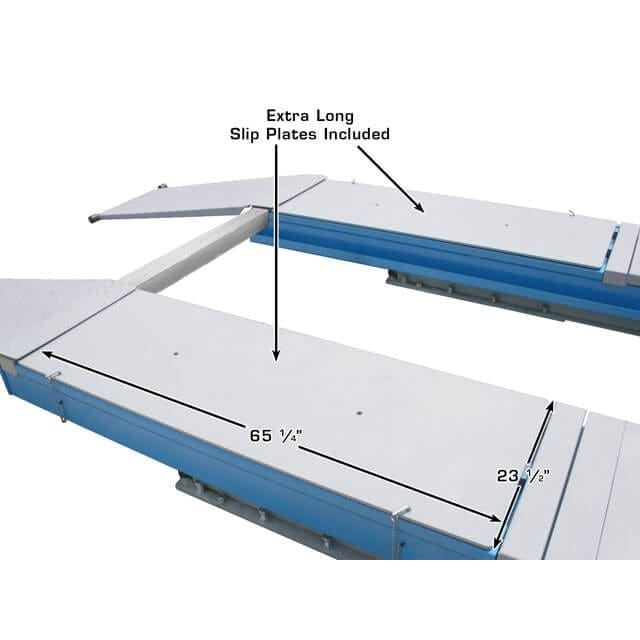

Built in Slip Plates and Alignment Turntables Included

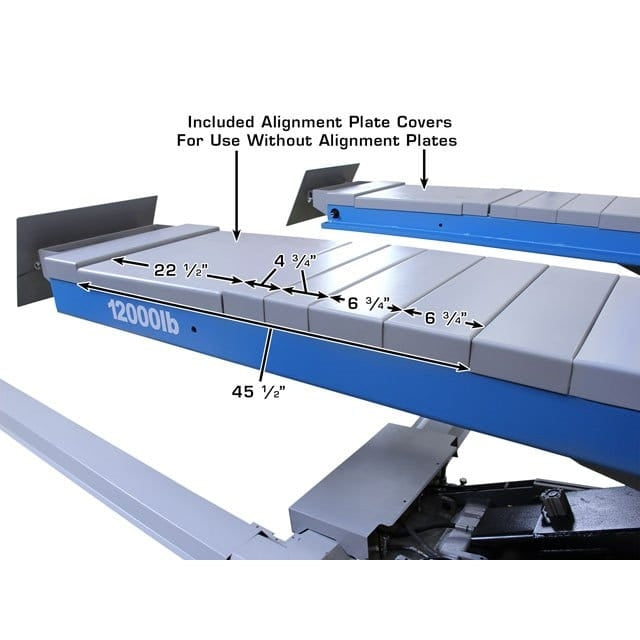

Turntable Covers Included
Open Center Design for Easy Access

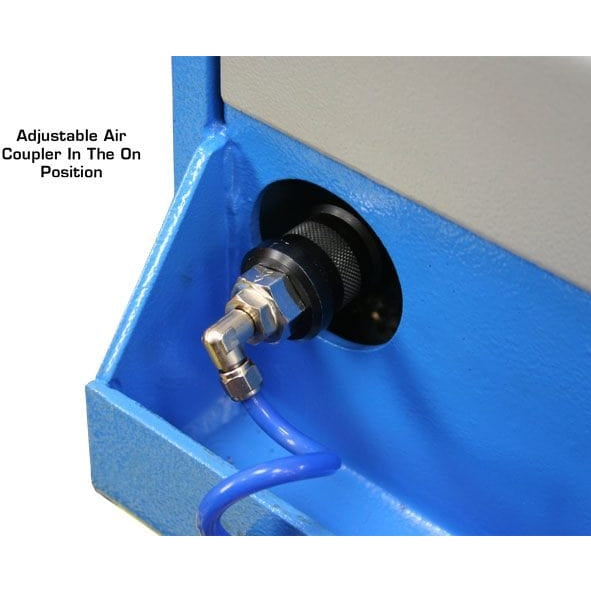

Air-Operated Single Point Lock Release (External Air Supply Required)
Airline Kit Included

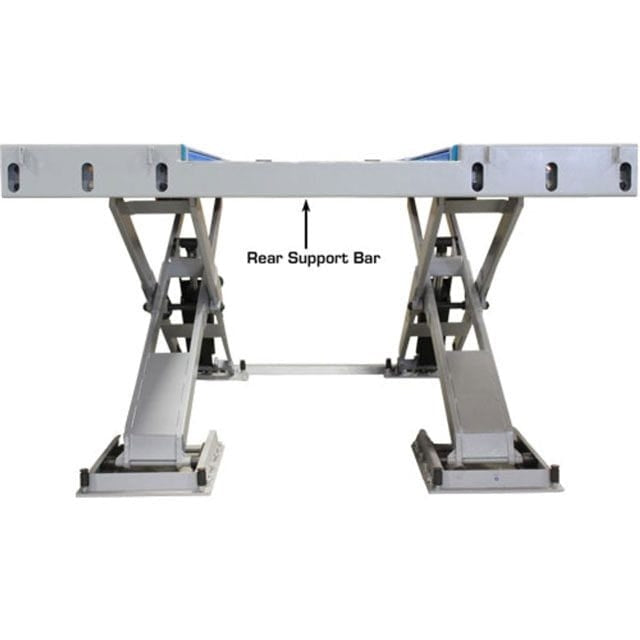

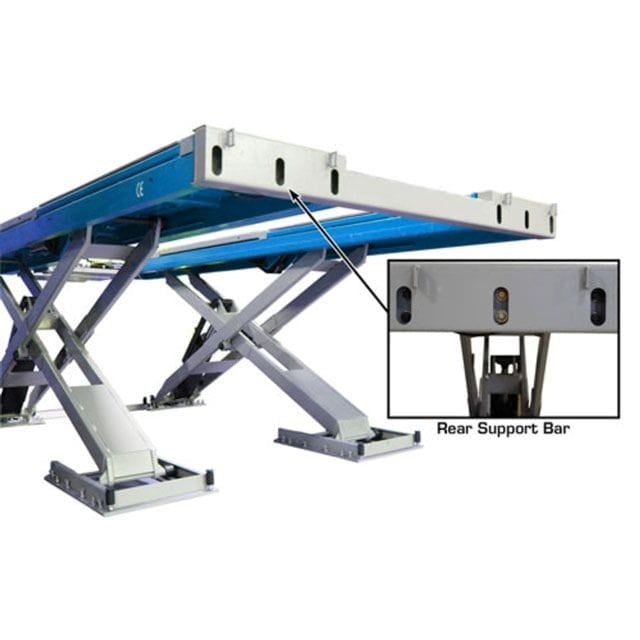

Rear Cross Beam for Extra Stability Included
Extra Long 72" Ramps Standard
Precise Platform Leveling Accuracy
Separate Self-Contained Control Panel
Emergency Manual Pump for Lowering

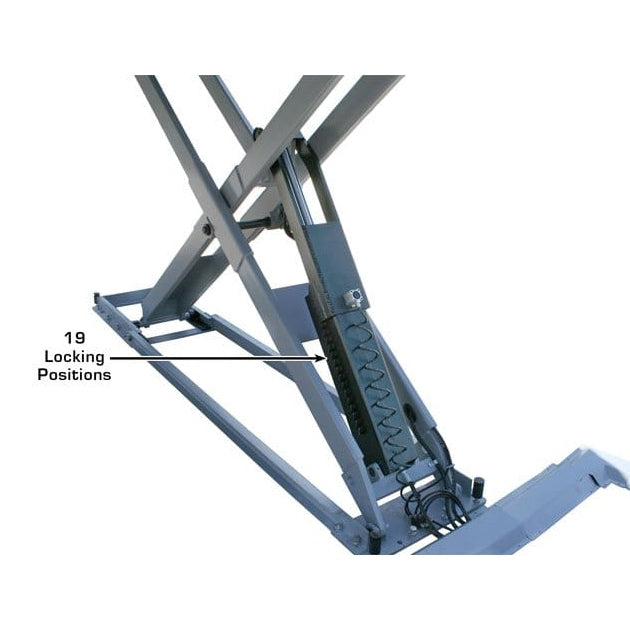

19 Locking Positions
CE Certified
Can be Surface Mounted or Flush Mounted

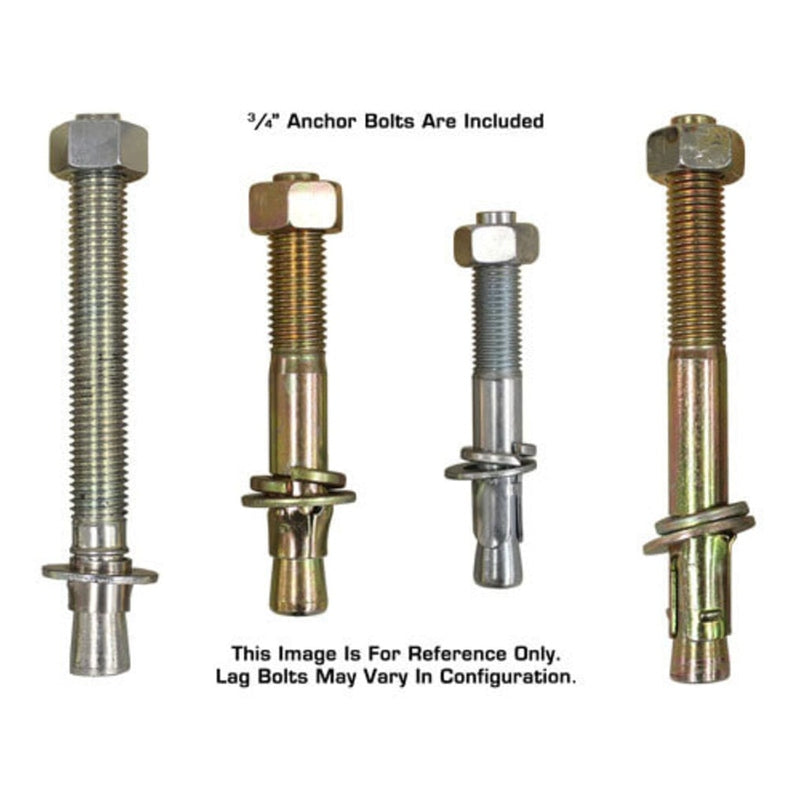

Mounting Hardware Included
220volt/1phase Electric Operation (Requires a 30amp Breaker)
Shipping Weight: 5,000 lb.
2 yr Structural 1 yr Hydraulic Warranty Parts Only
Specifications
+-
Atlas 12AWFSL-N Specifications
Lifting Capacity
12,000 LB

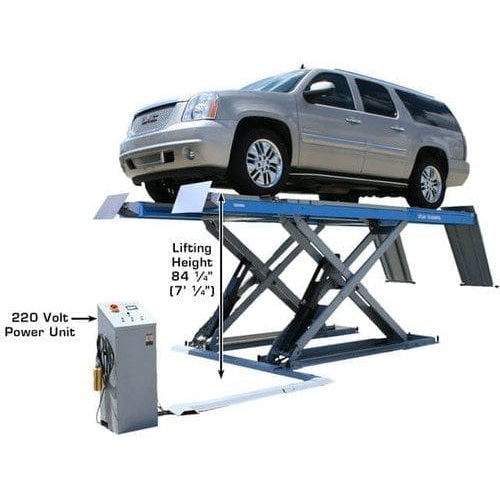

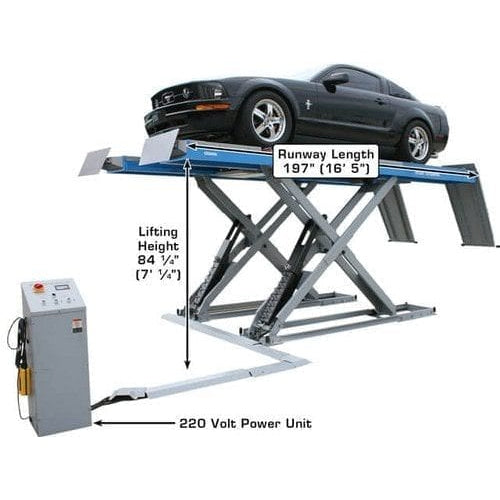

Lifting Height
84 1/4" (7' 1/4") (Surface Mounted)

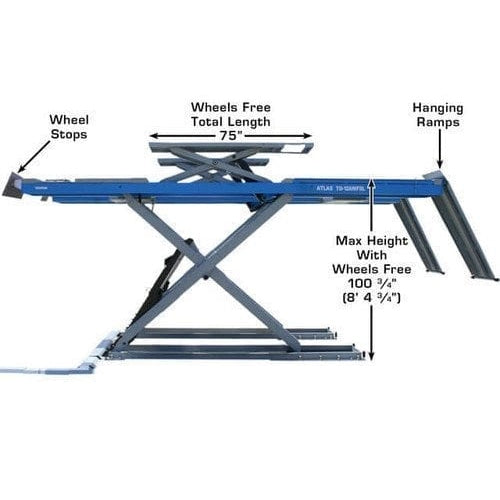

"Wheels Free" Lift Height
17" (Above Runway)
Lowered Height
11 1/2"
Overall Width
86 3/8" (7' 2 3/8")

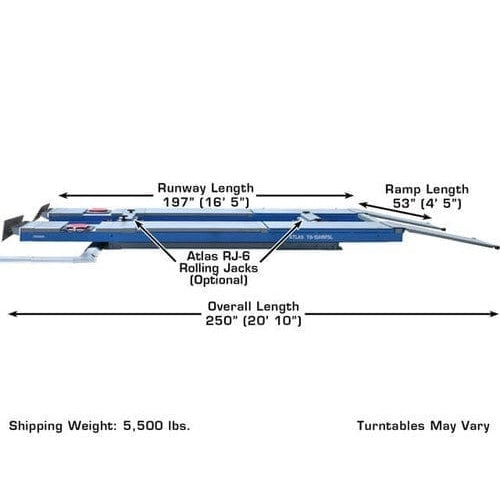

Overall Length with Approach Ramps
250" (20' 10")
Overall Length without Approach Ramps
197" (16' 5")
Approach Ramp Length
72" (6')
4-Wheel Alignment Wheelbase
Max. 168 in. Min. 90 in.
2-Wheel Alignment Wheelbase
Max. 172 in. Min. 86 in.
Runway Width including Rail
23 3/4" (1' 11 3/4")
Width Between Runways
39 1/4"
Width Between Runway Rails
34 3/8"
Air Requirement
90-120 PSI
Motor/Electrical Requirement
220 volt +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32 or AW46 (NOT INCLUDED)

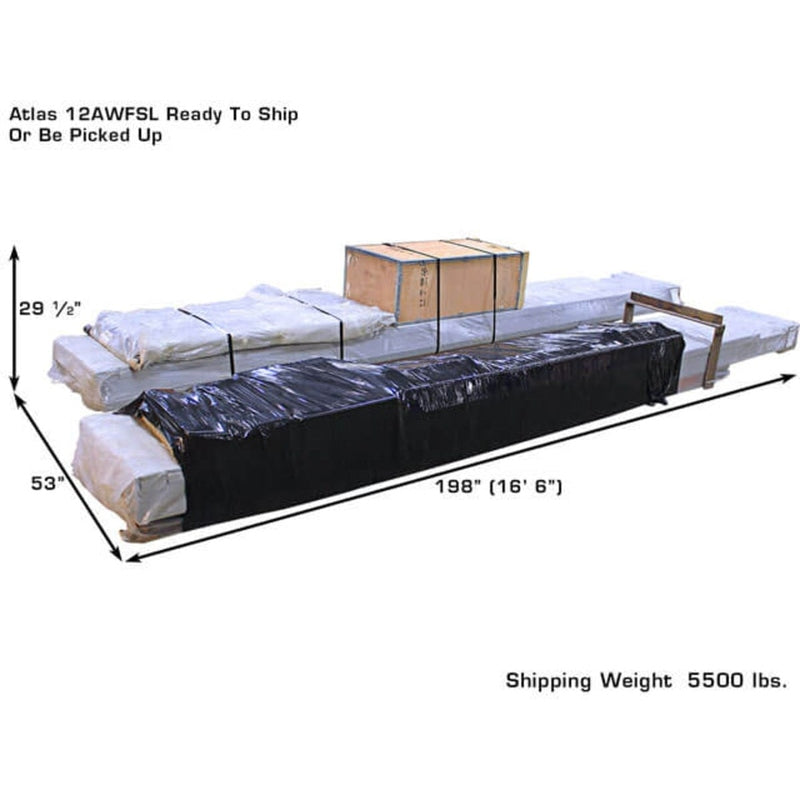

Shipping Weight
5,500 lbs.
Requires a minimum of 6" of concrete with a 3000 psi. rating
