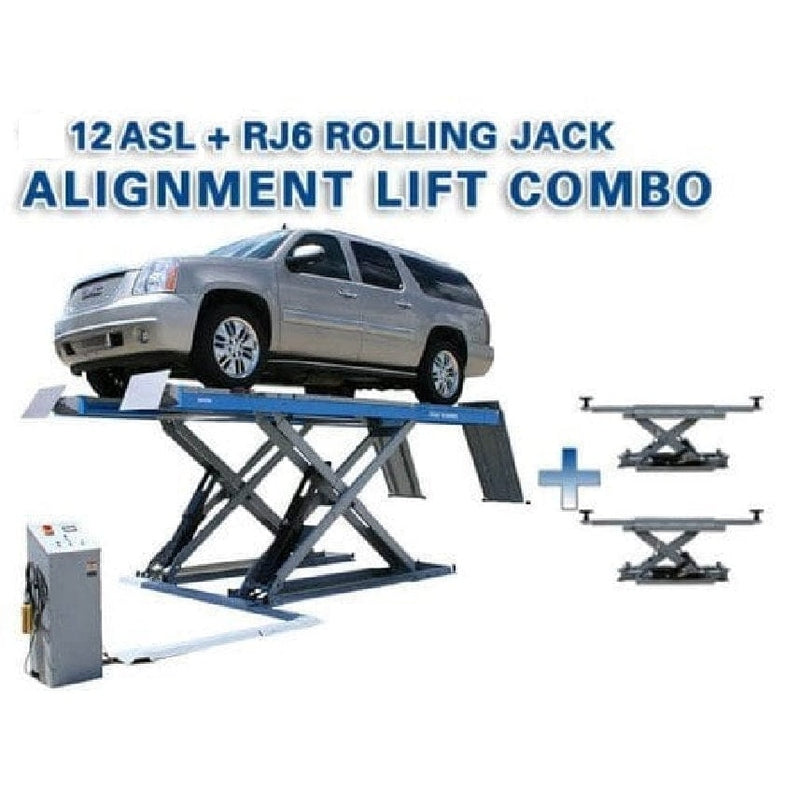

Atlas 12ASL Alignment Scissor Lift and RJ-6 Rolling Jack Combo

Atlas 12ASL Alignment Scissor Lift and RJ-6 Rolling Jack Combo

SKU ATEATTD-12ASL-COMBO-FPD
$16,499.00 - $16,499.00
$16,499.00
$16,499.00 - $16,499.00
$16,499.00
Call/Text Us: 307-381-1810 Call Us
Live Chat With an Expert Live Chat
CHRISTMAS: 5% Applied At Checkout
Christmas is here with unbeatable deals + 5% off applied at checkout for all orders above $1000. Dive in now and claim the season’s best savings. Expires Midnight.

Description

-

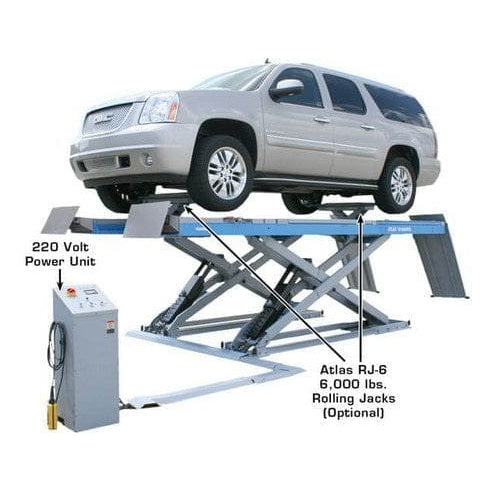

The Atlas® alignment lift has a lifting height of over seven feet so that it may be floor mounted or recessed if the customer decides on a flush mount installation. The full frame under the scissor lift provides for maximum stability. The extra long 53″ long approach ramps make it easy to load low riding vehicles.

Quality workmanship, ease of operation, a durable powder coat finish and the lowest prices in the Industry makes the Atlas® 12ASL 12,000 alignment scissor lift the perfect choice for the demanding and discriminating shop owner.

Worried about bay space? An Atlas Alignment System allows the customer to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one ton dual rear wheel pickup truck.

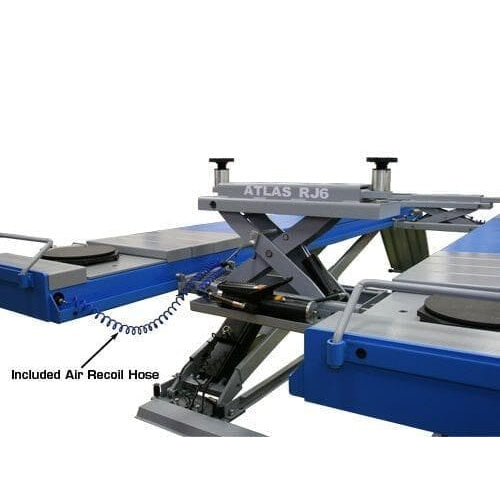

Welded rails on the inside of the runways are standard on all lifts, allowing the bundled Atlas® RJ-6 (6,000 lbs. capacity) air/hydraulic rolling jack system on his Atlas® alignment scissor lift. The Atlas® RJ-6 is designed and engineered to operate on “delivered” air pressure of between 70-105 PSI.

Features

-

12ASL

  • 12,000 LB. Capacity
  • Commercial Grade
  • Scissor Alignment Lift

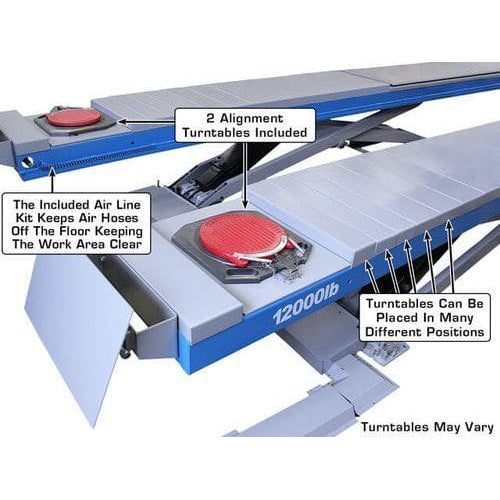

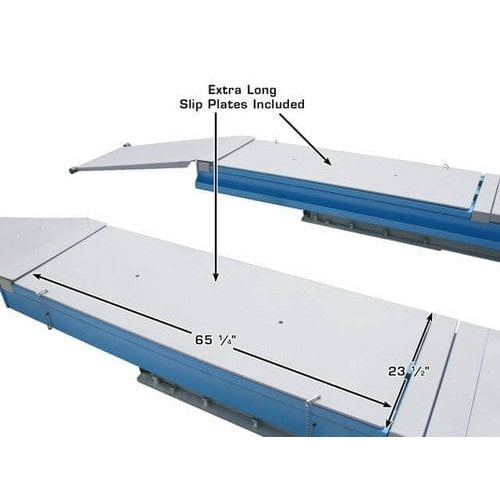

  • Built in Slip Plates and Alignment Turntables Included

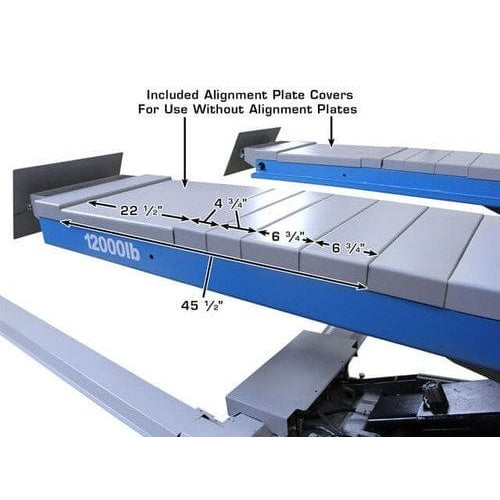

  • Turntable Covers Included
  • Open Center Design for Easy Access

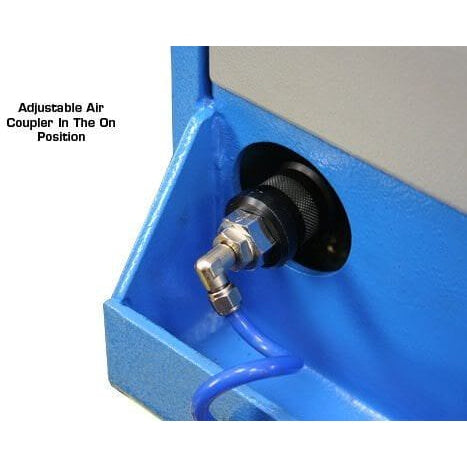

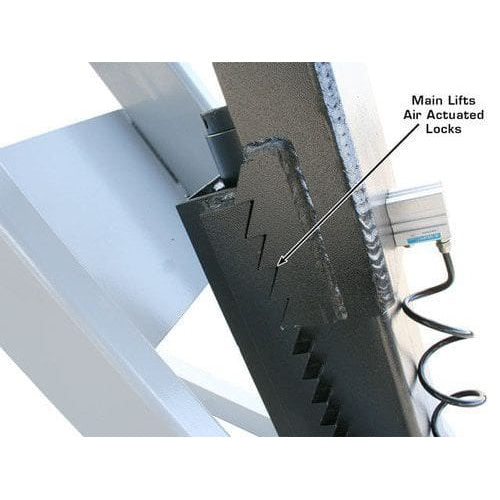

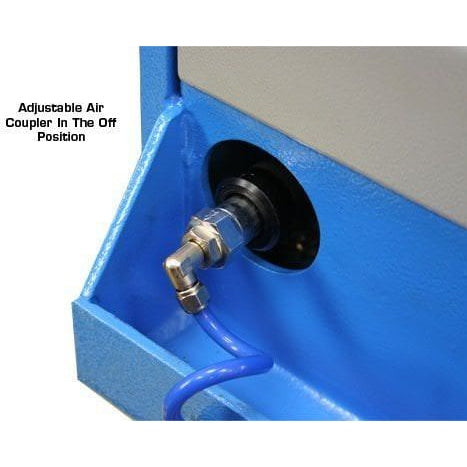

  • Air-Operated Single Point Lock Release (External Air Supply Required)

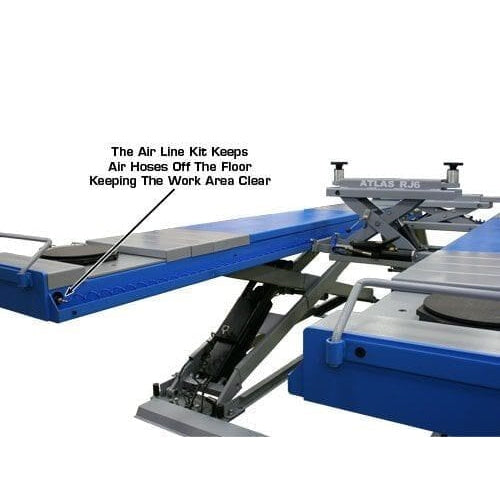

  • Airline Kit Included

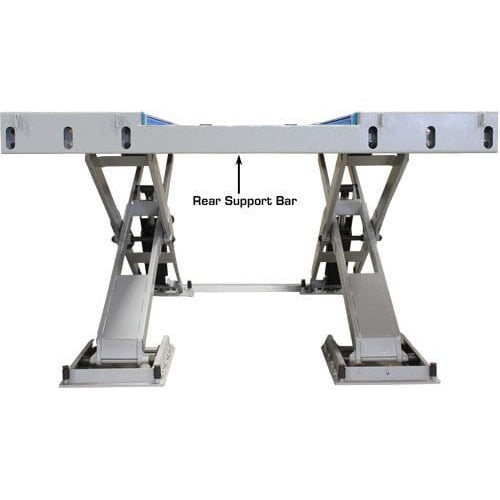

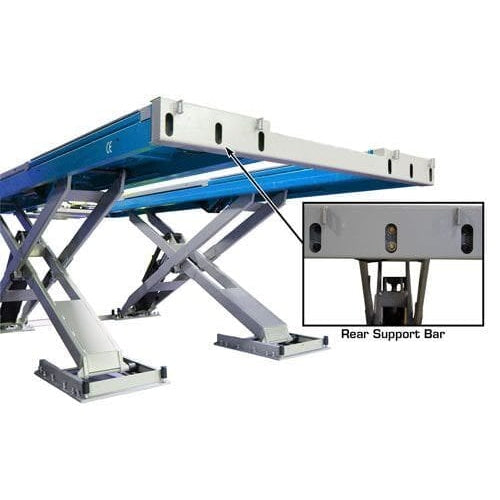

  • Rear Cross Beam for Extra Stability Included
  • Extra Long 72″ Ramps Standard
  • Precise Platform Leveling Accuracy
  • Separate Self-Contained Control Panel
  • Emergency Manual Pump for Lowering

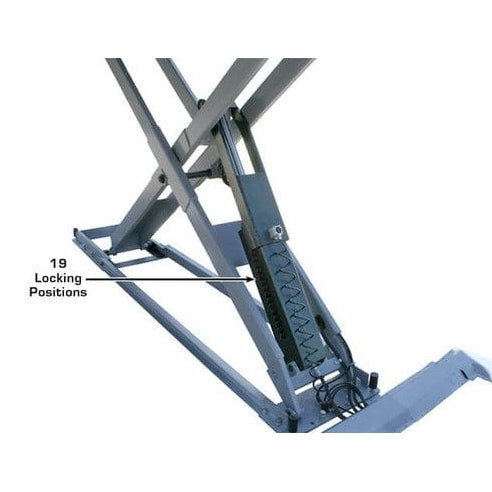

  • 19 Locking Positions
  • CE Certified
  • Can be Surface Mounted or Flush Mounted

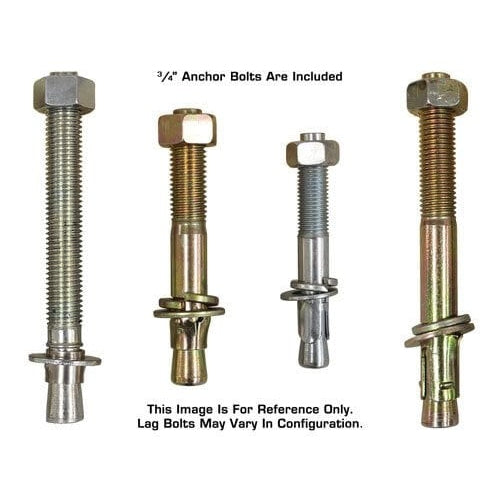

  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • Shipping Weight: 5,000 lb.
  • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

RJ-6

  • 6,000 lb. Capacity
  • Air/Hydraulic Operated (external air supply required)
  • Multiple Safety Lock Positions
  • Compact Size with Low Profile
  • Smooth Rolling Action
  • Scissor mechanism allows for level lifting
  • Powder Coated Finish
  • Double Screw-Up Adapters Included

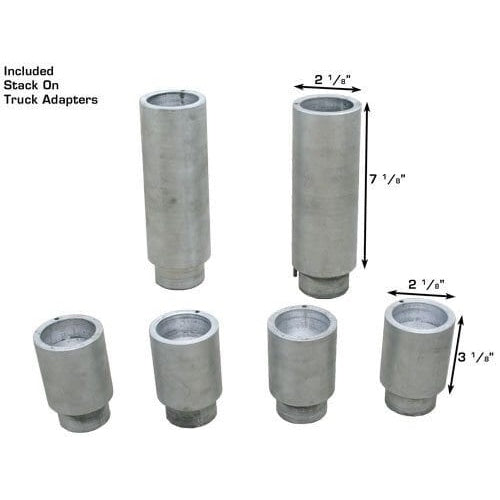

  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty

Specifications

-
Atlas® 12ASL 12,000 LB Alignment Scissor Lift Specifications

Lifting Capacity 12,000 LB

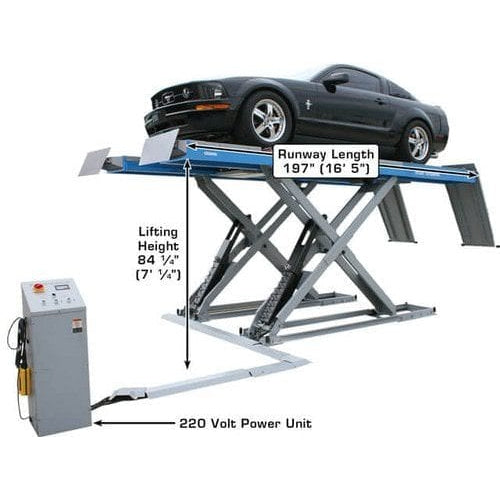

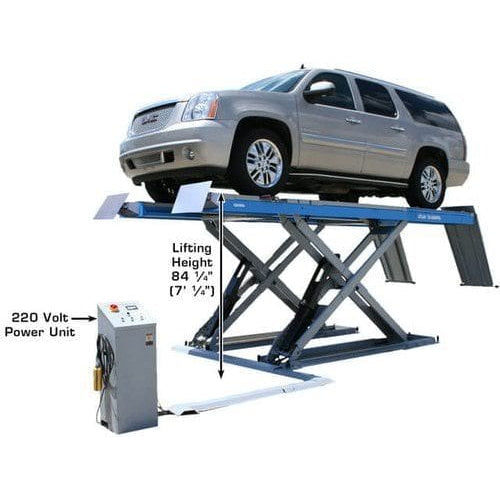

Lifting Height 84 1/4" (7' 1/4")
Overall Width 86 3/8" (7' 2 3/8")

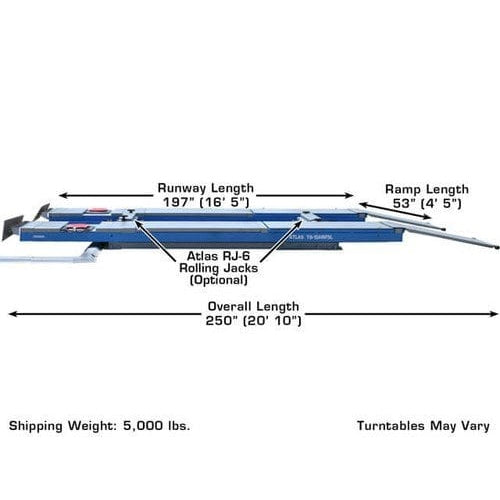

Overall Length with Approach Ramps 250" (20' 10")
Overall Length without Approach Ramps 197" (16' 5")
Approach Ramp Length 53" (4' 5")
4-Wheel Alignment Wheelbase

Max. 168 in.
Min.  90 in.
2-Wheel Alignment Wheelbase Max. 172 in.
Min.  86 in.

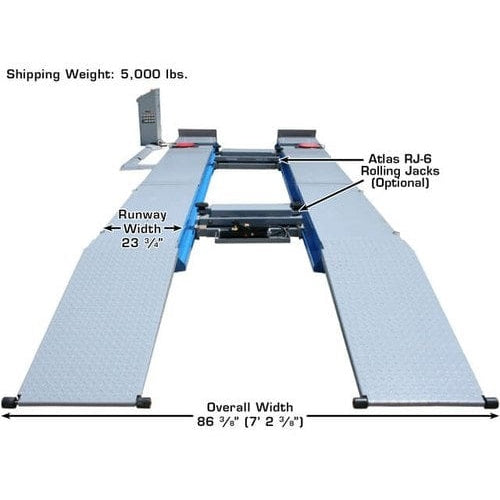

Runway Width 23 3/4" (1' 11 3/4")
Lowered Height 11 1/2"
Locking Positions 19
Width Between Runways 39"
Motor/Electrical Requirement 220 volt +/- 5% (209-231volts) single (1) phase.
A 30 amp breaker is required.

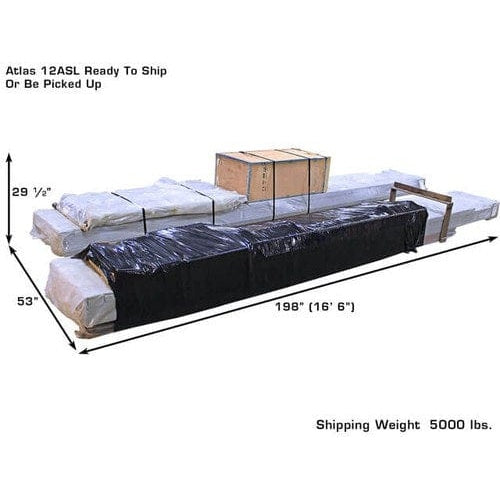

Shipping Weight 5000 lbs.

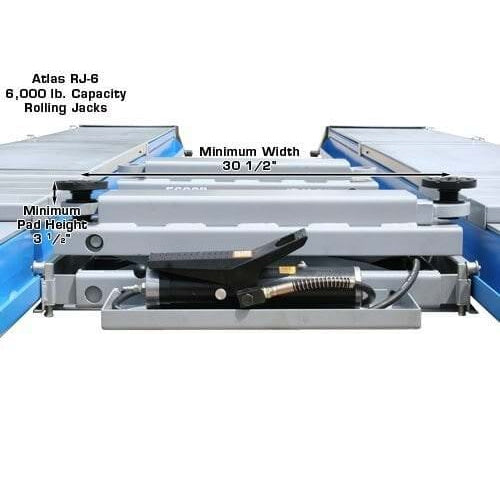

Atlas® RJ-6 Rolling Jack Specifications

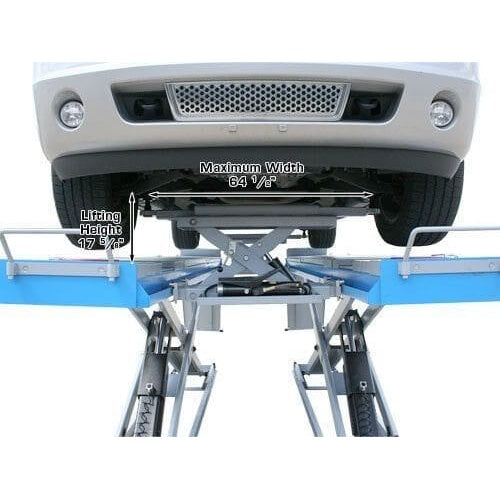

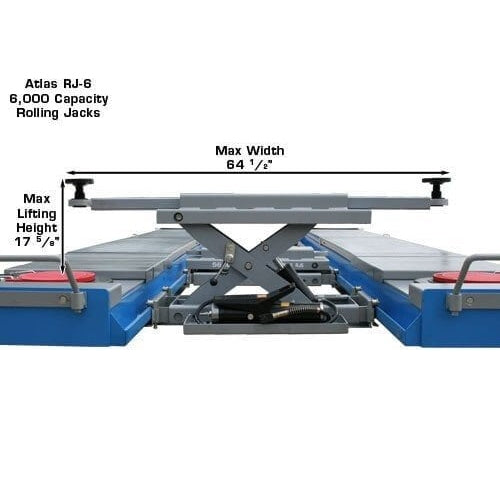

Maximum Width 64 1/2"
Minimum Width 30 1/2"

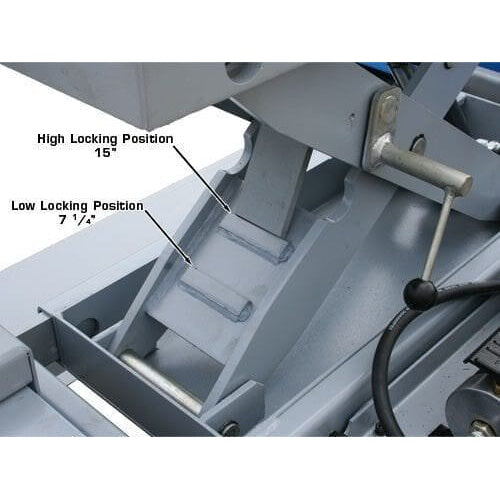

First Locking Position 7 1/4"
Second Locking Position 15"
Minimum Pad Height 3 1/2"
Maximum Lifting Height 17 5/8"
Maximum Capacity 6,000 LB.
Recommended Operating Air Pressure (PSI) 70-105 PSI
Shipping Weight 350 LB.

Documents

-

Atlas® 12ASL-N Manual
