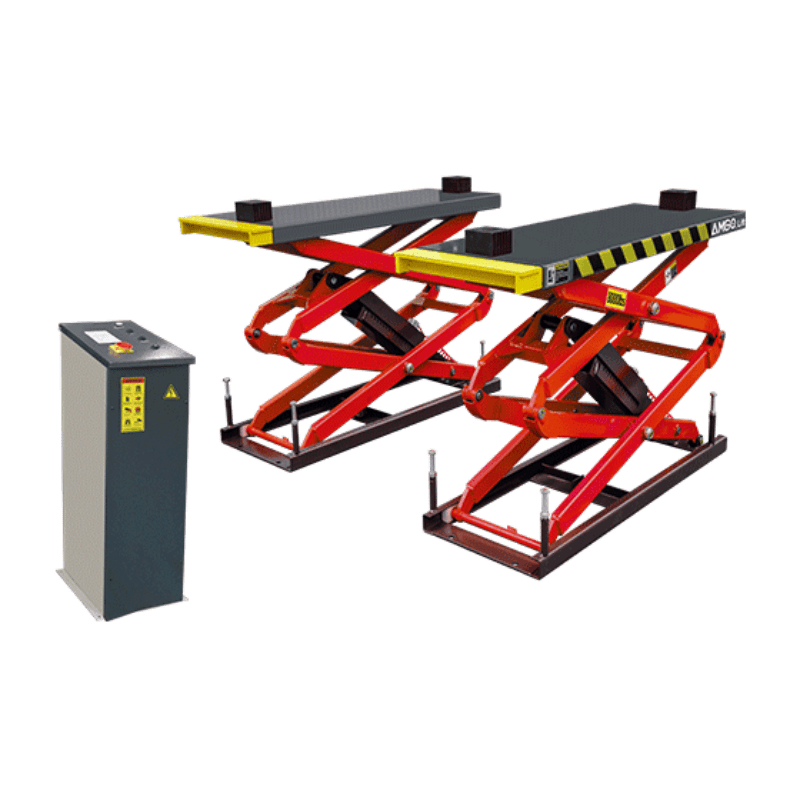

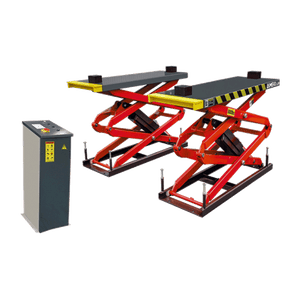

AMGO XL-8F 8,000lb Flush Mount Full Rise Scissors Lift

The AMGO XL-8F Flush Mount Full Rise Scissors Lift is built for shops that want serious lifting capability without sacrificing valuable floor space. With an 8,000-lb. capacity, a clean flush-mount design, and full-rise lifting performance, it delivers the kind of access technicians appreciate the moment the vehicle is in the air.

This is the lift you choose when you want the floor to stay open, the workspace to stay organized, and the service bay to feel efficient instead of cramped. Its reinforced structure, high-grade hydraulic cylinders, and electric-hydraulic power system work together to provide dependable lifting power, while the full-rise design creates generous room underneath the vehicle for maintenance, inspection, and repair.

• 8,000-lb. Capacity: Built to handle cars, light trucks, and SUVs with confidence.
• Flush-Mount Design: Sits neatly into the floor for a clean, unobstructed shop layout.
• Full-Rise Lifting: Raises the vehicle high enough to create a comfortable working area underneath.

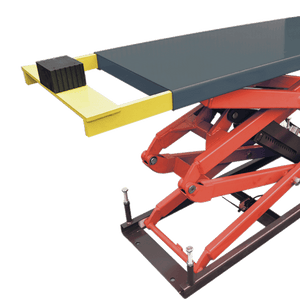

• Extendable Platforms: Adapts to service a wider range of vehicle lengths and wheelbases.
• Mechanic Locking System: Air-release locking design helps ensure secure lift operation.
• Electric-Hydraulic Power: Delivers strong, consistent lifting performance with a dedicated control power unit.
• Safety-Focused Controls: Electro control system with control cabinet adds another layer of operational confidence.

A flush-mount lift changes how a service bay feels. When the lift is lowered, the floor stays clear and usable, making it easier to move vehicles, tools, and technicians through the shop without constant obstacles underfoot. And when it’s time to work, the XL-8F rises into a stable, full-height platform that gives you the access you need without cluttering the bay with bulky posts.

That combination—open floor when down, generous access when raised—is exactly what makes this model so appealing in modern shops where space efficiency matters just as much as lifting power.

• Capacity: 8,000 lbs
• Lifting Time: 35 seconds
• Max. Lifting Height: 72 7/16"
• Max. Lock Height: 70 7/8"
• Minimum Height: 13 3/4"

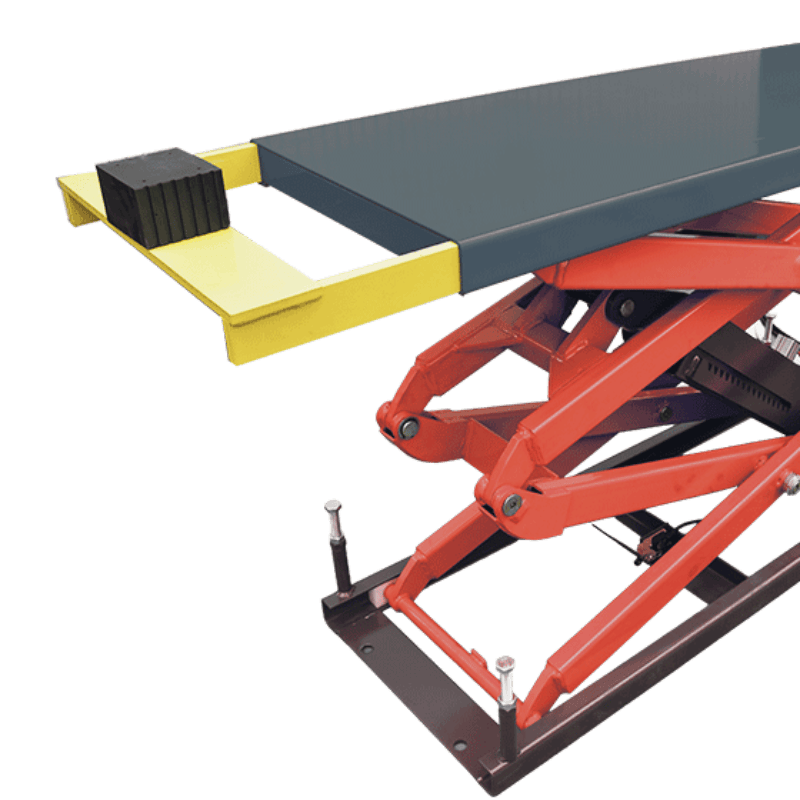

The XL-8F is designed to handle a range of vehicle sizes thanks to its extendable platforms. That added adjustability helps the lift accommodate different wheelbases more effectively, giving shops more flexibility without needing multiple lift styles for everyday service work.

• Runway Length: 61 3/16" to 69 1/16"
• Overall Width: 74 13/16"
• Width Between Runways: 31 1/2"

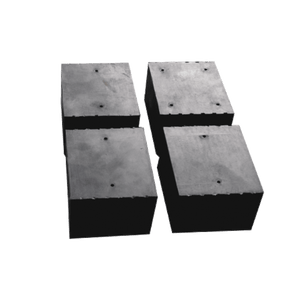

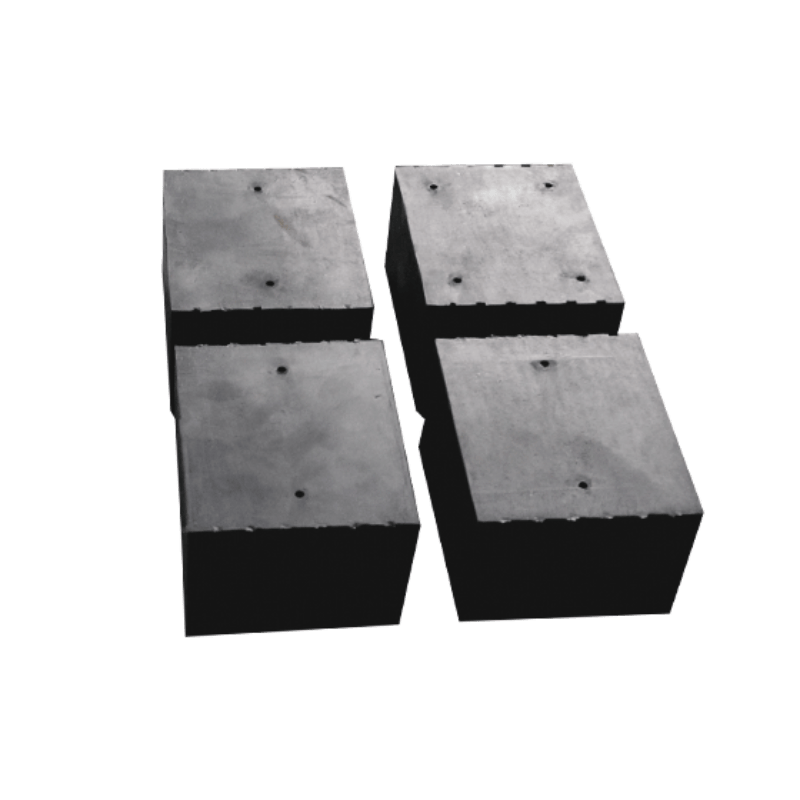

• 3" rubber pads come standard

• Reinforced structure for dependable long-term durability
• High-grade hydraulic cylinders for strong, reliable lifting force
• Electric-hydraulic power system with control power unit

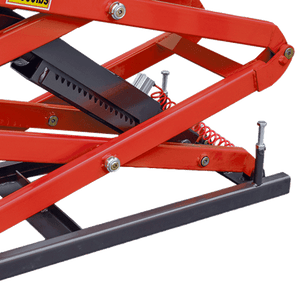

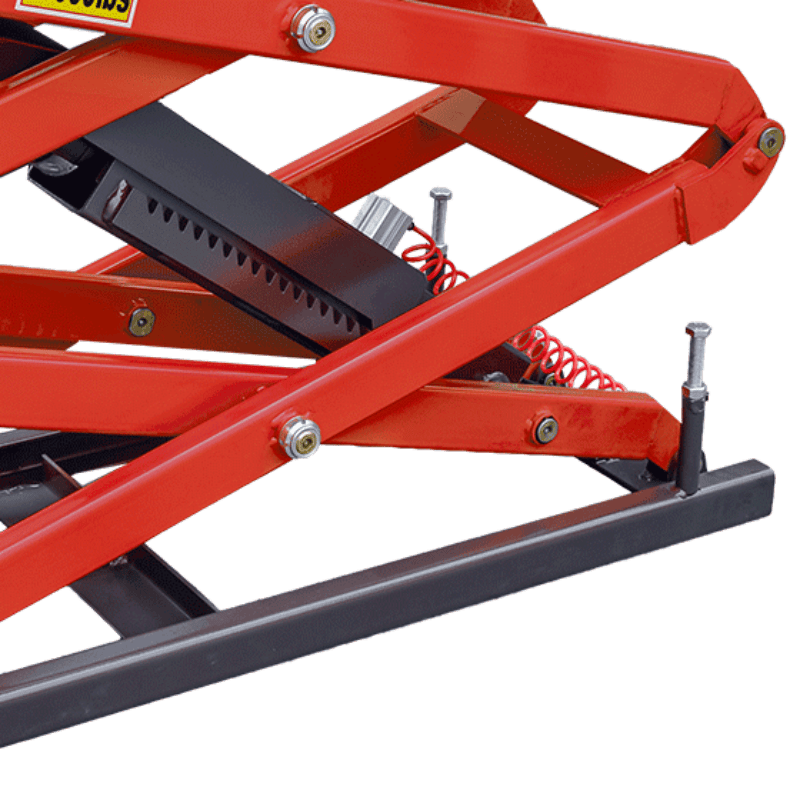

• Mechanic locking system with air-release

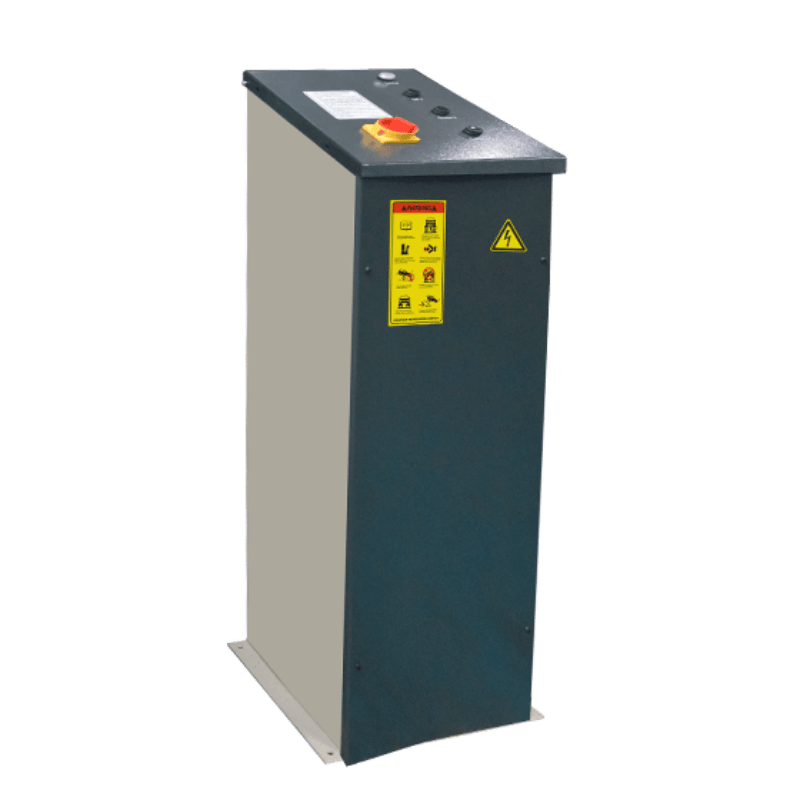

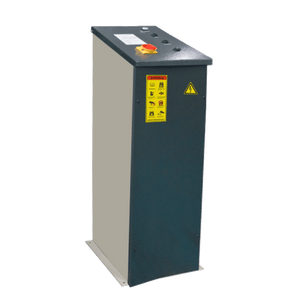

• Electro control system with control cabinet for enhanced safety
• Motor: 2.0HP

• AMGO XL-8F Flush Mount Full Rise Scissors Lift
• Electric-hydraulic power system
• Control power unit
• Electro control system with control cabinet
• Mechanic locking system with air-release
• Standard 3" rubber pads

• Model: XL-8F
• Lifting Capacity: 8,000 lbs
• Lifting Time: 35s
• Max. Lifting Height: 72 7/16"
• Max. Lock Height: 70 7/8"
• Minimum Height: 13 3/4"
• Runway Length: 61 3/16" ~ 69 1/16"
• Overall Width: 74 13/16"
• Width Between Runways: 31 1/2"
• Motor: 2.0HP
• Gross Weight: 1,501 lbs

The AMGO XL-8F is a smart fit for shops that want the lifting power of a full-rise scissor lift with the clean look and space-saving advantage of a flush-mount installation. It’s strong, efficient, and designed to keep your bay open when you need floor space—and productive when it’s time to get a vehicle in the air.
