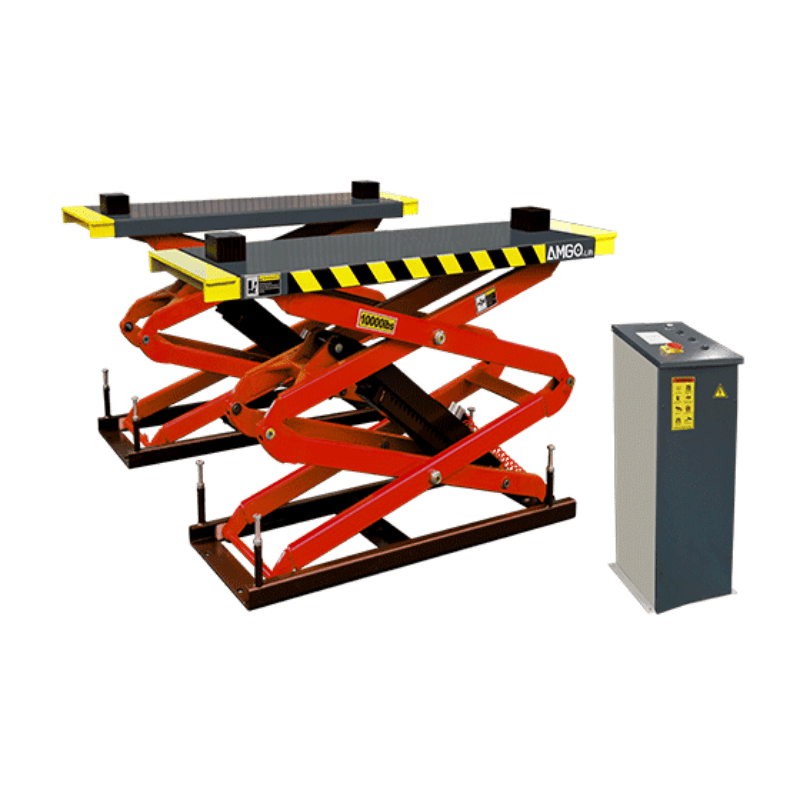

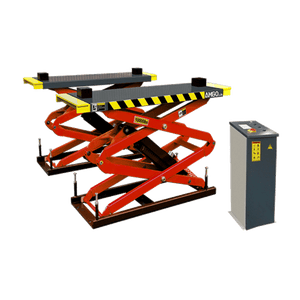

AMGO XL-10F 10000lb Flush Mount Full Rise Scissors Lift

The AMGO XL-10F Flush Mount Full Rise Scissor Lift is designed for shops that demand serious lifting power while maintaining a clean, efficient workspace. With a 10,000 lb. lifting capacity, this heavy-duty lift handles everything from passenger vehicles to pickup trucks and light-duty commercial vehicles—without sacrificing floor space or service access.

Its flush-mount design keeps the shop floor completely unobstructed when the lift is lowered, allowing vehicles, tools, and technicians to move freely throughout the bay. When raised, the full-rise configuration creates generous working clearance beneath the vehicle, making routine service, inspections, and repairs faster and more comfortable for technicians.

• 10,000 lb. Capacity: Built to lift passenger cars, trucks, and light-duty commercial vehicles with confidence.
• Flush-Mount Design: Installs level with the floor for a clean, unobstructed workspace when not in use.
• Full Rise Performance: Raises vehicles high enough to provide excellent access for service and maintenance.

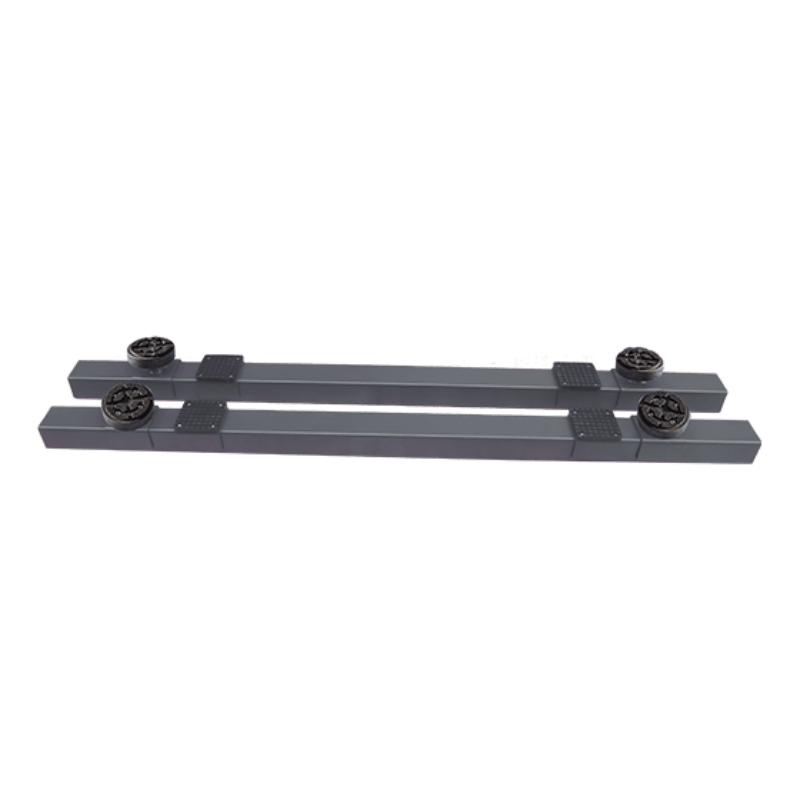

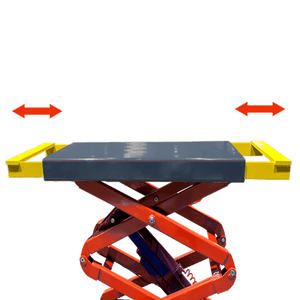

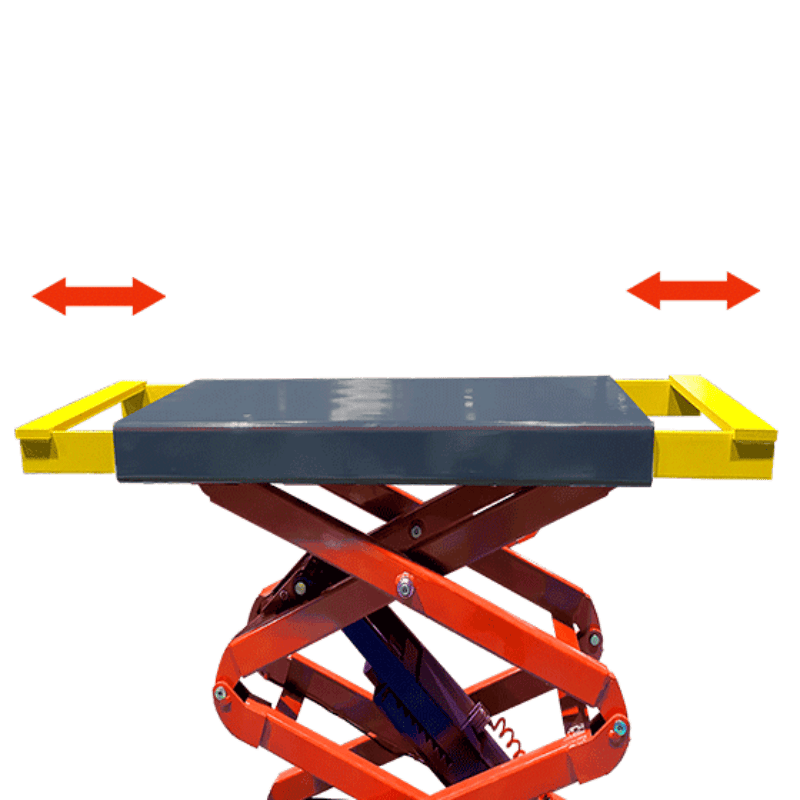

• Dual Extendable Platforms: Accommodates a wide range of vehicle wheelbases for maximum versatility.
• Heavy-Duty Construction: Reinforced structure ensures durability and dependable lifting performance.

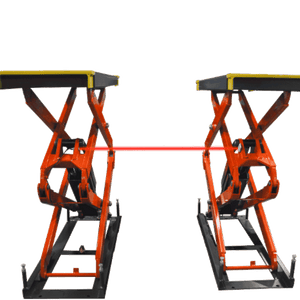

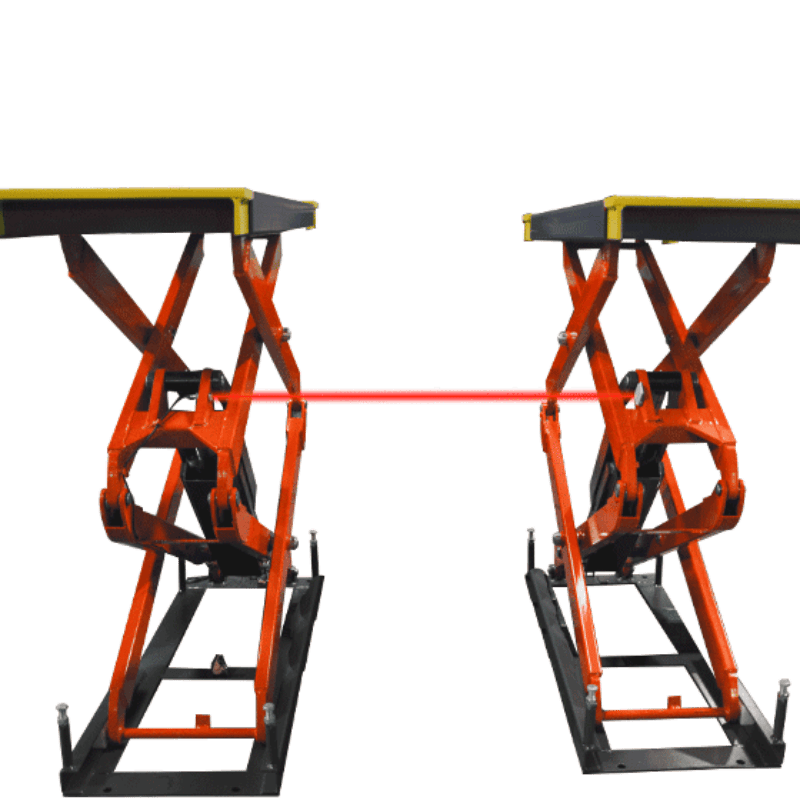

• Precision Synchronization: Photocell device ensures accurate platform synchronization during operation.
• Enhanced Safety: Automatic safety stop and mechanical locking system add reliable protection during lifting.

A flush-mount lift like the XL-10F changes how your shop floor functions. With the lift fully recessed when lowered, the service bay remains open and accessible for vehicle movement and technician workflow. Once raised, the lift delivers stable full-rise performance that provides excellent under-vehicle access—perfect for routine maintenance, inspection work, and general repair services.

The dual extendable platforms increase compatibility with different wheelbases, making the lift adaptable for a wider range of vehicles commonly serviced in modern shops.

• Electric-hydraulic power system with dedicated control power unit

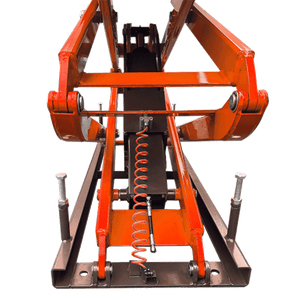

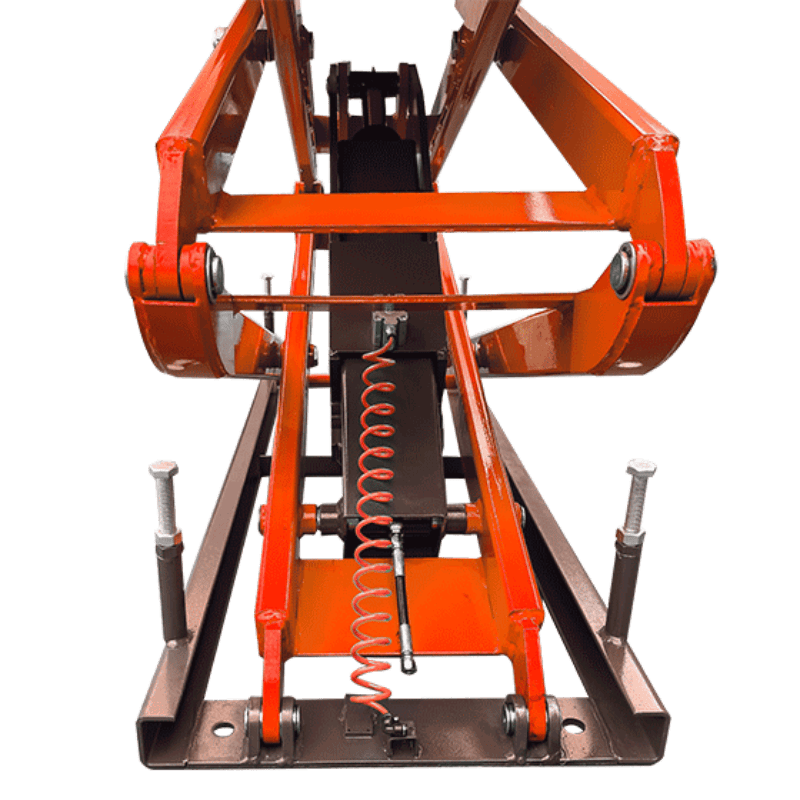

• Mechanical locking system with air-release for secure operation
• Photocell synchronization device ensures balanced lifting performance
• Automatic safety stop mechanism included as standard equipment

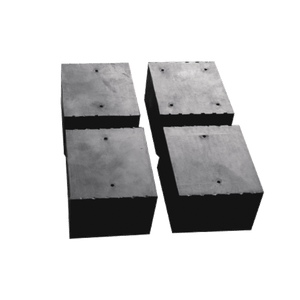

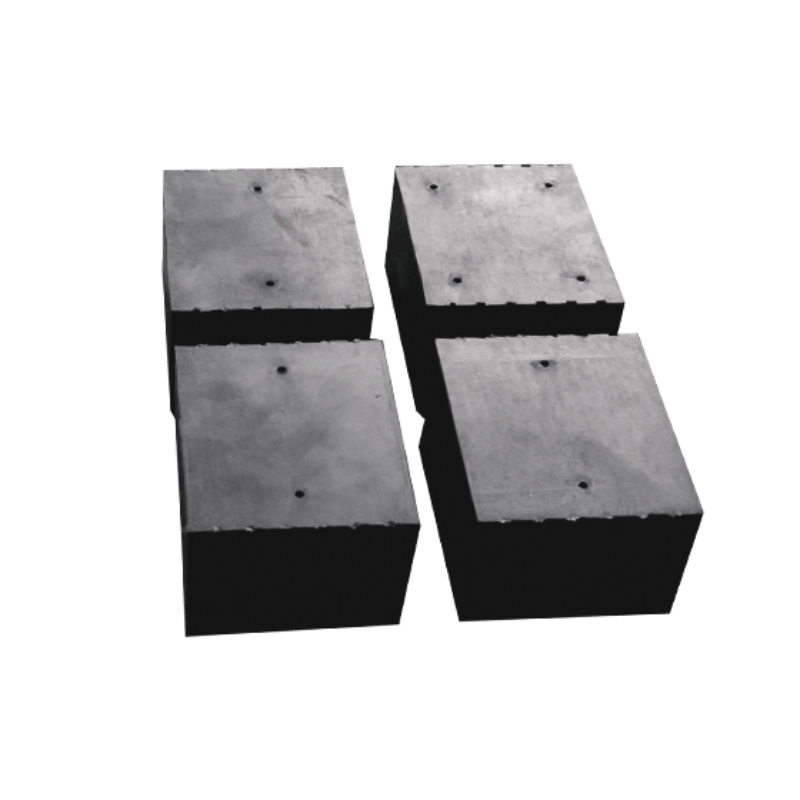

• 3" rubber lifting pads included for vehicle protection
• 2.0HP motor provides dependable lifting power

• Runway Length: 65 1/8" – 80 5/16"
• Overall Width: 74 13/16"
• Width Between Runways: 31 1/2"
• Minimum Height: 13 3/4"
• Max Lifting Height: 75"

• AMGO XL-10F Flush Mount Full Rise Scissor Lift
• Electric-hydraulic power unit
• Mechanical locking system with air-release
• Photocell synchronization device
• Automatic safety stop system
• Standard 3" rubber lifting pads

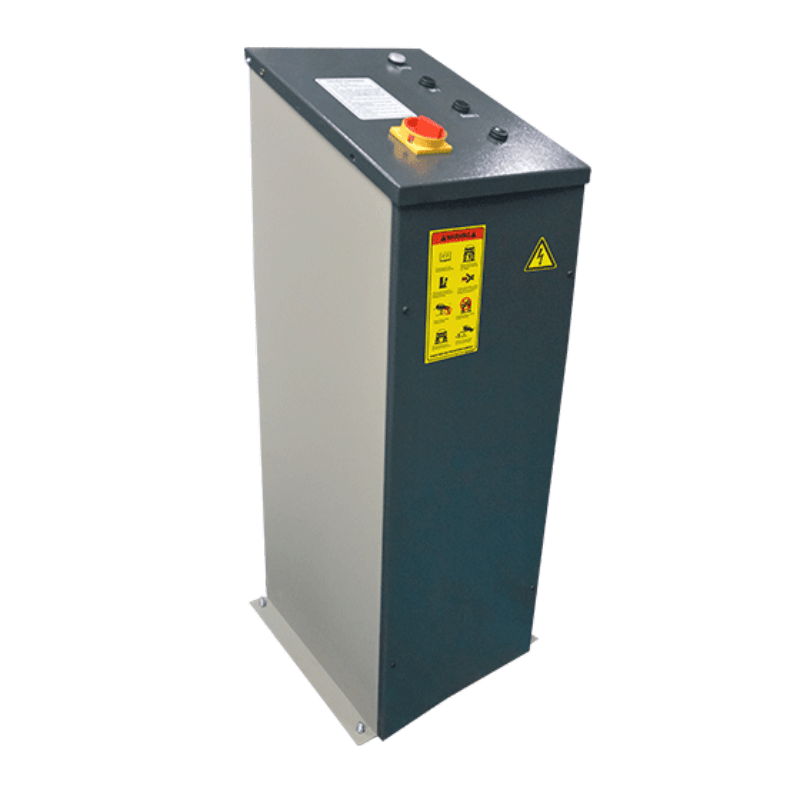

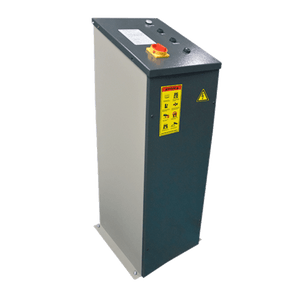

• Control cabinet and electro control system

• Model: XL-10F
• Lifting Capacity: 10,000 lbs
• Lifting Time: 49 seconds
• Max. Lifting Height: 75"
• Max. Lock Height: 72 5/8"
• Minimum Height: 13 3/4"
• Runway Length: 65 1/8" – 80 5/16"
• Overall Width: 74 13/16"
• Width Between Runways: 31 1/2"
• Motor: 2.0HP
• Gross Weight: 1,903 lbs

The AMGO XL-10F combines heavy-duty lifting capacity, flush-floor convenience, and advanced safety features to create an efficient solution for busy service bays. Its extended platform design, reliable hydraulic system, and synchronization technology make it a versatile choice for shops servicing everything from daily drivers to light-duty commercial vehicles—while keeping the workspace clean and productive.
