*Please REQUEST A SHIPPING FEE QUOTE before placing your order

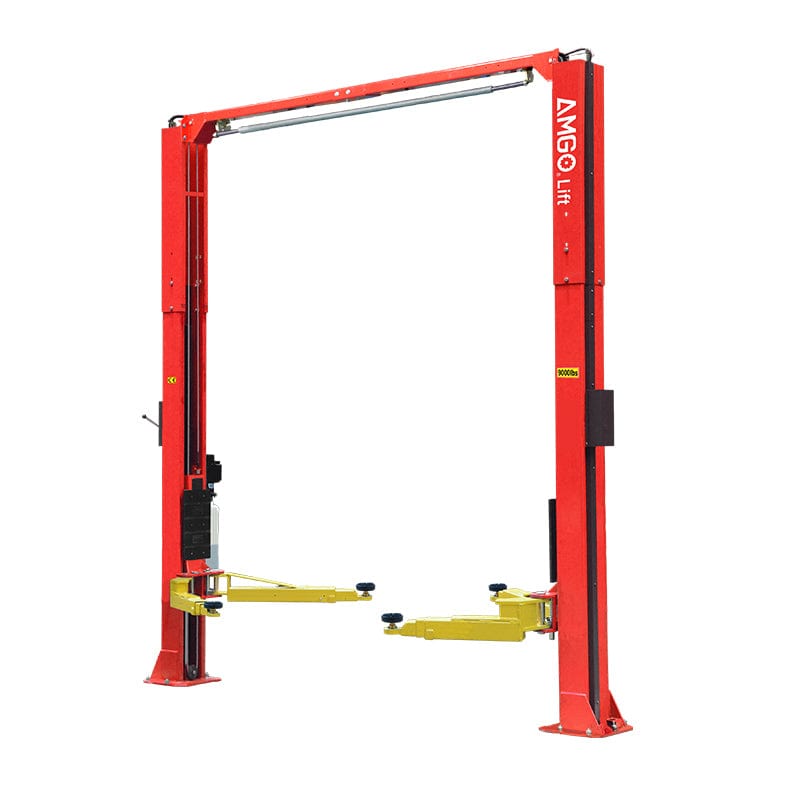

The AMGO OH-9 is the ideal lift for garages with 12.5 ft ceilings. With a lifting height of 75" and a 9,000 lb lifting capacity, it's a perfect fit for any shop or garage enthusiast. Plus, it comes at a great price! The OH-9 offers both symmetric and asymmetric arm configurations, providing flexibility for various vehicle lifting needs.
Loaded with standard features like adjustable height, direct drive, powder coat finish, stackable rubber pads, and more, the OH Series Lift is designed to meet the most demanding lift requirements. It's the go-to choice for those seeking a reliable, versatile, and cost-effective lift solution.
Features
- Dual direct drive hydraulic cylinders made to high standards
- Super-Asymmetric Arm design, makes finding the lift point of the car easier
- Single point safety release, allows the operator to disengage both columns simultaneously
- Self lubricating UHMW Polyethylene sliders and bronze bushings
- Clear floor design, provides unobstructed floor use
- Overhead safety shut off device measures vehicle damage
- Stackable rubber pads and 1.5″, 2.5″, 5″
- Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493
Specifications
| Model |
OH-9 |
| Lifting Capacity |
9,000 lbs (4,082 kg) |
| Lifting Time |
57S |
| A: Lifting Height |
71 1/2″〜80 1/2″ (1815〜2044mm) |
| B: Overall Height |
142 1/2″/ 150 1/2″ (3621/3821mm) |
| C: Overall Width |
135″ (3428mm) |
| D: Drive Thru Clearance |
99 1/2″ (2528mm) |
| E: Width Between Columns |
112 1/4″ (2850mm) |
| F: Minimum Pad Height |
3 1/2″ (90mm) |
| Motor |
2.0HP/220V/60Hz, Single Phase |
| Gross Weight |
1,515lbs (687kg) |
Warranty | Returns | Shipping
Warranty
Any items received that fall into the warranty category, (inoperable, or manufacturer’s defect) should be handled under manufacturer’s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five(5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three(3) Years. 3. Other Parts(not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two(2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer’s responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
It is the customer’s responsibility to inspect shipment at time of delivery and refuse shipment if damaged. You have the right to inspect package regardless of what the truck driver says. If item appears to not be damaged, but looks as if there is a possibility of damage, customer should make a note of it on the acceptance slip when signing for shipment. If an item has been damaged during shipment and customer has already accepted / received shipment, it is customer’s responsibility to file a claim with the shipping company. Customer must notify freight carrier and AMGO Hydraulic Corporation within 48 hours of any hidden freight damage. Customer must open all packages within 48 hours of receiving and inventory equipment to verify product was received complete and notify us within 48 hours if there are any problems or missing parts.
We incur many costs when processing and shipping orders. If the order is cancelled before the item has shipped, but after payment has been processed, we will credit customer minus a 3% merchant processing fee. This is a fee that merchant accounts charge on every transaction and is non-refundable. Customers will be charged for shipping costs for any orders that are canceled after item has already shipped, but not yet received by customer. They may also be responsible for a restocking fee.
Returns
AMGO's limited return policy allows you to return defective or incorrectly shipped merchandise. All returned merchandise requires a prior authorization from AMGO Hydraulics. Contact our customer service representatives first for shipping instructions and to obtain a return authorization number. Any unauthorized returns will be refused and will become the responsibility of the customer and credit will not be issued unless authorization to return merchandise has been received.All returned merchandise will be not later than 30 days after the invoice date.
For all merchandise returned to AMGO Hydraulics for reasons other than defective or incorrectly shipped items, a 25% restocking fee and return shipping costs (transportation costs) will be deducted from the credit refund. Any and all returned items should be approved through AMGO Hydraulics’ Customer Service. All returned items must be in their original box or crating and must include all packing material, manuals, and all accessories. At our discretion, an additional restocking fee may be charged if your product is opened or is not returned in its original condition, box, or is missing packing material, manuals, or any accessories. Damaged items will be repaired at the expense of the customer.
Shipping
Shipping Fee Quote
Before placing your order, please fill in the "request a shipping fee quote" and we will return to you with the shipping fee to your area in less than 24 hours (including holidays).
Please note that this only applies to AMGO Hydraulics.
Order Confirmation
Upon placing your order, an order confirmation email will be promptly sent to you. This email signifies that your order has been received in our system, and we have pre-authorized your credit card for the purchase. Simultaneously, we reach out to our suppliers to confirm the item's availability for immediate shipment. If, for any reason, your item is on backorder or unavailable, we will cancel the pre-authorization and contact you via email. However, if your selected item(s) are readily available for immediate shipment (within 5 business days), we will proceed to process the charges and submit the order for shipment.
Order Shipment
For in-stock items, once we process the charges to your credit card, your order will typically ship within five business days from the date of your order. You can expect tracking information to be sent to the email address you provided during checkout within 24 hours of your order leaving the warehouse. If, for any reason, you do not receive tracking information within six business days, please feel free to follow up with us at sales@mygaragesupplies.com.
No Shipping Outside the USA
Please note that we do not offer shipping outside the United States.
About The Brand
AMGO Hydraulic Corporation has comprehensive services that specializes in the manufacturing and R&D of high-quality vehicle lifts, hydraulic equipment and industrial “green” products. Our company focus is on a variety of lifts, hydraulic power units, cylinders and industrial LED lights. We also provide the OEM design of hydraulic cylinders, power units, valves and fittings for different industries, ranging from manufacturing, engineering, construction and more. At AMGO, we aim to continuously innovate and improve the products we offer while providing the best service possible at the best possible price.
AMGO Hydraulic Corporation pays special attention to product design, material purchasing, and manufacturing technology. We perform all work in-house which enables us to control costs while providing high-quality products. We hold each process to a high standard to provide you with the best, time-tested, highest-quality products possible. All AMGO products are made to high-quality standards while using high-quality parts, self-lubricating UHMW Polyethylene sliders, bronze bushings, and NOK seals, just to name a few. This commitment to quality makes our products more reliable, with greater longevity, while requiring less service.
Not only does AMGO Hydraulic Corporation aim to continuously innovate and improve the products we offer, but we also seek to provide the best possible service before, during, and after the sale. We provide after sales service to give our customers quick responses through our manufacturing and service center, located in Manning, South Carolina. Whether you are a large service center with locations throughout the globe, or a weekend hobbyist, our goal is of complete world-wide customer satisfaction. If a problem does exist in any way with our products you can expect a prompt and courteous response, with your satisfaction being our end goal.
AMGO Hydraulic Corporation’s dedication to quality, innovation, safety, and service is what sets us apart form the competitors. We have one goal in mind, making the best products available with complete customer satisfaction, and we will not rest until this goal is achieved. When you decide to take the next step in safety, performance, and quality turn to the professionals of AMGO Hydraulic Corporation to find and produce the right products for your business.
