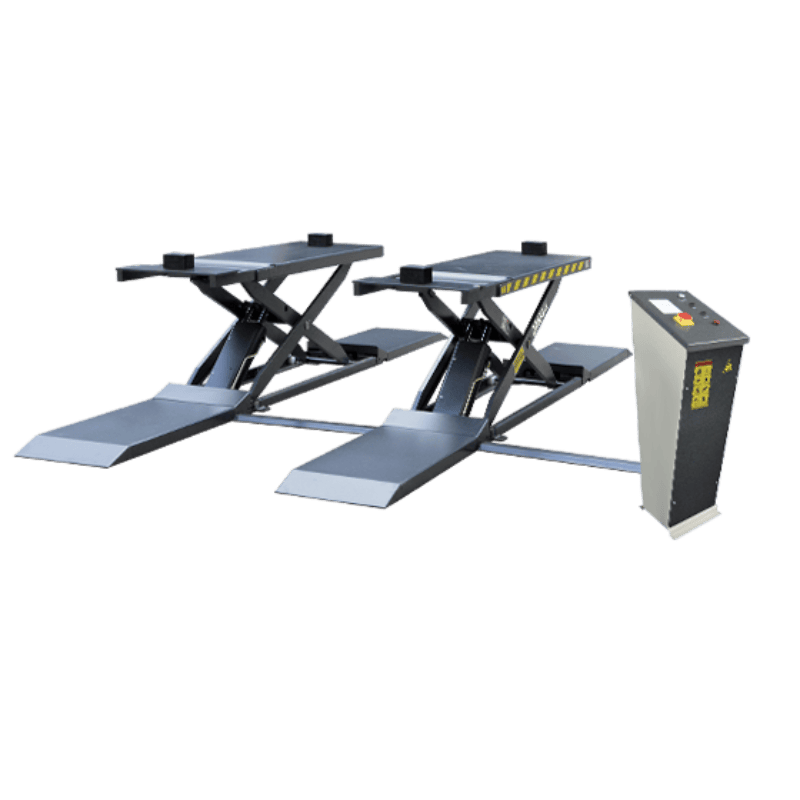

The AMGO MRL09 Mid-Rise Scissor Lift is a fantastic choice with dual hydraulic synchronization and a hydraulic locking system. It features an adjustable platform length and double entrance drive-in ramps, perfect for ultra-low chassis vehicles. The MRL09 smoothly raises vehicles up to 47-1/4". Just drive over the ramps, slide the rubber blocks under the lifting points, and you're good to go.
Boasting a 9,000 lbs. lifting capacity, it's ideal for quick jobs like tire and brake services. With excellent features such as adjustable platform length, ultra-low drive clearance, and a hydraulic lock, this reliable lift is ready to handle almost any job you need.
Features
- 9,000lbs(4000kg) capacity
- Mid rise scissors lift, 24V Safety voltage control
- Dual hydraulic synchronization & hydraulic locking system
- The lifting scissors are made of thickened steel which is more strong
- Adjustable lift platform length, applicable to vehicles with different wheelbases
- Two-stage drive in ramps, suitable for lifting ultra-low chassis vehicles
- Flexible structure design, users can choose either flush mount or surface mount installation
- Standard ETL certificated power unit
Specifications
| Model |
MRL09 |
| Lifting Capacity |
9,000 lbs |
| Lifting Time |
29s |
| Max. Lifting Height (A) |
47 1/4" (1200mm) |
| Minimum Height (B) |
5 3/8" (135mm) |
| First Stage Ramp Height (C) |
2 1/2" (65mm) |
| Overall Length (Inc. ramps) (D) |
156 3/4" (3980mm) |
| Overall Width (E) |
76 3/4" (1950mm) |
| Width Between Runways (F) |
29 1/2" (750mm) |
| Runway Length (G) |
61 3/8" - 77 1/8" (1560-1960mm) |
| Gross Weight |
1,788lbs (811kg) |
| Motor |
2.0HP, 220V/60Hz, Single Phase |
