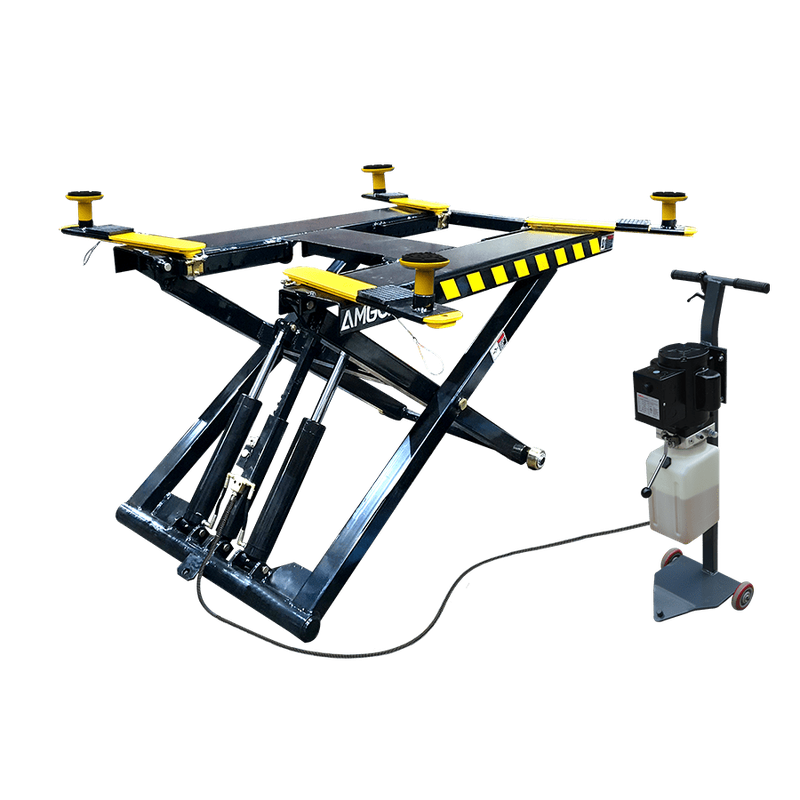

AMGO MR06 6,000 lbs Portable Scissor Lift

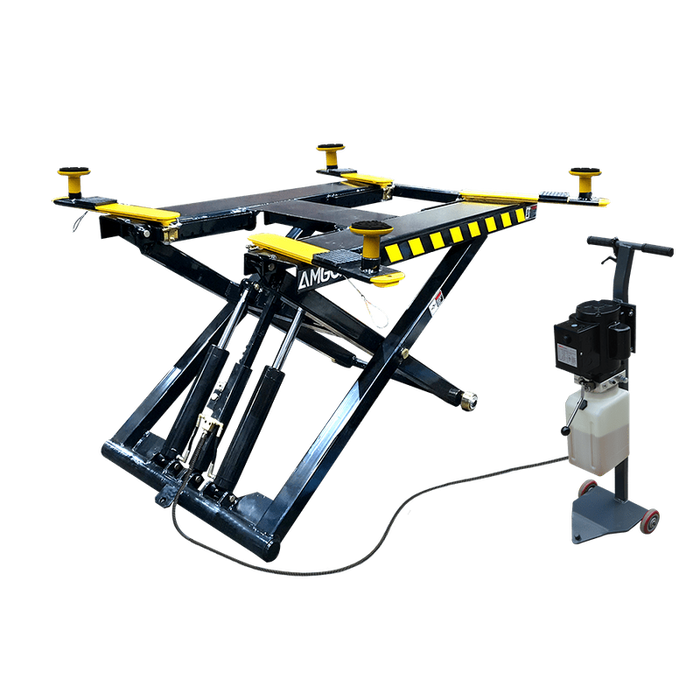

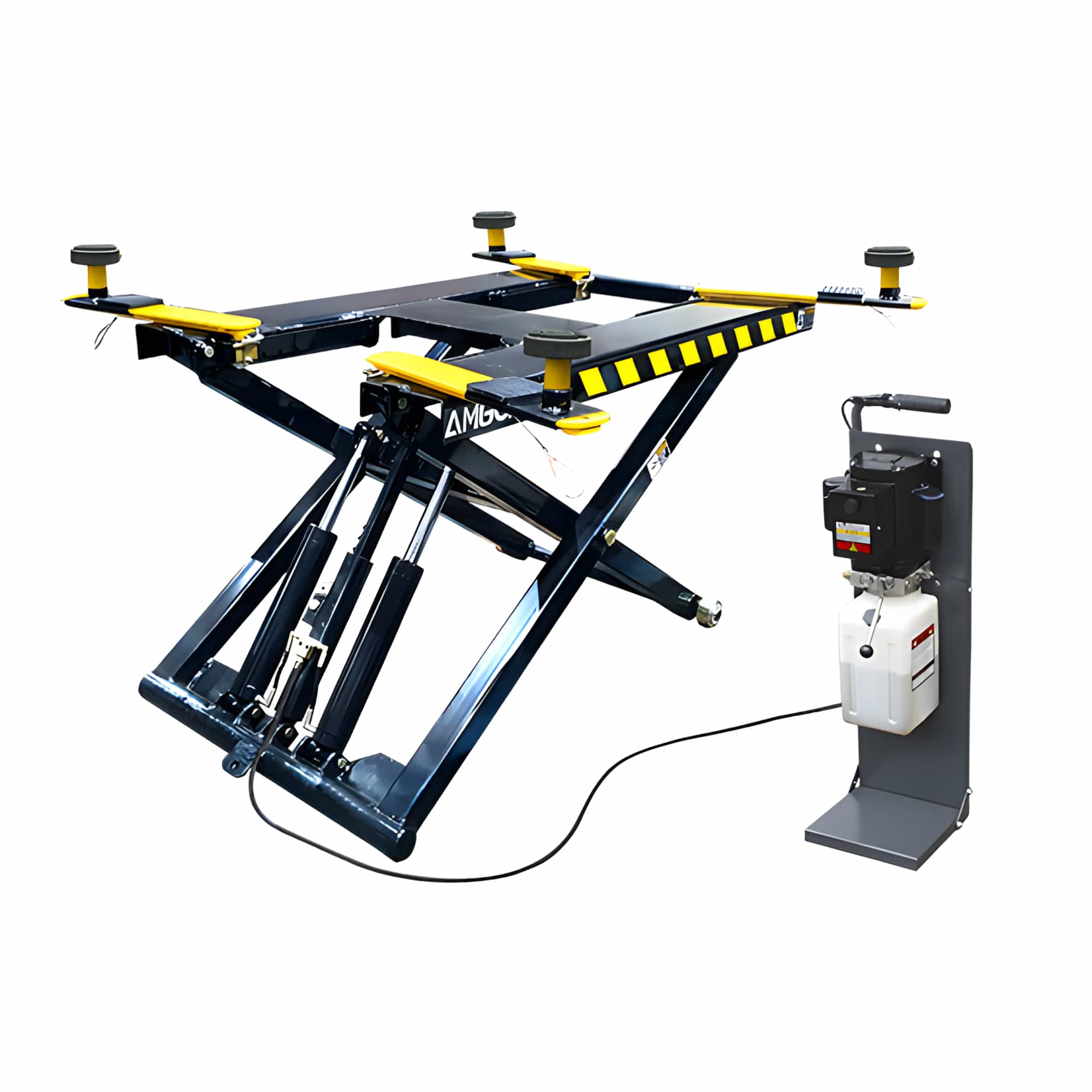

The AMGO MR06 is a 6,000-lb mid-rise portable scissor lift designed for tire shops, brake bays, and body work in spaces where ceiling clearance rules out a two-post or four-post lift. AMGO Hydraulic Corporation has manufactured professional automotive lifting equipment for three decades, and the MR06 is backed by the AMGO 5-3-2 warranty — five years on structural components, three years on hydraulic parts, and two years on the power unit and electrical components.

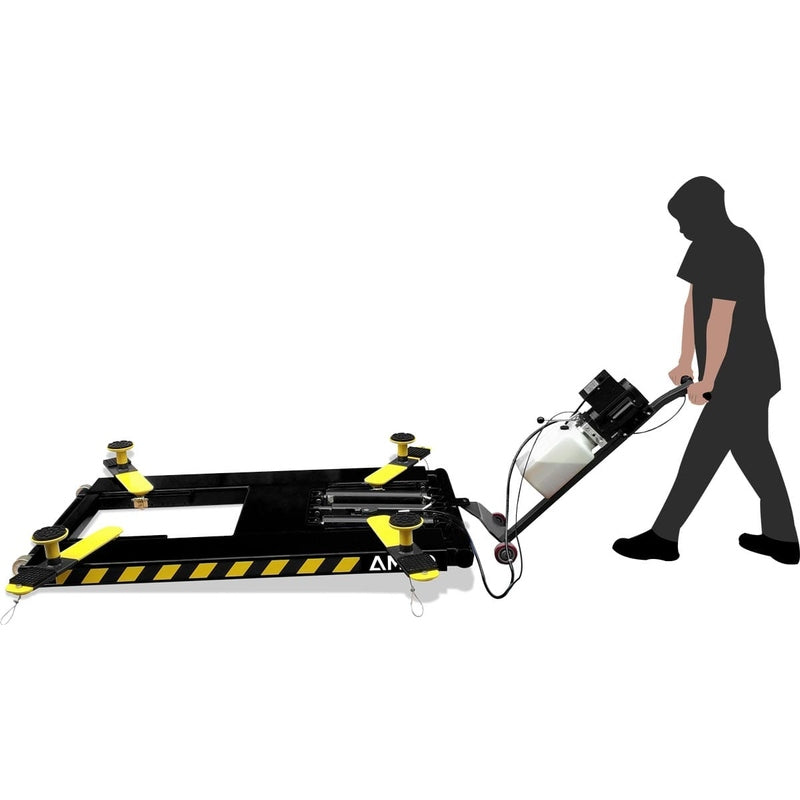

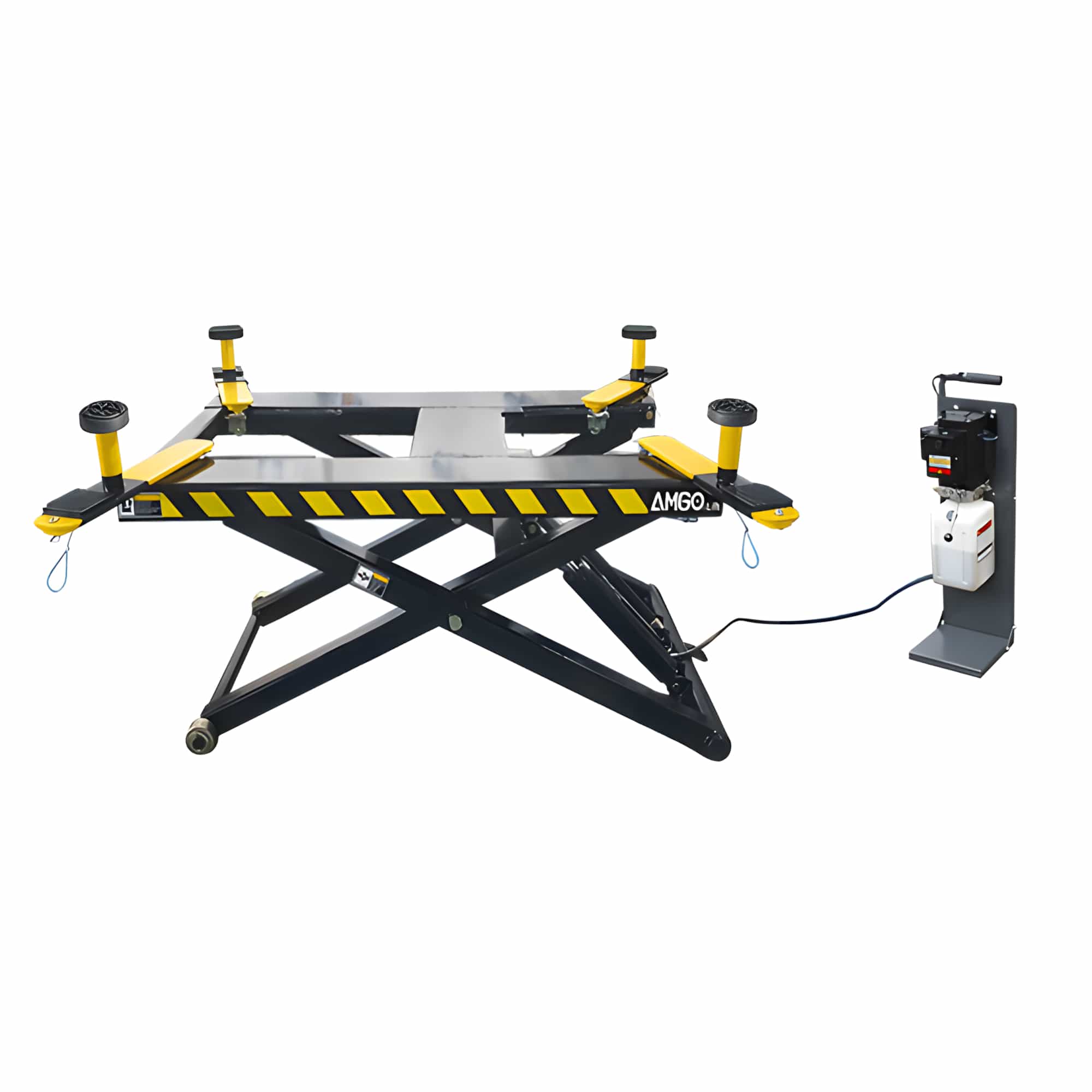

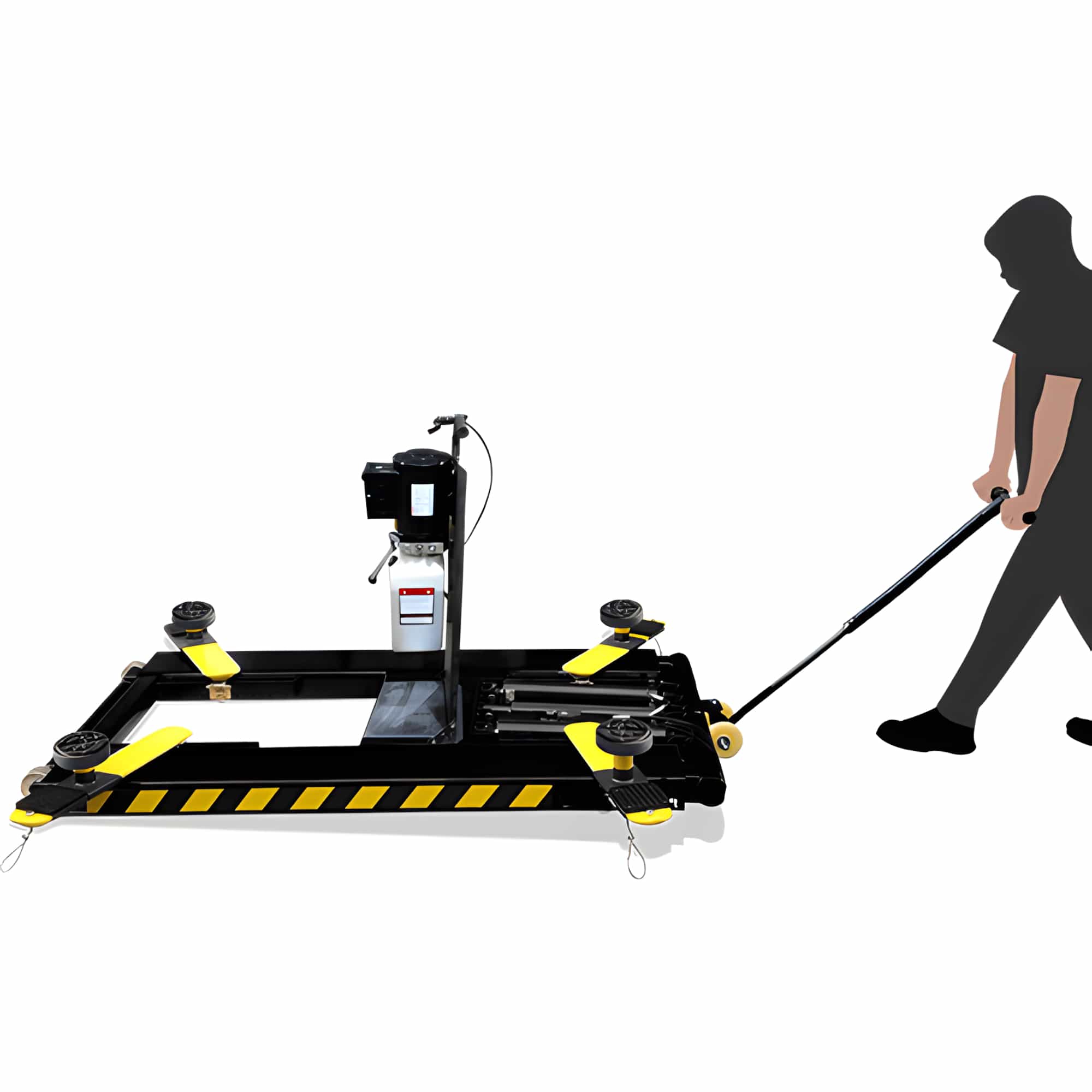

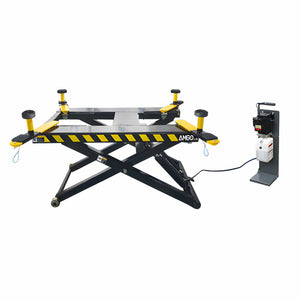

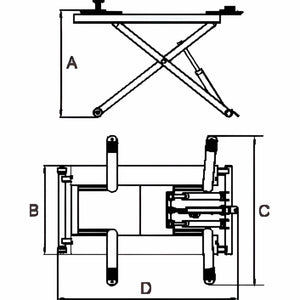

The MR06's defining design choice is portability. An integrated telescoping dolly handle and four caster wheels let one person reposition the unit between bays or wheel it into a corner when the lift is not in use, and the foldable scissor mechanism collapses to a compact footprint for storage or transport between job sites. A 4 15/16" minimum height drives under low-clearance vehicles, and a 42 15/16" maximum lift height delivers 38 inches of vertical service range — enough for tire rotations, brake jobs, and undercarriage inspection without crawling or jacking.

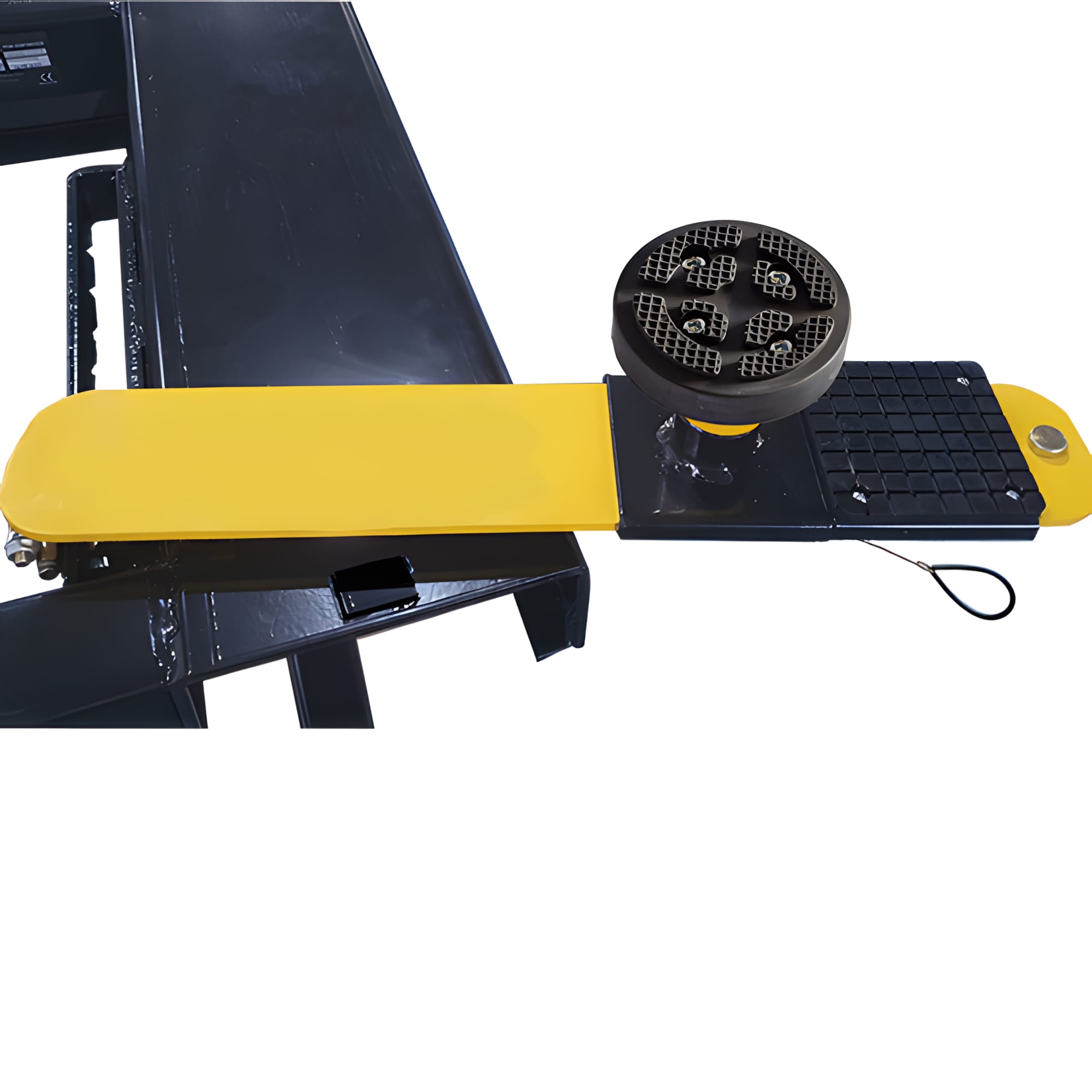

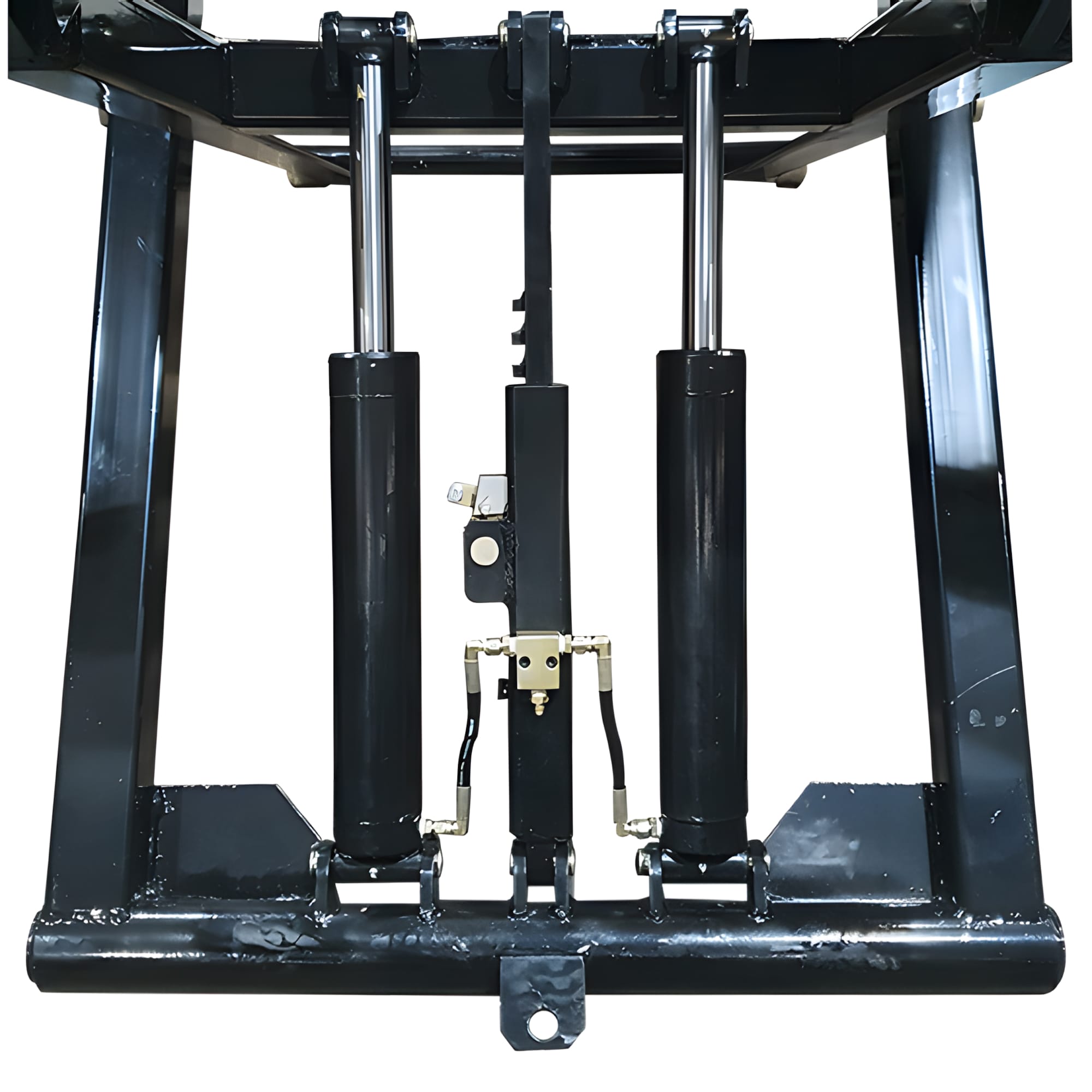

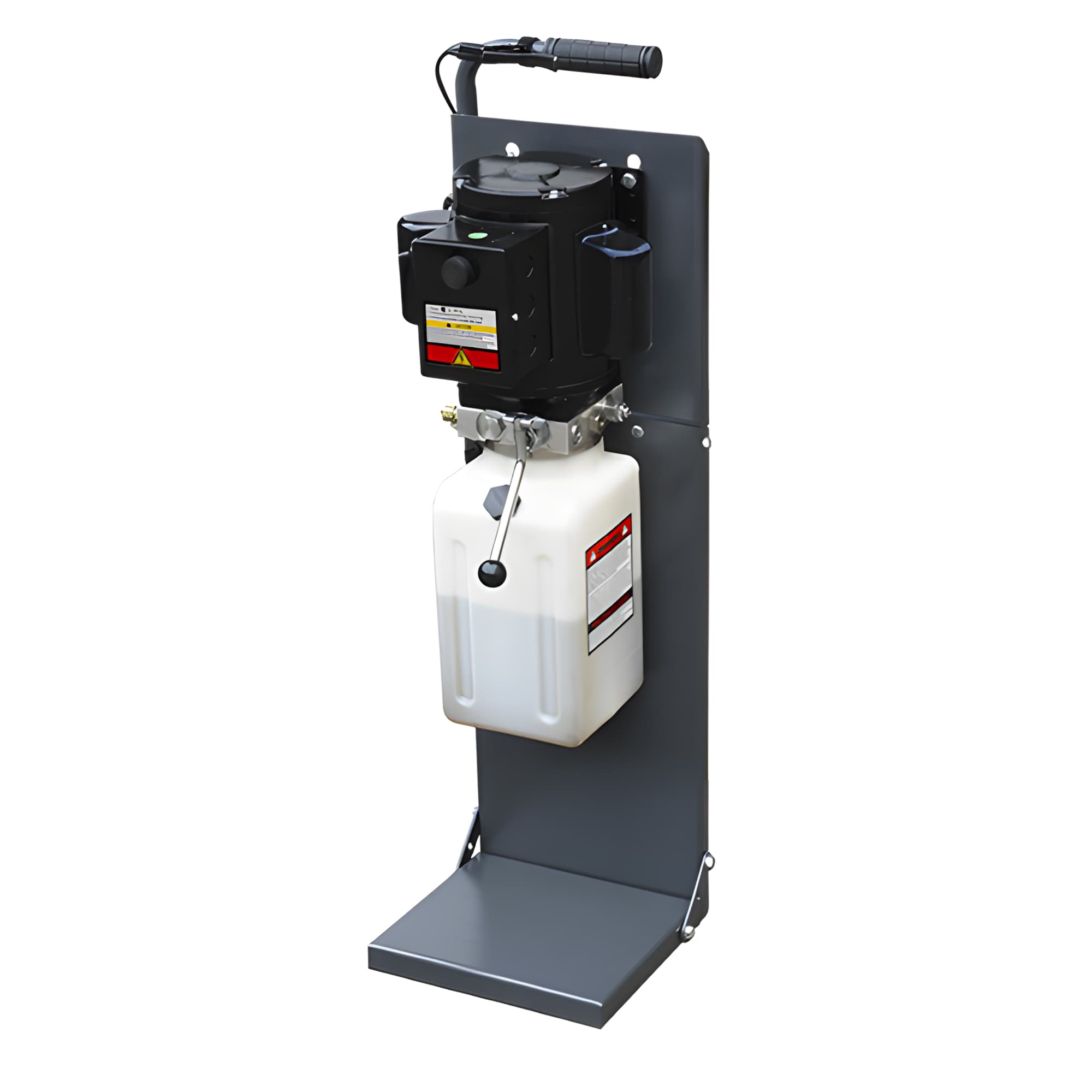

The MR06 runs on a detachable 110V single-phase power unit with an integrated manual safety release and a 1.0 HP motor. Dual hydraulic cylinders mounted under the platform deliver synchronized travel for balanced loads, and a 56-second full lift cycle keeps service work moving. Adjustable sliding radius arms carry quick-release locks with an easy-pull cable for single-point release, and auto-engaged multi-position mechanical safety locks engage throughout the lifting range. Integrated swing-arm restraints prevent the arms from rotating beyond the platform when the lift is at rest. A 16-piece adapter kit ships standard, including stackable rubber pads, sleeve adapters, and truck-height extension adapters for chassis with non-standard pickup points.

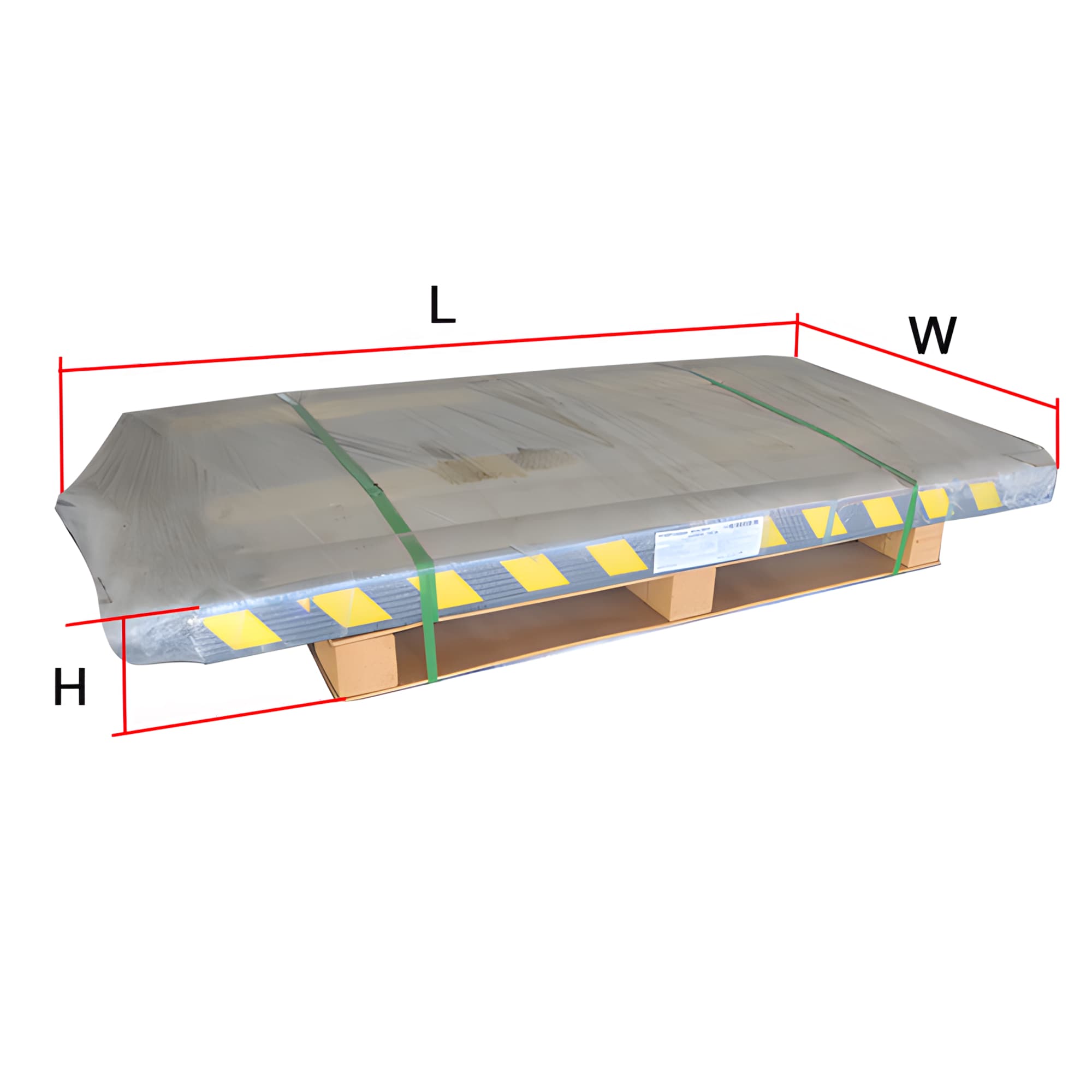

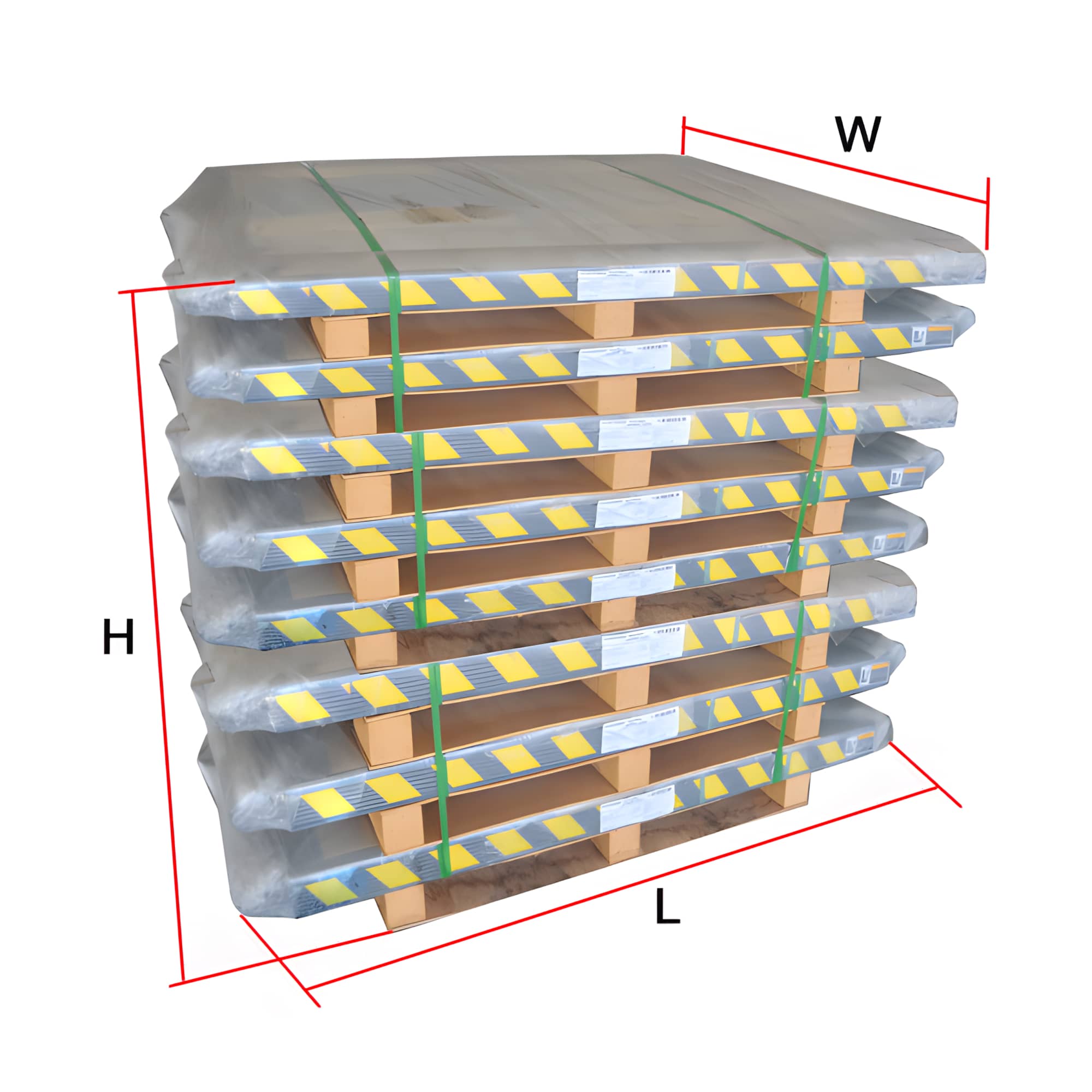

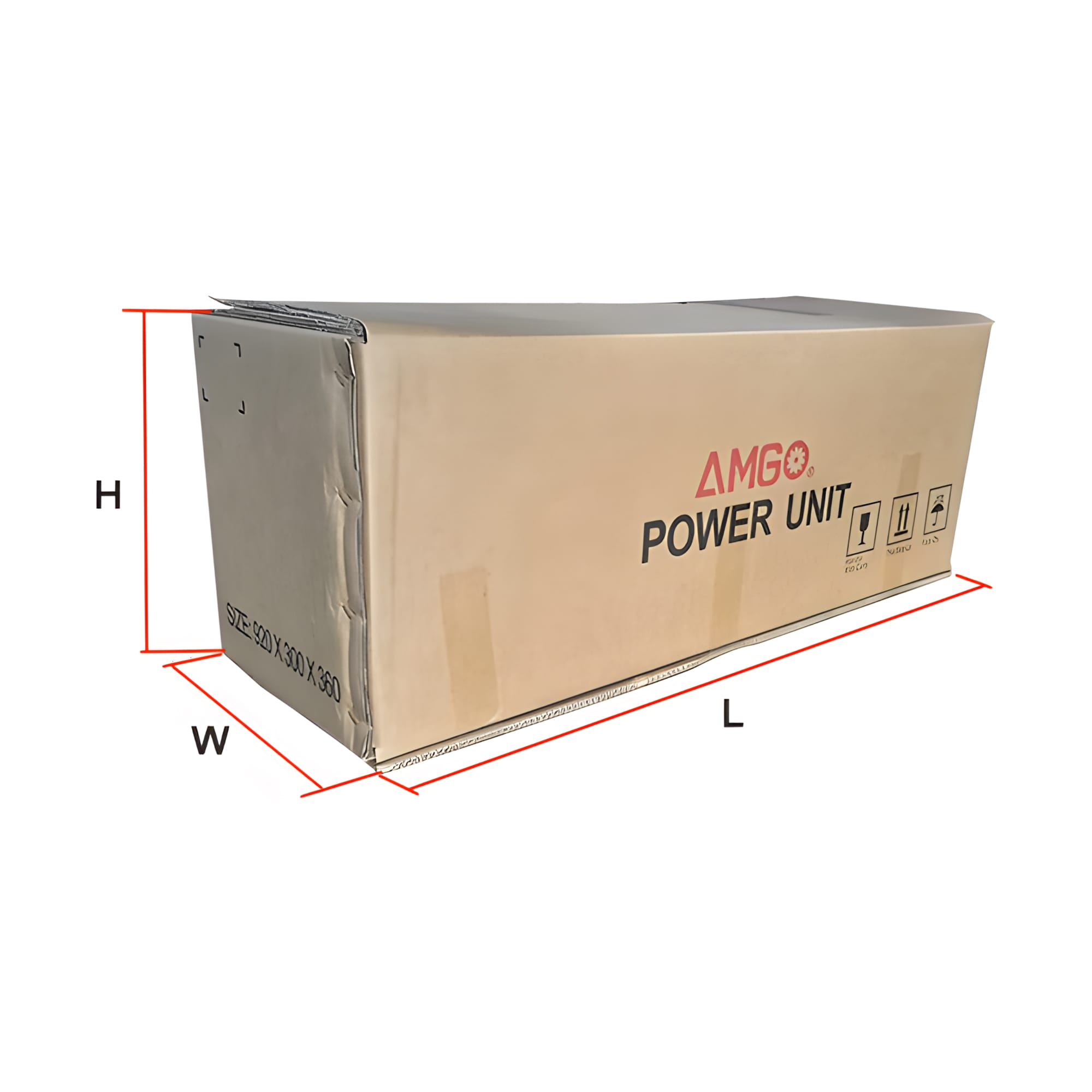

The MR06 ships at 950 lbs in two crates — the lift assembly (74 3/4" × 40 1/8" × 7 7/8") and the power unit (27 3/4" × 11 3/4" × 12 5/8") — and arrives via standard freight. The unit runs on 110V single-phase service; hydraulic oil (AW32 or AW46) is sold separately. Every MR06 is delivered with an installation manual, troubleshooting guide, and AMGO warranty card.

• 6,000-lb lifting capacity
• Mid-rise portable scissor design with foldable mechanism for storage or bay-to-bay relocation
• Integrated telescoping dolly handle and four caster wheels for one-person mobility
• Detachable power unit stand with integrated manual safety release
• Dual hydraulic cylinders with synchronized platform travel
• Quick-release arm locks with easy-pull cable for single-point release
• Auto-engaged multi-position mechanical safety locks throughout the lifting range
• Adjustable sliding radius arms compatible with a range of vehicle chassis

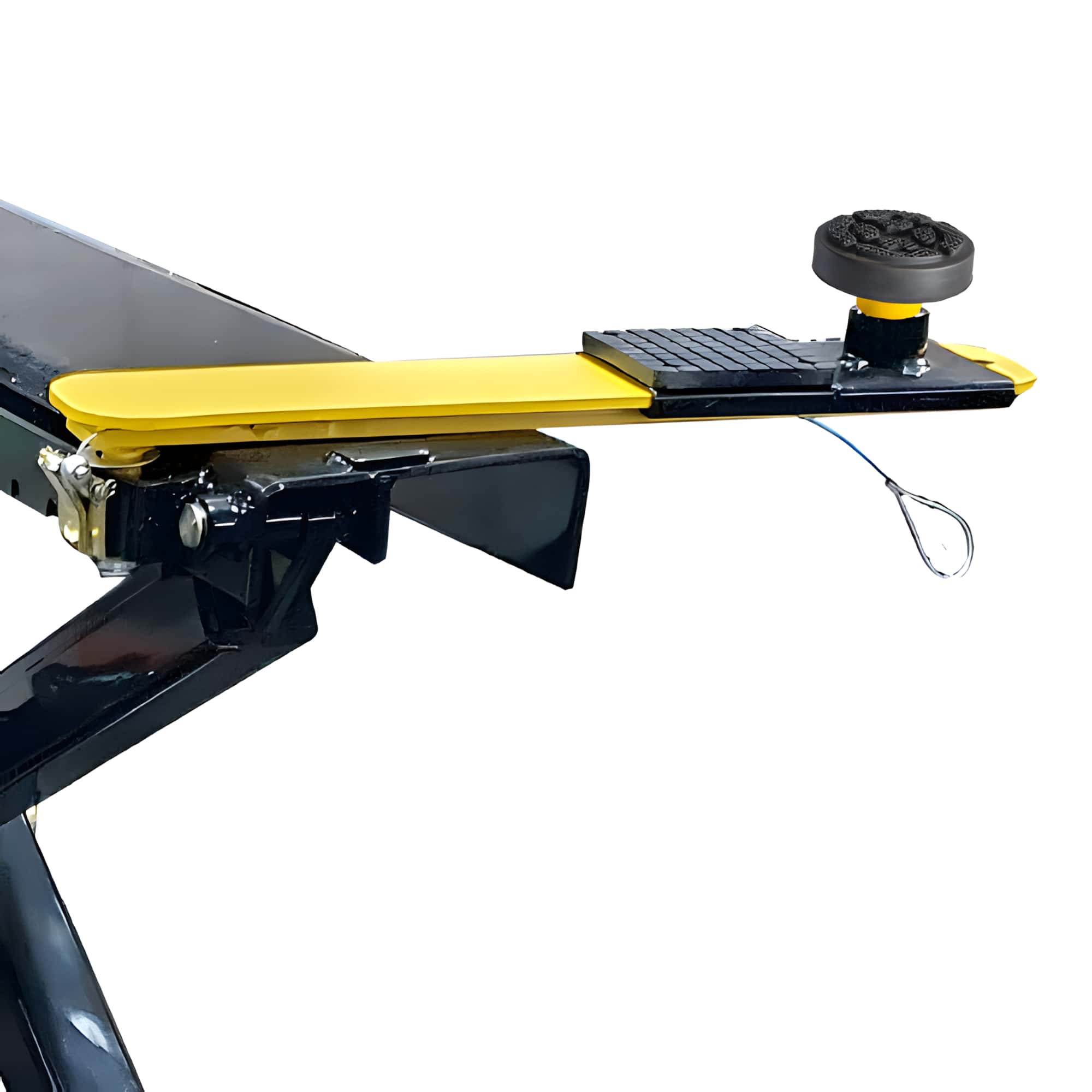

• Integrated swing-arm restraints keep arms within the platform footprint

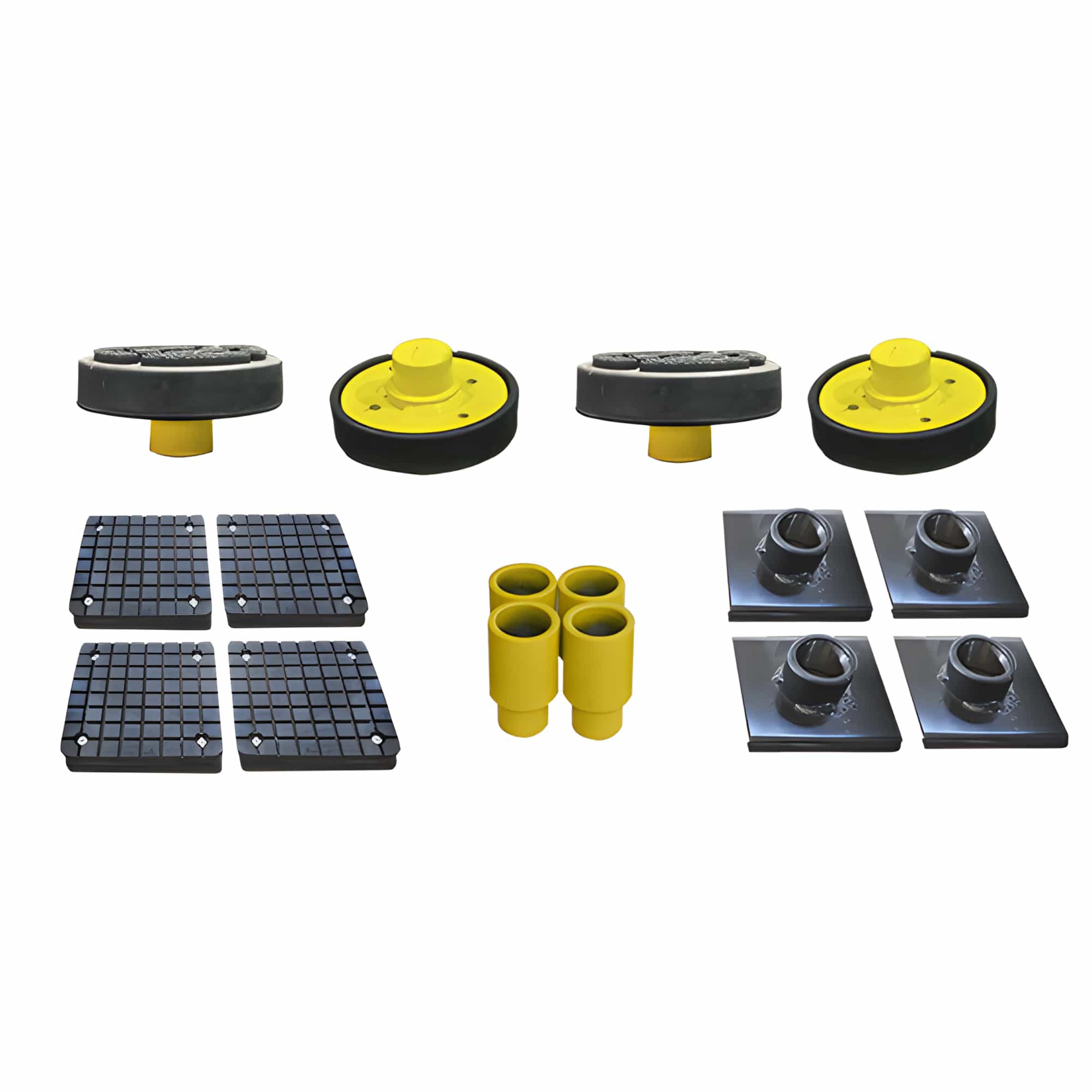

• 16-piece adapter kit included — stackable rubber pads, sleeve adapters, and truck-height extensions
• 4 15/16" minimum height clears low-profile vehicles
• 42 15/16" maximum lift height delivers 38 inches of vertical service range
• 110V single-phase power unit with 1.0 HP motor
• 56-second full lift cycle
• 950-lb shipping weight ships via standard freight (no 53' truck required)
• AMGO 5-3-2 warranty: 5 years structural / 3 years hydraulic / 2 years power unit and electrical
