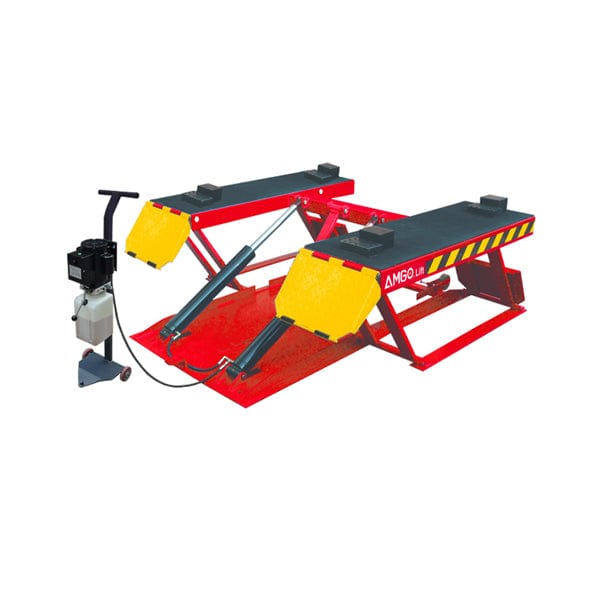

The AMGO LR10 Low Rise Lift

-

*Please REQUEST A SHIPPING FEE QUOTE before placing your order

The Portable low-rised lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business. Provides good working height for tires, brakes and body repairs.

Features

  • Automatic multiful safety locksd.
  • Automatical safety lock release.
  • Portable unit is easy to move with the power unit stand.
  • High speed: From 105-600 mm(4 1/8"-23 5/8) in just 50 seconds.
  • Standard rubber pads included.

Specifications

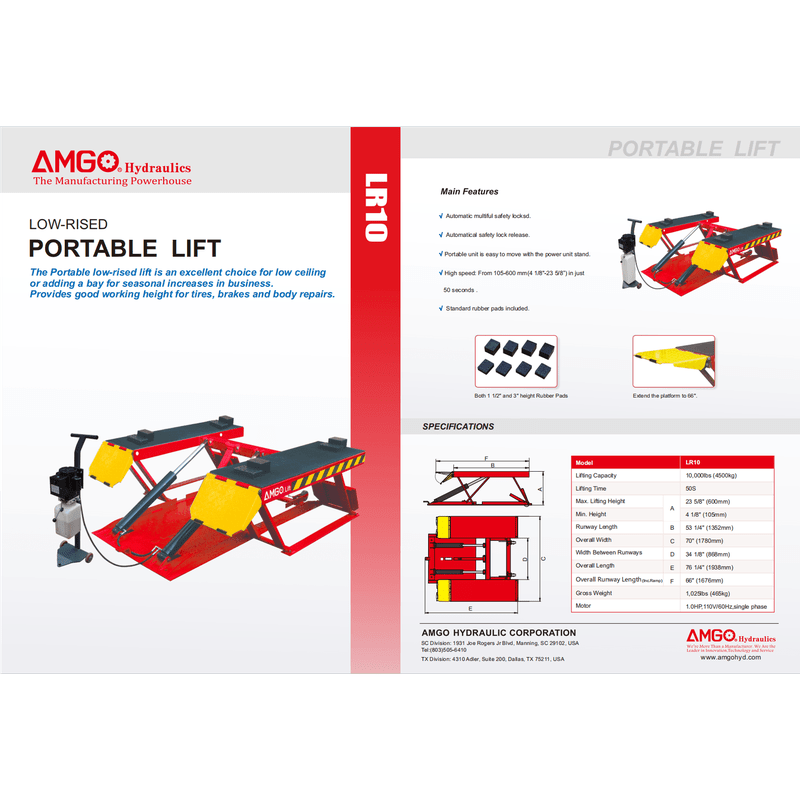

Technical drawing of the AMGO Hydraulics LR10 Low Rise Lift from two perspectives, illustrating dimensions and structural details with a lifting capacity of 10,000lbs.

Model LR10
Lifting Capacity 10,000lbs
Lifting Time 50s
A1: Max. Lifting Height
23 5/8" (600mm)
A2: Minimum Height
4 1/8" (105mm)
B: Runway Length
53 1/4" (1352mm)
C: Overall Width
70" (1780mm)
D: Width Between Runways
34 1/8" (868mm)
E: Overall Length
76 1/4" (1938mm)
F: Overall Runway Length(Inc.Ramp)
66" (1676mm)
Gross Weight
1,025lbs (465kg)
Motor
1.0HP 110V/60Hz, single phase

Detailed Images

The AMGO Hydraulics LR10 Low Rise Lift extends to a maximum height of 66 inches and includes multiple rubber pads with heights of 1.5 and 3 inches, providing a portable and versatile solution for your lifting requirements.

Shipping Information

The AMGO LR10 Low Rise Lift from AMGO Hydraulics is lifting a stack of sacks, a wooden pallet, a power unit box, and a metal part with dimensions labeled in the image, demonstrating its 10,000lbs lifting capacity.

Manual

AMGO LR10 Low Rise Lift Manual
