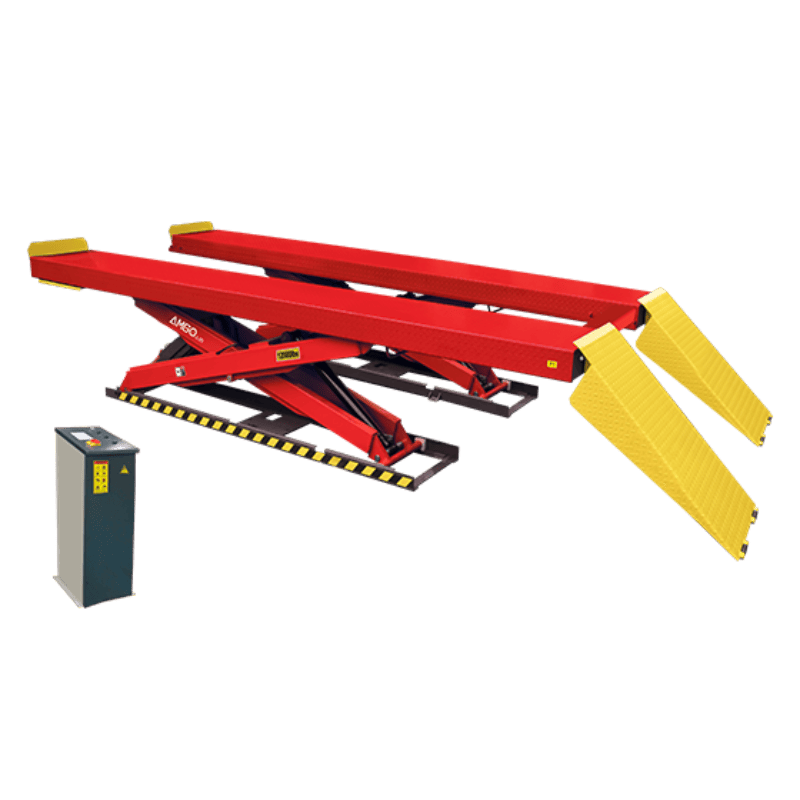

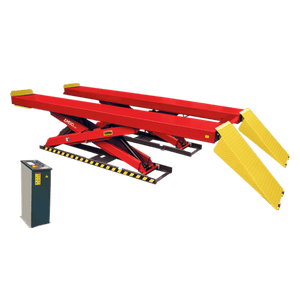

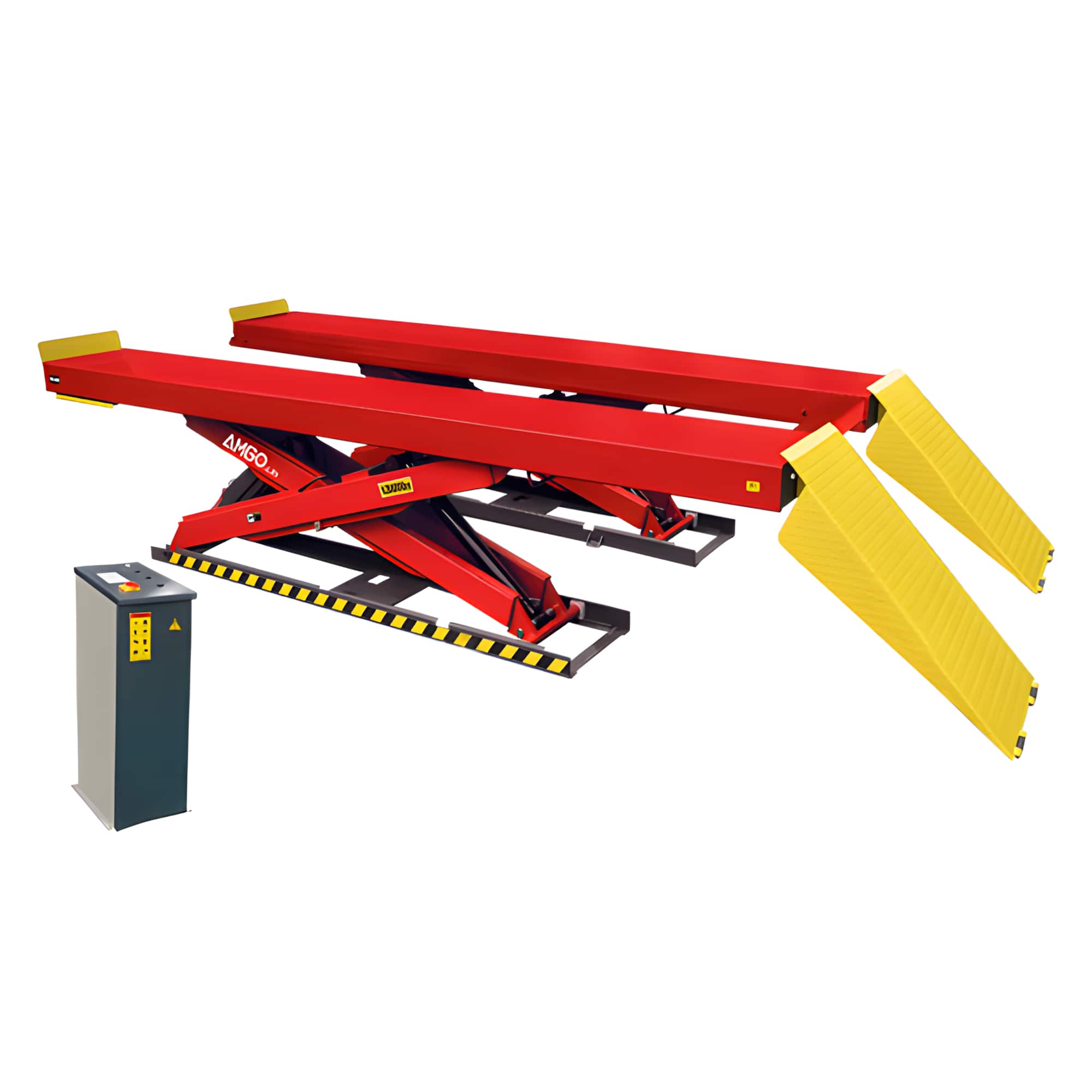

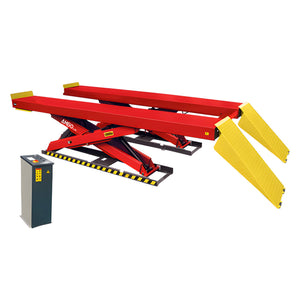

AMGO AX-12 12,000 lbs Scissor Lift

The AMGO AX-12 is a 12,000-lb full-rise scissor lift built for general service work on heavier vehicles — 3/4-ton and 1-ton trucks, vans, and SUVs in brake, exhaust, suspension, and underbody jobs. AMGO Hydraulics has manufactured automotive lifts for over 30 years, and the AX-12 carries the AMGO 5-3-2 warranty: five years on steel structure, three years on hydraulics, two years on electrical and power unit.

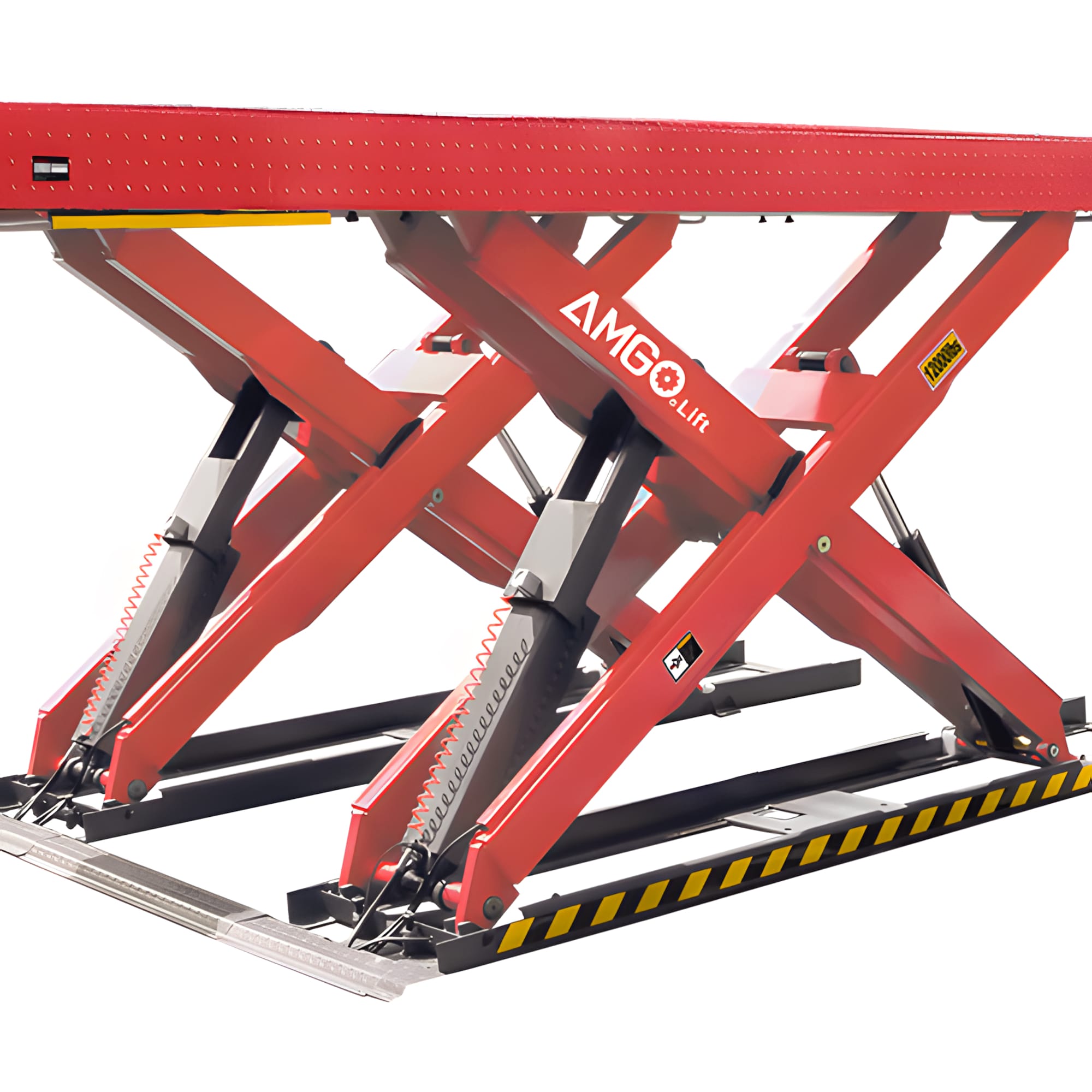

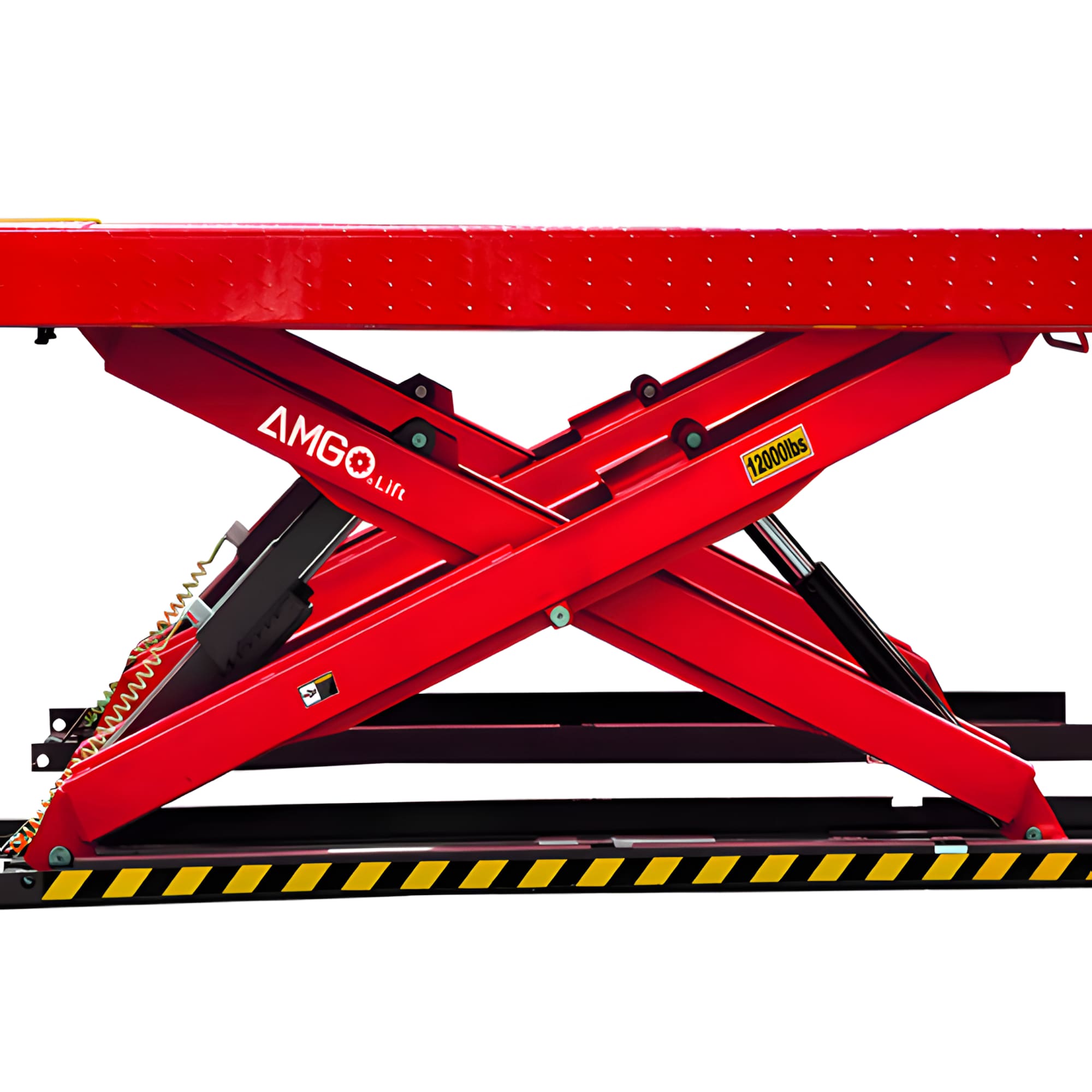

The AX-12 is built around a robust X-scissor structure of large-section steel tubes, paired with two groups of dual hydraulic cylinders in parallel. Dual cylinders equalize platform travel and prevent the rocking that single-cylinder scissor designs develop under off-center loads. The full-rise design clears 72 13/16" at maximum lift with a mechanical lock at 71 1/16", putting the vehicle at stand-up working height while the scissor geometry stays clear of the underbody.

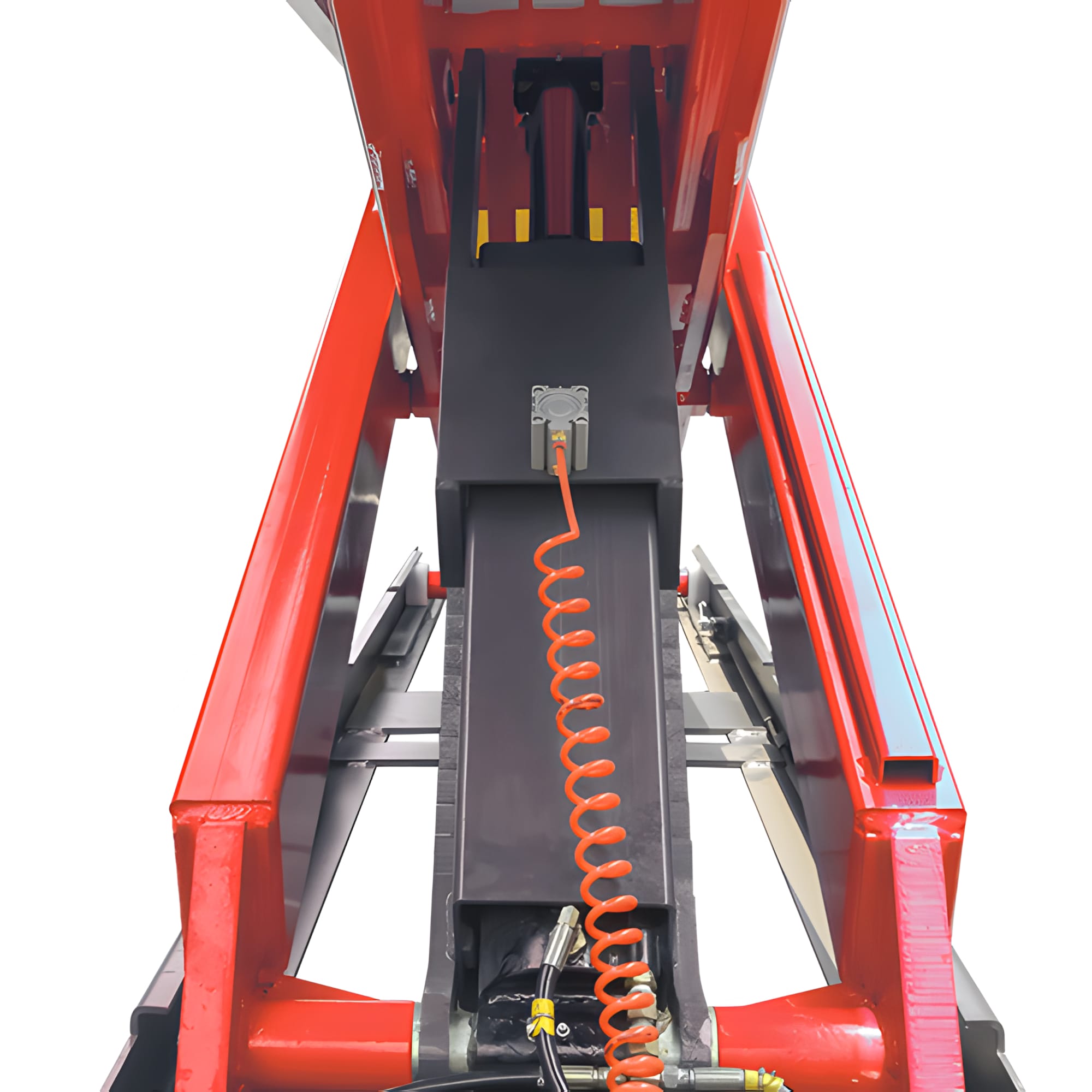

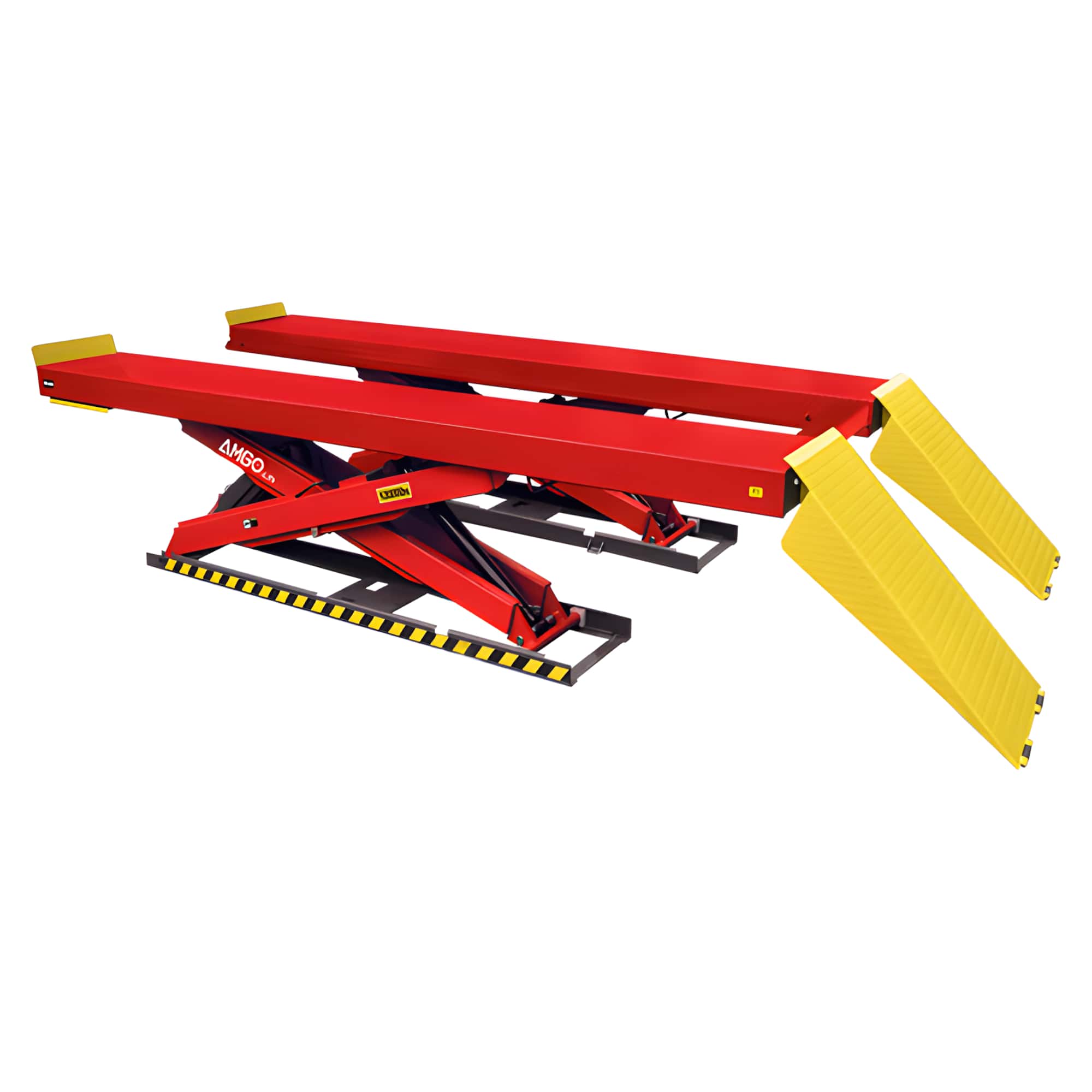

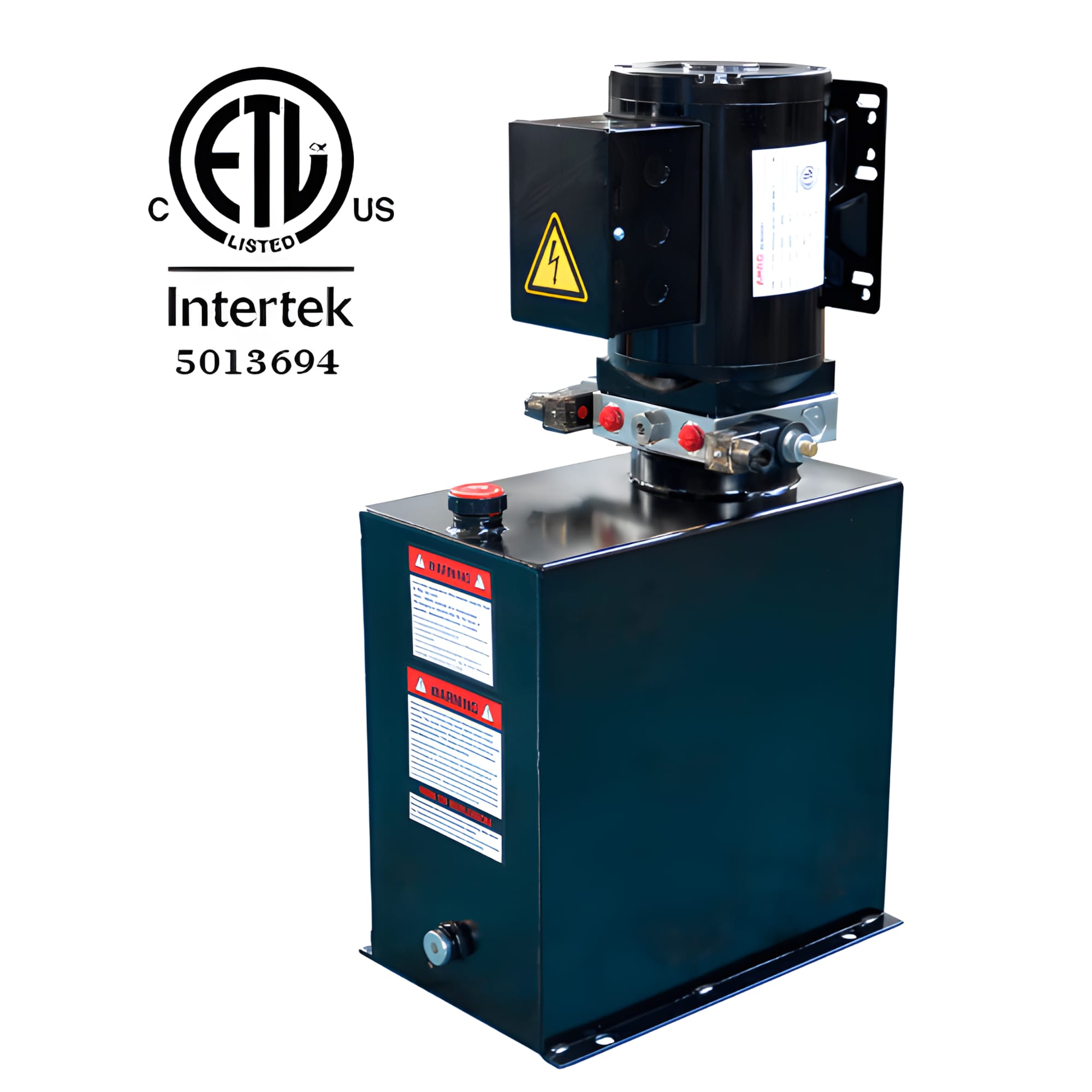

The AX-12 ships with an ETL-certified AMGO power unit (Intertek 5013694) on a 2.0 HP electric-hydraulic system. Hydraulic synchronization pairs with automatic mechanical safety locks across the lifting range; a pneumatic air release lowers the platforms with a single button. Drive-on ramps and a pull-out service tray are included.

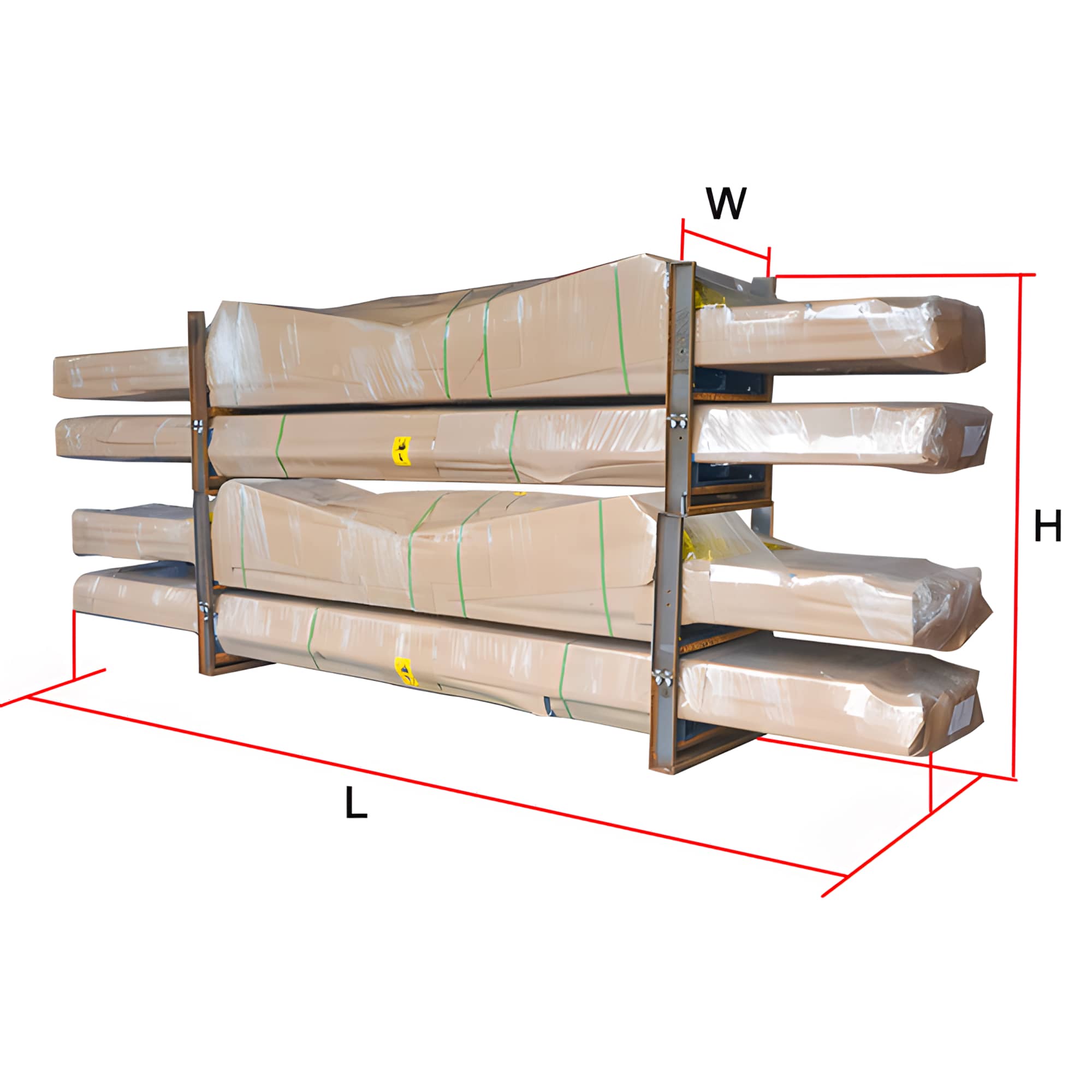

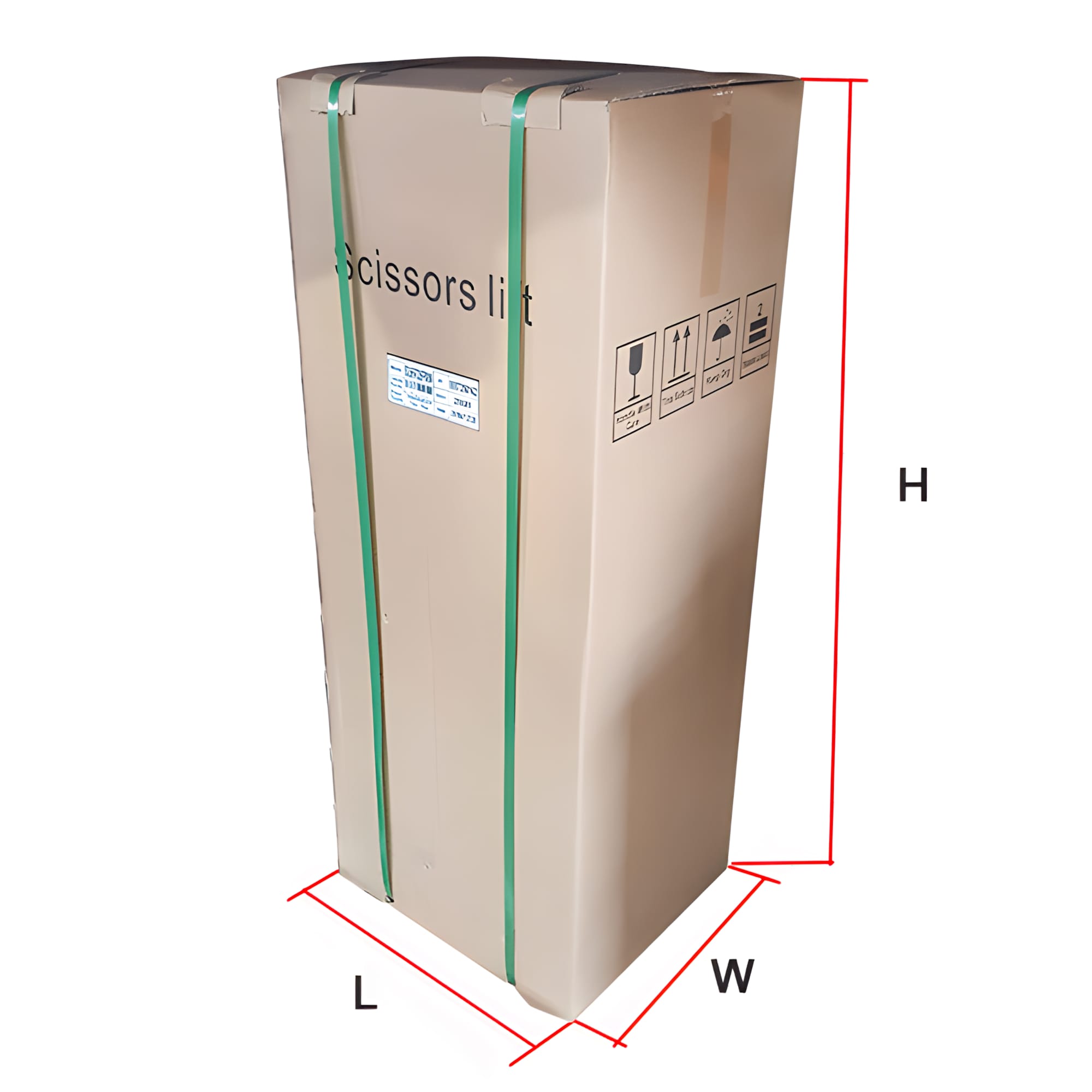

The AX-12 ships at 4,872 lbs gross via standard freight in two lift units per crate plus a separate control cabinet carton — plan for a forklift at the delivery site. Hydraulic oil is sold separately. Optional accessories: PX001 platform extension, PX004A air line kit, and the RJ-6A 6,000-lb rolling jack.

• 12,000-lb lifting capacity
• Full-rise scissor design with 72 13/16" maximum lift height
• Robust X-scissor structure fabricated from large-section steel tubes
• Two groups of dual hydraulic cylinders with synchronized platform movement
• Automatic mechanical safety locks across the lifting range
• Pneumatic air-release single-button lowering
• ETL-certified AMGO power unit (Intertek 5013694)
• 2.0 HP electric-hydraulic power system
• Non-slip extended platforms for a wide vehicle range
• Drive-on ramp assemblies included (P/N: 11530617)

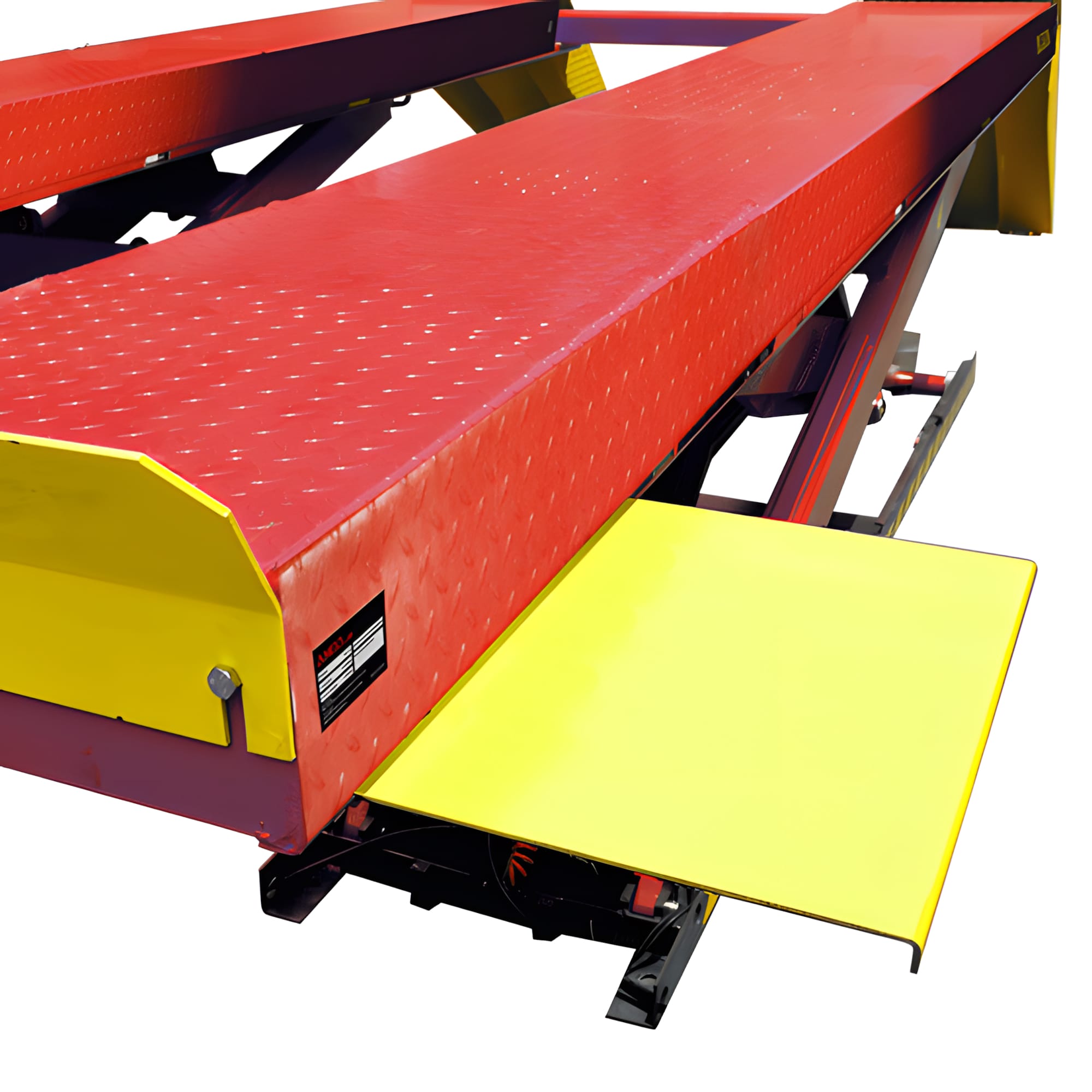

• Pull-out service tray included
• Lifting time: 75 seconds

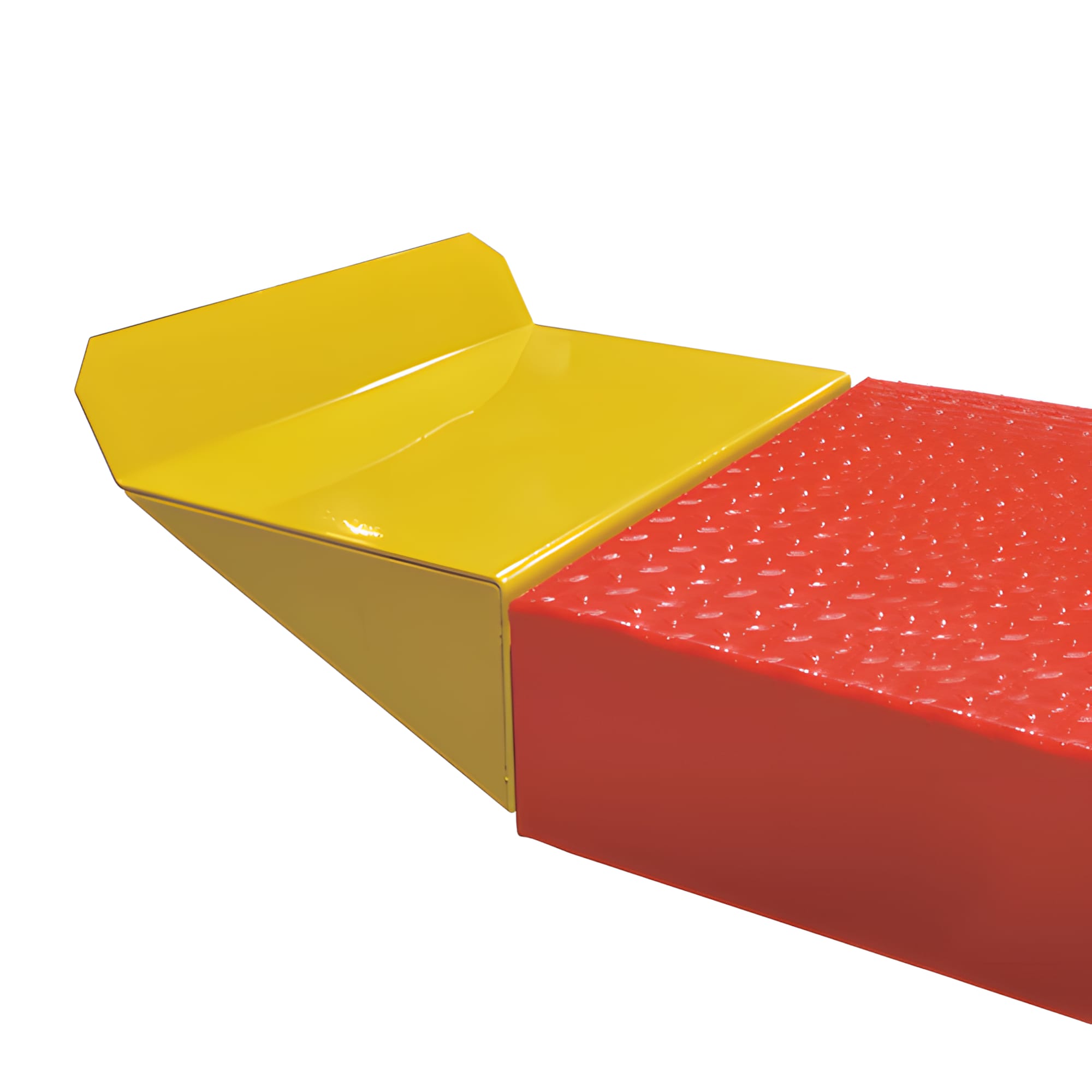

• Optional extension platform (P/N: PX001)

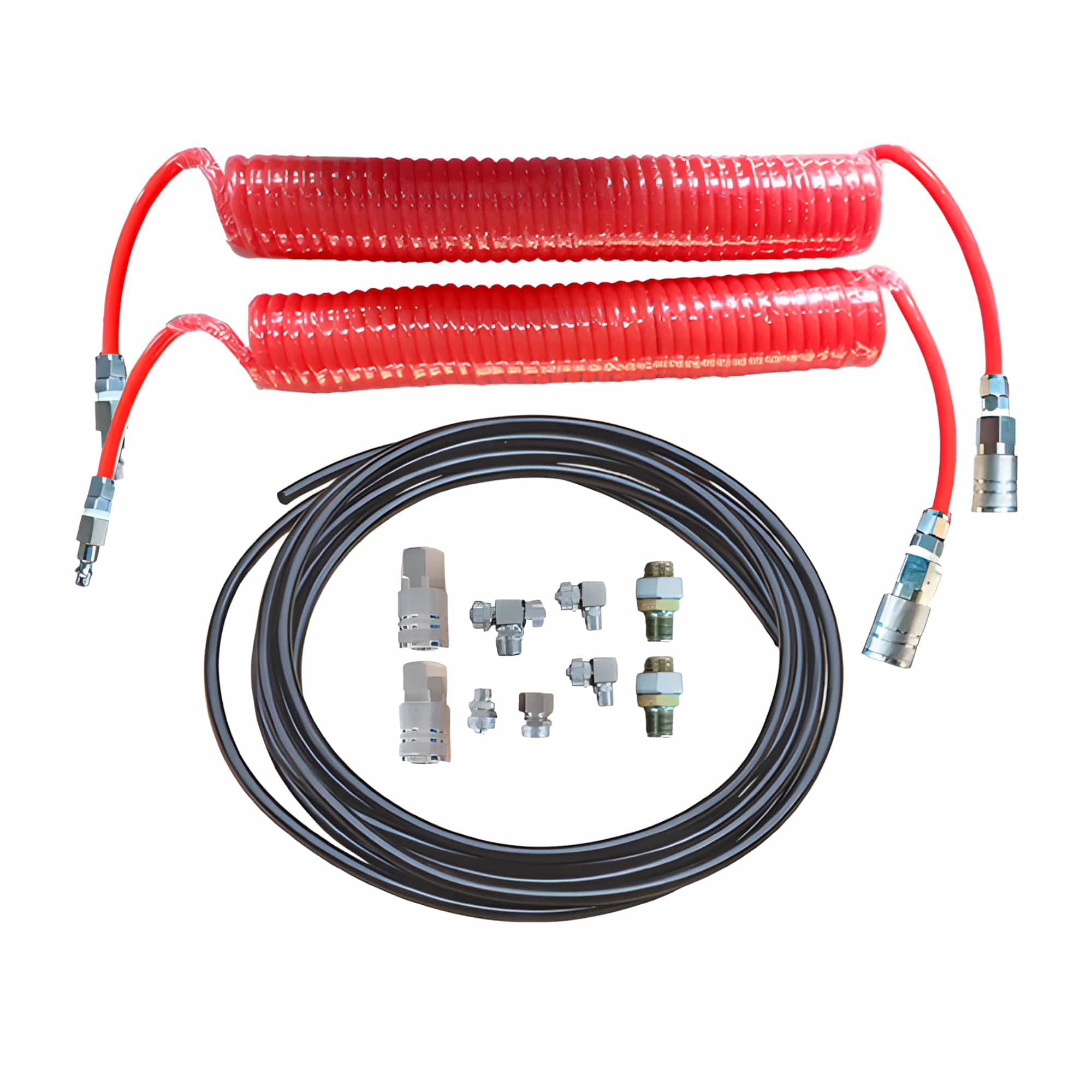

• Optional air line kit (P/N: PX004A)

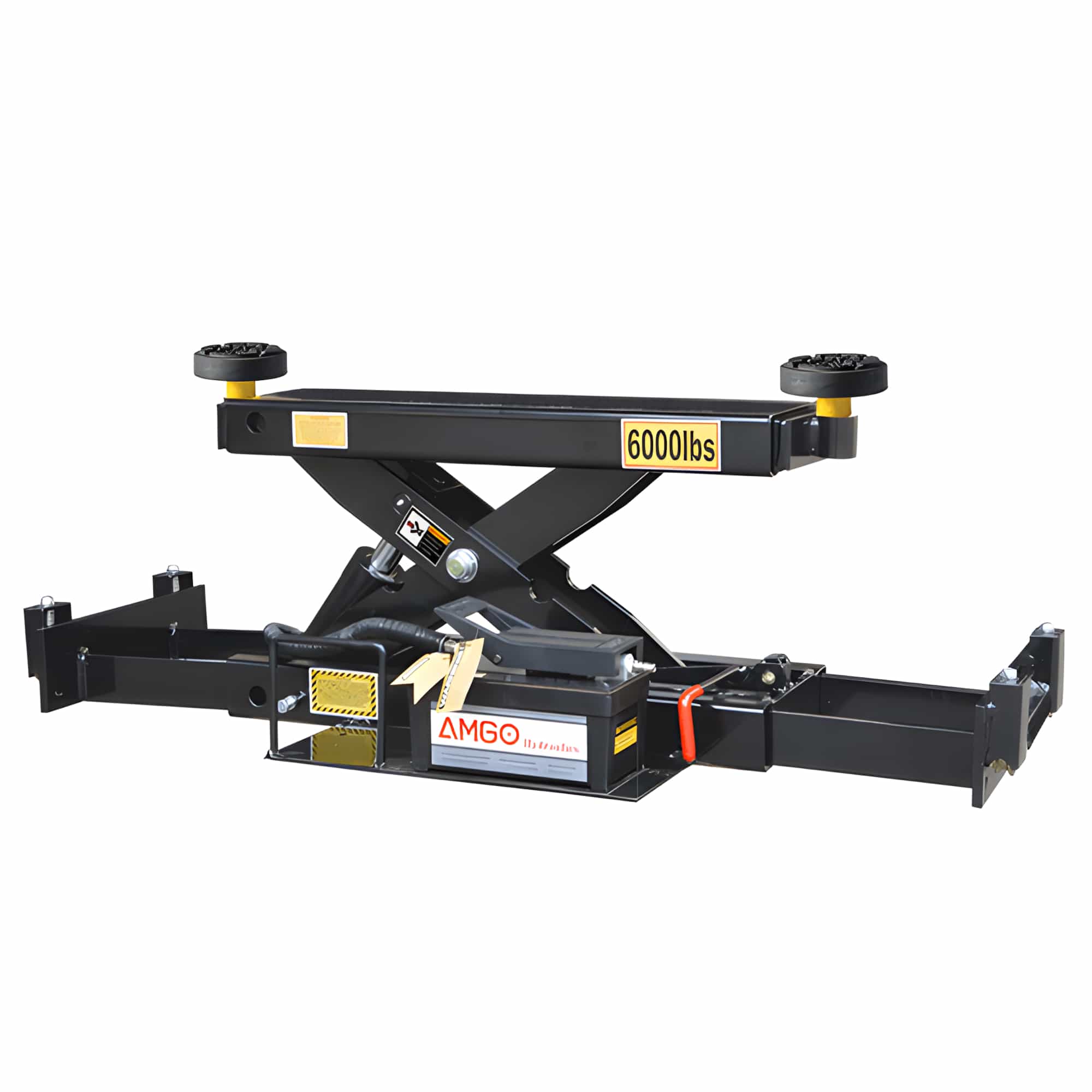

• Optional RJ-6A 6,000-lb sliding rolling jack with 2.5" extension adapters
• AMGO 5-3-2 Warranty: 5 yr Structural – 3 yr Hydraulic – 2 yr Electrical & Power Unit
