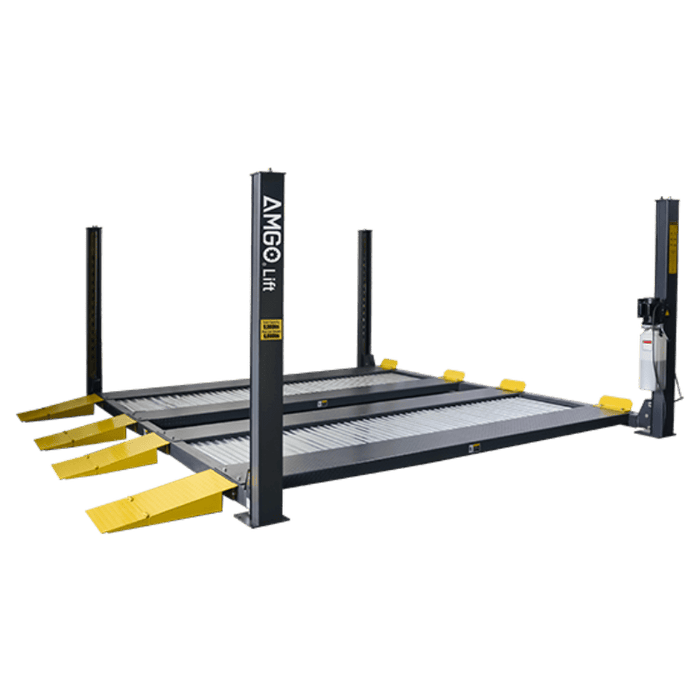

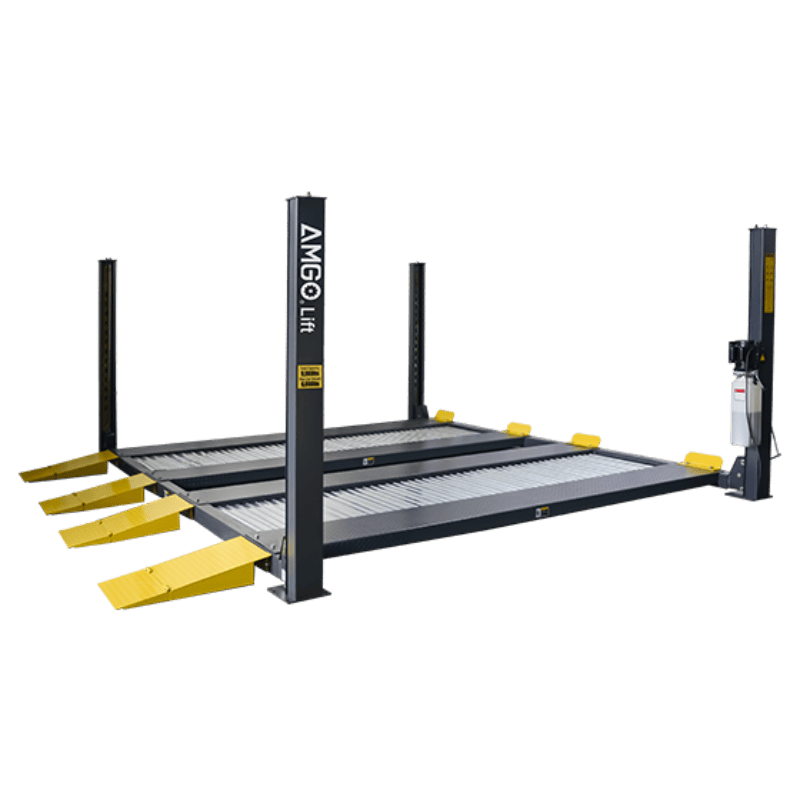

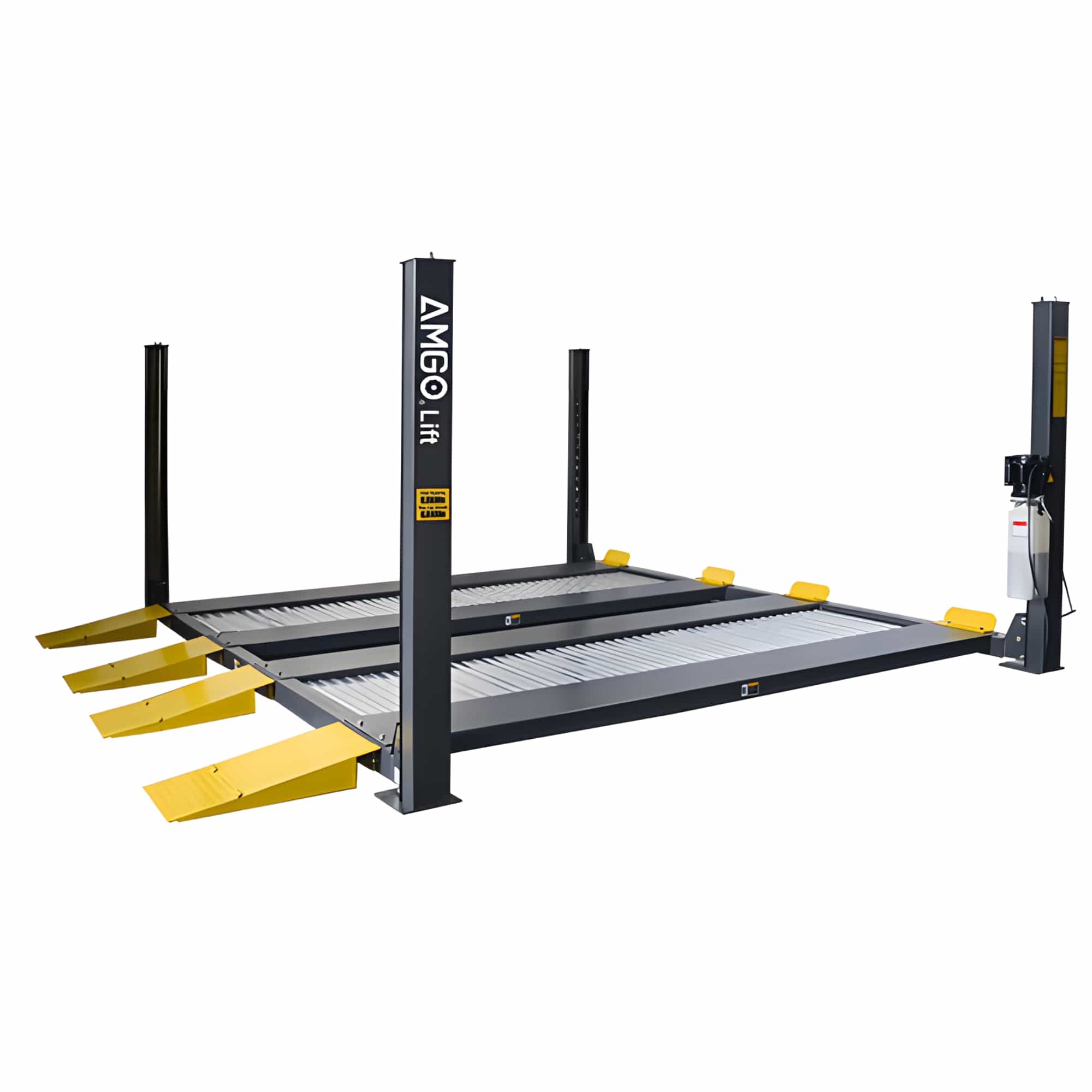

AMGO 409-DP 9,000 lbs Double Parking 4 Post Lift

The AMGO 409-DP is a 9,000-lb four-post double parking lift that stores two vehicles in the vertical footprint of a single bay — built for collectors, multi-car households, and shops looking to recover floor space without expanding the building. AMGO has manufactured automotive lifting equipment for over three decades, and the 409-DP carries the AMGO 5-3-2 warranty: five years structural, three years hydraulic, two years on the power unit and electrical components.

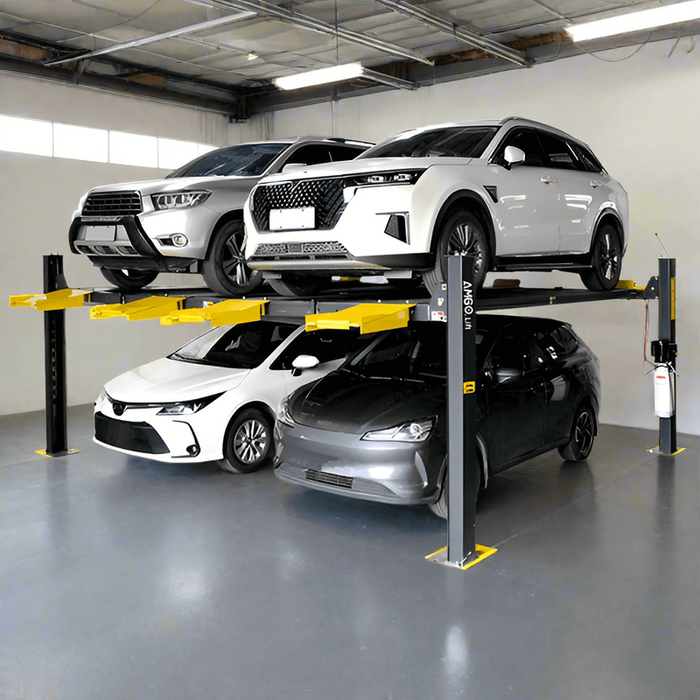

The 409-DP runs two parallel runways on a shared four-column frame, supporting up to 9,000 lbs total at 6,000 lbs maximum per vehicle. The low-profile 5 15/16" minimum runway loads without a separate ramp beyond the foldable drive-on ramps that ship standard, and 68 7/8" of clearance underneath the upper runway is enough for full-height passenger cars and most SUVs to park beneath the stored vehicle.

Two safety systems run in parallel. Dual mechanical safety locks engage at multiple positions throughout the lifting range, and a separate cable-slack protection system catches the platform if a cable loses tension. AMGO's patented concealed safety lock control device adds single-point manual release — operators disengage all four locks from one position rather than walking the lift. The 110V single-phase 1.0 HP power unit completes a full lift cycle in 100 seconds.

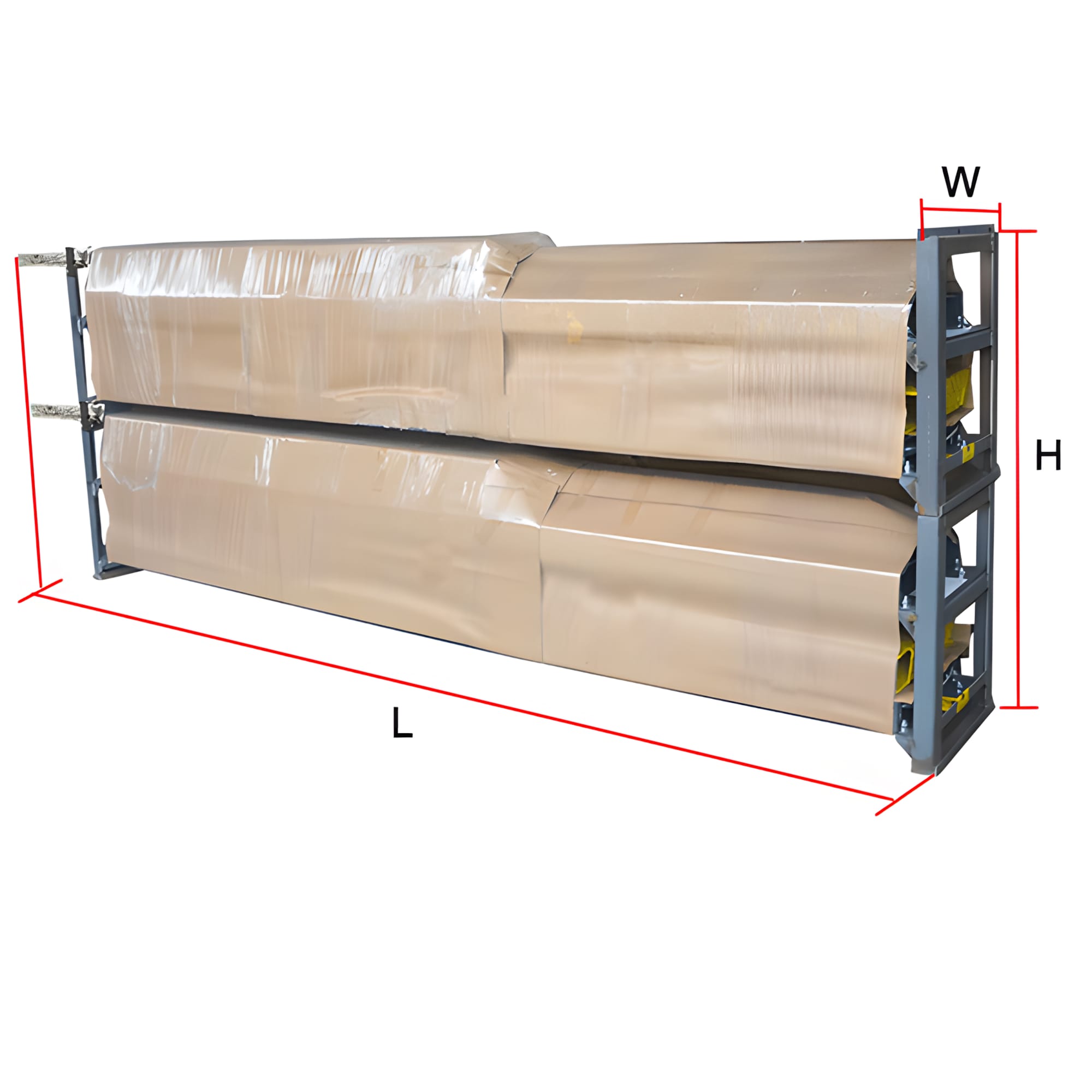

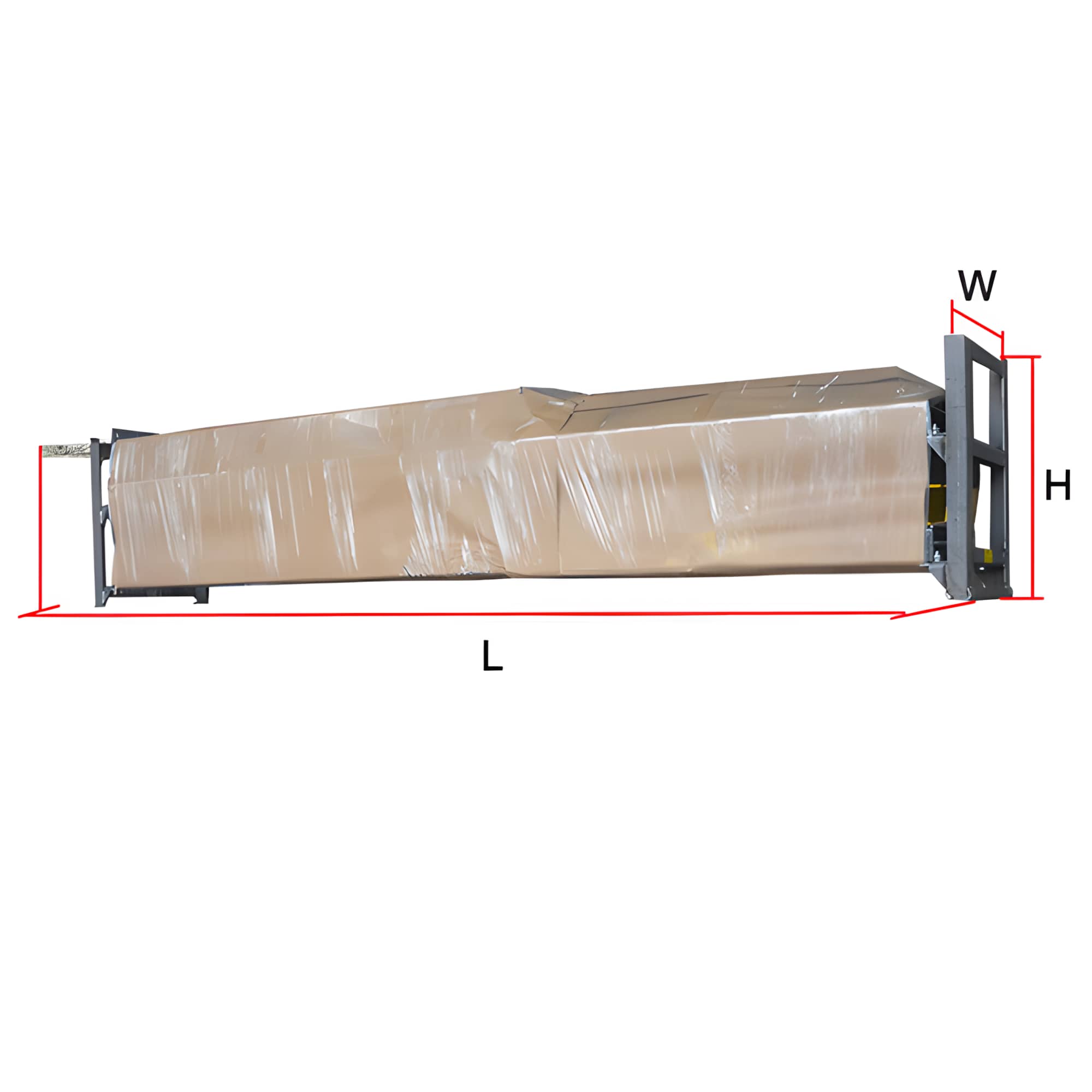

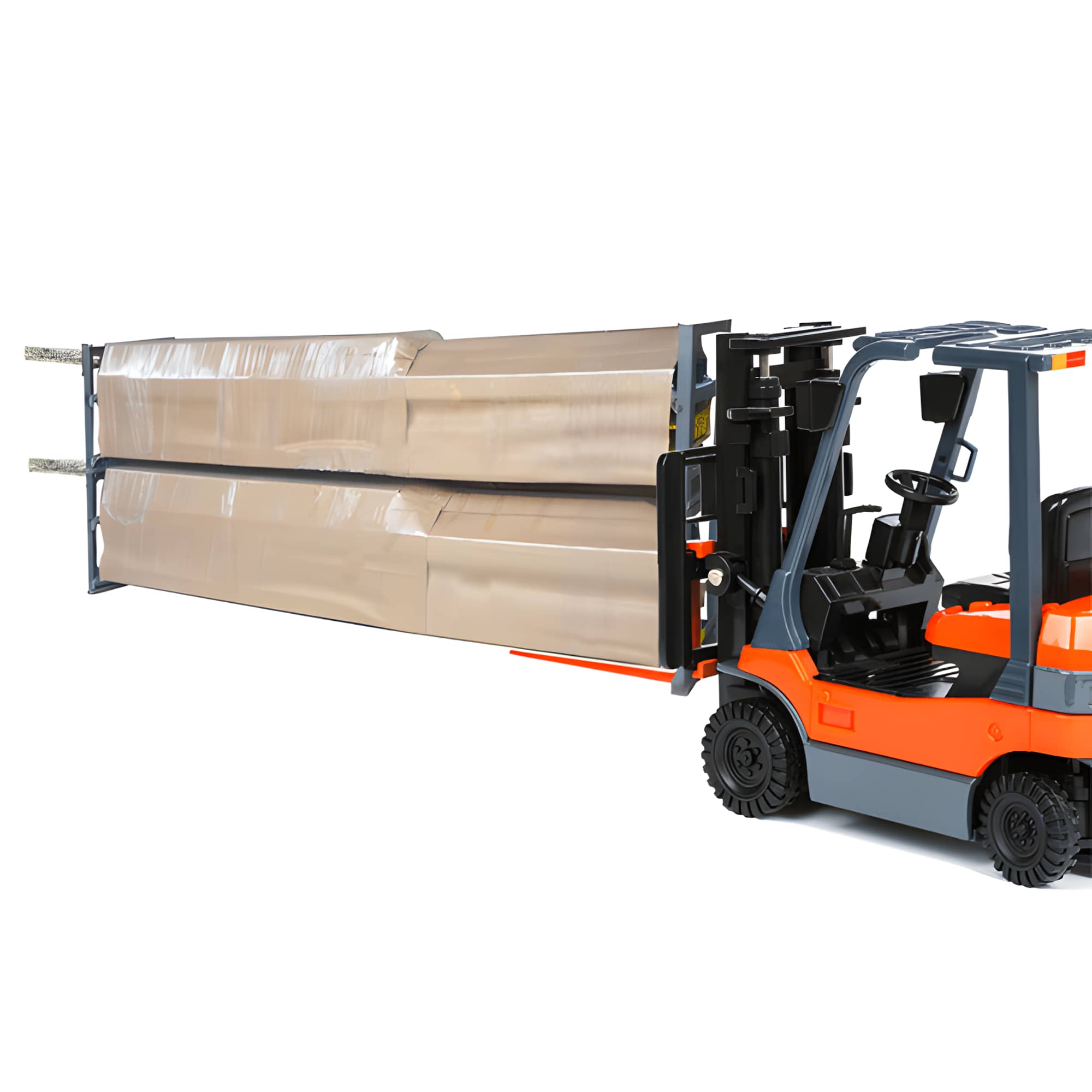

The 409-DP ships at 2,771 lbs gross via standard freight — no 53' truck required. The unit runs on 110V single-phase service; hydraulic oil is sold separately. A forklift is needed to unload and position the crates on site.

• 9,000-lb total lifting capacity (6,000 lbs maximum per single vehicle)
• Four-post double parking design — stores two vehicles in one bay footprint
• Low-profile 5 15/16" minimum runway clears low-clearance vehicles
• 68 7/8" of clearance underneath the upper runway for full-height vehicles below

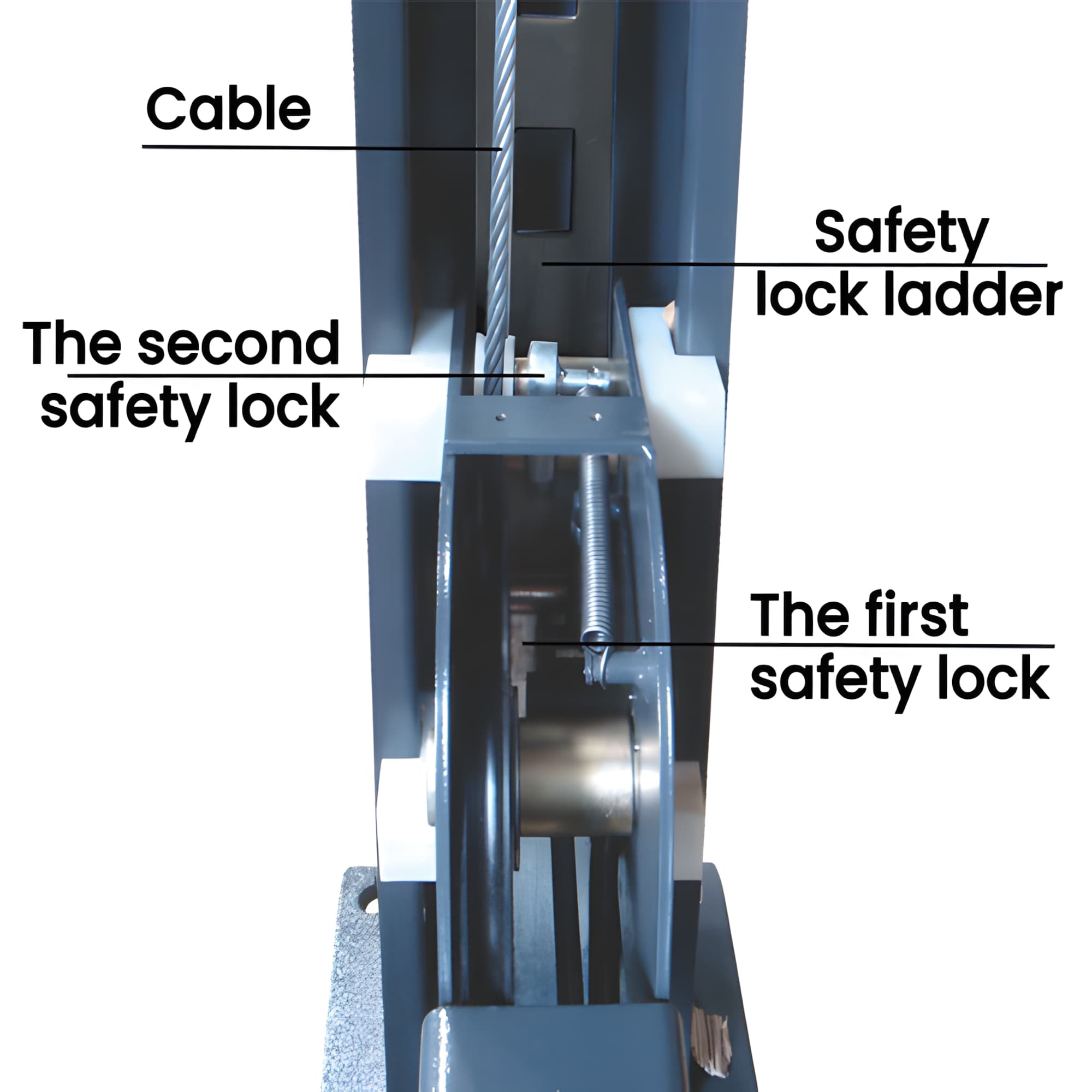

• Dual mechanical safety locks engage at multiple positions throughout the lifting range
• Cable-slack protection system catches the platform if a cable loses tension

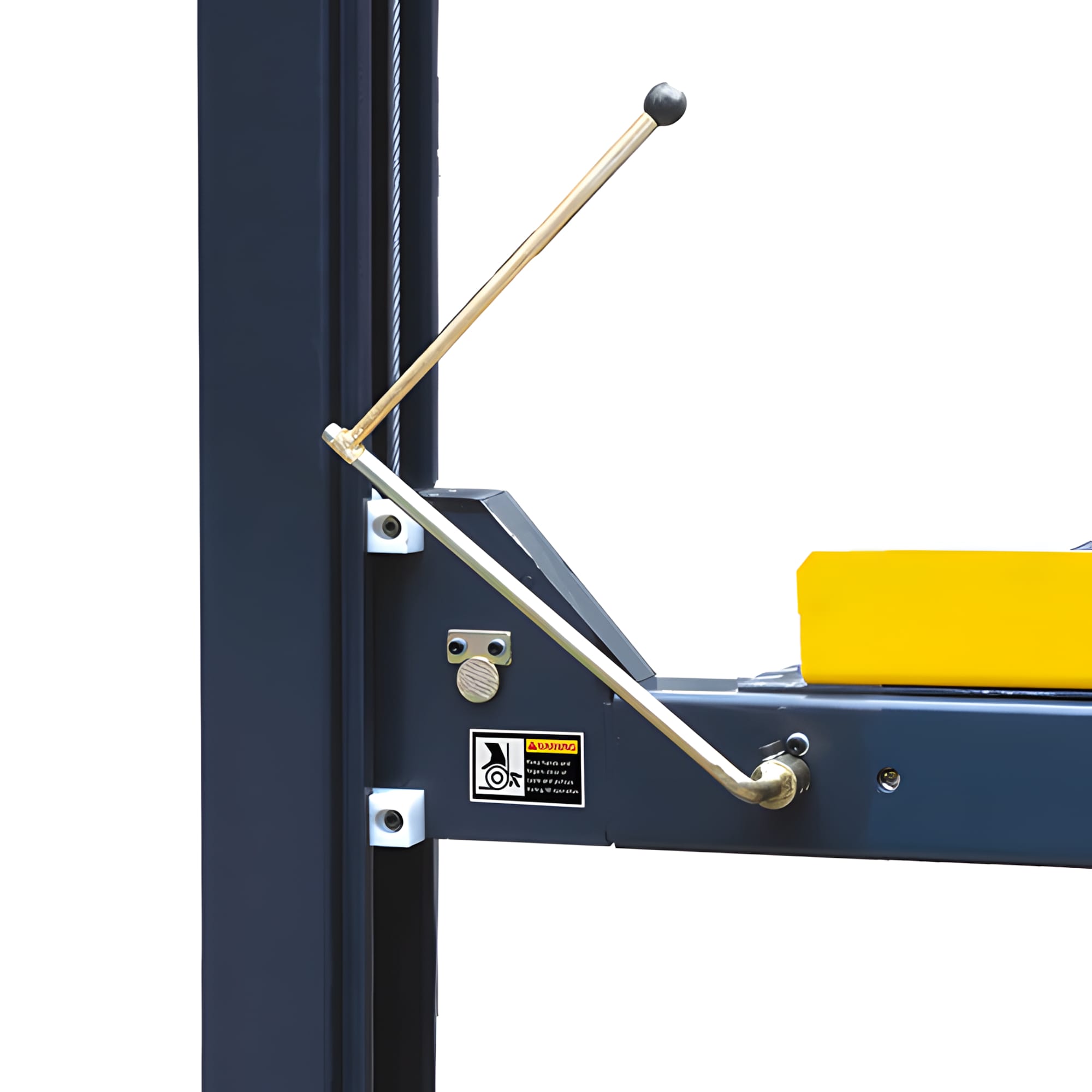

• AMGO patented concealed safety lock control device with single-point manual release
• I-beam profile columns for column-axis strength

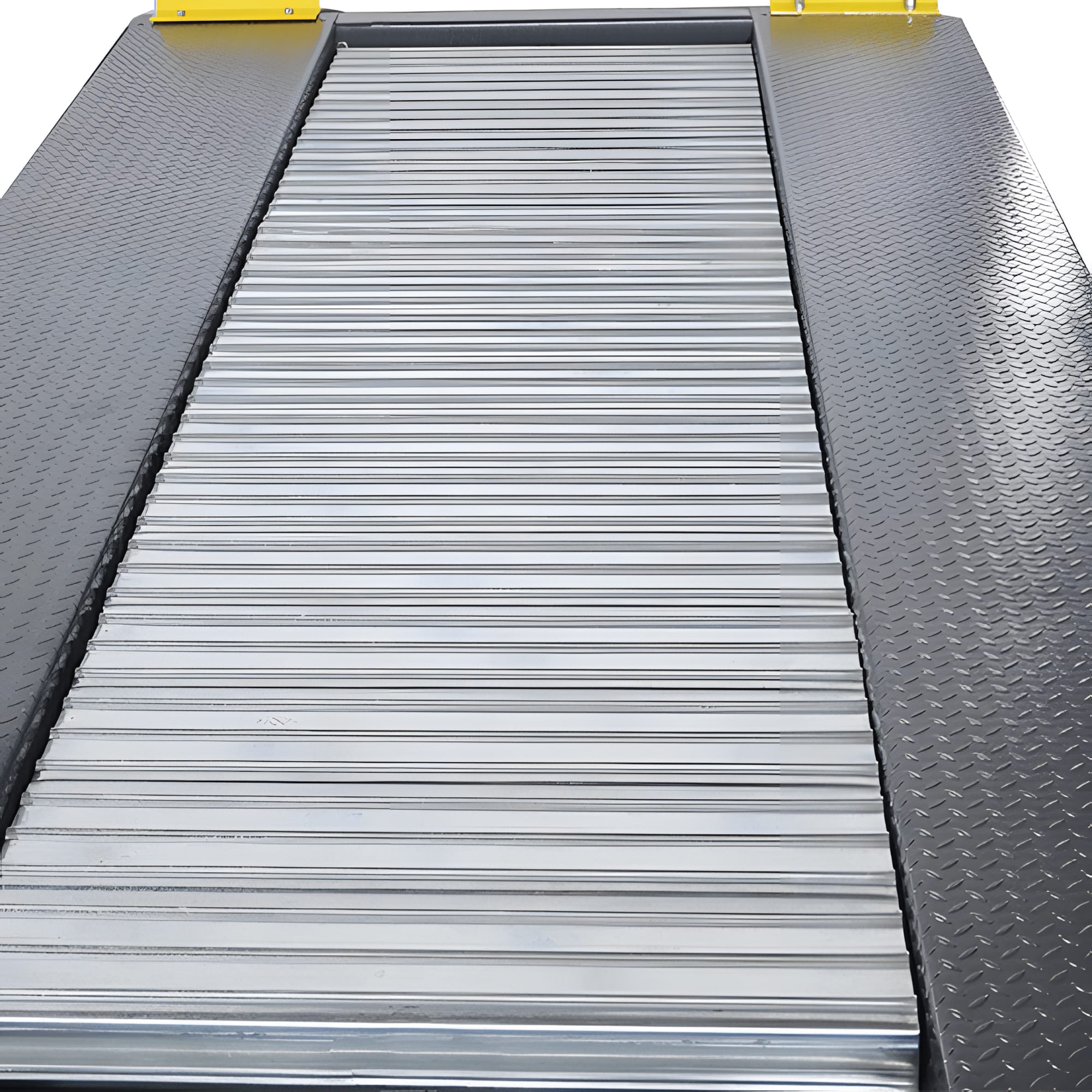

• Non-slip diamond plate runways

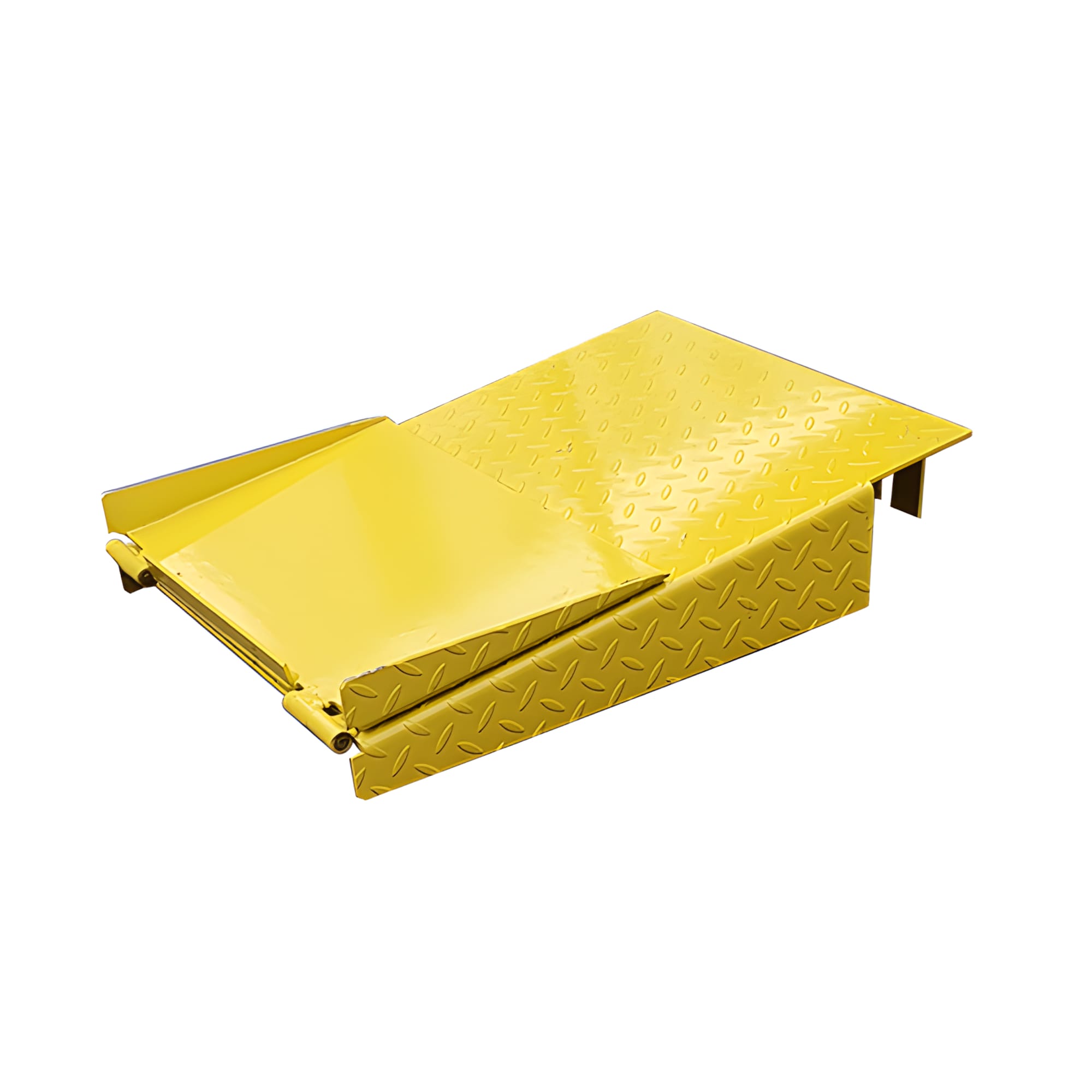

• Foldable drive-on ramps come standard (two per lift, P/N: 104533025C-01)

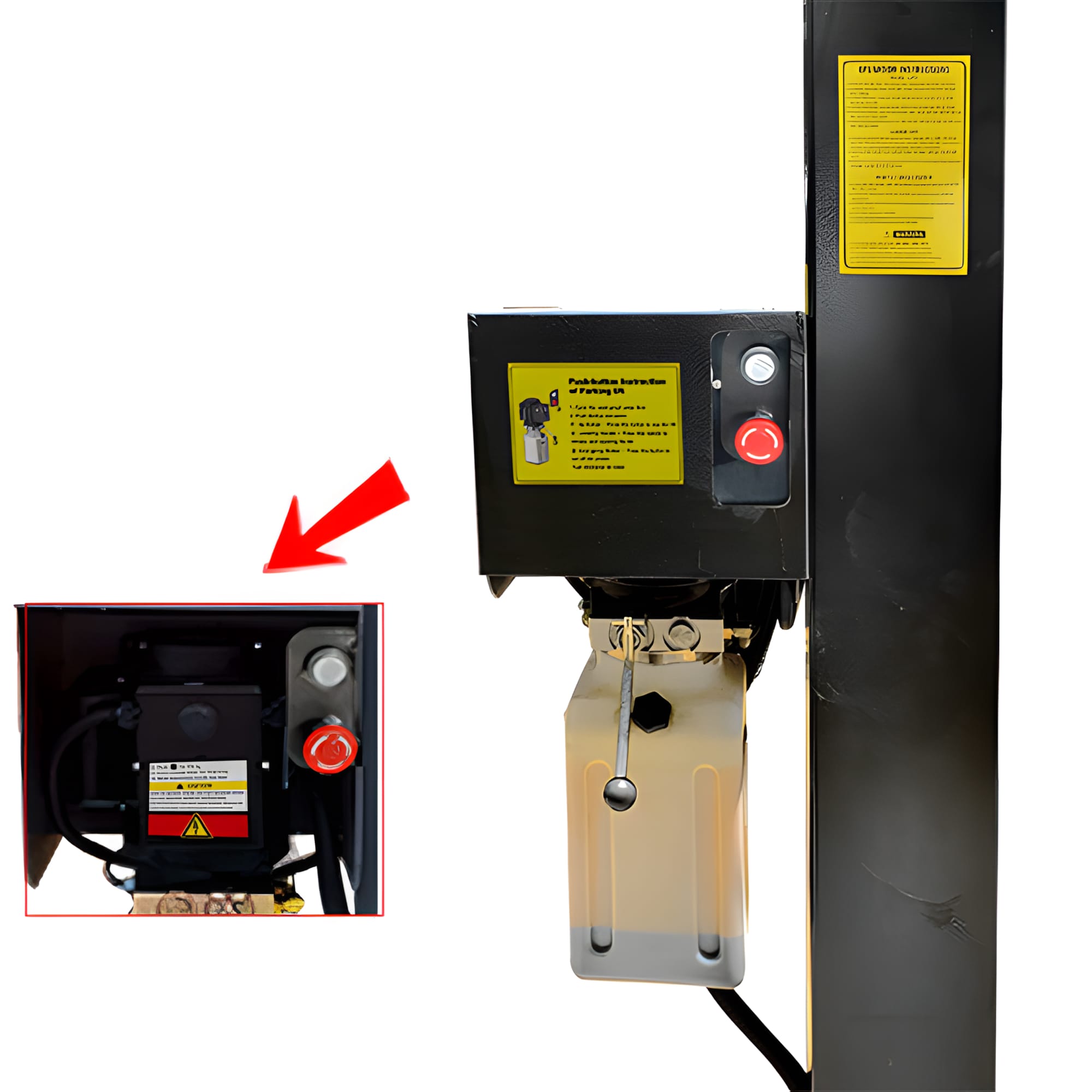

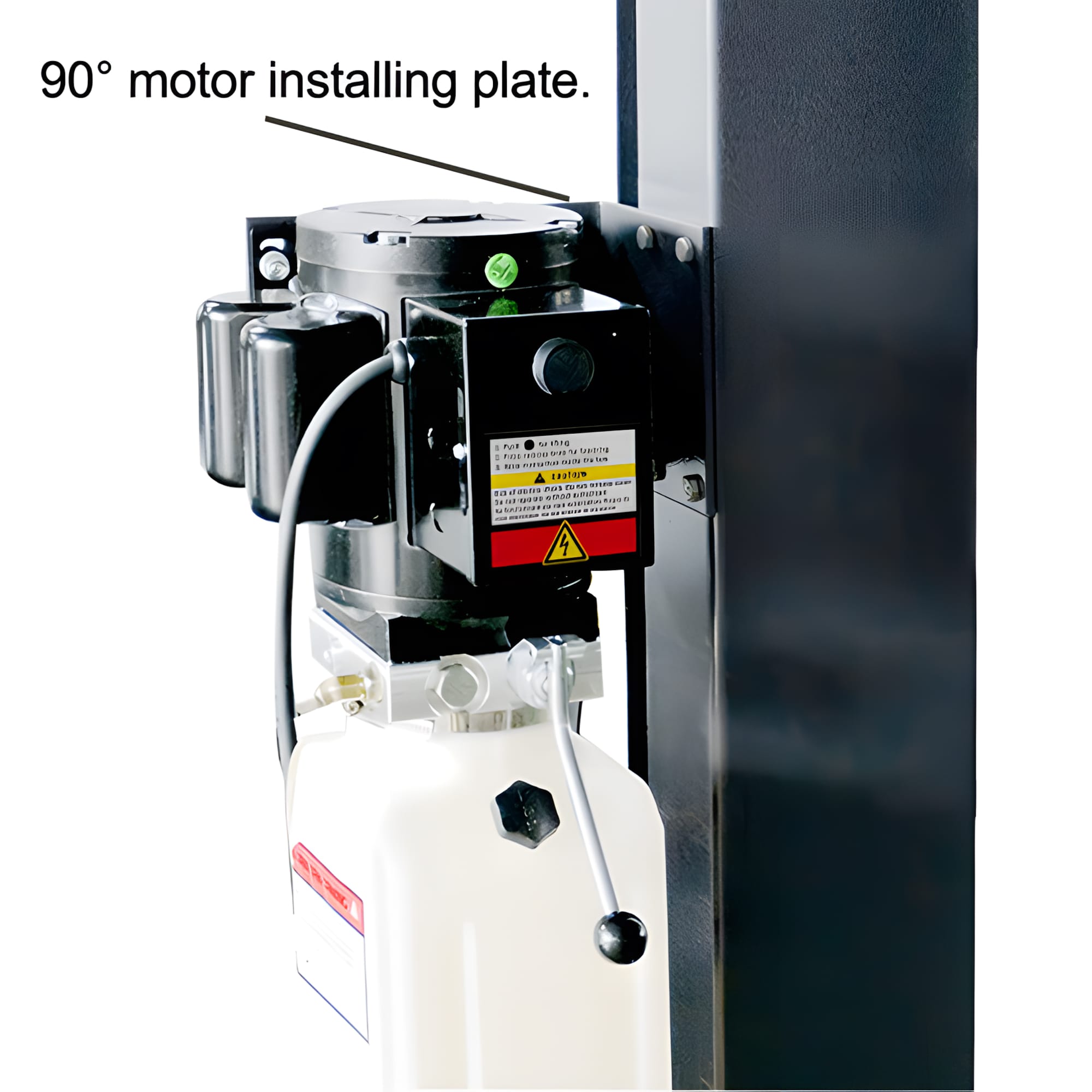

• 110V single-phase 1.0 HP power unit, 100-second full lift cycle
• 2,771-lb gross weight ships via standard freight (no 53' truck required)
• AMGO 5-3-2 warranty: 5 years structural / 3 years hydraulic / 2 years power unit and electrical
