Description

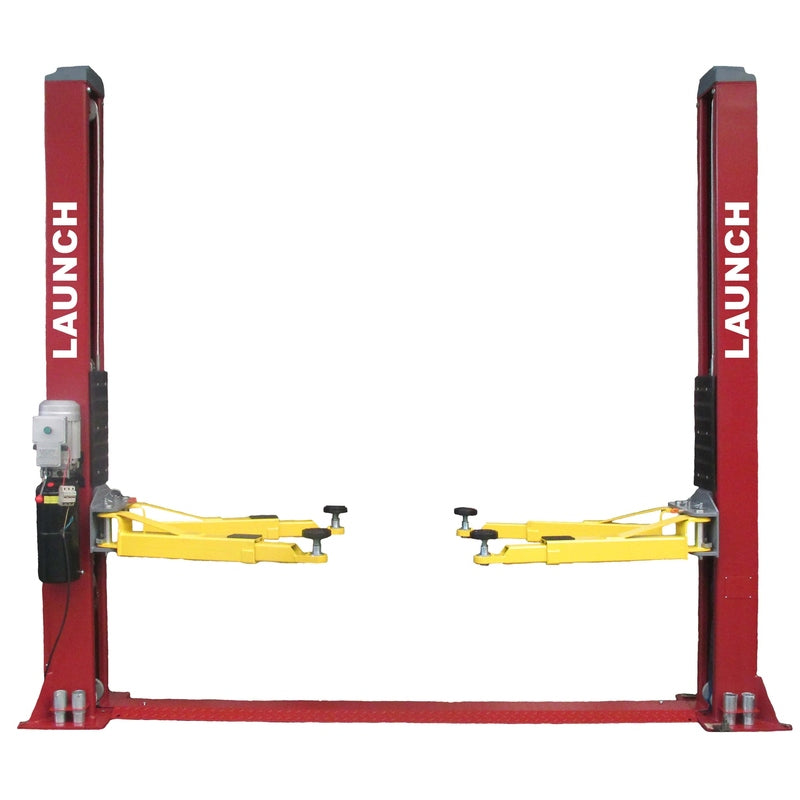

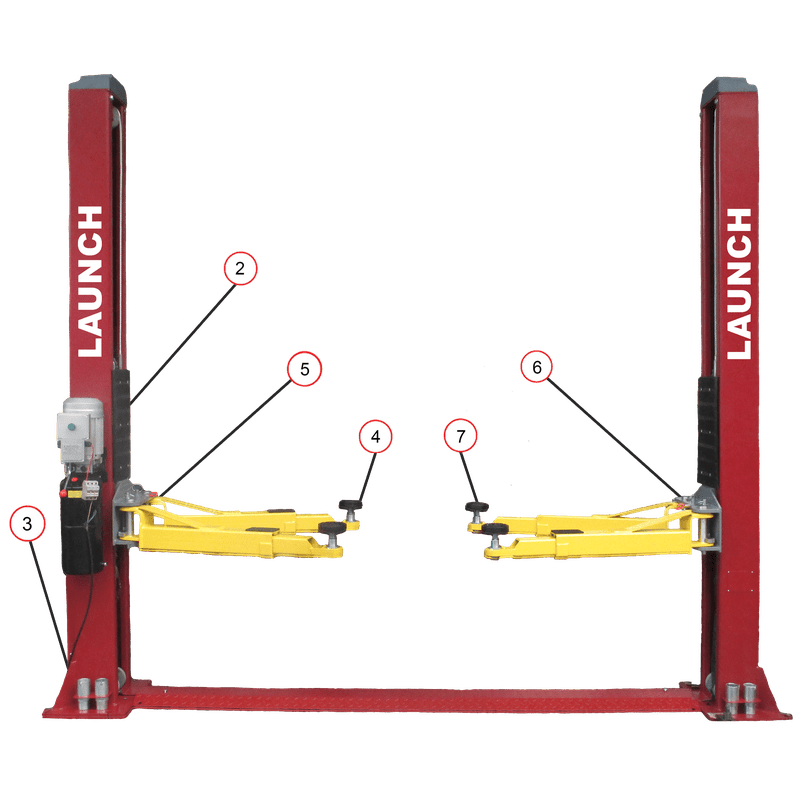

-This lift is a commercial grade, baseplate style car lift with symmetric (straight column) posts and symmetric arms. The TLT240SB symmetric arms and open top are perfect for lifting pickup trucks. Dual point lock release and durable chain-driven cylinders used on the TLT240SB are a durable time-proven design, making the TLT240SB an excellent choice for the professional shop or the car enthusiast. Launch provides unmatched support and availability for its complete product line.
Features
-- 9,000 lbs Capacity
- Chain Drive

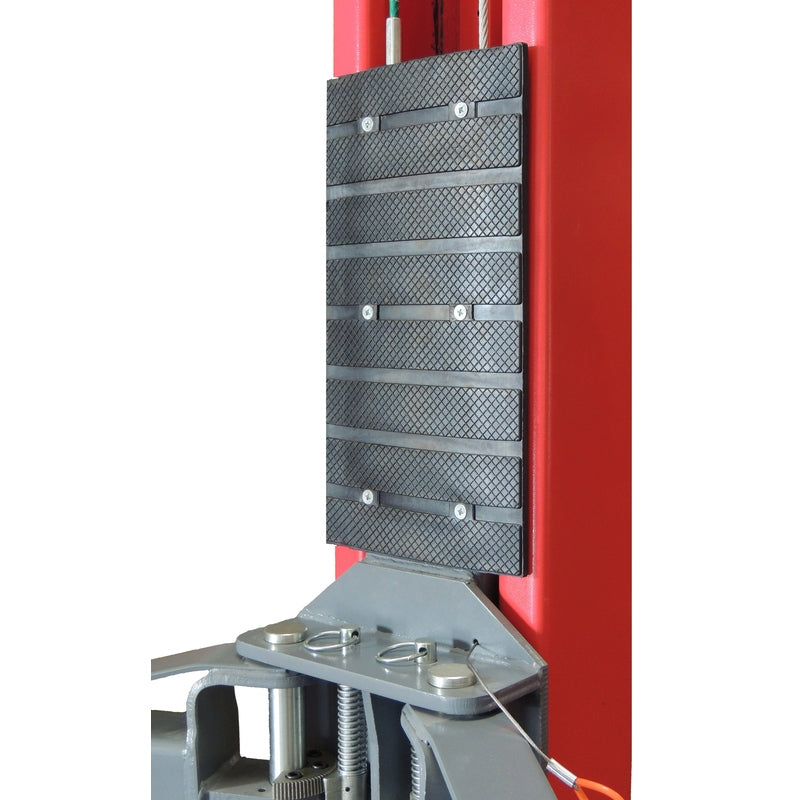

- Rubber Door Guards

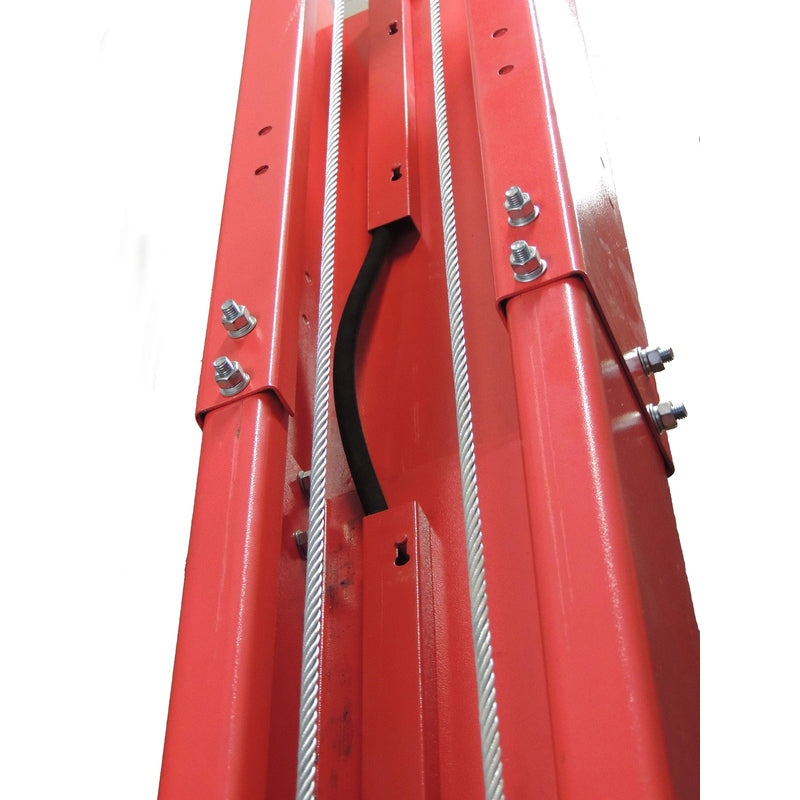

- Hose Guards

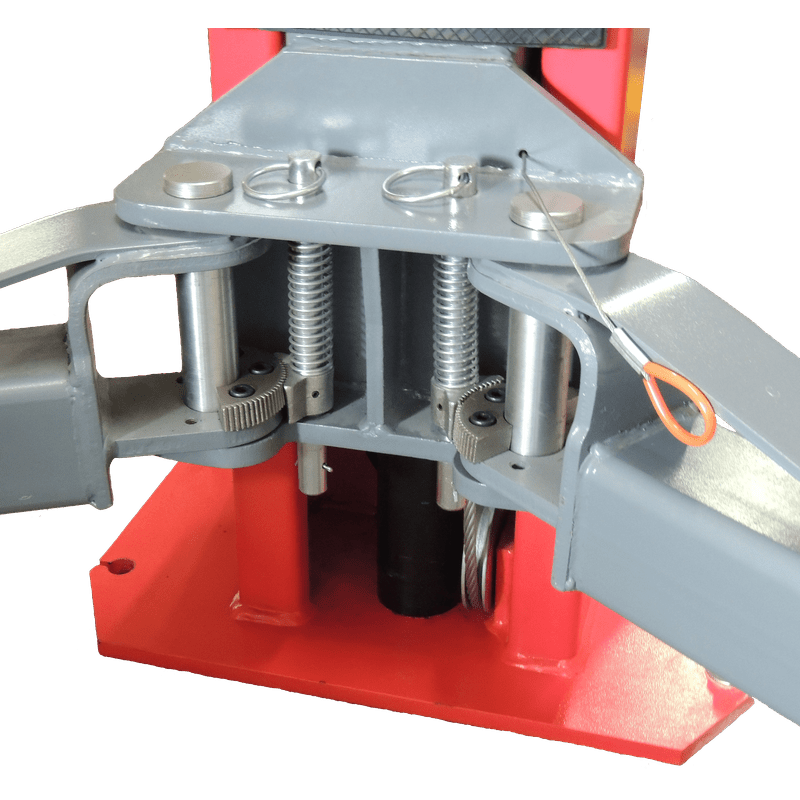

- Dual Point Lock Release
- Heavy Duty Arm Restraint System

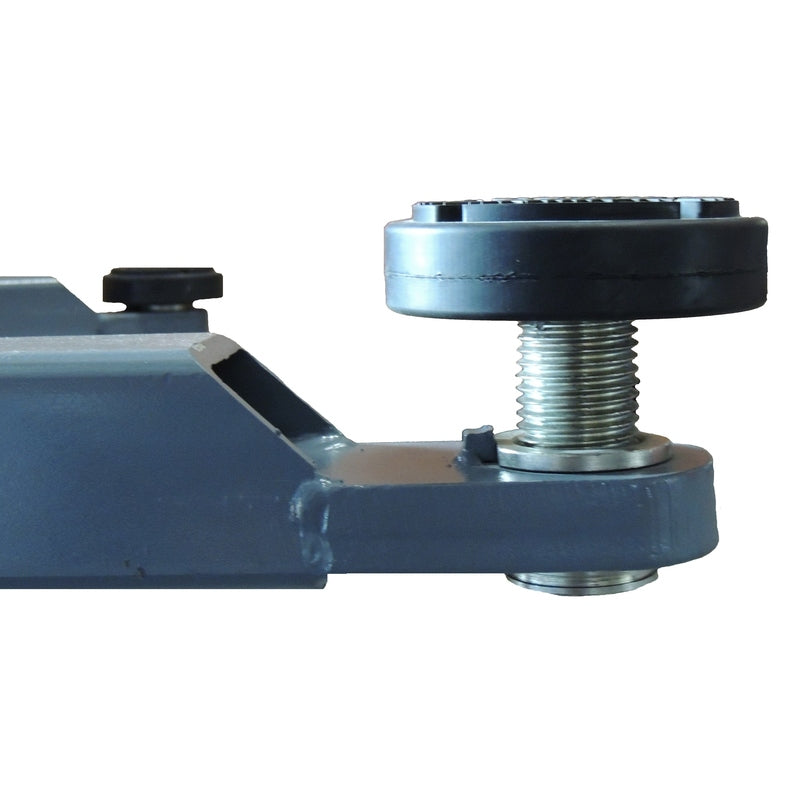

- Double Telescoping Screw Pads

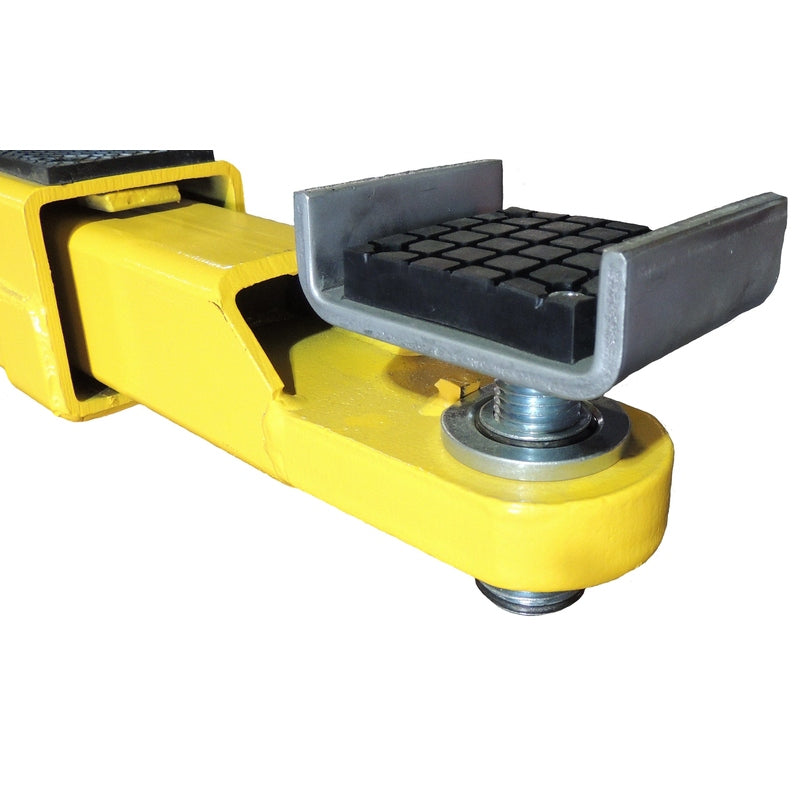

- Stackable Foot Pad Adapters Included

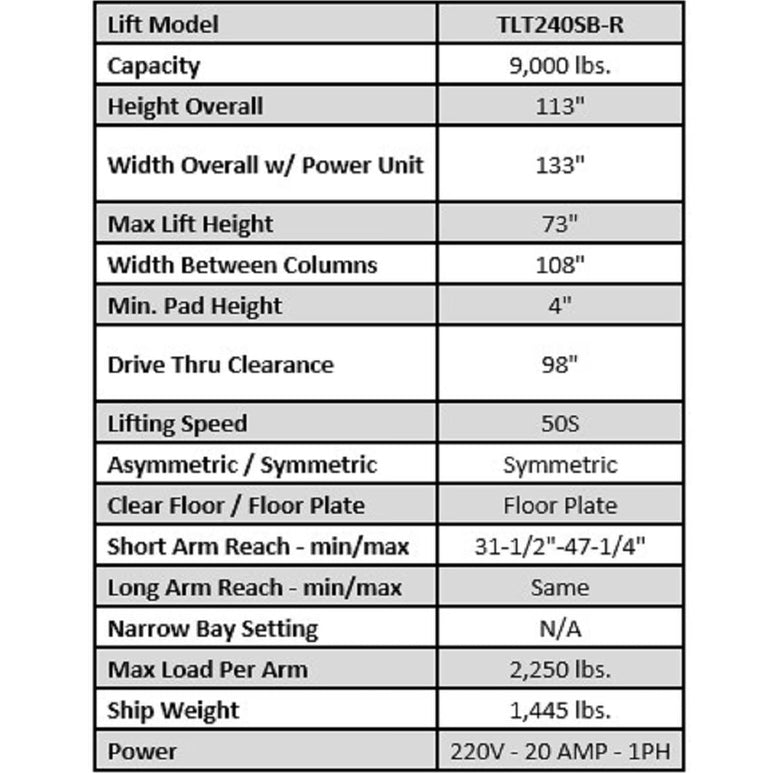

Specifications
-Lift Model | TLT240SB-R |
Capacity | 9,000 lbs. |
Height Overall | 113" |
Width Overall w/ Power Unit | 133" |
Max Lift Height | 73" |
Width Between Columns | 108" |
Min. Pad Height | 4" |
Drive Thru Clearance | 98" |
Lifting Speed | 50S |
Asymmetric / Symmetric | Symmetric |
Clear Floor / Floor Plate | Floor Plate |
Short Arm Reach min/max | 31-1/2"-47-1/4" |
Long Arm Reach min/max | Same |
Narrow Bay Setting | N/A |
Max Load Per Arm | 2,250 lbs |
Ship Weight | 1,445 lbs |
Power | 220V-20 AMP-1PH |
