Description

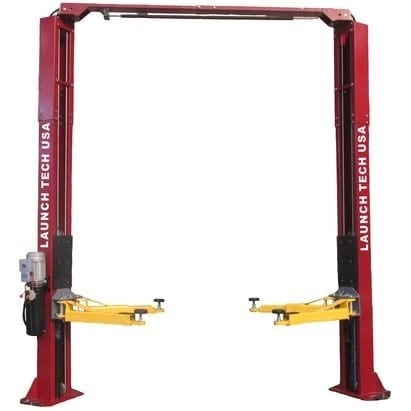

-This lift is a commercial grade, asymmetrical clear floor lift with adjustable width and the ability to install rotated asymmetric (turned column) or standard asymmetric (straight column). The TLT240SC has three three-stage short arms, two-stage long arms, 4.3 min. pad height and versatile design allow easy lifting of passenger cars and light pickup trucks. Dual point lock release and durable chain-driven cylinders make the TLT240SC a great choice for the professional shop or the car enthusiast. At Launch, we provide unmatched support and availability for our complete product line of automotive lifts.
Adjustable Column Width
Provides extra 6 of width adjustment for narrow service bays to custom fit your shop (TLT240SC Only).

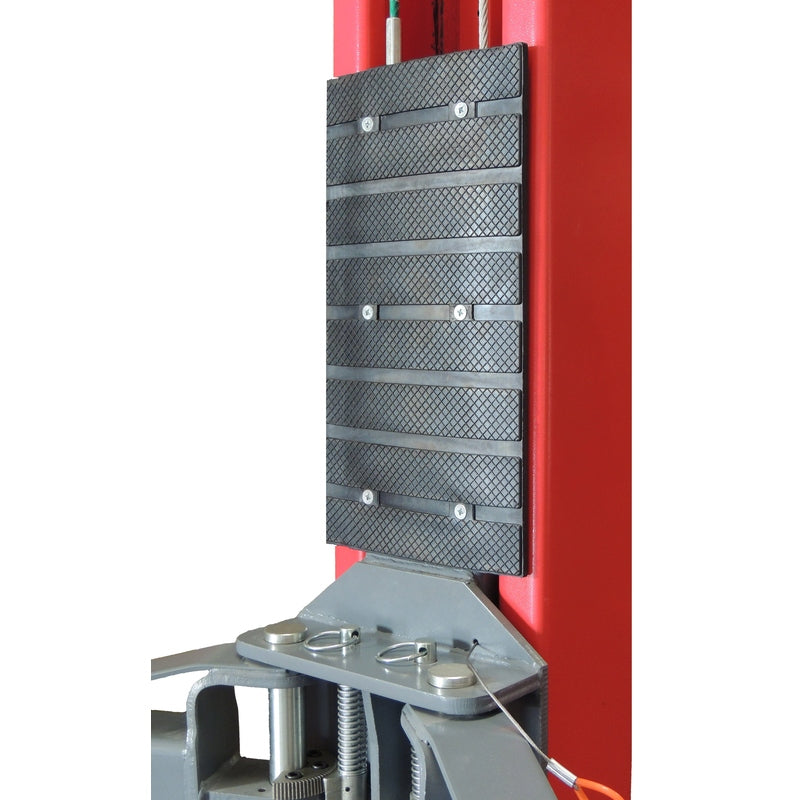

Rubber Door Guards
Provides added security against door damage.

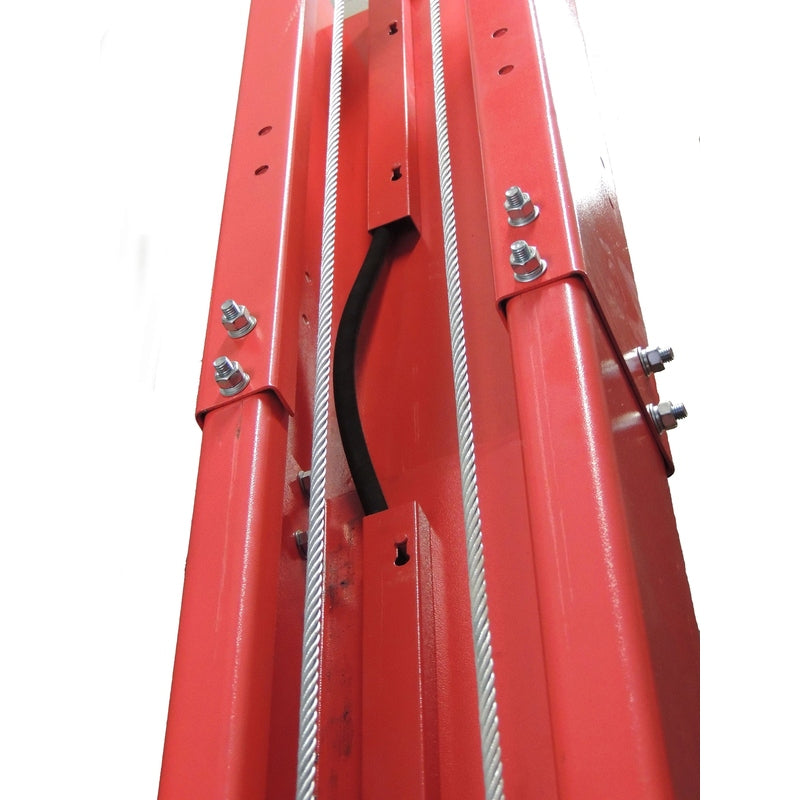

Hose Guards
Protects hydraulic hoses from damage.
Dual Point Lock Release
Allows technicians to disengage both column locks independently.

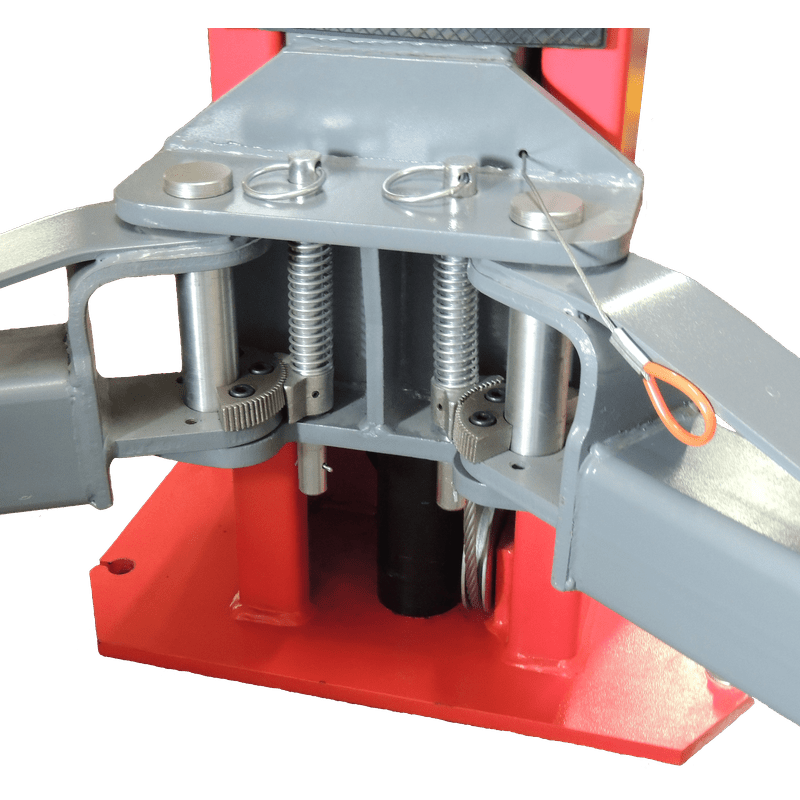

Heavy-Duty Arm Restraint System
Oversize rugged steel gears, pins, and springs for trouble-free operation.

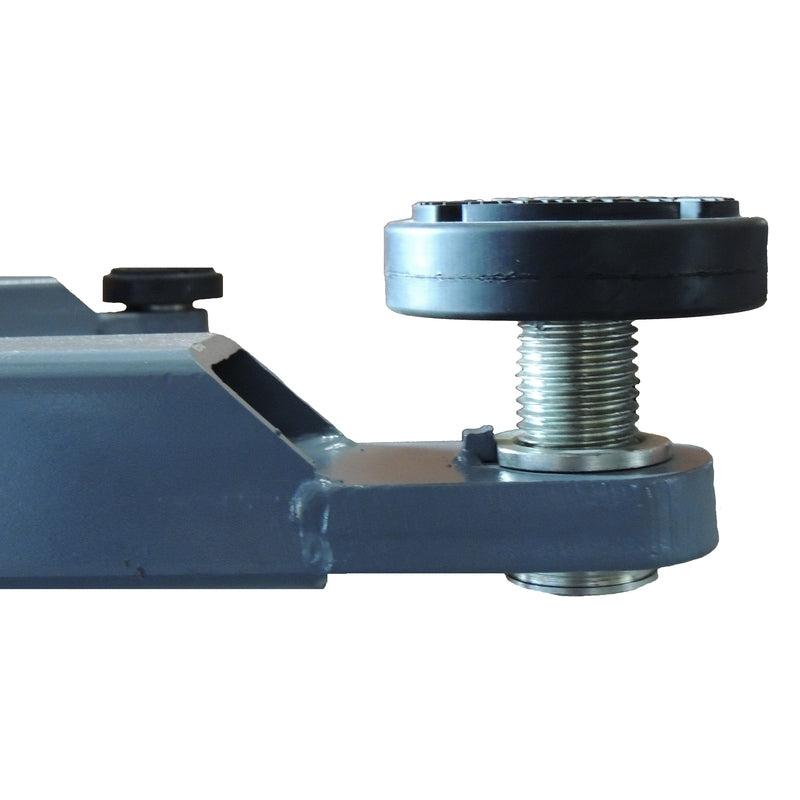

Double Telescoping Screw Pads
Used with rubber pads offering 2.5 adjustment for complete vehicle coverage.

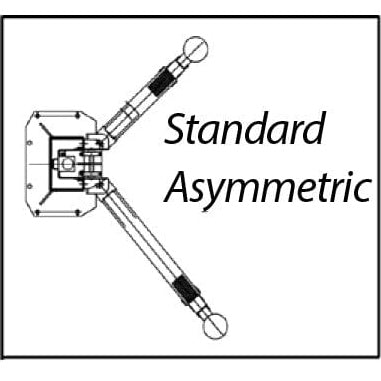

*Standard Asymmetric (TLT240SC Only)
Lift installed with columns facing each other.

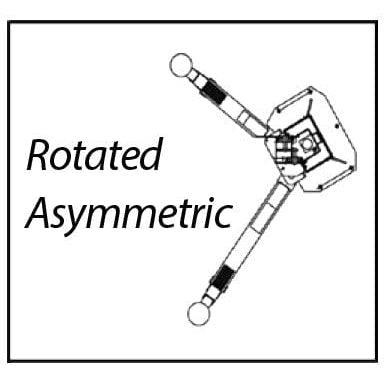

*Rotated Asymmetric (TLT240SC Only)
Lift installed with columns offset - rotated.

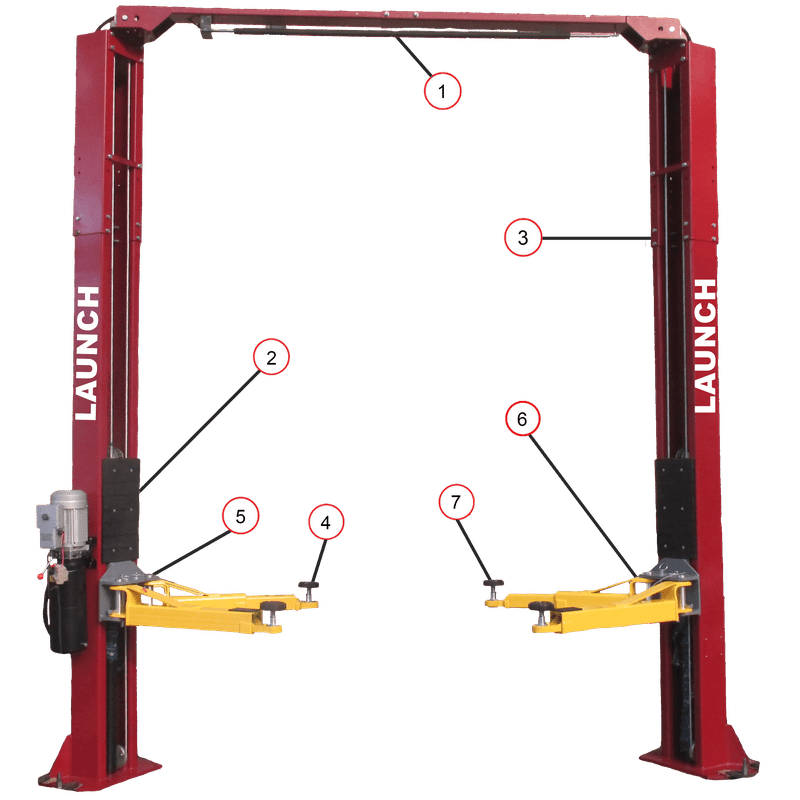

Features
-- 9,000 lbs. Capacity
- Chain Drive
- Rubber Door Guards
- Hose Guards
- Dual Point Lock Release
- Heavy Duty Arm Restraint System
- Double Telescoping Screw Pads
- Stackable Pad Extensions

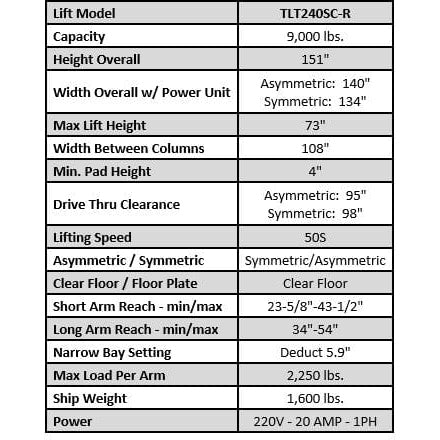

Specifications
-- Capacity: 9,000 lbs.
- Height Overall: 151"
- Width Overall w/ Power Unit: Asymmetric: 140"
- Symmetric: 134"
- Max Lift Height: 73"
- Width Between Columns: 108"
- Min. Pad Height: 4"
- Drive Thru Clearance: Asymmetric: 95"
- Symmetric: 98"
- Lifting Speed: 50s
- Asymmetric / Symmetric: Symmetric/Asymmetric
- Clear Floor / Floor Plate: Clear Floor
- Short Arm Reach min/max: 23-5/8"-43-1/2"
- Long Arm Reach min/max: 34"-54"
- Narrow Bay Setting: Deduct 5.9"
- Max Load Per Arm: 2,250 lbs.
- Power: 208-230V-60Hz.-1 PH
- Shipping Weight: 1,600 lbs
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
