Description

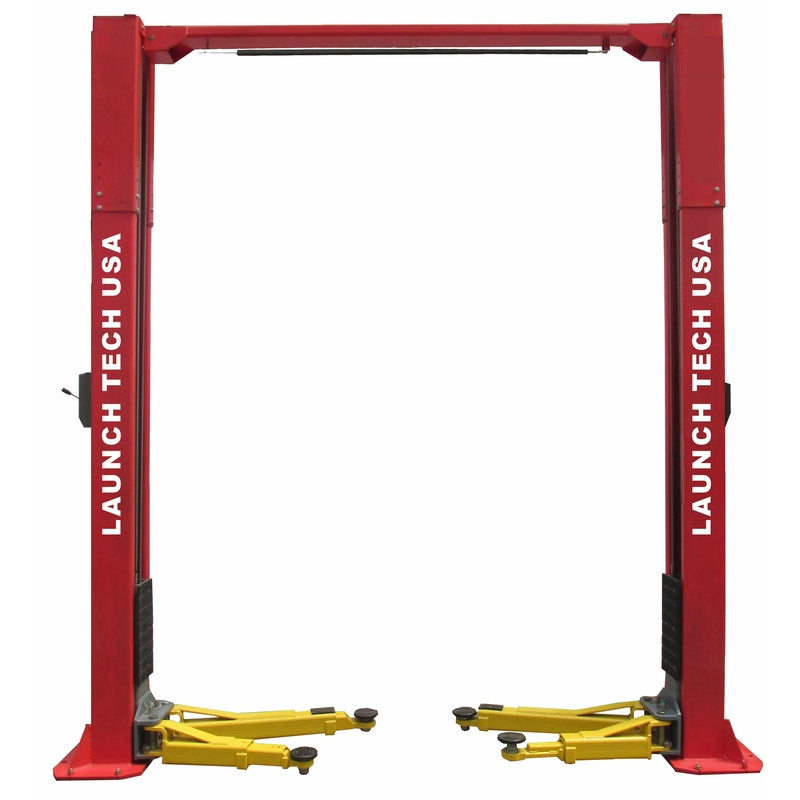

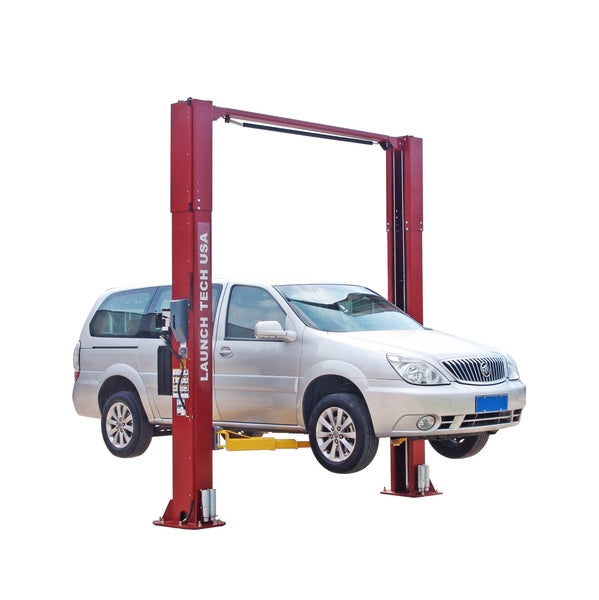

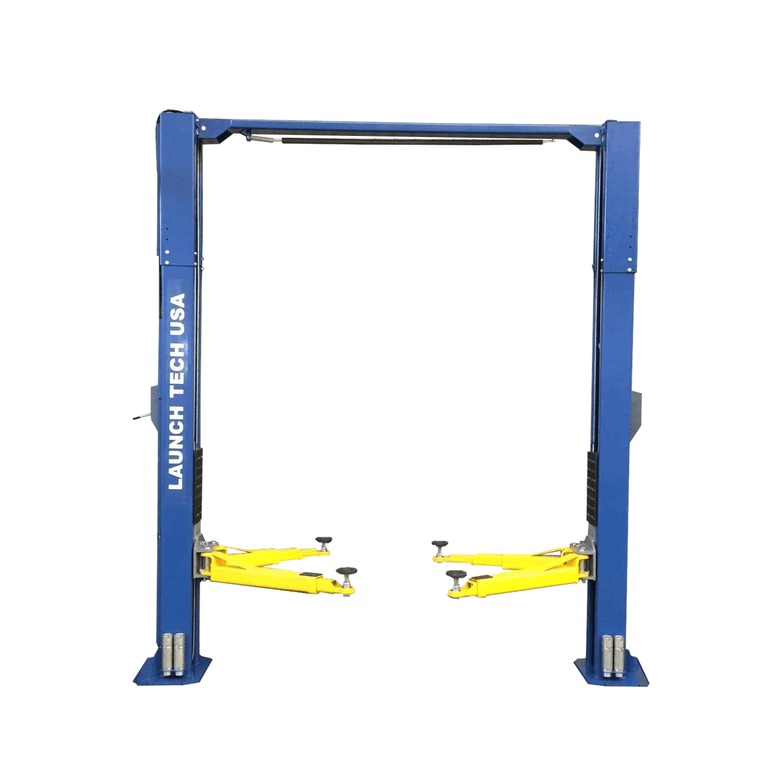

-This lift is a professional grade, asymmetrical clear floor lift with adjustable height making it ideal for super-duty pickup trucks. The TLT211-AS three-stage short arms, two-stage long arms, 4.3 min. pad height and the standard asymmetric design provide the ability to easily lift pickup trucks and passenger cars. The best part, we include all the necessary parts to install the lift at the high or standard height at no additional cost. Another professional-grade LaunchTech USA automotive lift at an affordable price with unsurpassed customer service. Stocked in Blue or Red.

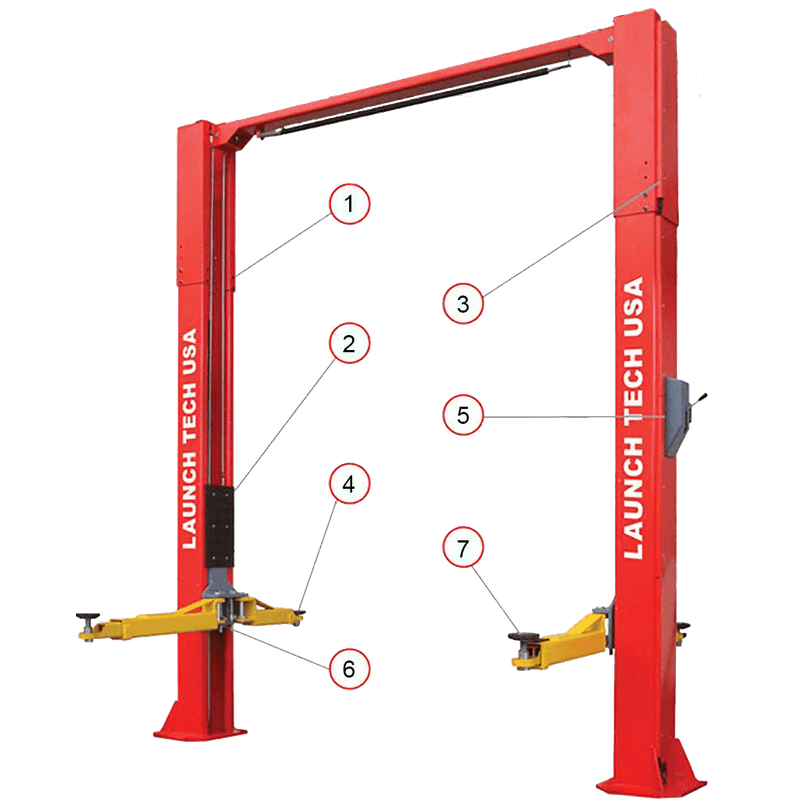

Provides an extra 6" of height adjustment for ease of installation with various ceiling heights.
Adjustable Column Width
Provides extra 6" of width adjustment for narrow service bays to custom fit your shop.
Rubber Door Guards
Provides added security against door damage.
Outer Hose Guards
Protects hydraulic hoses from damage.
Stackable Foot Pad Extensions
Extra tall applications are no problem with the four 6" tall and two 3" short extensions
Single Point Lock Release
Allows technicians to disengage both column locks simultaneously.
Heavy-Duty Arm Restraint System
Oversize rugged steel gears, pins, and springs for trouble free operation
Double Telescoping Screw Pads
Used with or without rubber pads offering 6.5" adjustment for complete vehicle coverage. You precisely control just how high the pads go with the threaded screw pads.
Standard Symmetric
Columns facing each other, with vehicle centered.
Rotated Asymmetric
Lift installed with columns rotated at an angle, and the vehicle set further back on the lift.
Features

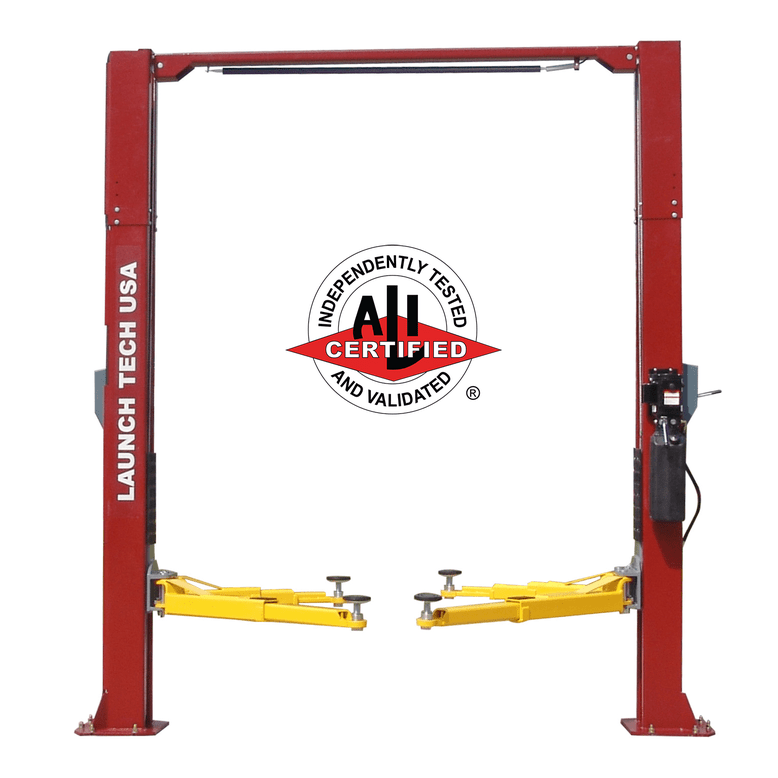

-- ALI/ETL certified for quality assurance
- 10,000 lb lifting capacity
- Direct Drive for reliability
- Adjustable Column Height - Provides an extra 6" of height adjustment for ease of installation with various ceiling heights
- Adjustable Column Width - Provides extra 6" of width adjustment for narrow service bays to custom fit your shop
- Rubber Door Guards - Provides added security against door damage
- Outer Hose Guards - Protects hydraulic hoses from damage
- Stackable Foot Pad Extensions - Extra tall applications are no problem with the four 6" tall and four 3" short extensions
- Single Point Lock Release - Allows technicians to disengage both column locks simultaneously
- Heavy-Duty Arm Restraint System - Oversize rugged steel gears, pins and springs for trouble free operation
- Double Telescoping Screw Pads - Used with or without rubber pads offering 6.5" adjustment for complete vehicle coverage
- Standard Asymmetric - Lift installed with columns facing each other
- Rotated Asymmetric - Lift installed with columns offset - rotated
- 3 Stage front arms for maximum ability to reach frame jacking points
- 220V premium grade SPX power unit
Specifications
-- Capacity: 10,000 lbs.
- Height Overall: 145-1/2" / 149"
- Width Overall w/ Power Unit: Asymmetric: 138"
- Symmetric: 137"
- Max Lift Height: 73"
- Width Between Columns: 110" / 102"
- Min. Pad Height: 4"
- Drive Thru Clearance: Asymmetric: 88"
- Symmetric: 98.4"
- Lifting Speed : 50s
- Asymmetric / Symmetric: Symmetric/Asymmetric
- Clear Floor / Floor Plate: Clear Floor
- Short Arm Reach min/max: 23-5/8"-43-1/2"
- Long Arm Reach min/max: 38-5/8"-61-7/8"
- Narrow Bay Setting: Deduct 5.9"
- Max Load Per Arm: 2,500 lbs.
- Power: 208-230V-60Hz-1 PH
- Ship Weight: 1,750 lbs.
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
