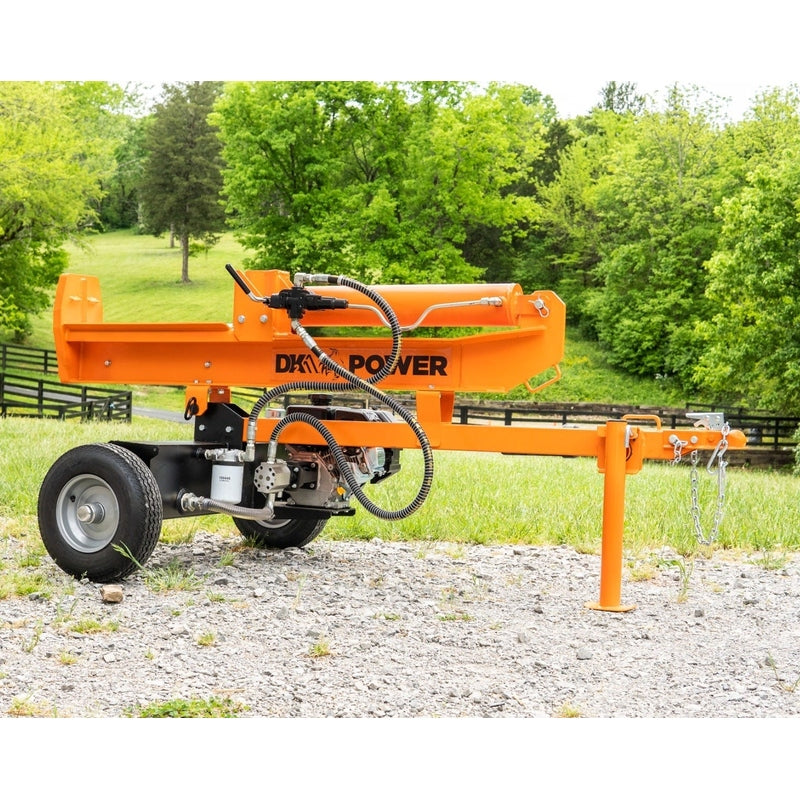

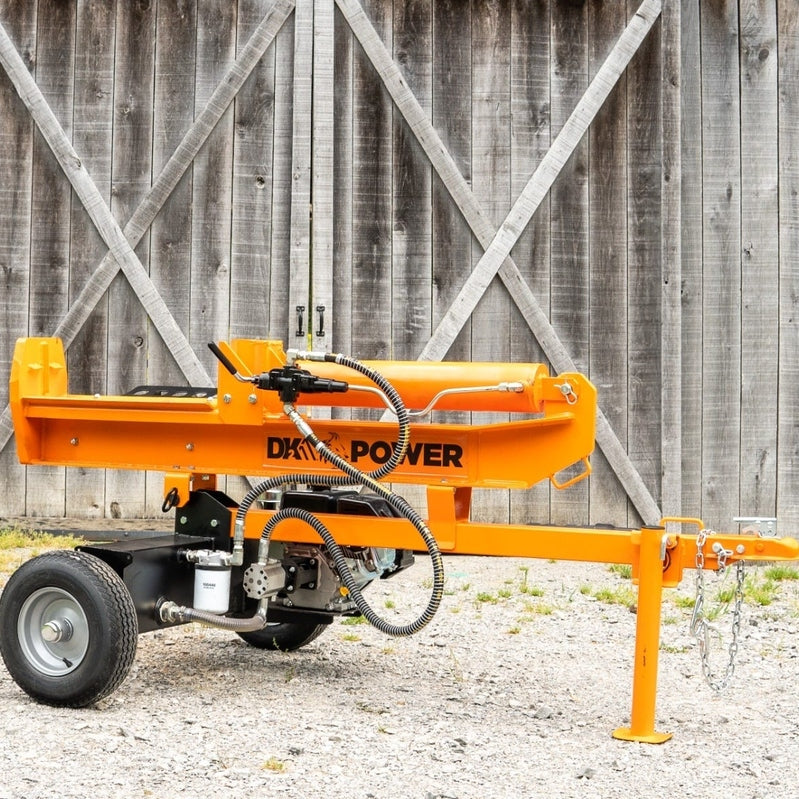

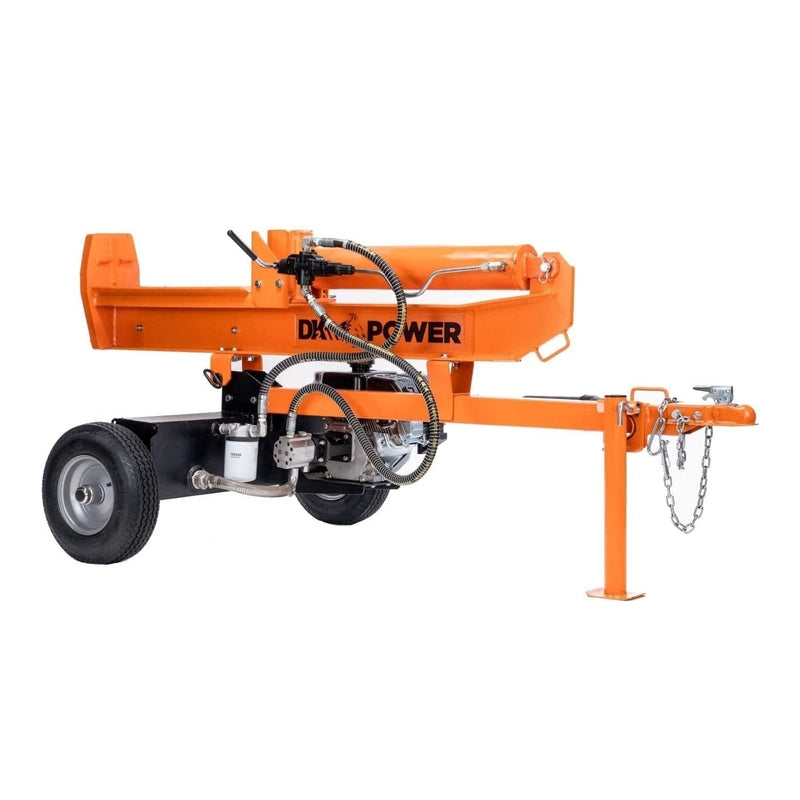

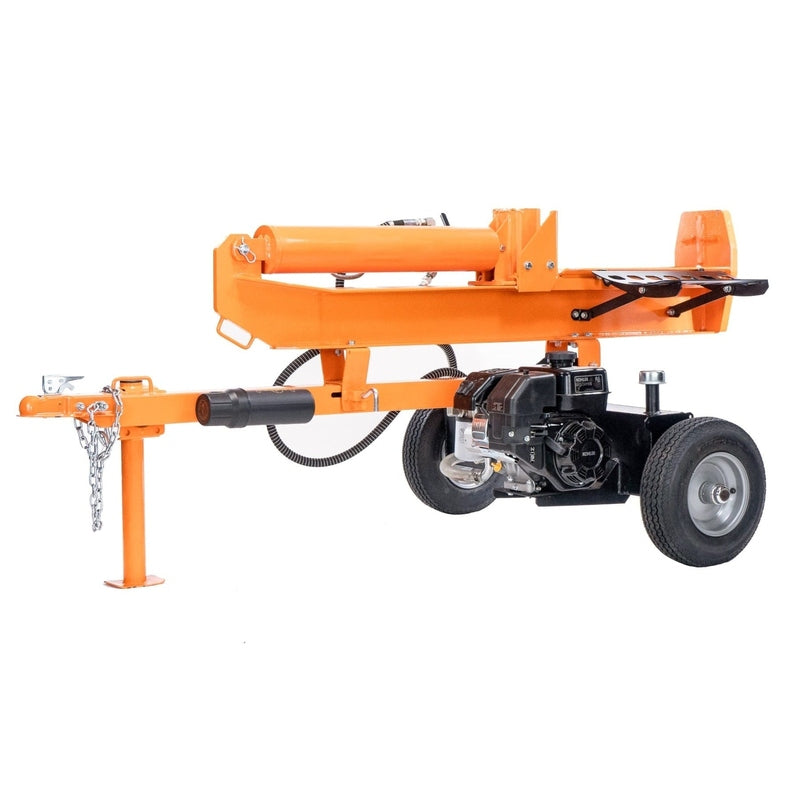

Introducing the 32-ton horizontal and vertical hydraulic log splitter. The DK2 POWER OPS232 is driven by a powerful KOHLER SH265 6.5 HP 196 cc engine. This machine is capable of splitting up to 25.5 inches in length and 21.6 inches in diameter with uncompromising force at a cycle speed of 13 seconds, all while using the full potential of its 8.5-inch heat-treated steel wedge. The OPS232 sits on a 37-inch wheelbase equipped with 16-inch O.D. 4.8-8 tires and includes a tow bar for easy job site moving.
Features
- Powered by a KOHLER 3000 Series SH265 6.5 HP 196 cc engine
- 25.5-inch by 21.6-inch diameter splitting capacity
- 8.5-inch heat-treated steel wedge

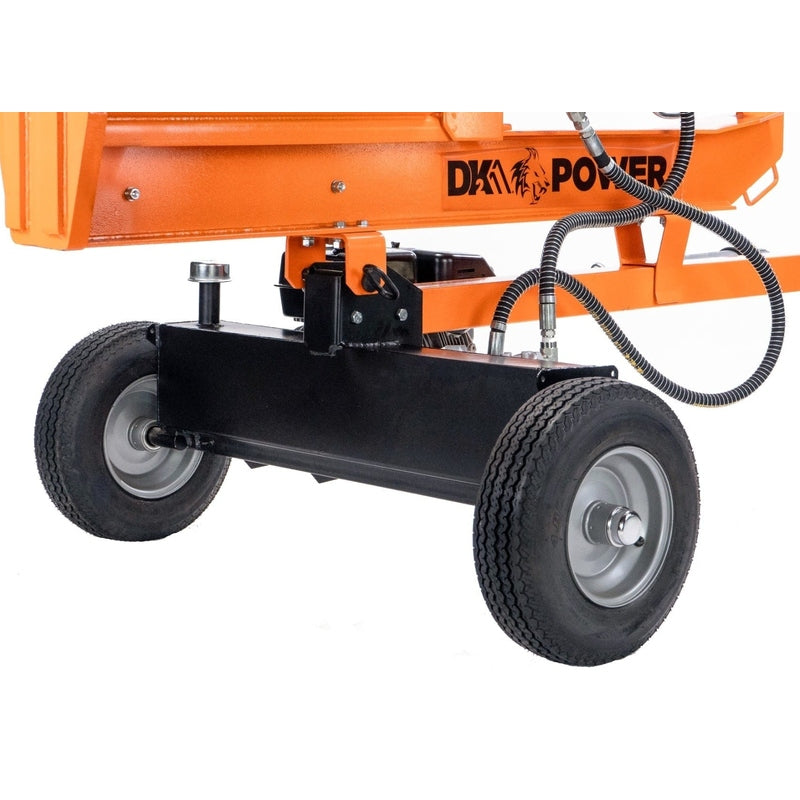

- D.O.T. approved 16-inch road tires sitting on a 37-inch wheelbase

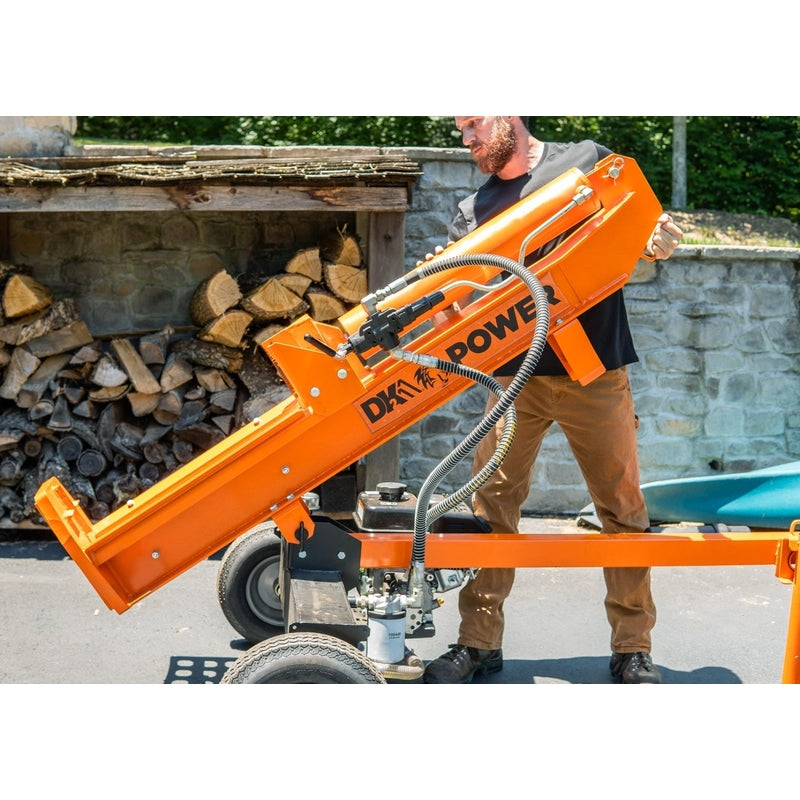

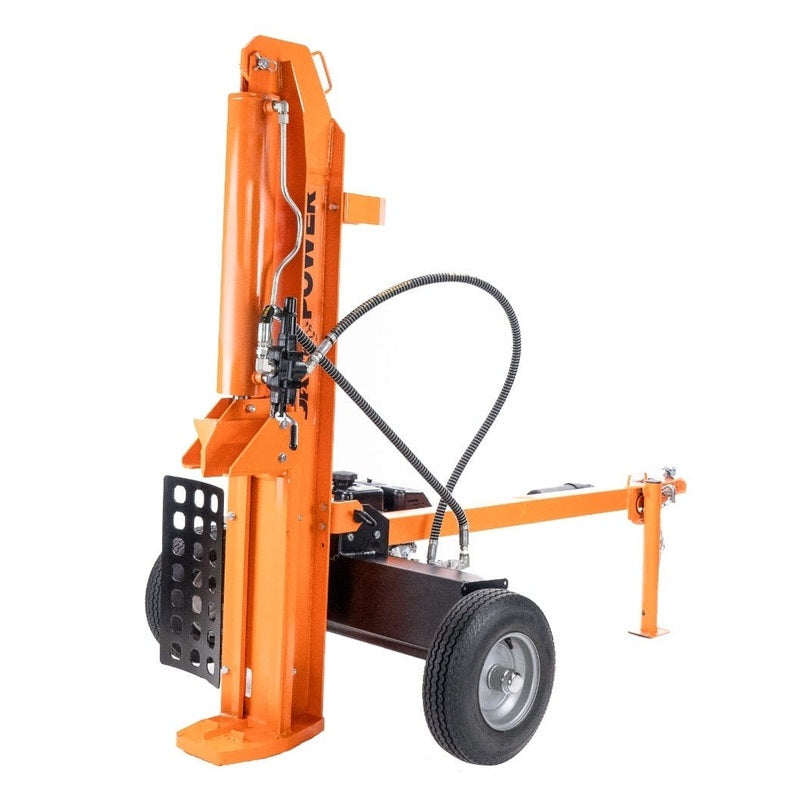

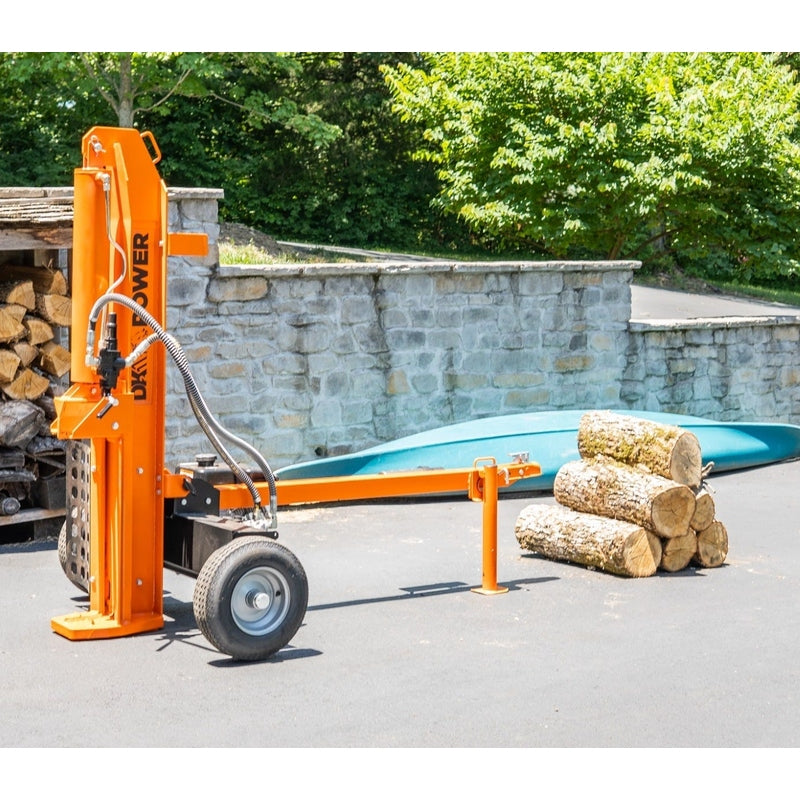

- Folds 90-degrees for both horizontal and vertical splitting capability
- Two-stage 15 GPM hydraulic pump
- 8.5-gallon hydraulic fluid capacity

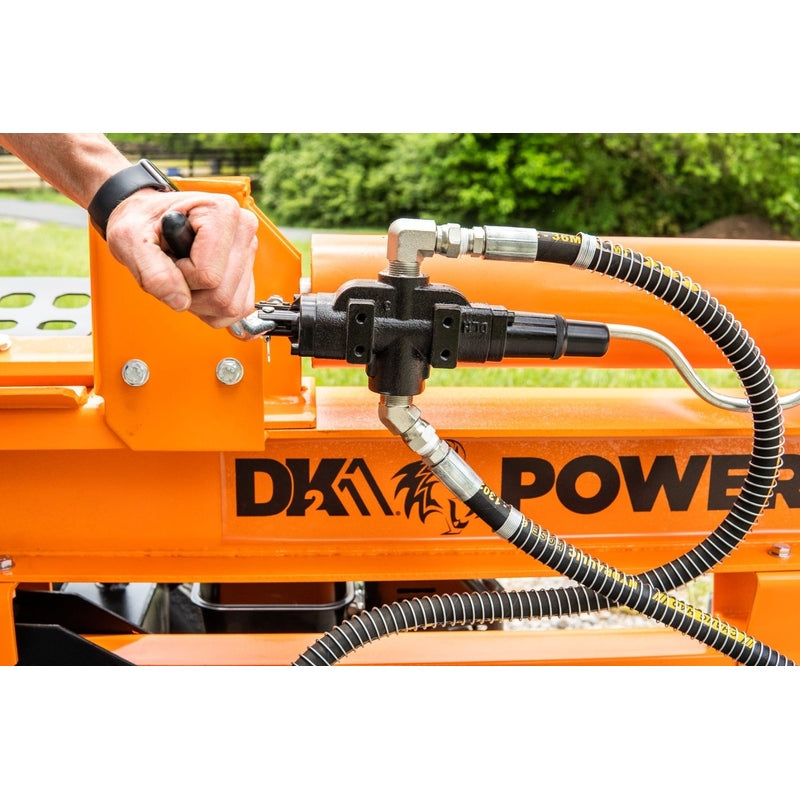

- Auto-retracting adjustable detent valve
- 2-inch ball coupler with safety chains
- Includes 2-year KOHLER and 1-year limited DK2 warranty
Specifications
Specifications
| UPC |
827518008584 |
| BRAND |
DK2 |
| CERTIFICATION(S) |
EPA Phase III, CARB Phase III |
| MATERIAL |
Steel |
| MATERIAL FINISH |
UV Powder Coated |
| COLOR |
Black, Orange |
| WHEELS |
D.O.T. 4.80-8 16 in (40.6 cm) O.D. |
| COUPLER |
2 in (5.08 cm) ball |
| WHEELBASE |
37 in (94 cm) |
| HYDRAULIC CYLINDER |
Ø4.5 in (Ø11.4 cm) x 24 in (60.9 cm) (L) |
| HYDRAULIC FLOW RATE |
15 GPM (56.8 LPM) |
| HYDRAULIC OIL CAPACITY |
8.5 gal (32 L) |
| TYPE OF HYDRAULIC OIL |
AW32/AW46 |
| HYDRAULIC OIL FILTER |
10 micron (1,250 mesh) paper with NBR (Buna-N) seals |
| MAXIMUM SPEED |
Not highway towable and max speed 25 mph (40 km/h) |
| CROSS-BORDER SHIPPING |
No |
| ENGINE/MOTOR |
KOHLER® SH265 6.5 HP 196 cc gas engine |
| ENGINE/MOTOR MAXIMUM TORQUE |
10.2 ft/lb (13.8 Nm) |
| CYCLE TIME |
13 seconds |
| BEAM |
8.5 in (21.6 cm) |
| MAXIMUM SPLITTING CAPACITY |
25.5 in (64.7 cm) (L) x Ø21.6 in (Ø54.8 cm) |
| WEDGE |
8.5 in (21.6 cm) heat-treated steel |
| VALVE |
Auto-retract with adjustable detent |
| ASSEMBLED DIMENSIONS (LXWXH) |
89.4 in x 51.2 in x 37.4 in (227.1 cm x 130 cm x 95 cm) |
| ASSEMBLED WEIGHT |
529 lb (240 kg) |
| SHIPPING DIMENSIONS (LXWXH) |
70.9 in x 31.5 in x 19.7 in (180.1 cm x 80 cm x 50 cm) |
| DISCLAIMER |
Product appearance and specifications are subject to change, Not highway towable and max speed 25 mph (40 km/h) |
| WARRANTY |
2-year KOHLER® engine and 1-year limited DK2 chassis |
